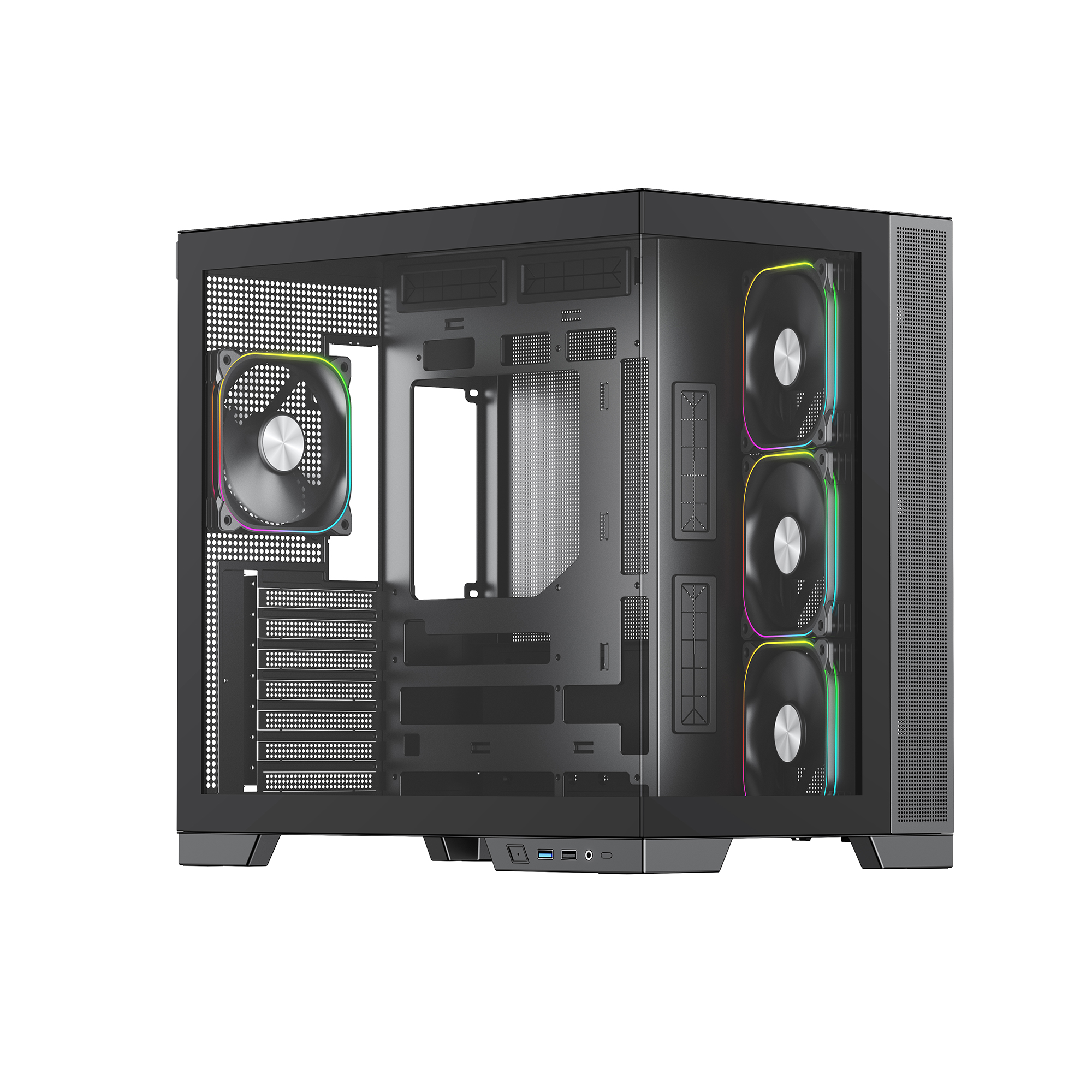

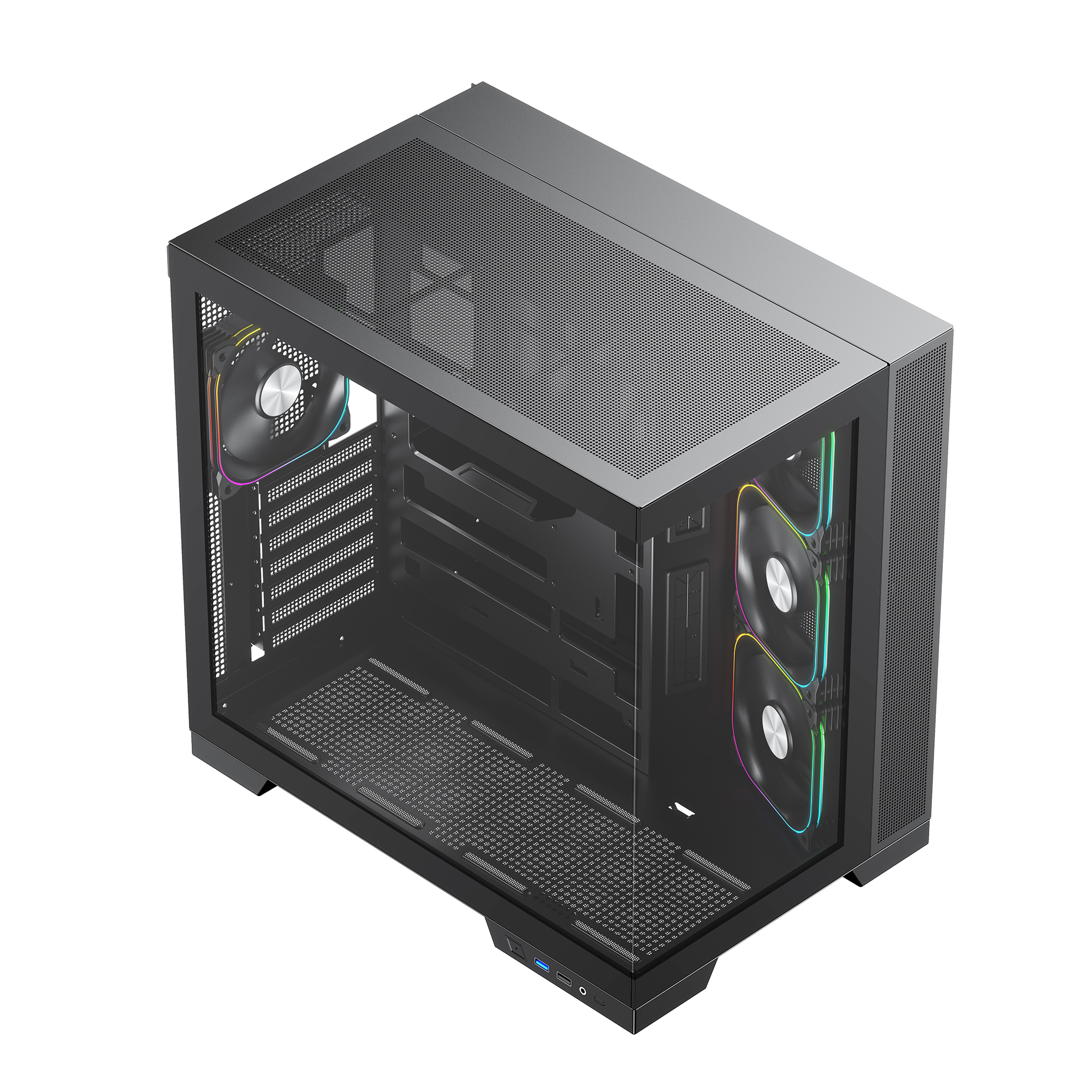

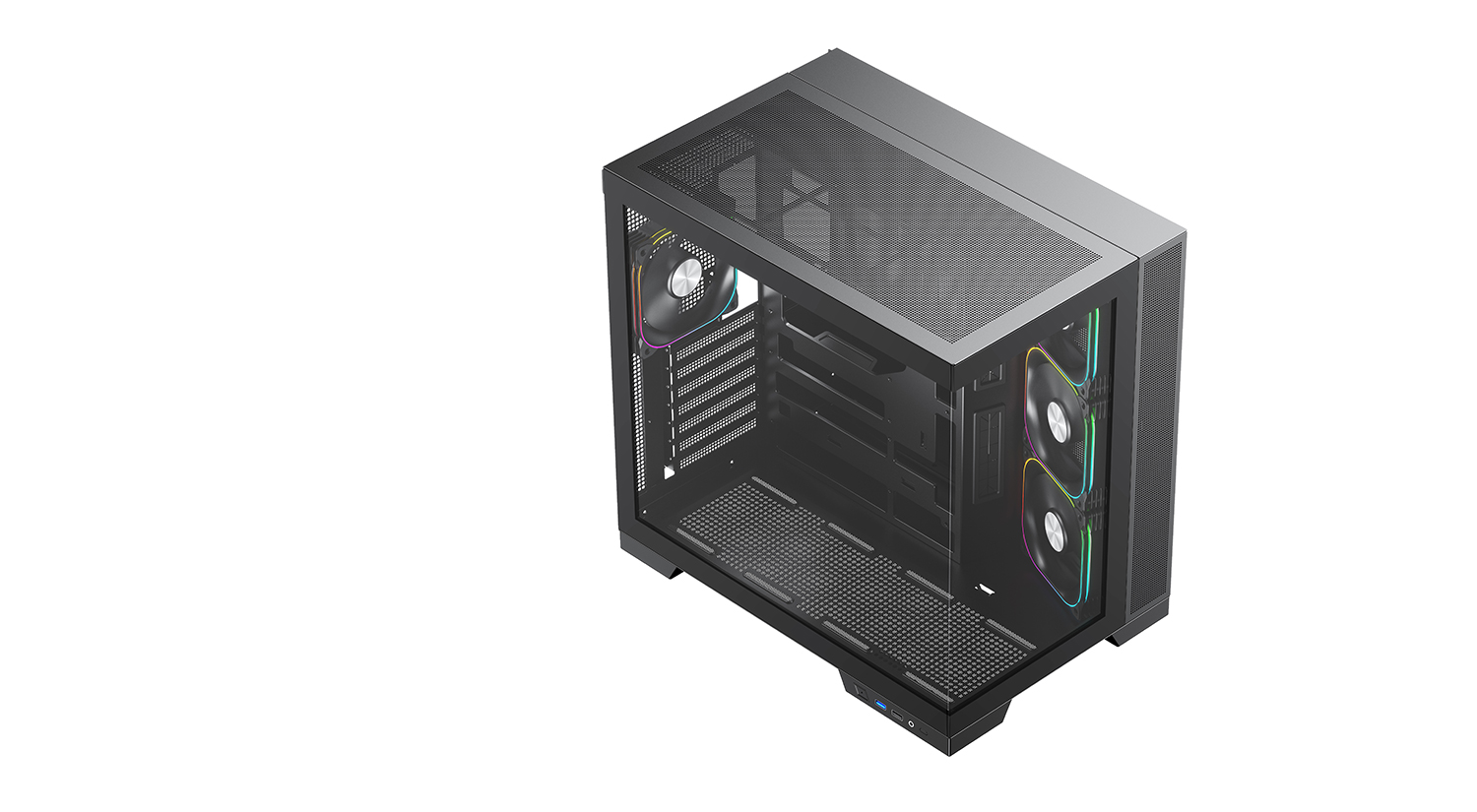

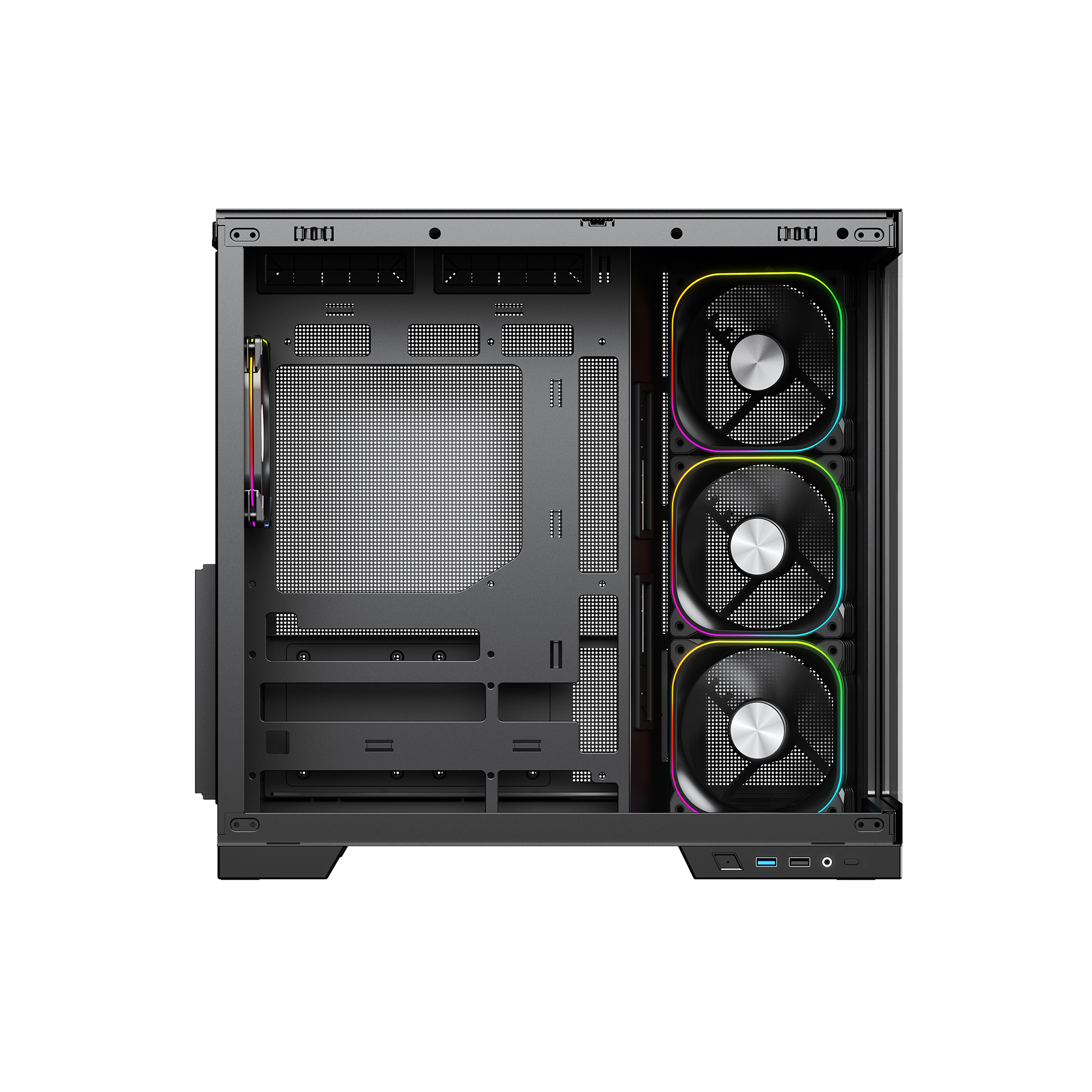

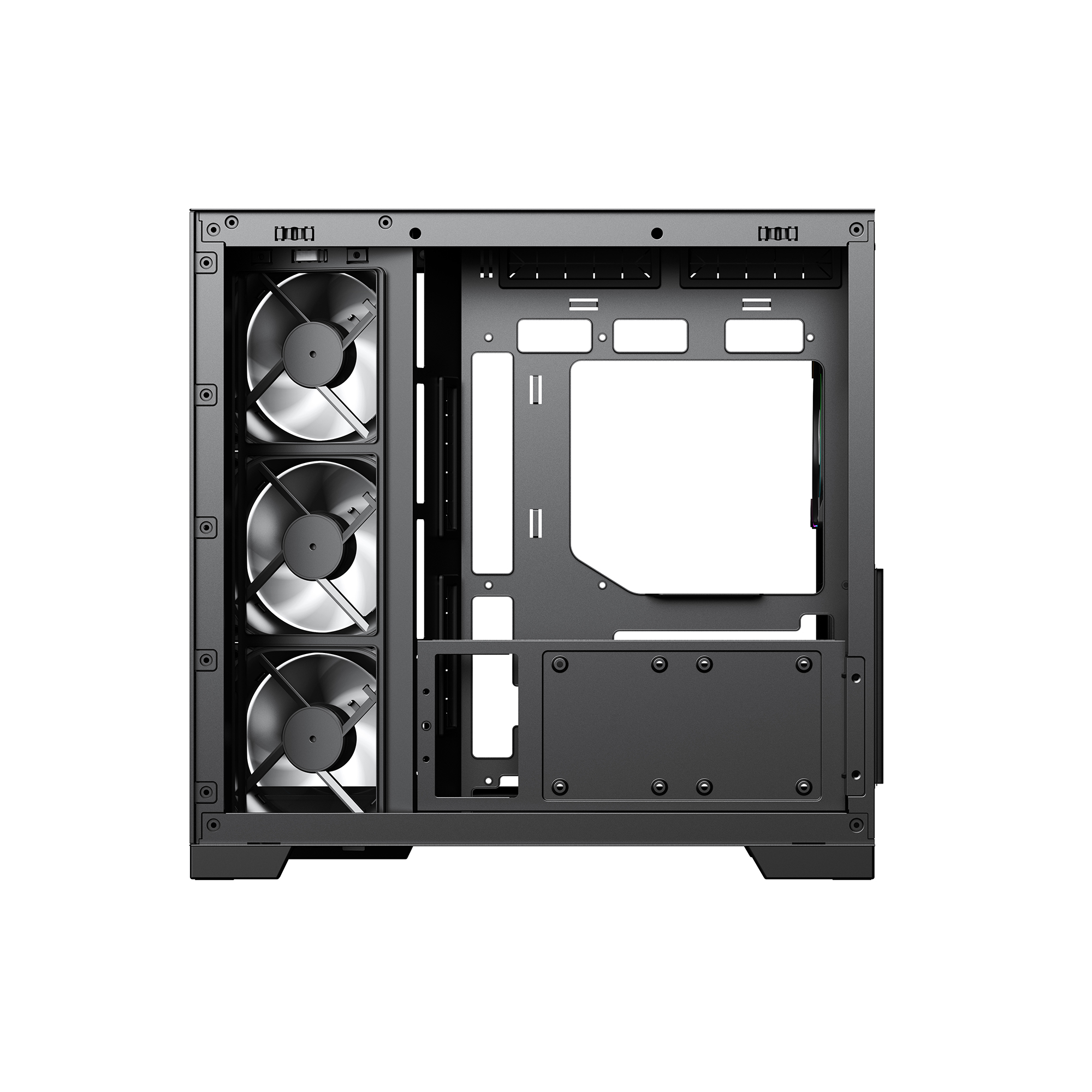

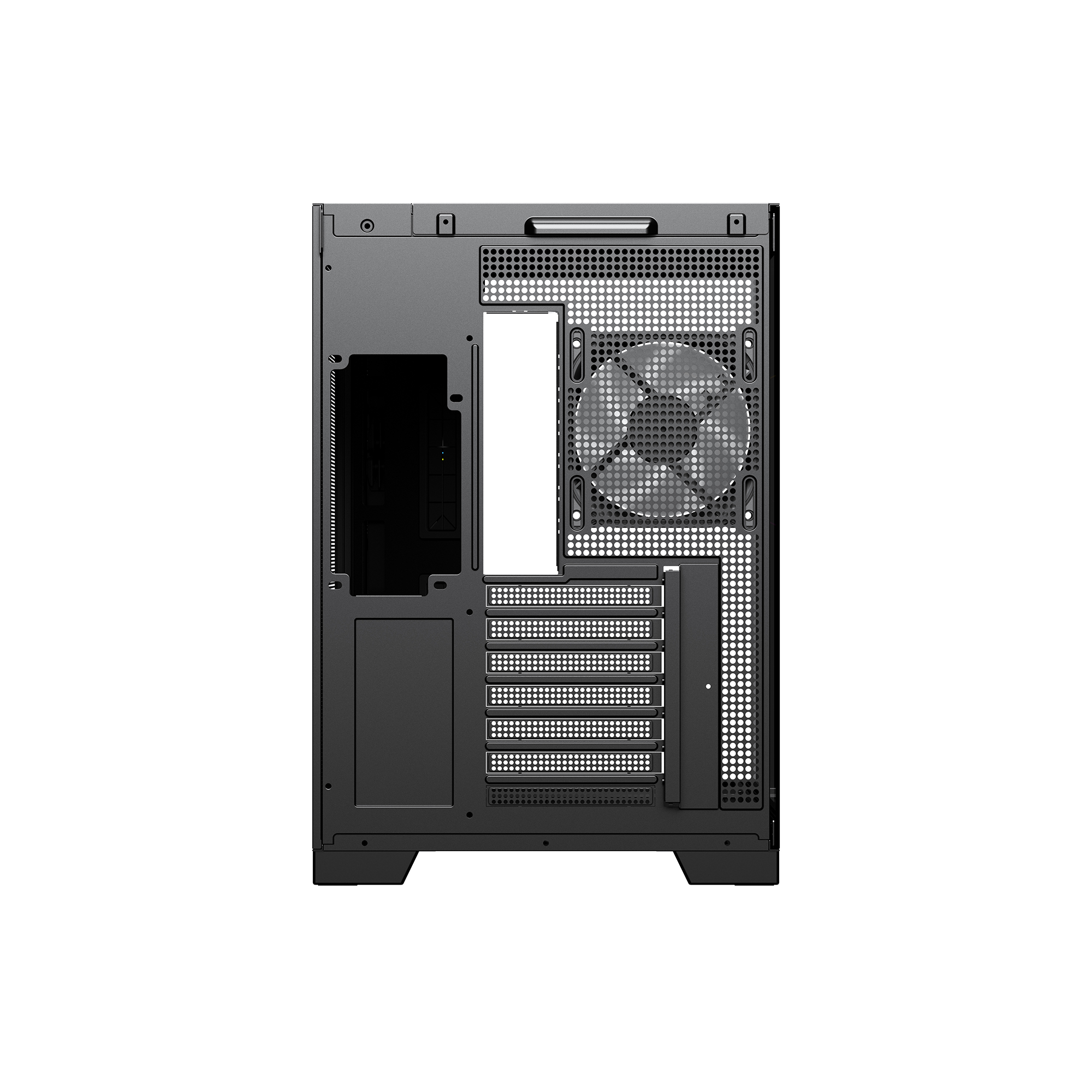

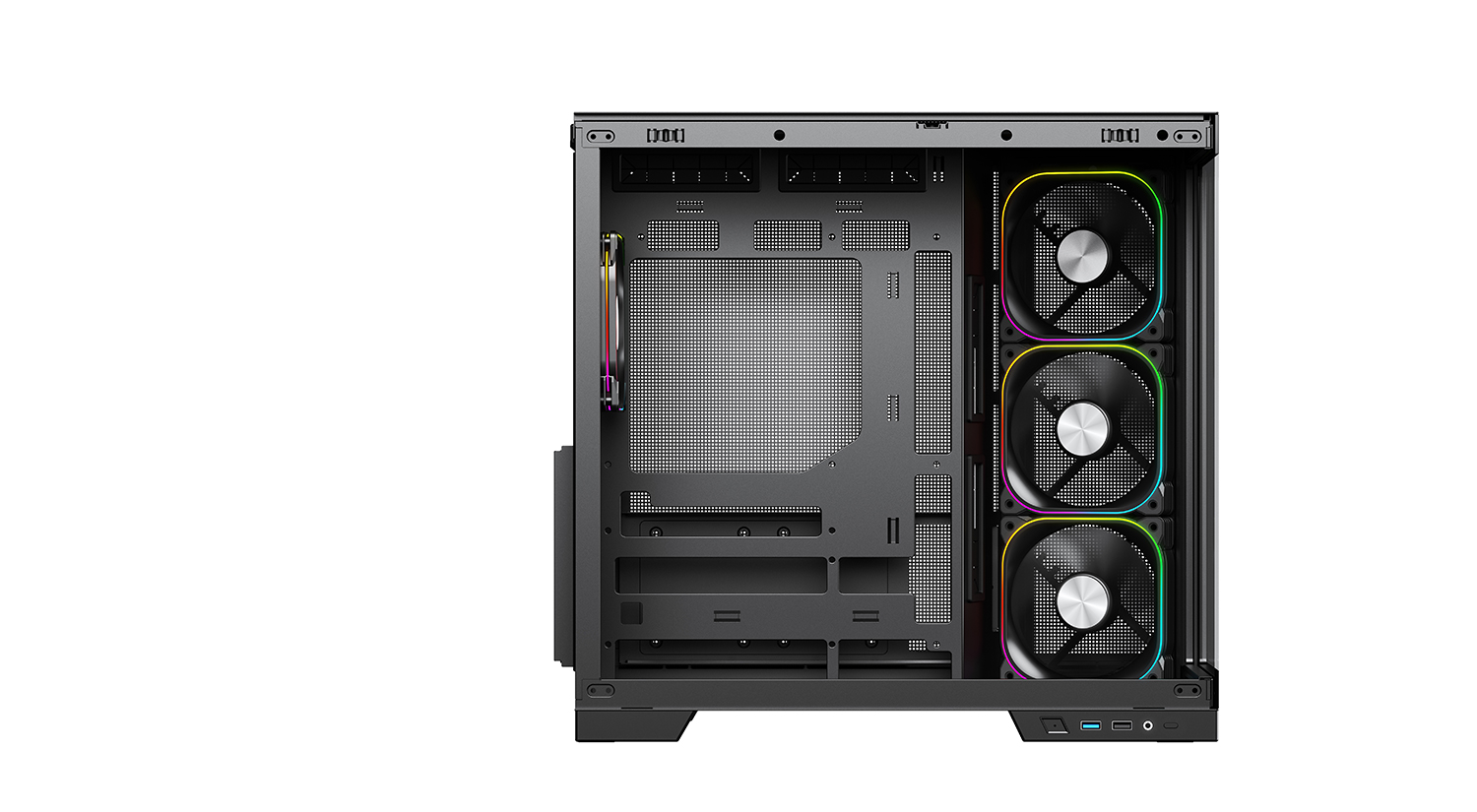

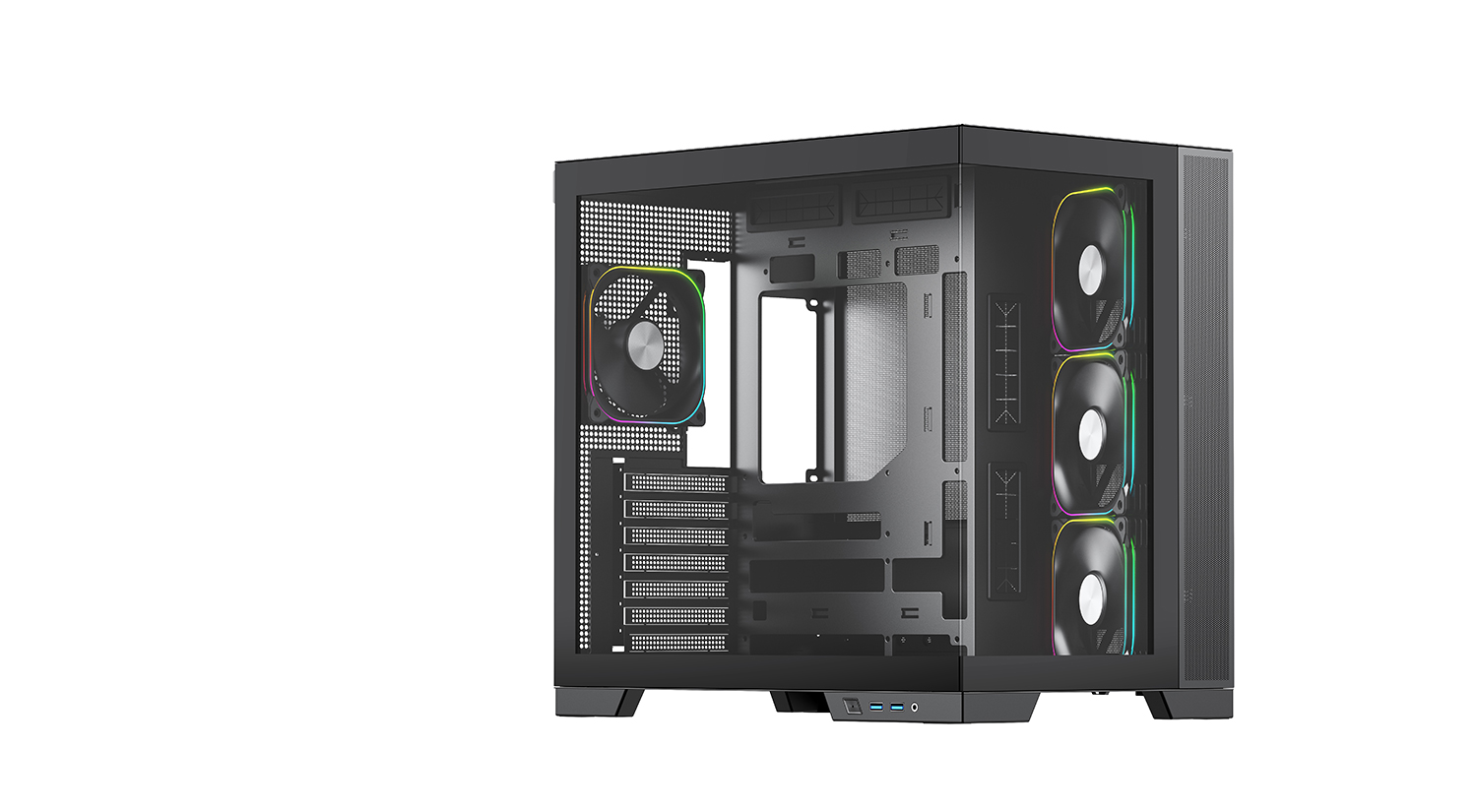

285EVO
-
MotherboardsITX / MICRO ATX / ATX
-
Chassis Dimension425*285*395mm
-
VGA Clearance420mm
-
CPU Cooler Clearance160mm
-
Power Supply260mm
-
I/O PortsUSB3.0*1 + USB2.0*1 + HD Audio
Technical specifications
Model
285EVO
Motherboards
ITX / MICRO ATX / ATX

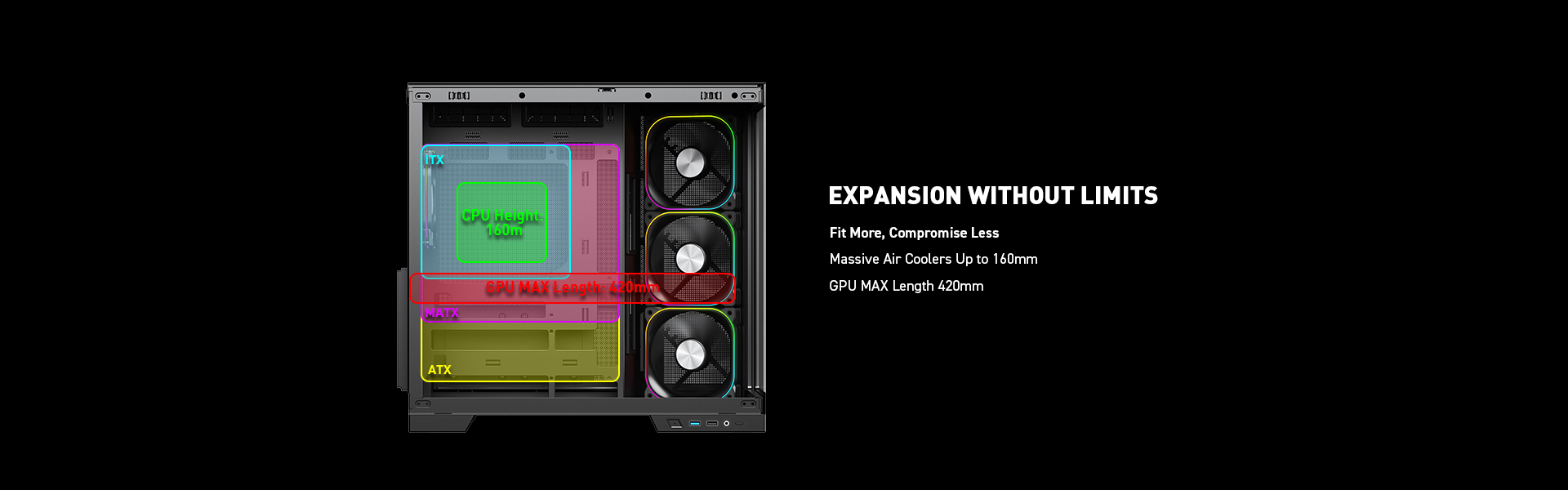

VGA Clearance
420mm
CPU Cooler Clearance
160mm

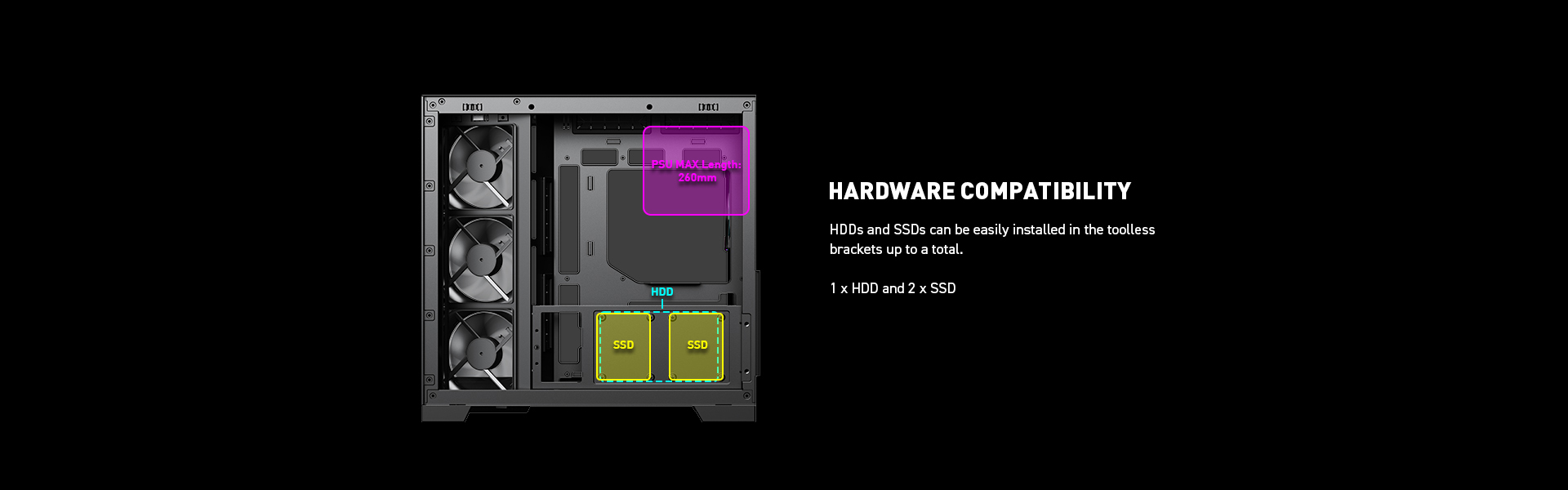

3.5+2.5 Driver Bays
1+2
Power Supply
260mm
Chassis Dimension
425*285*395mm
Product Dimension
425*285*415mm
40HQ Container
800 PCS
I/O Ports
USB3.0*1 + USB2.0*1 + HD Audio

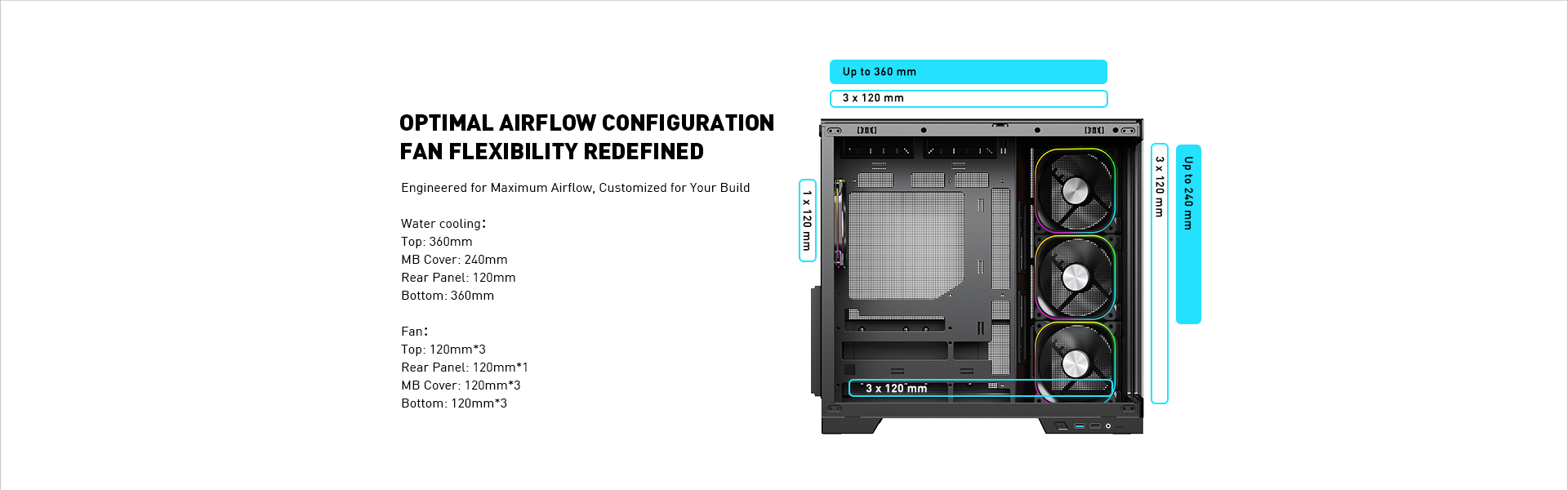

Air Cooling
Top:120mm x 2 Rear: 120mm x 1 MB cover : 120mm x 2 Bottom :120mm x 3
Liquid Cooling
Top: 360mm Rear: 120mm MB cover :240mm Bottom :360mm
Body Materiarl
SPCC 0.7mm
Front Panel
3mm glass side panel
Left Panel
3mm glass side panel
Right Panel
0.7mm Metal
