OM01
-
MotherboardsITX / MICRO ATX
-
Chassis Dimension330*218*380mm
-

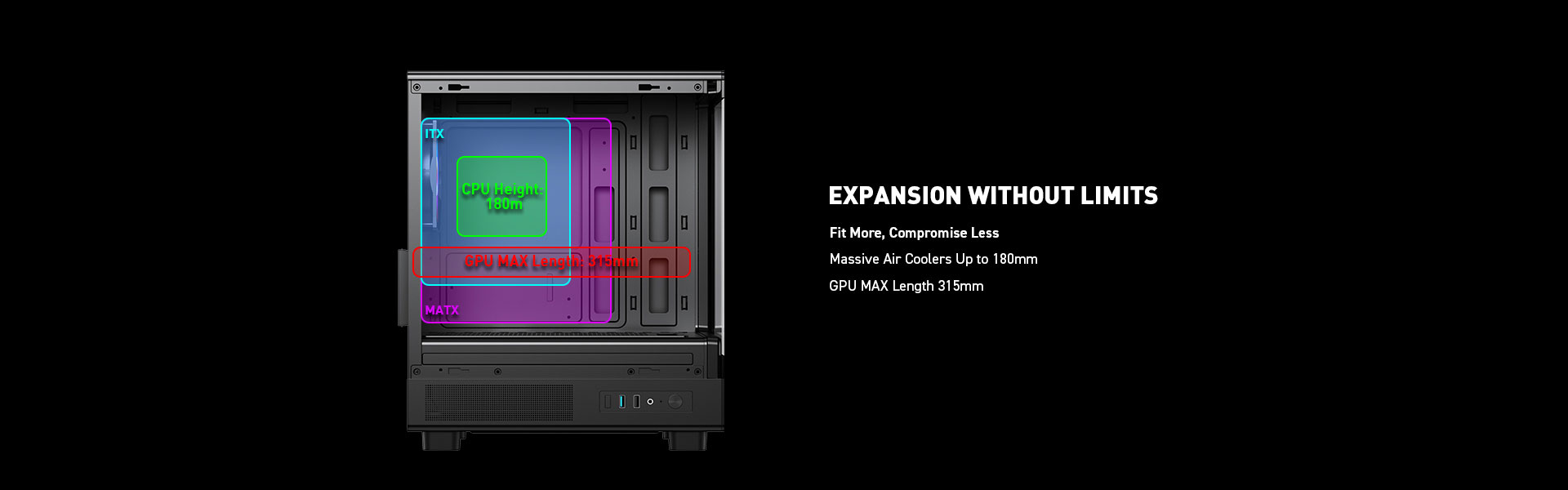

VGA Clearance315mm
-
CPU Cooler Clearance180mm
-
Power Supply180mm
-
I/O PortsUSB3.0*1 + USB1.0*1 + HD Audio
Technical specifications
Model
OM01
Motherboards
ITX / MICRO ATX
VGA Clearance
315mm
CPU Cooler Clearance
180mm

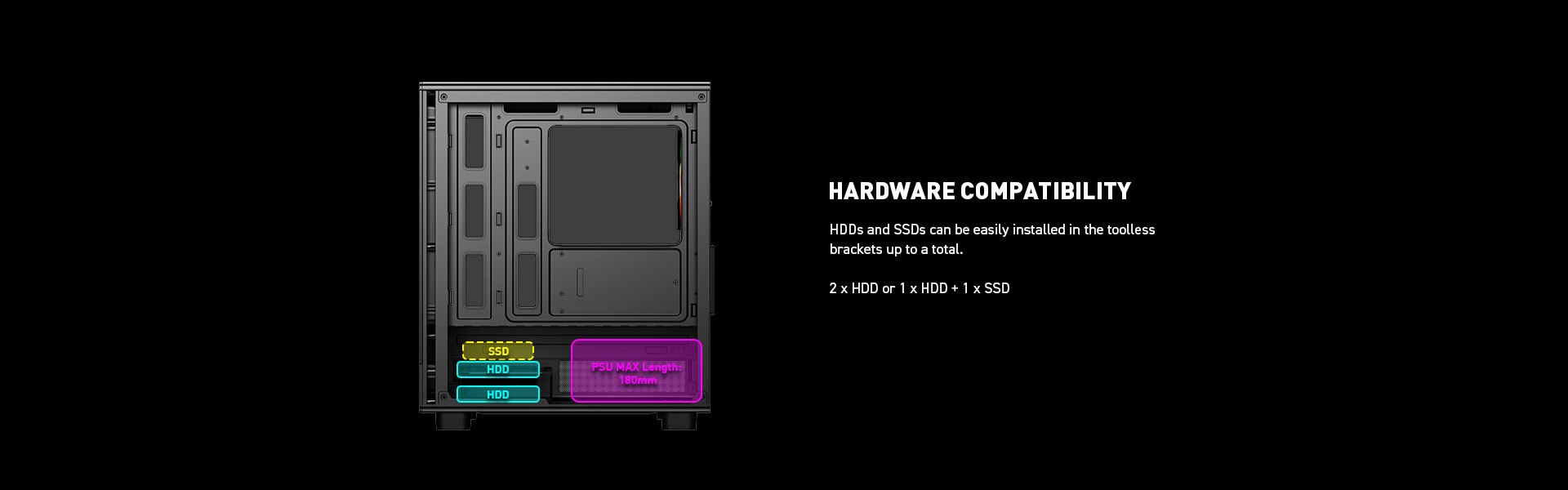

3.5+2.5 Driver Bays
2+0 or 1+1
Power Supply
180mm
Chassis Dimension
330*218*380mm
Product Dimension
333*218*402mm
40HQ Container
1300 PCS
I/O Ports
USB3.0*1 + USB2.0*1 + HD Audio

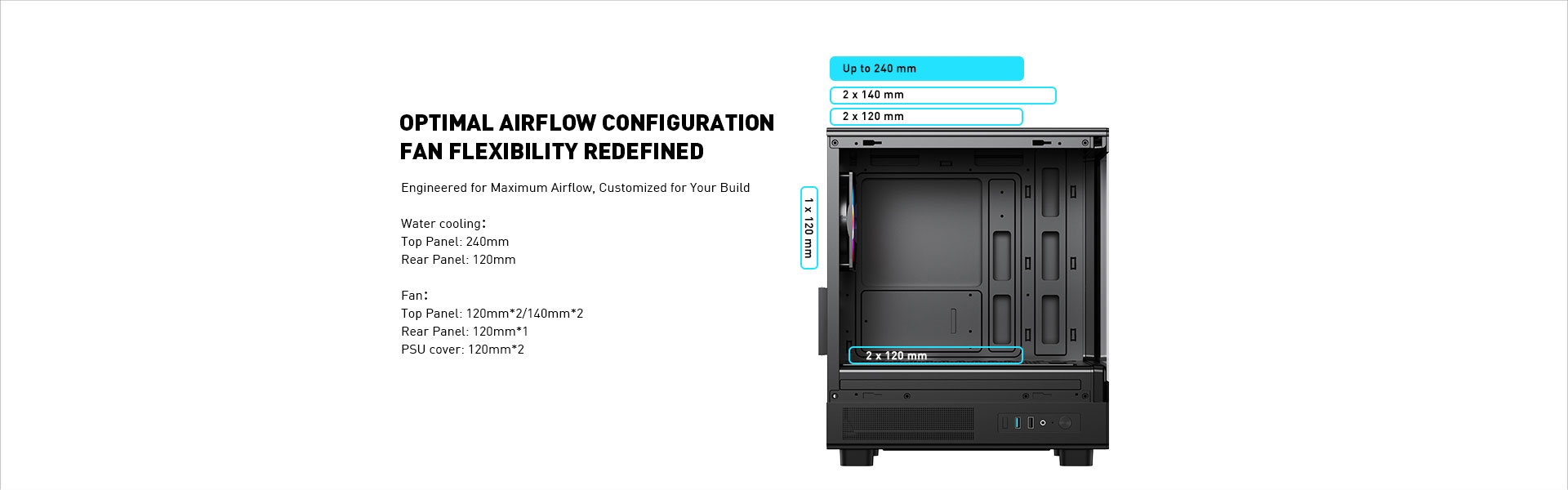

Air Cooling
Top: 120mm x 2 or 140mm x 2 Rear: 120mm x 1 PSU Cover :120mm x 2
Liquid Cooling
Top: 240mm Rear: 120mm
Body Materiarl
SPCC 0.4mm
Front Panel
3mm glass side panel
Left Panel
3mm glass side panel
Right Panel
0.4mm Metal
