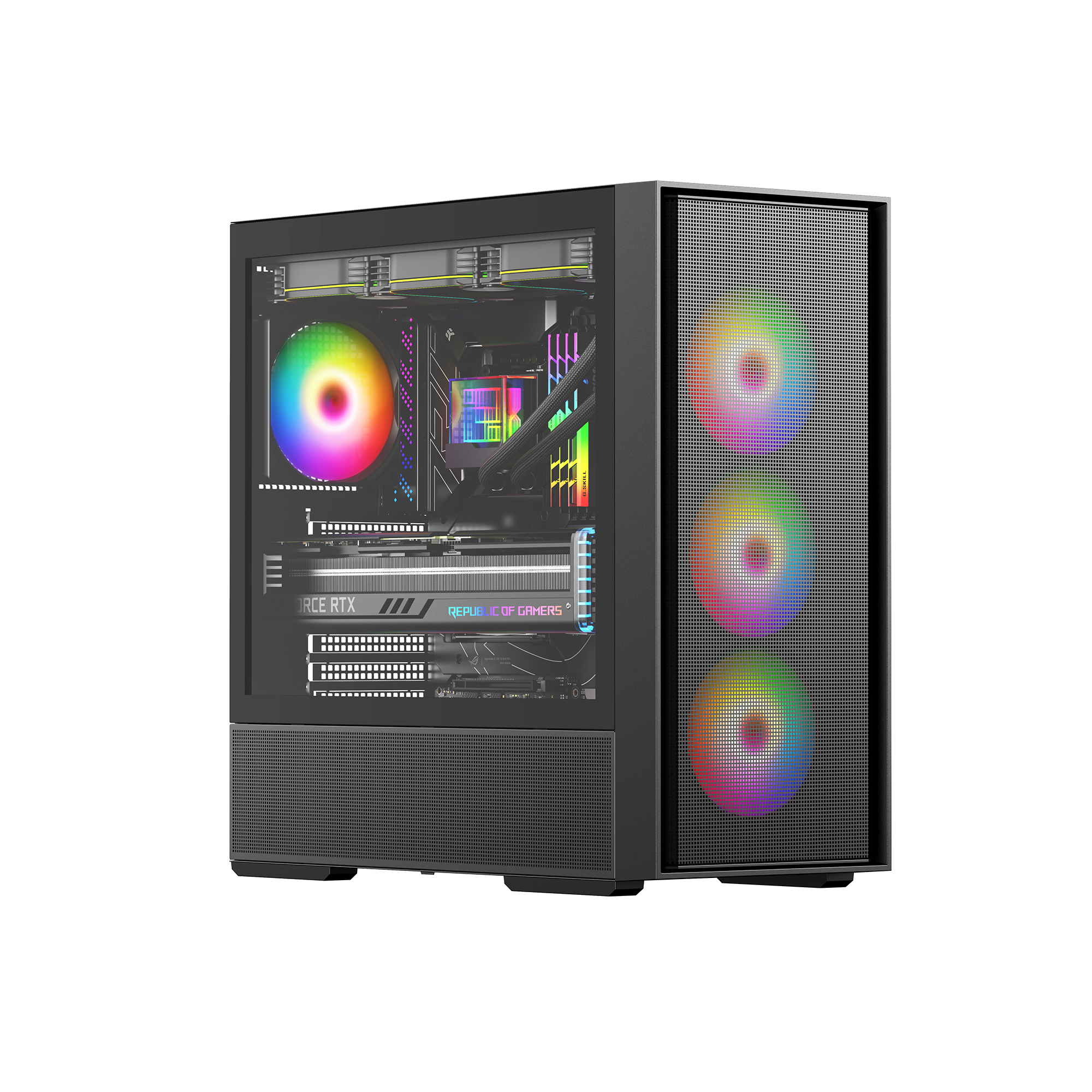

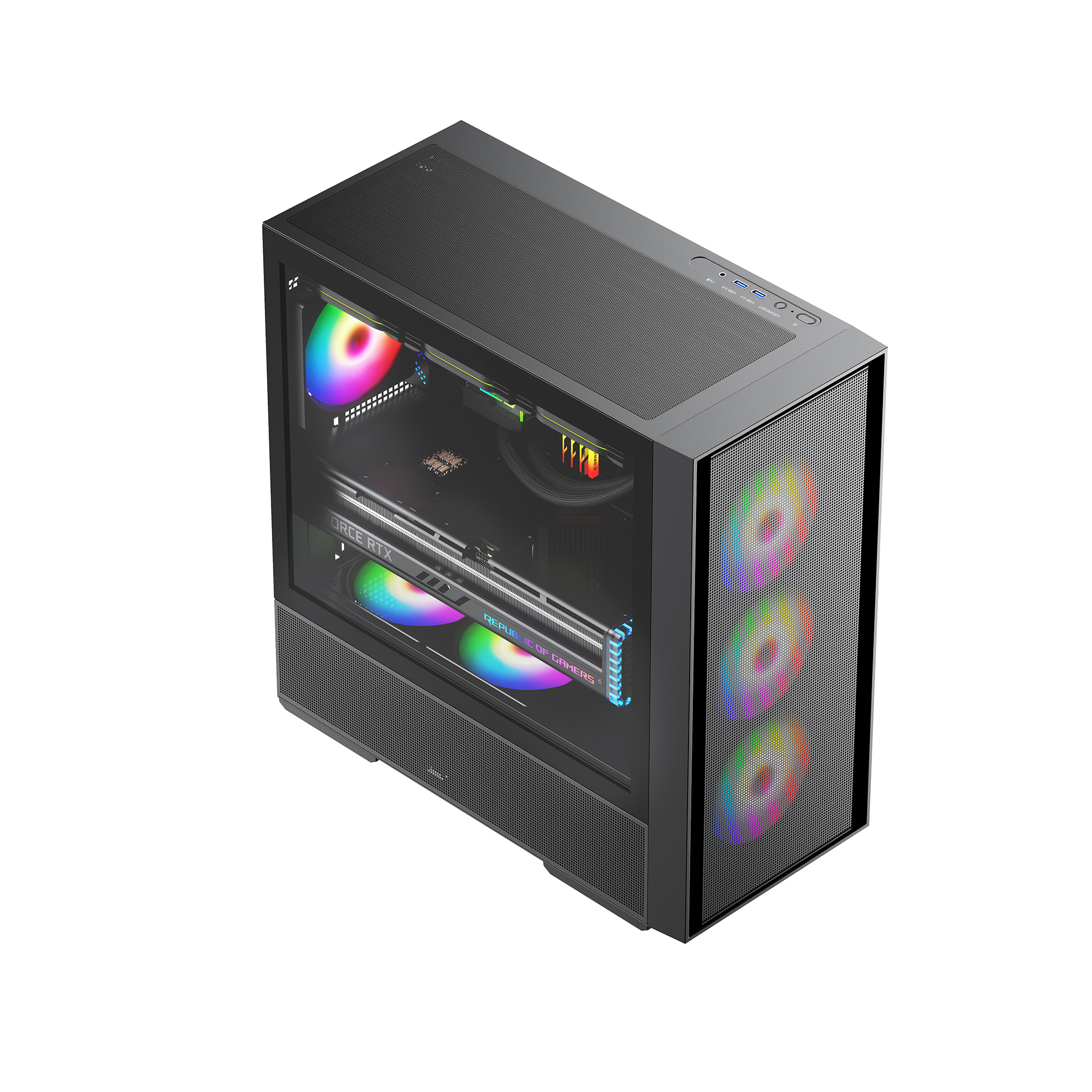

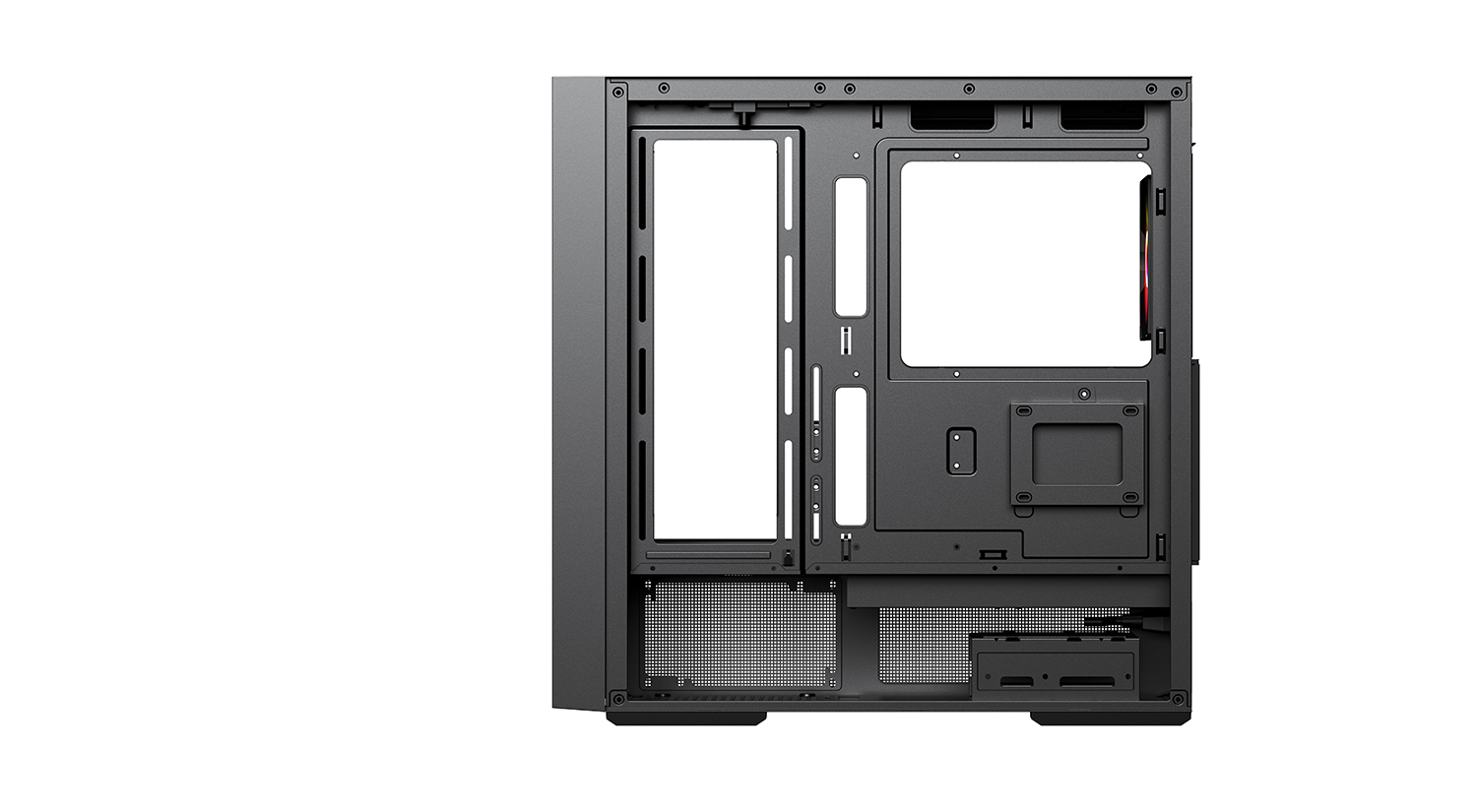

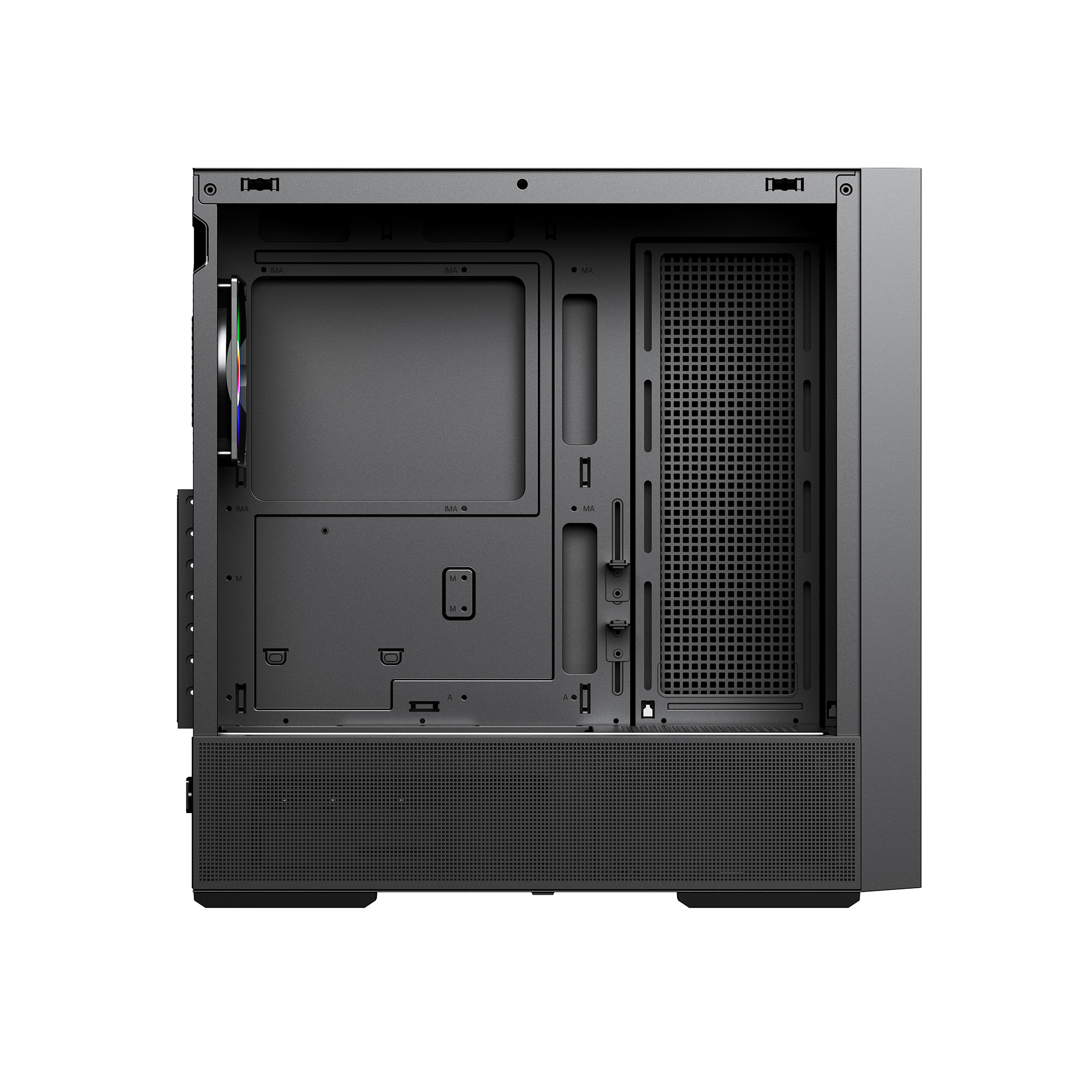

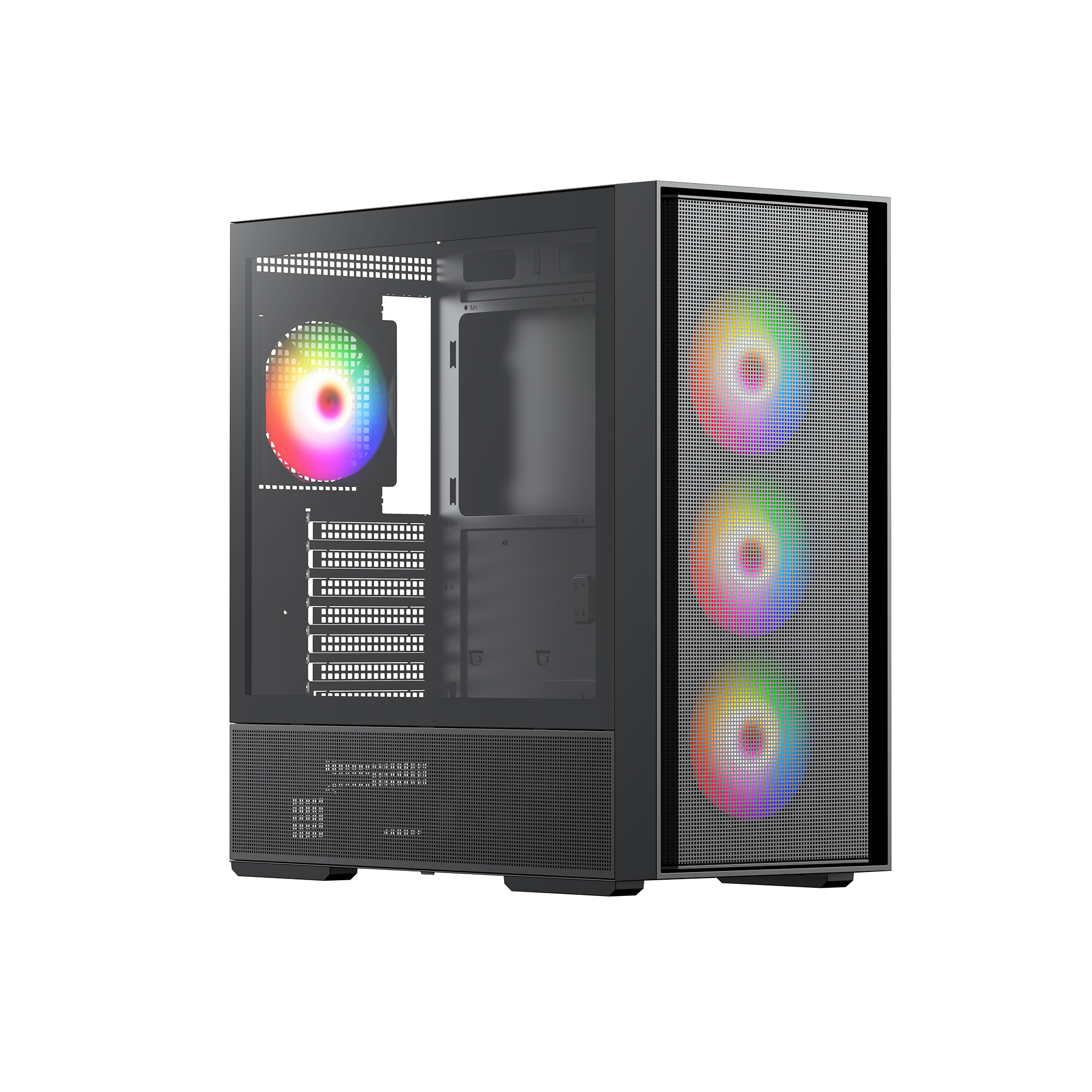

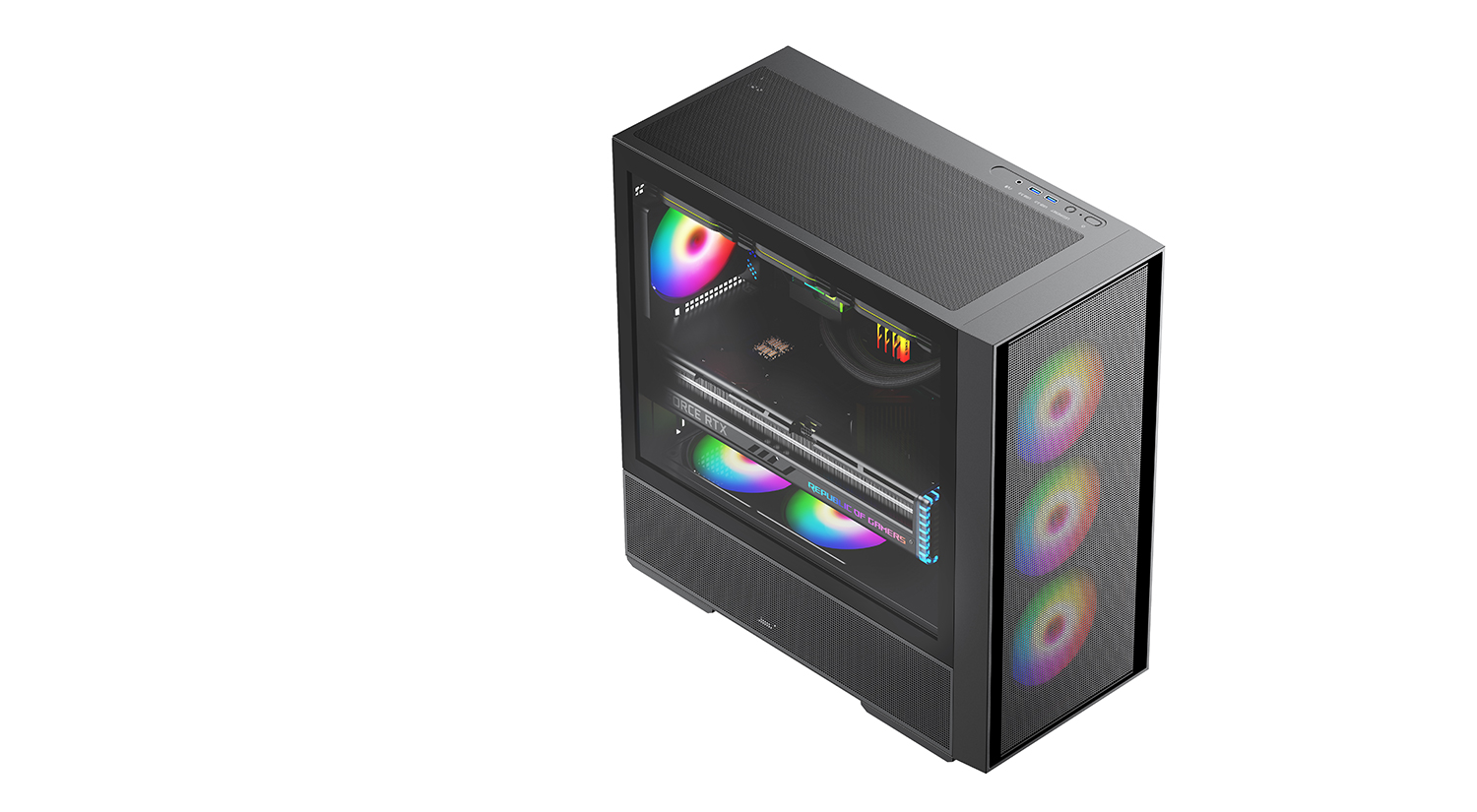

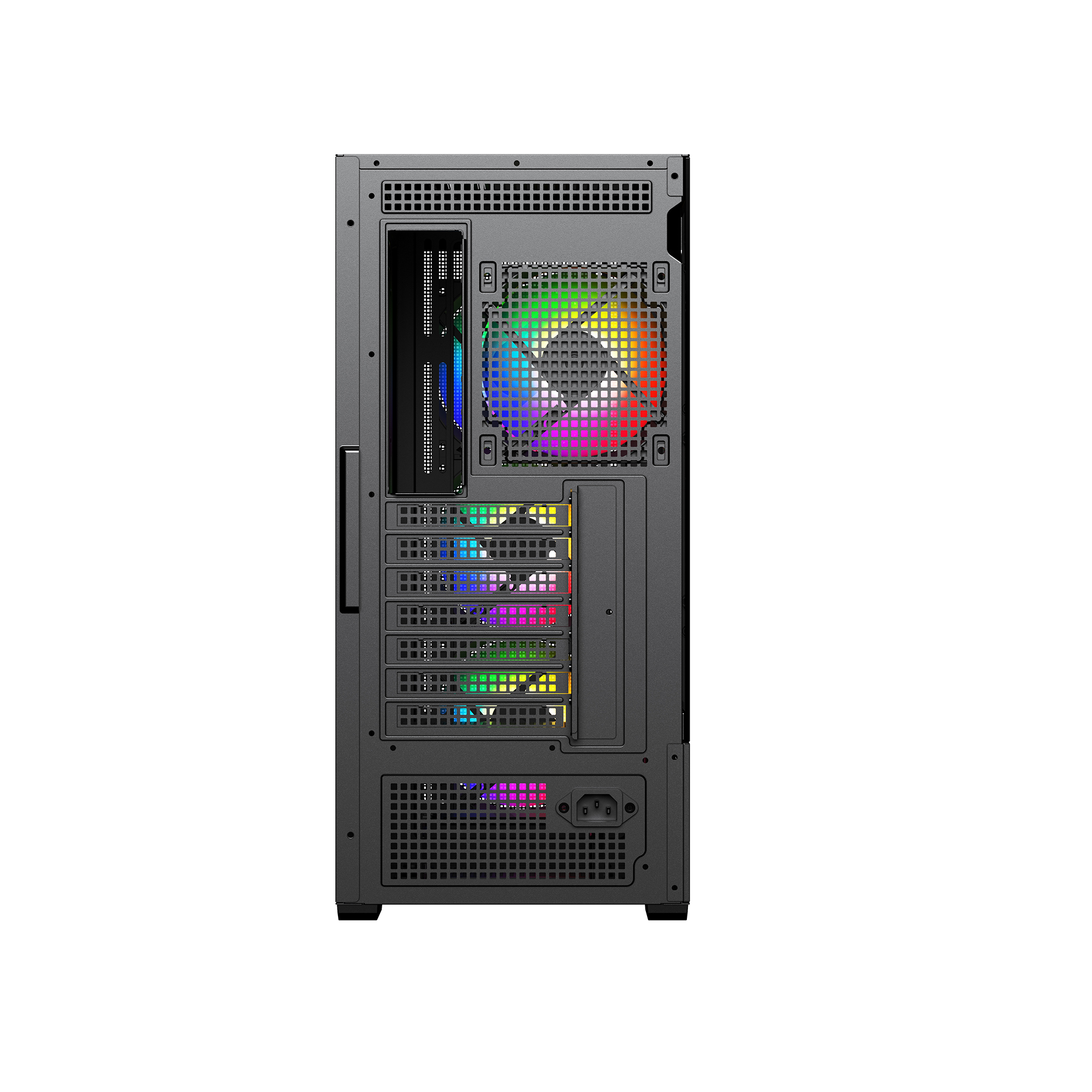

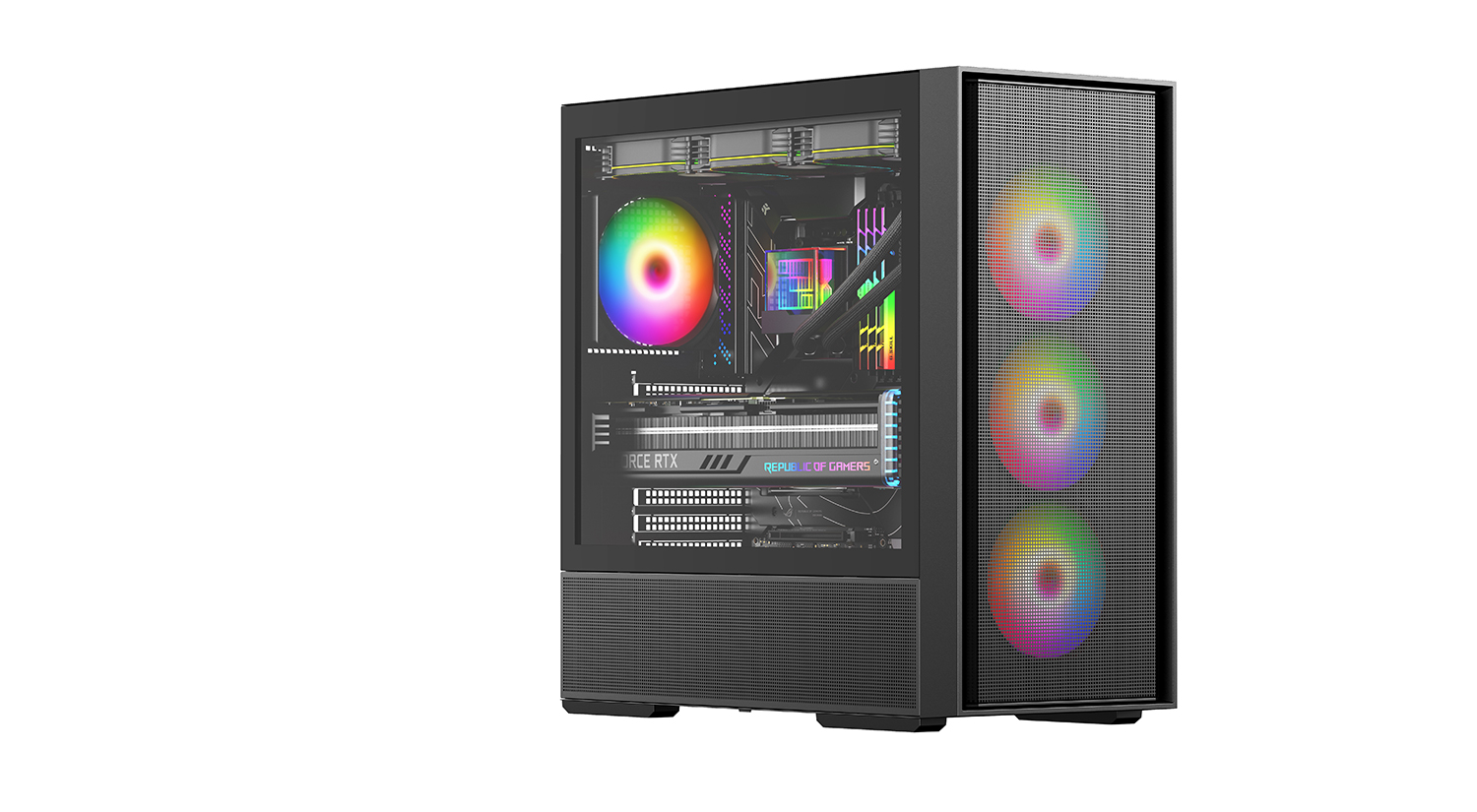

4201
-
MotherboardsITX / MICRO ATX / ATX
-
Chassis Dimension420*215*455mm
-
VGA Clearance390mm
-
CPU Cooler Clearance170mm
-
Power Supply150mm
-
I/O PortsUSB3.0*1 + USB1.0*1 + HD Audio
Technical specifications
Model
4201
Motherboards
ITX / MICRO ATX / ATX

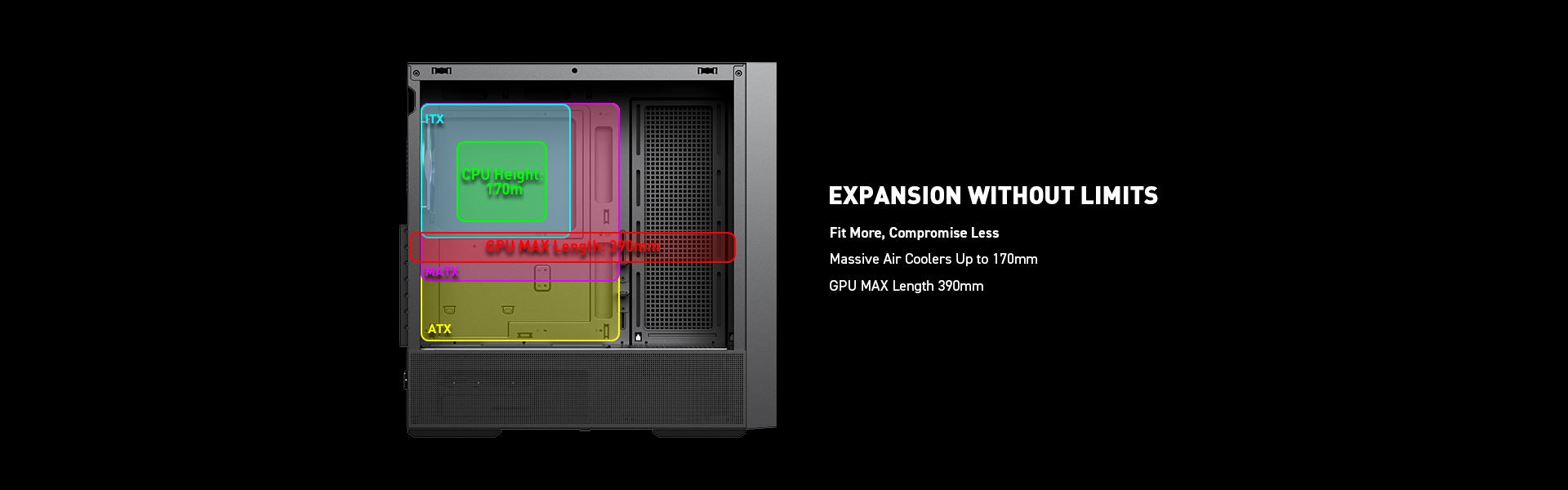

VGA Clearance
390mm
CPU Cooler Clearance
170mm

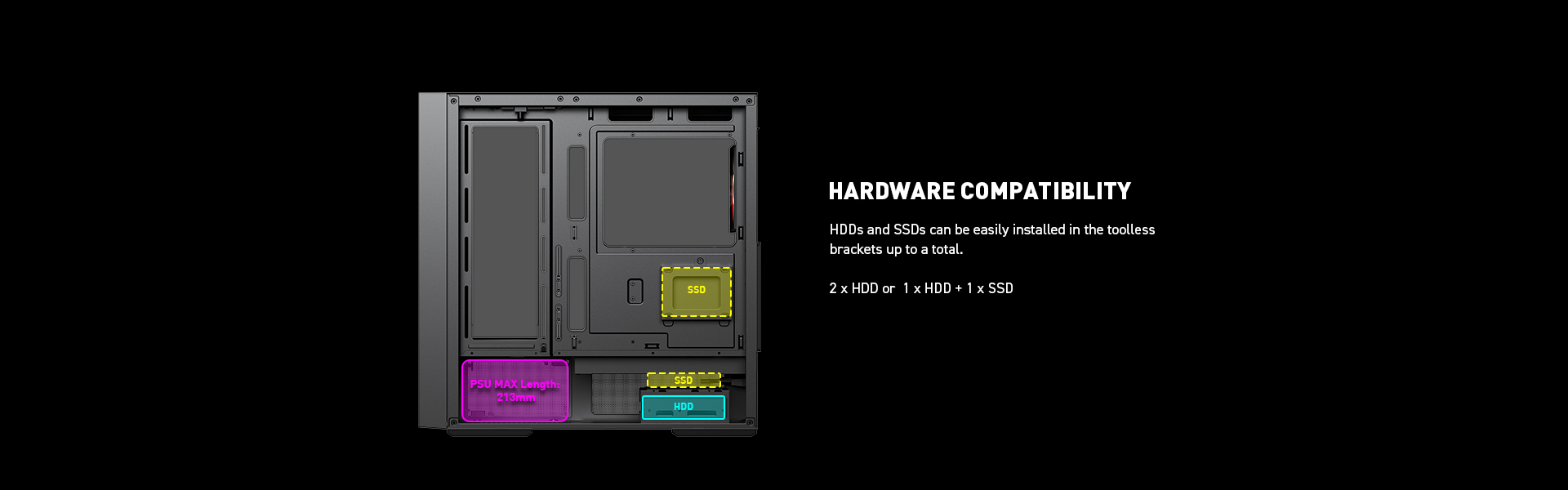

3.5+2.5 Driver Bays
1+1
Power Supply
150mm
Chassis Dimension
420*215*455mm
Product Dimension
453*215*465mm
40HQ Container
890 PCS
I/O Ports
USB3.0*1 + USB2.0*1 + HD Audio

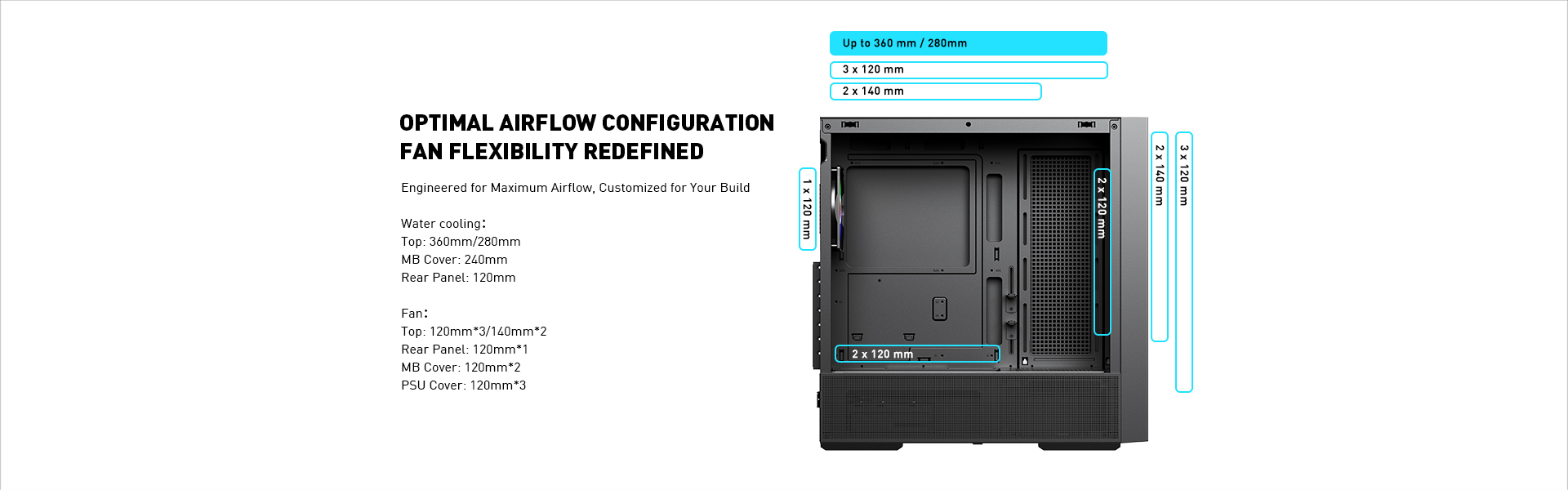

Air Cooling
Front: 120mm x 3 or 140mm x 2 Top: 120mm x 3 or 140mm x 2 Rear: 120mm x 1 PSU Cover :120mm x 2 MB Cover :120mm x 2
Liquid Cooling
Top: 360mm / 280mm Rear: 120mm
Body Materiarl
SPCC 0.5mm
Front Panel
ABS+Mesh
Left Panel
3mm glass side panel
Right Panel
0.5mm Metal
