M1
-
MotherboardsITX / MICRO ATX
-
Chassis Dimension350*168*290mm
-

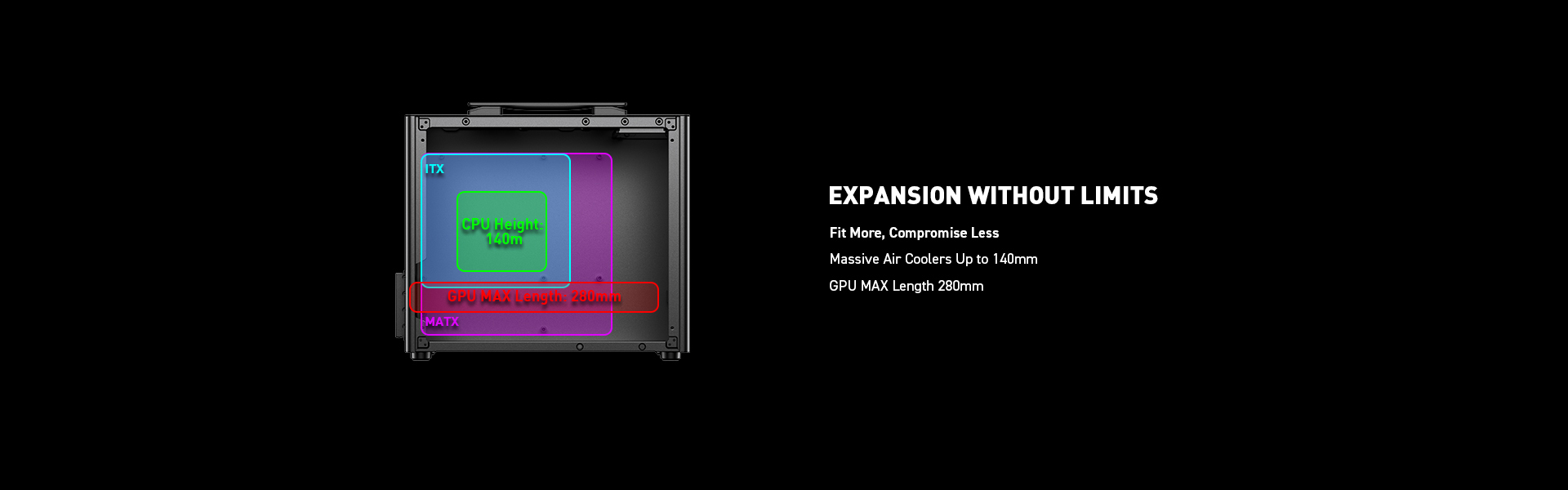

VGA Clearance280mm
-
CPU Cooler Clearance140mm
-
Power Supply260mm
-
I/O PortsUSB3.0*1 + HD Audio
Technical specifications
Model
M1
Motherboards
ITX / MICRO ATX
VGA Clearance
280mm
CPU Cooler Clearance
140mm

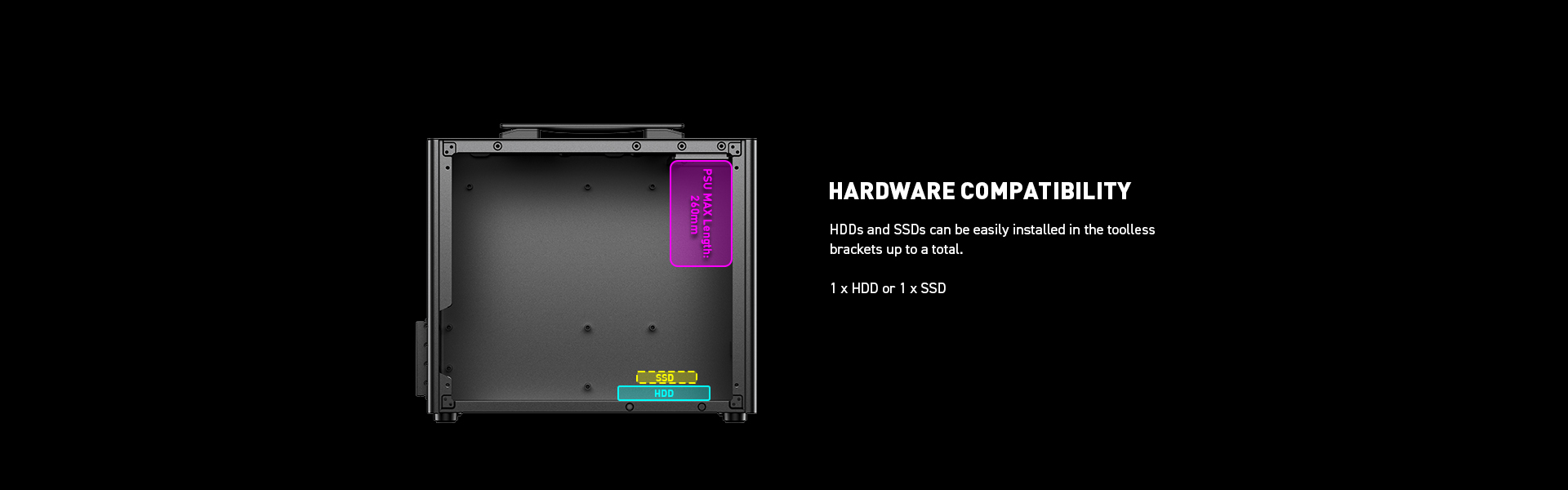

3.5+2.5 Driver Bays
1+0 or 0+1
Power Supply
260mm
Chassis Dimension
350*168*290mm
Product Dimension
350*168*302mm
40HQ Container
2185 PCS
I/O Ports
USB3.0*1 + HD Audio

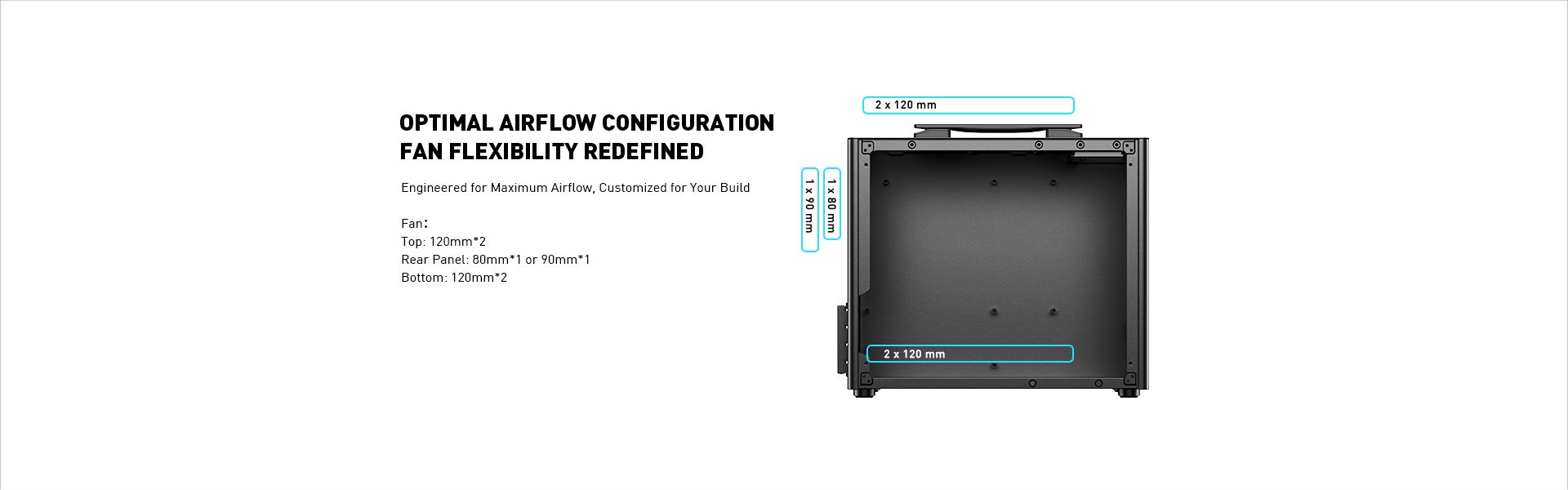

Air Cooling
Top: 120mm x 2 Rear: 80mm x 1 or 90mm x 1 Bottom: 120mm x 2
Liquid Cooling
None
Body Materiarl
SPCC 0.7mm
Front Panel
Mesh
Left Panel
3mm glass side panel
Right Panel
0.7mm Metal
