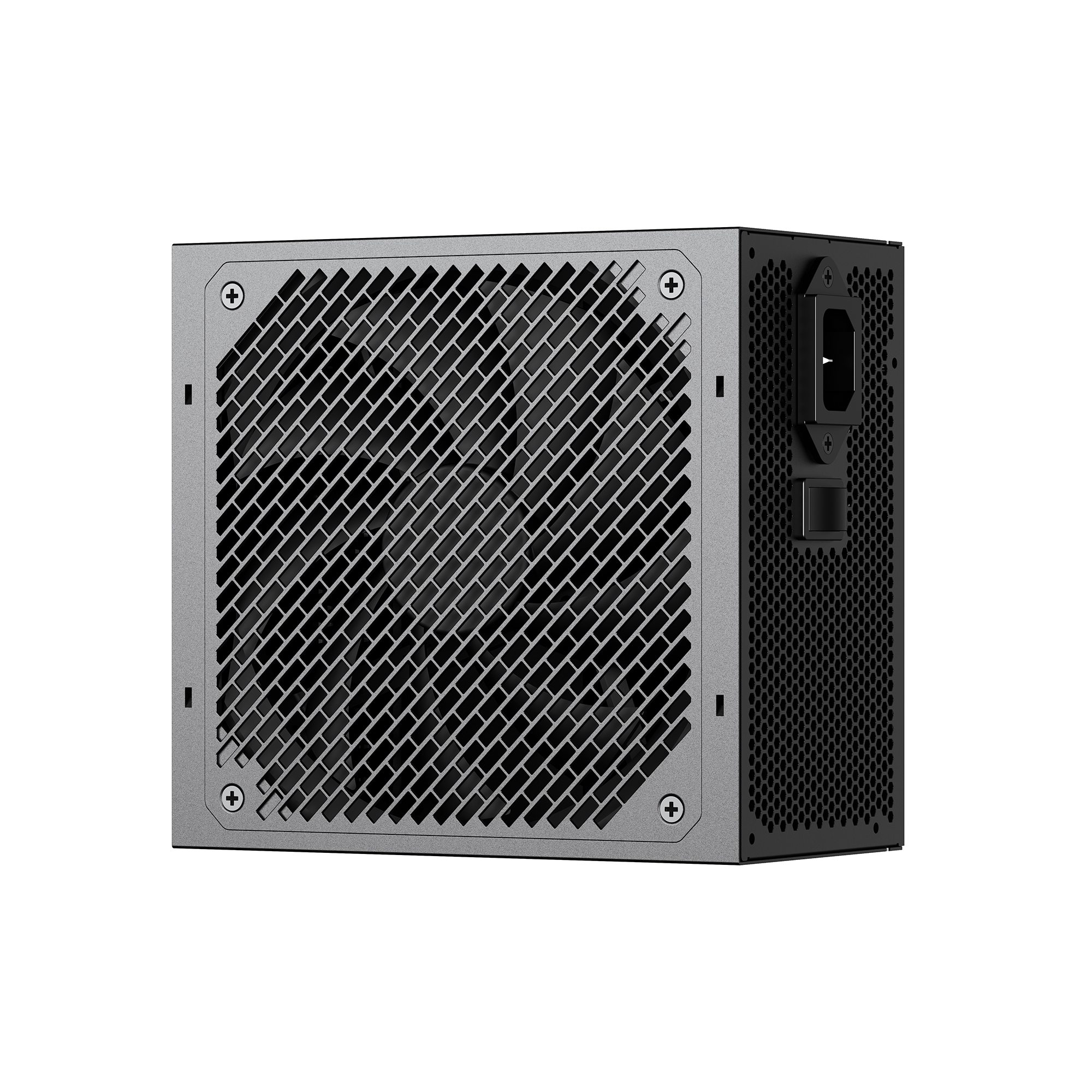

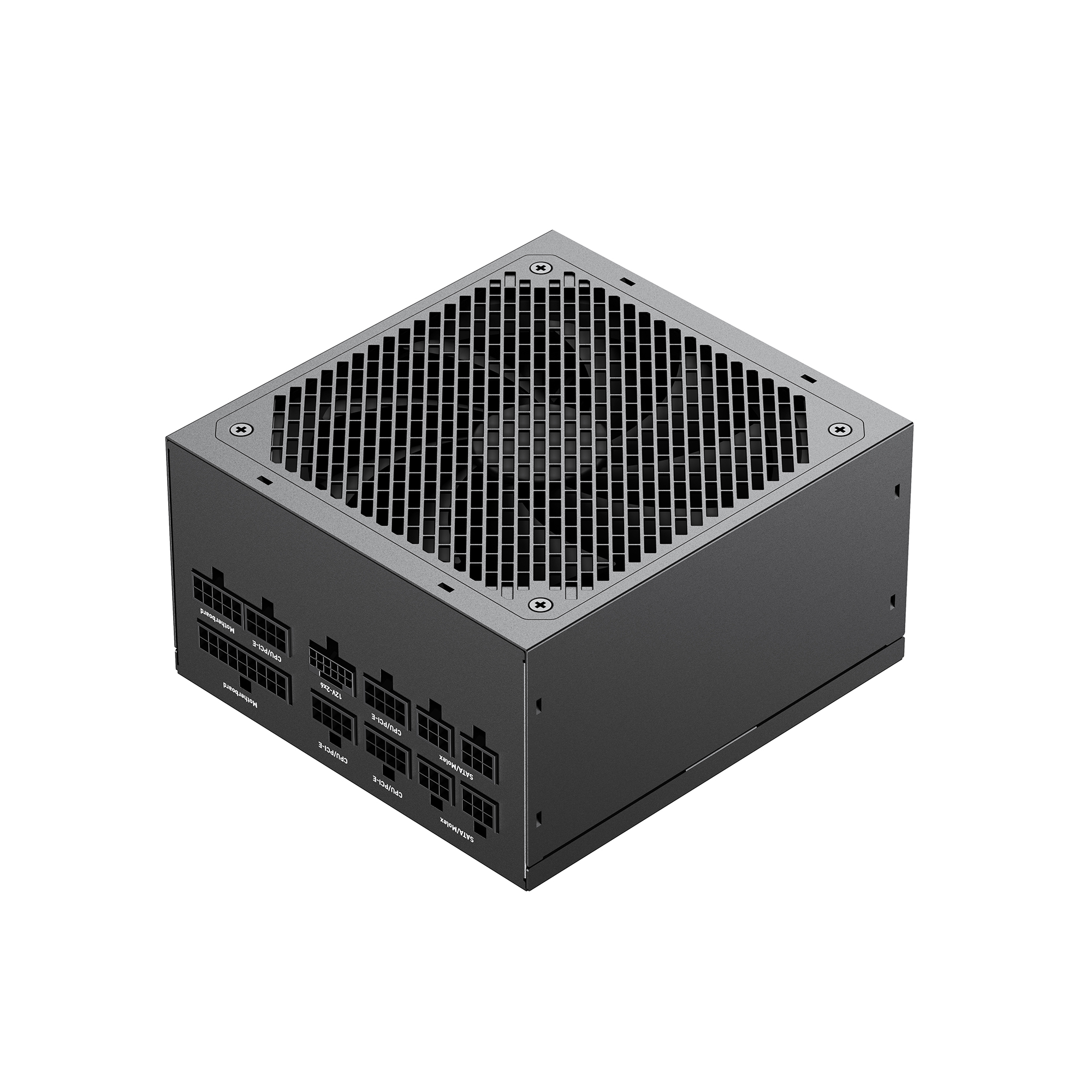

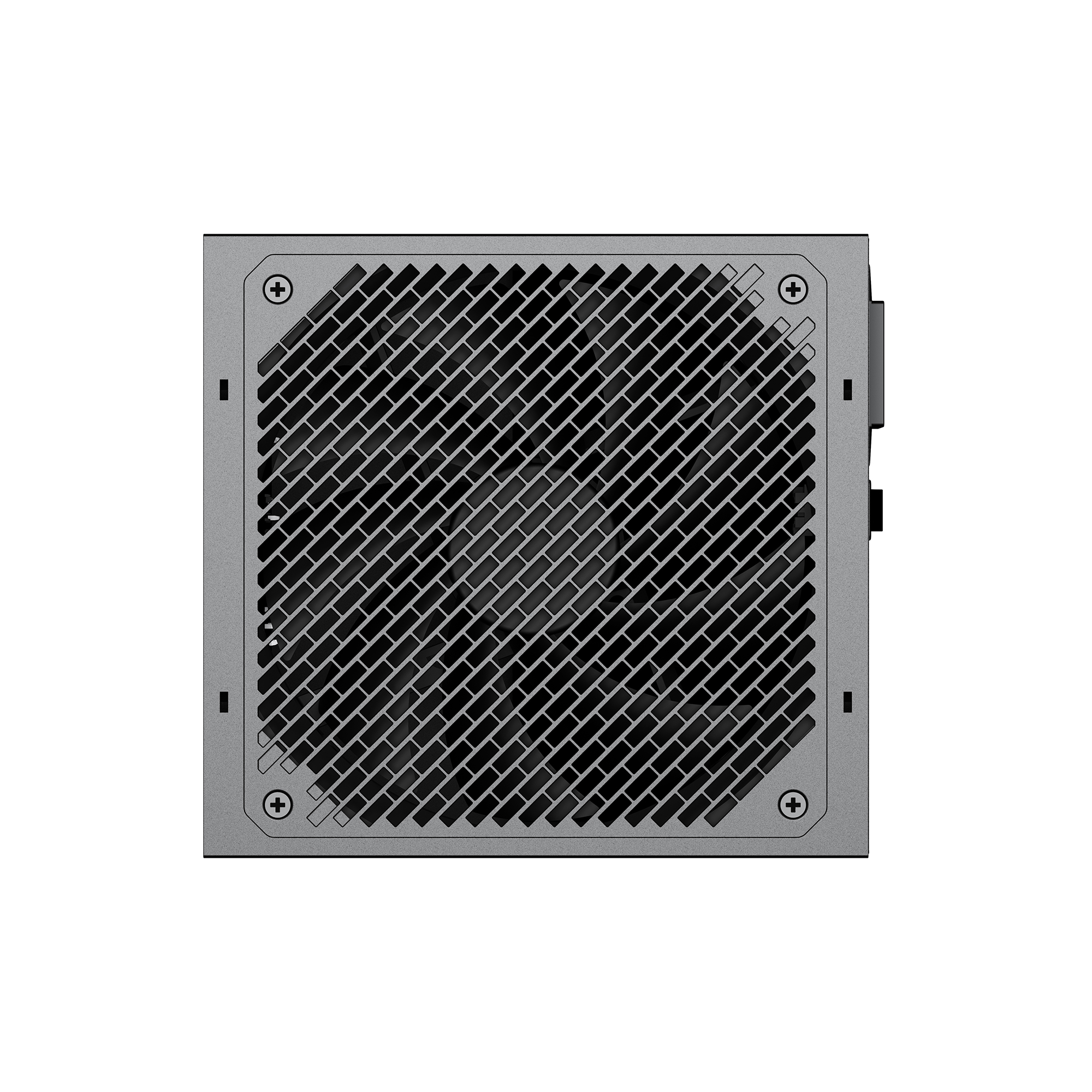

CYCLONE FM2[115-230Vac 80+ BRONZE 1000/1200W]_PSU_Products

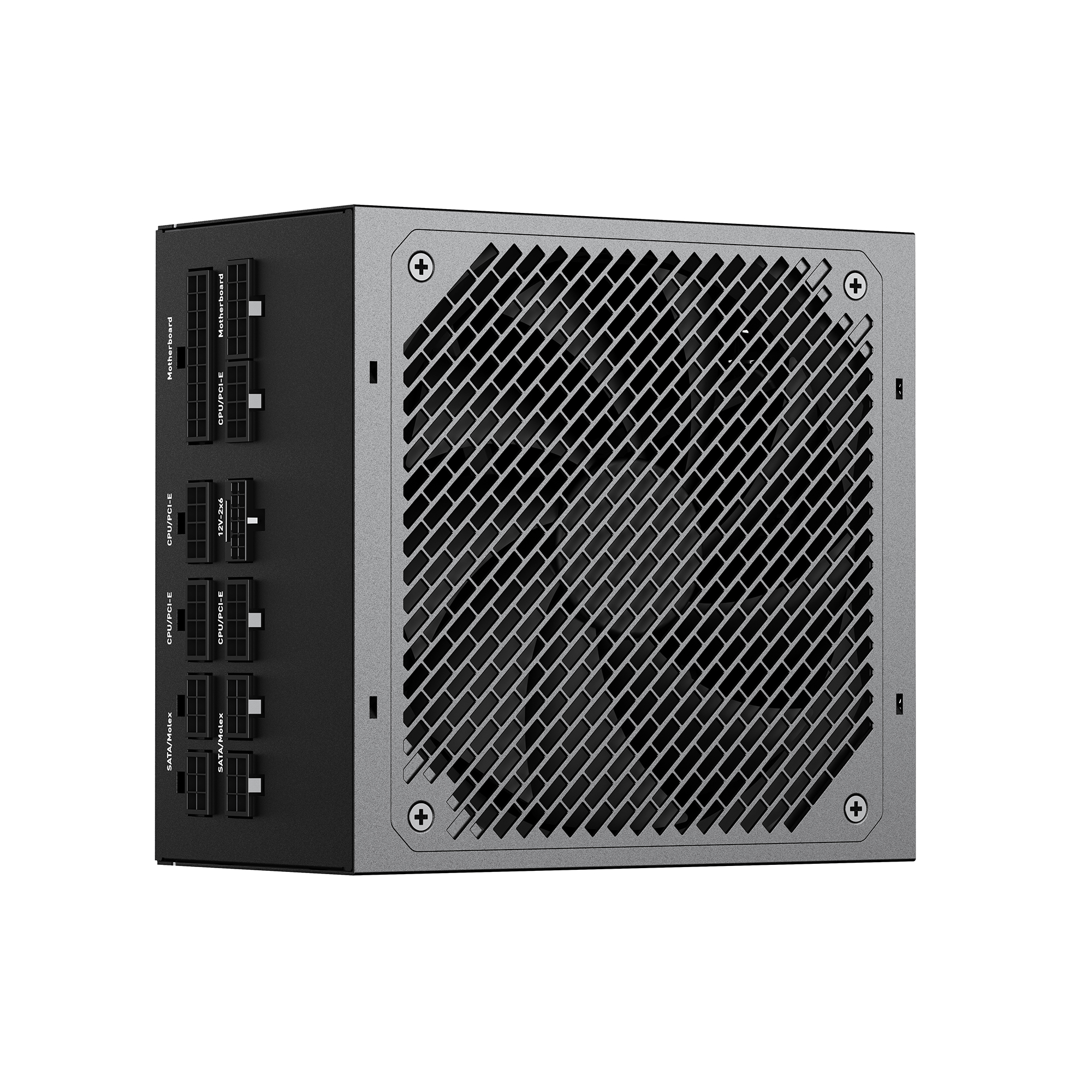

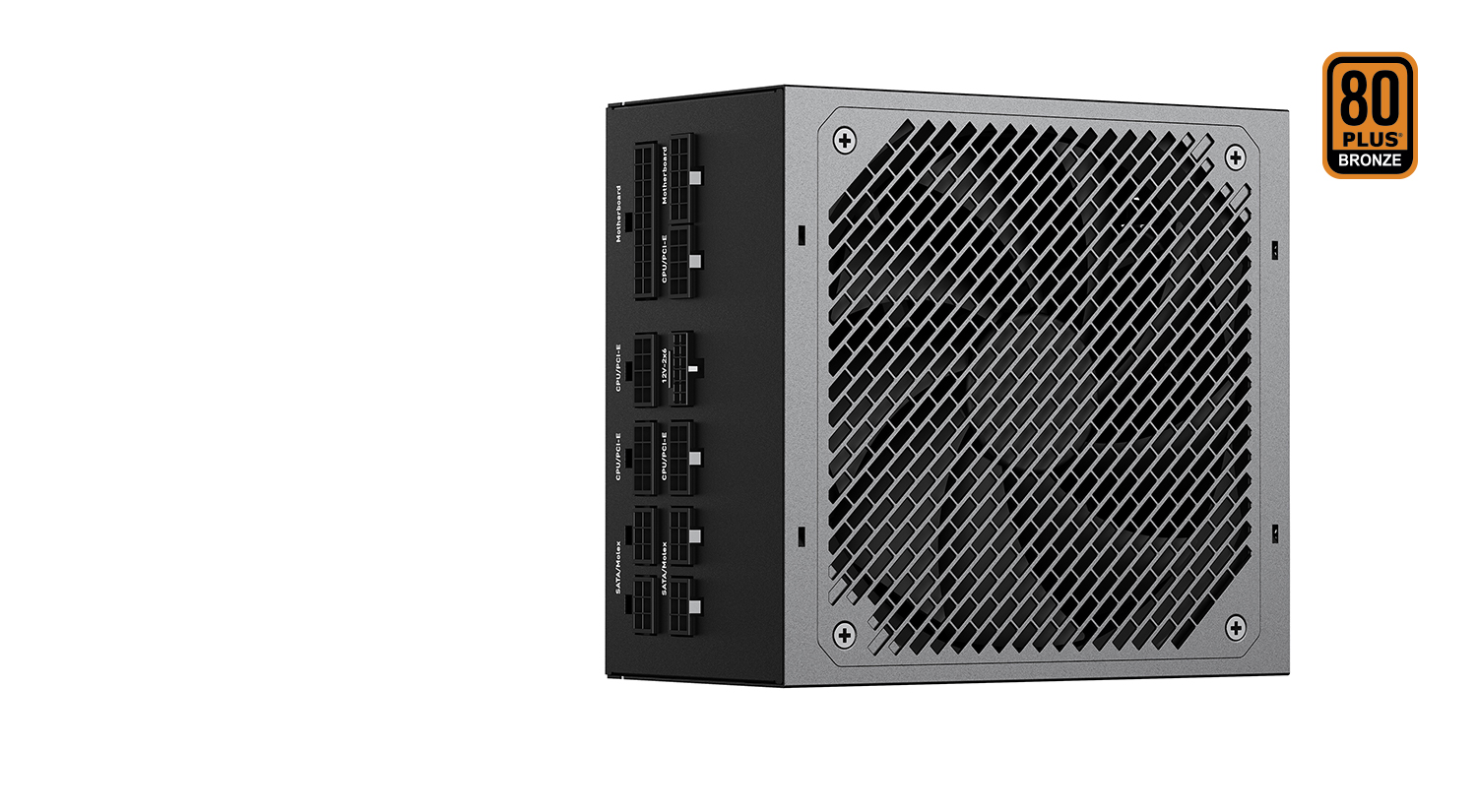

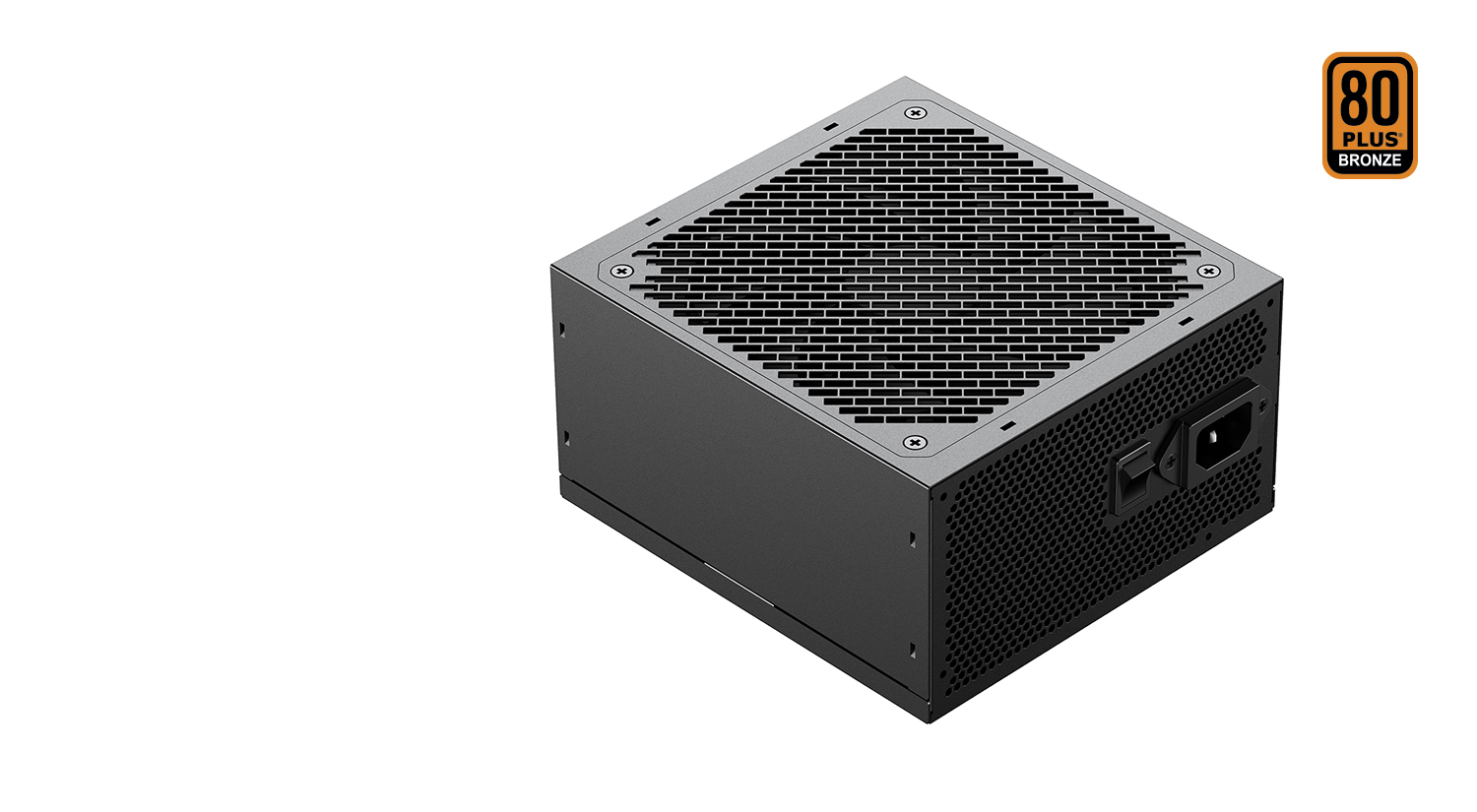

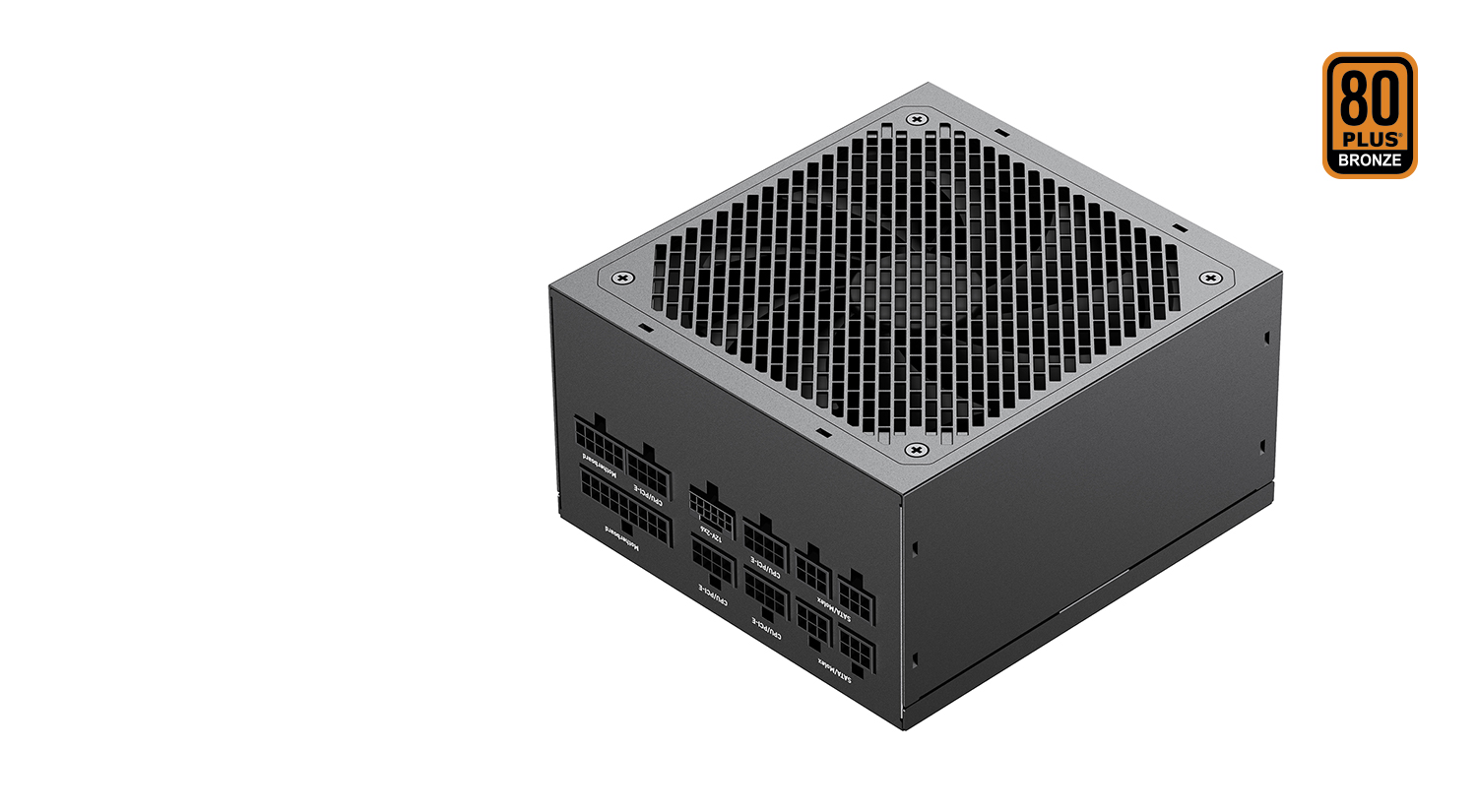

CYCLONE FM2[115-230Vac 80+ BRONZE 1000/1200W]

Version

APFC + DC-DC
Capacitor

high quality Japanese Brand capacitor
Pass 80PLUS

80PLUS GOLD
Warranty

5 years
Power

1000W / 1200W
Input Voltage

115V-230Vac

Technical specifications

Type ATX12V V3.1

Product Dimensions 160×150×86mm (W x L x H)

Efficiency certification GOLD

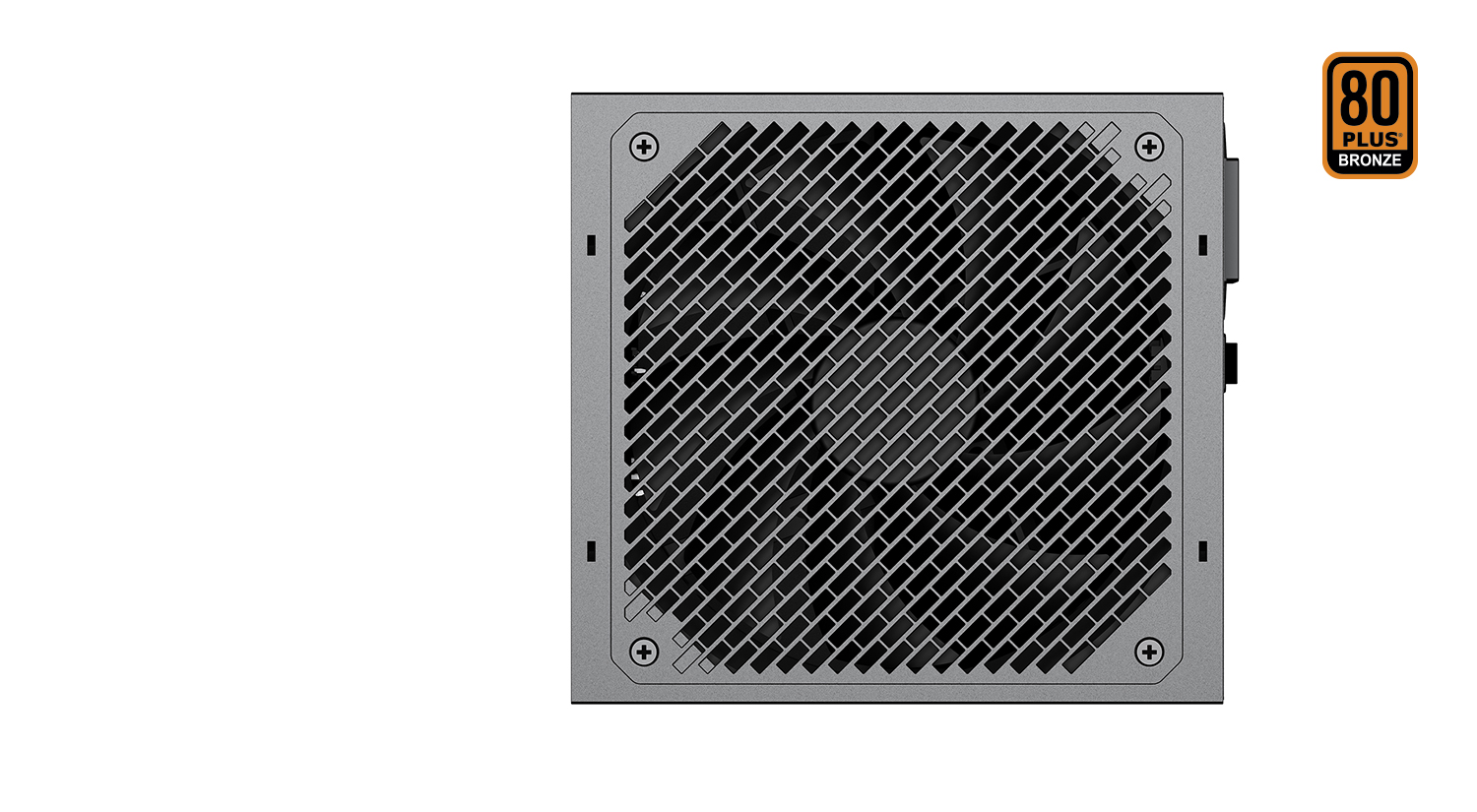

Fan Size 140mm

Fan Bearing Hydraulic

Topology APFC + DC-DC

Input Voltage 115V-230Vac

Protection OVP / OPP / SCP / UVP / OCP / OTP

Operation Temperature 0 - 40℃

Regulatory CE/FCC/CCC/TUV-RH/RCM/EAC/CAN ICES-003(B)/NMB-003(B)/UKCA/BIS/KC;

Erp Regulation ErP Lot6

Warranty 5 years

1000W Cables 1x 20+4Pin, 2 x 8Pin(4+4), 8 x SATA, 3 x 4Pin, 4 x PCI 6+2Pin, 1 x PCIe 5.1

1200W Cables 1x 20+4Pin, 2 x 8Pin(4+4), 8 x SATA, 3 x 4Pin, 4 x PCI 6+2Pin, 1 x PCIe 5.1
