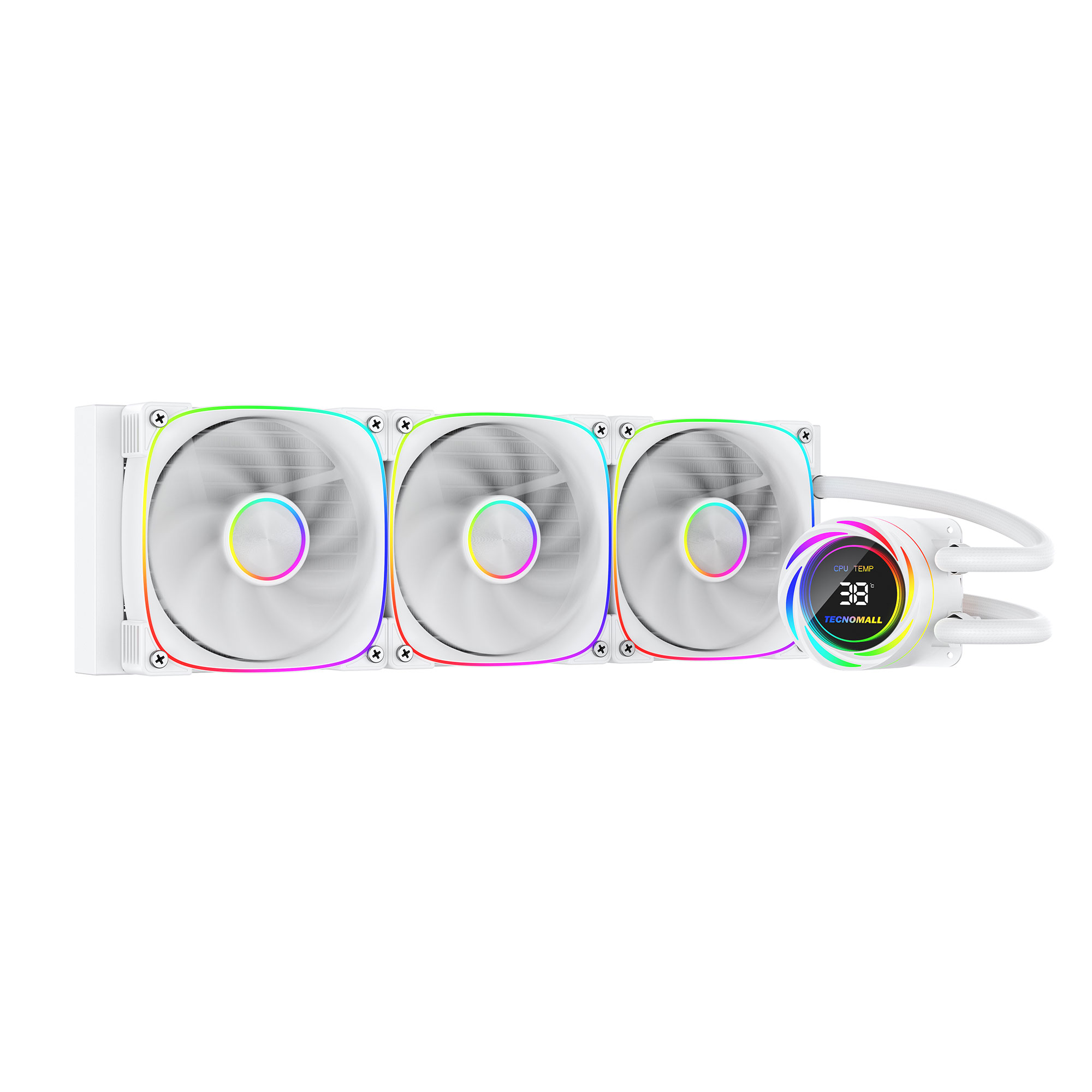

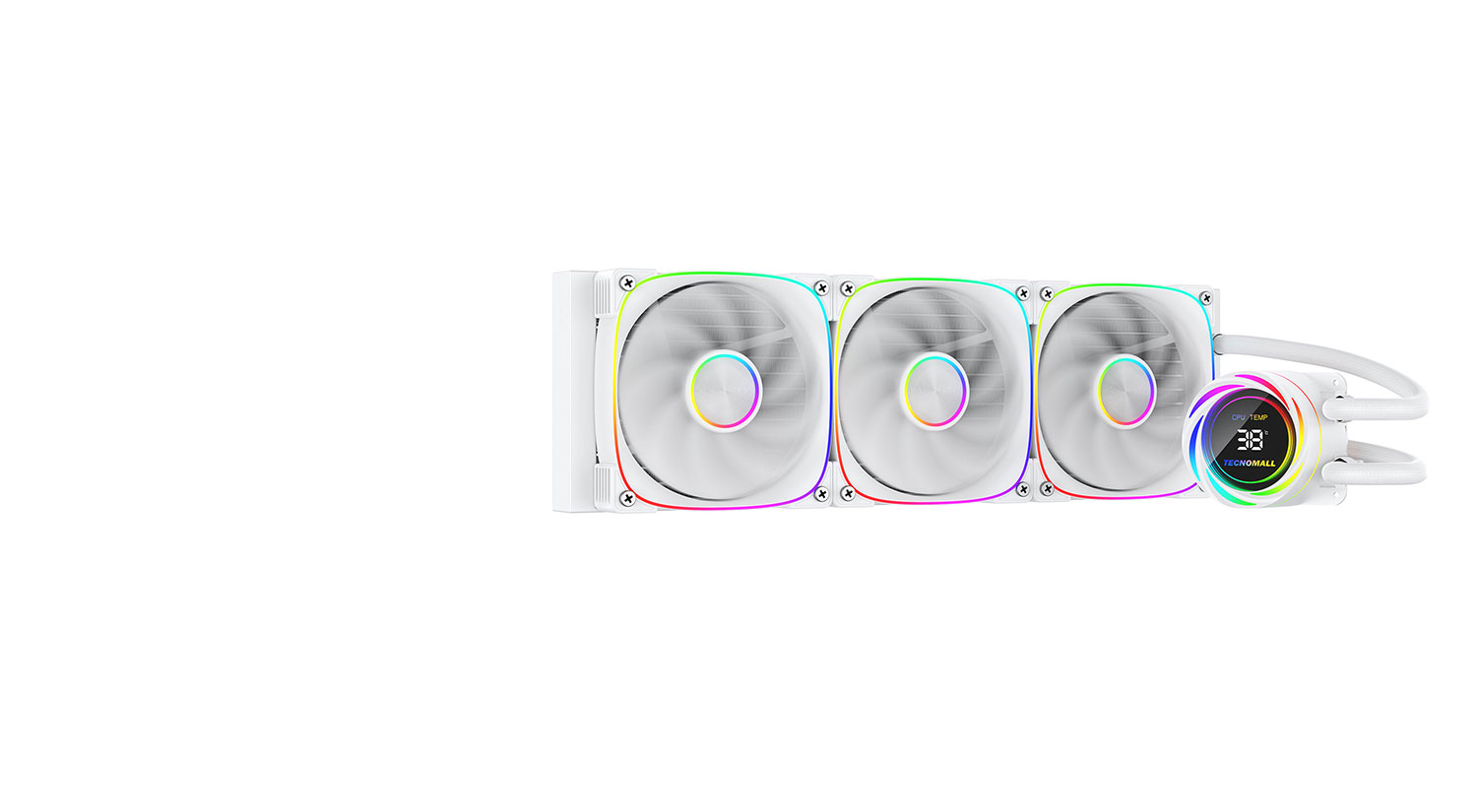

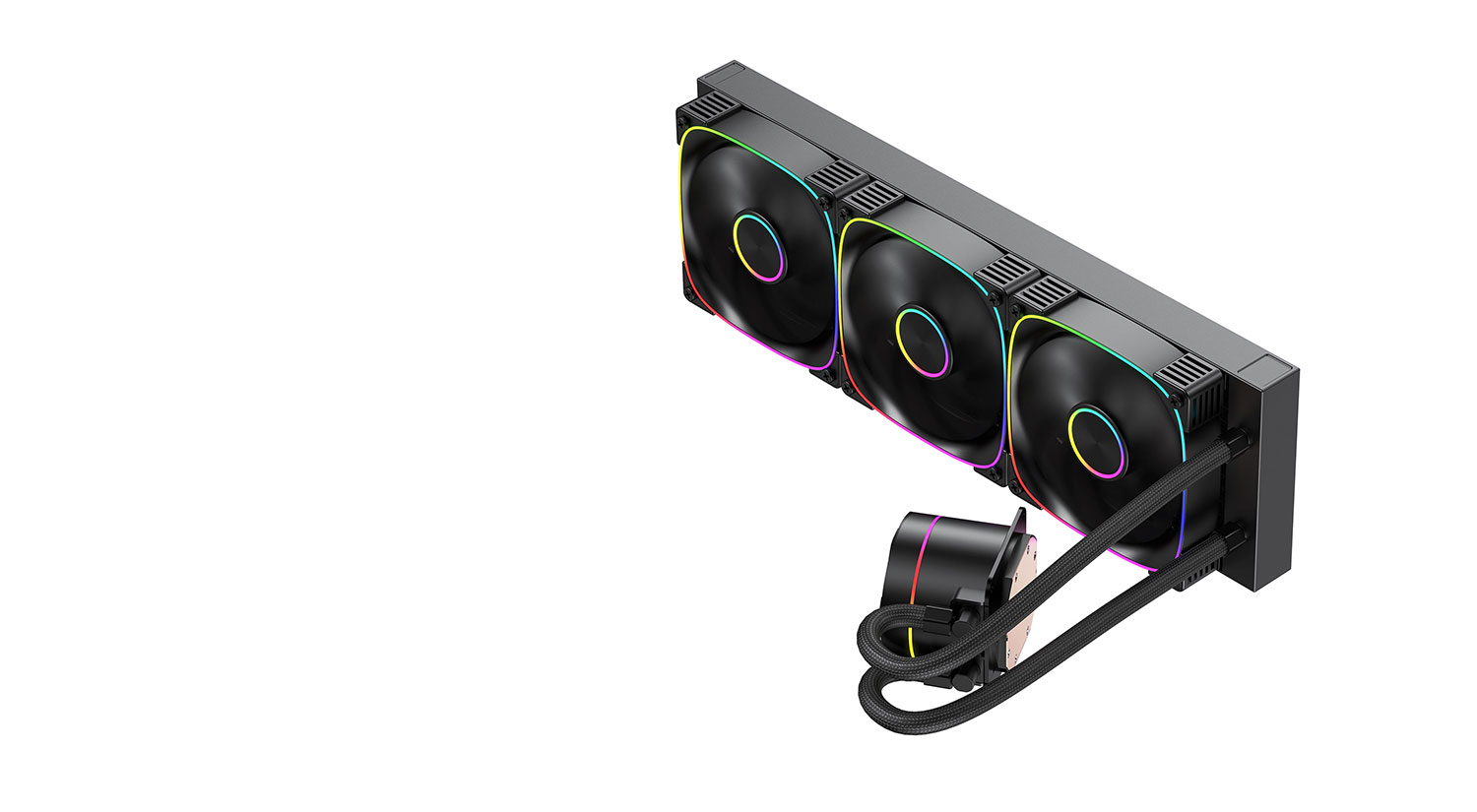

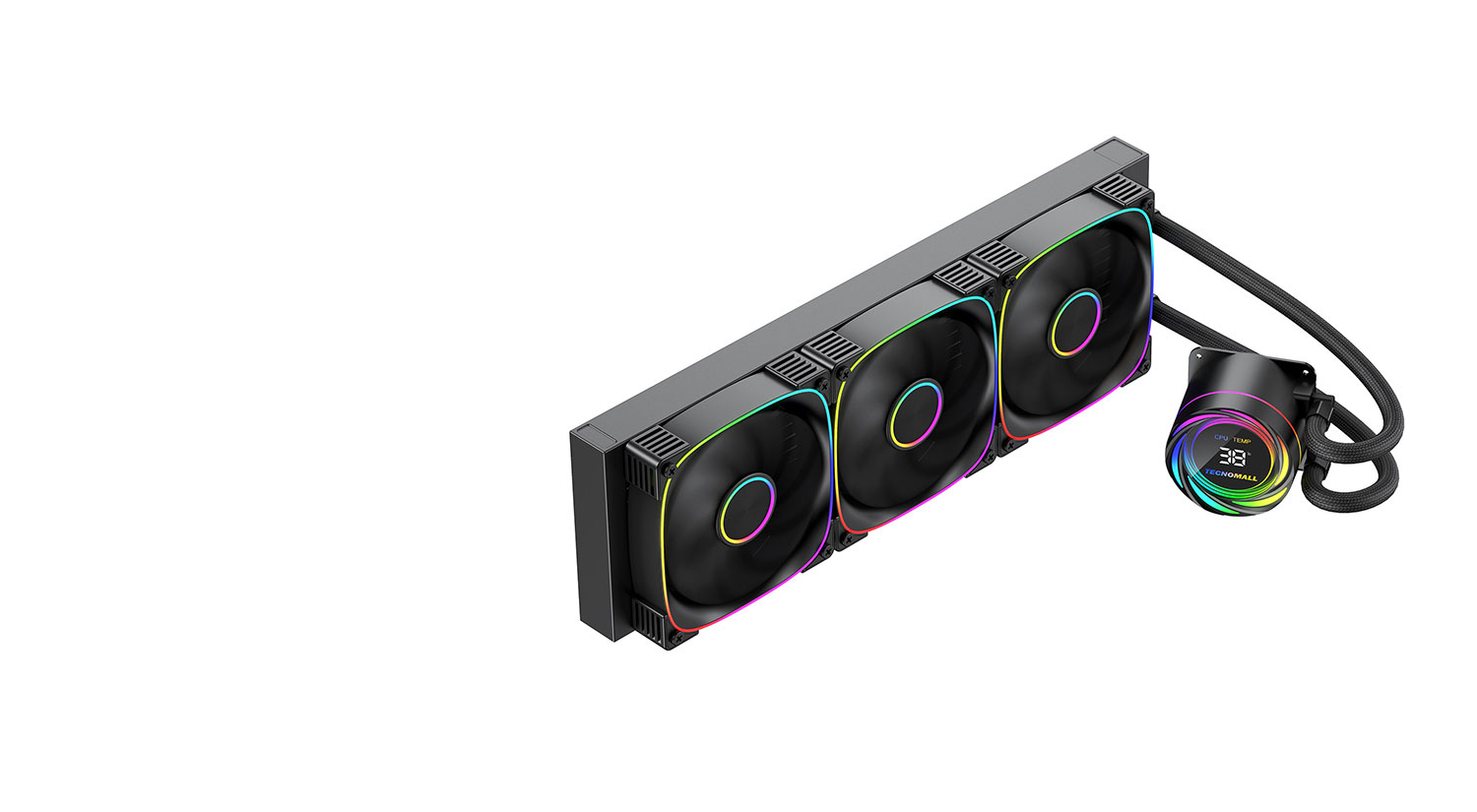

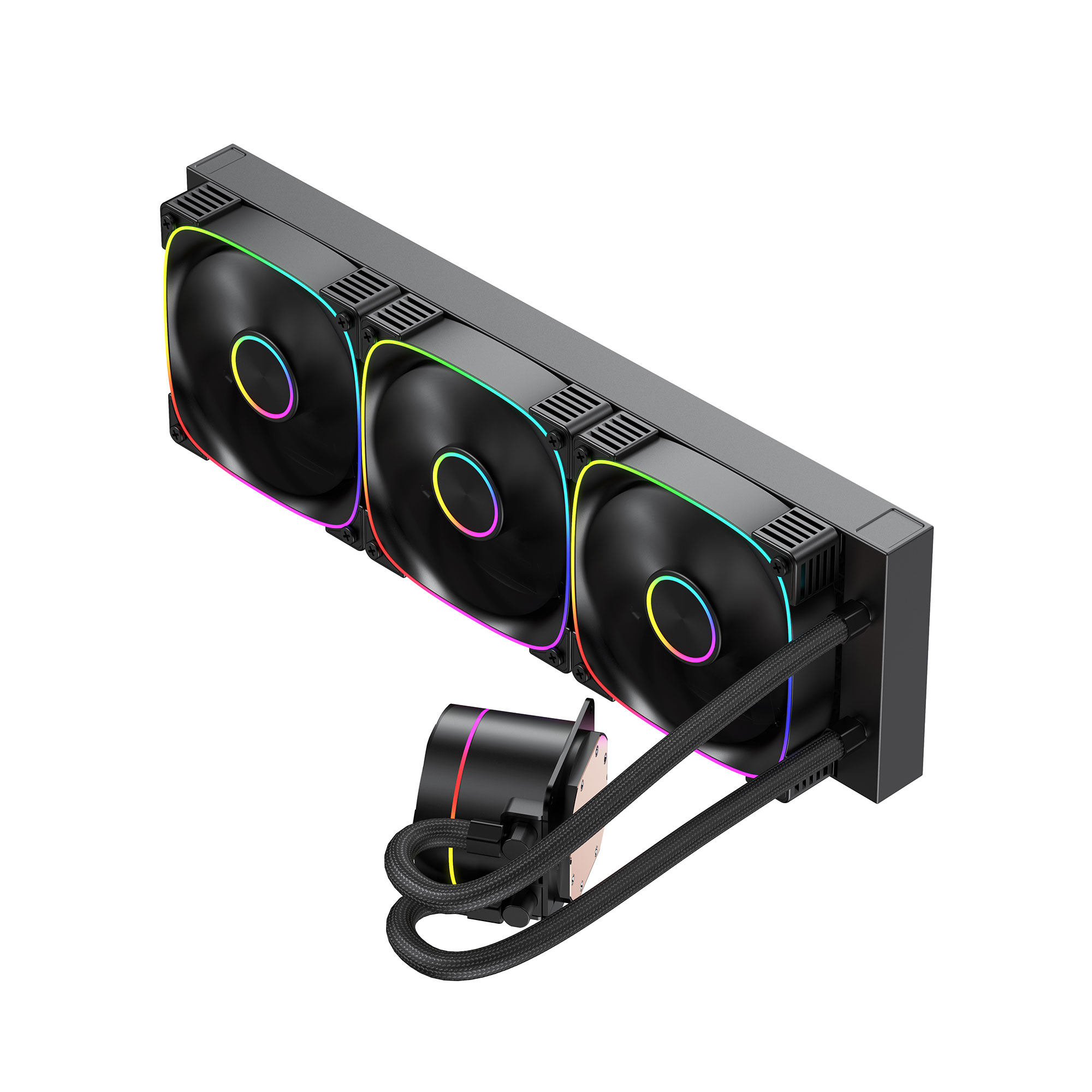

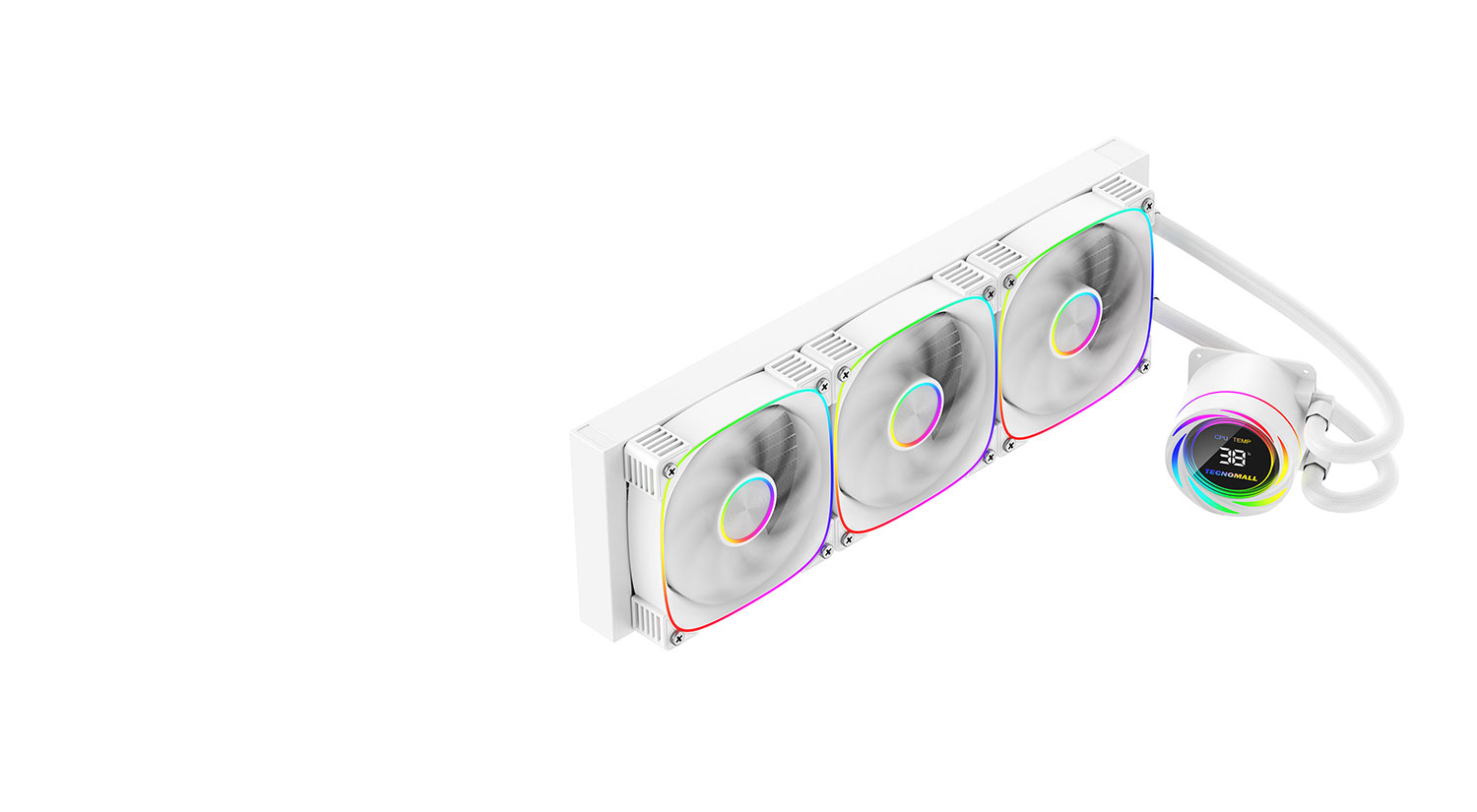

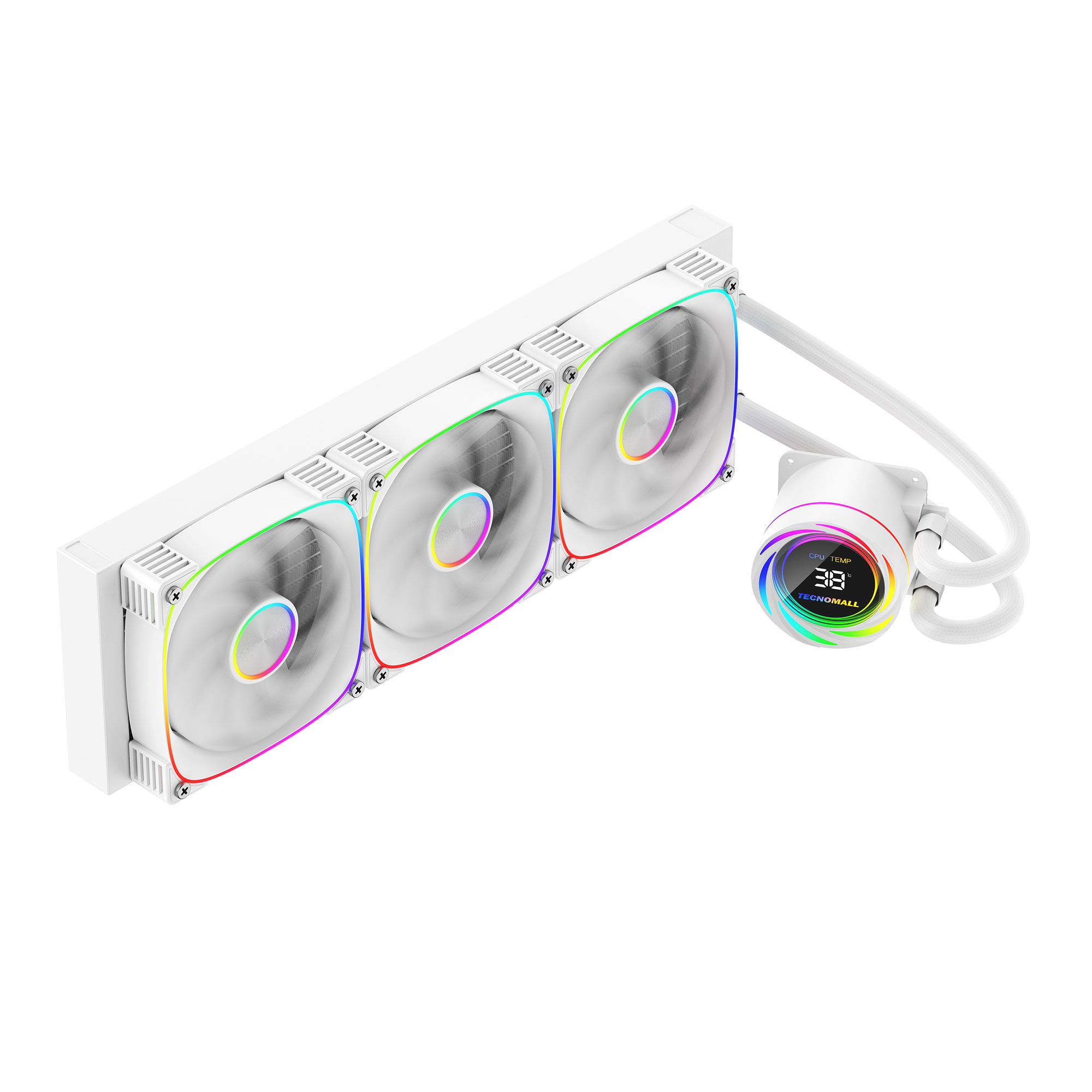

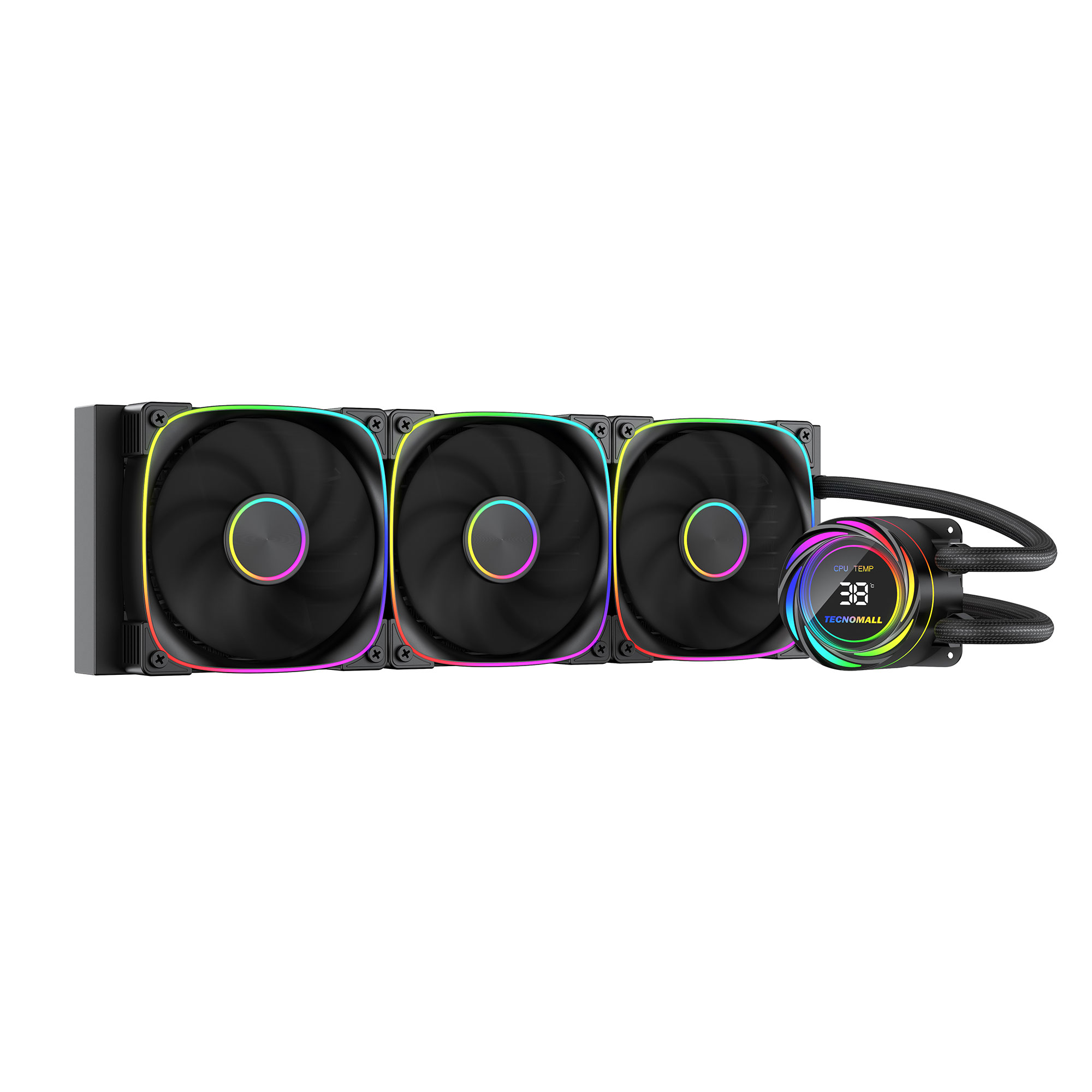

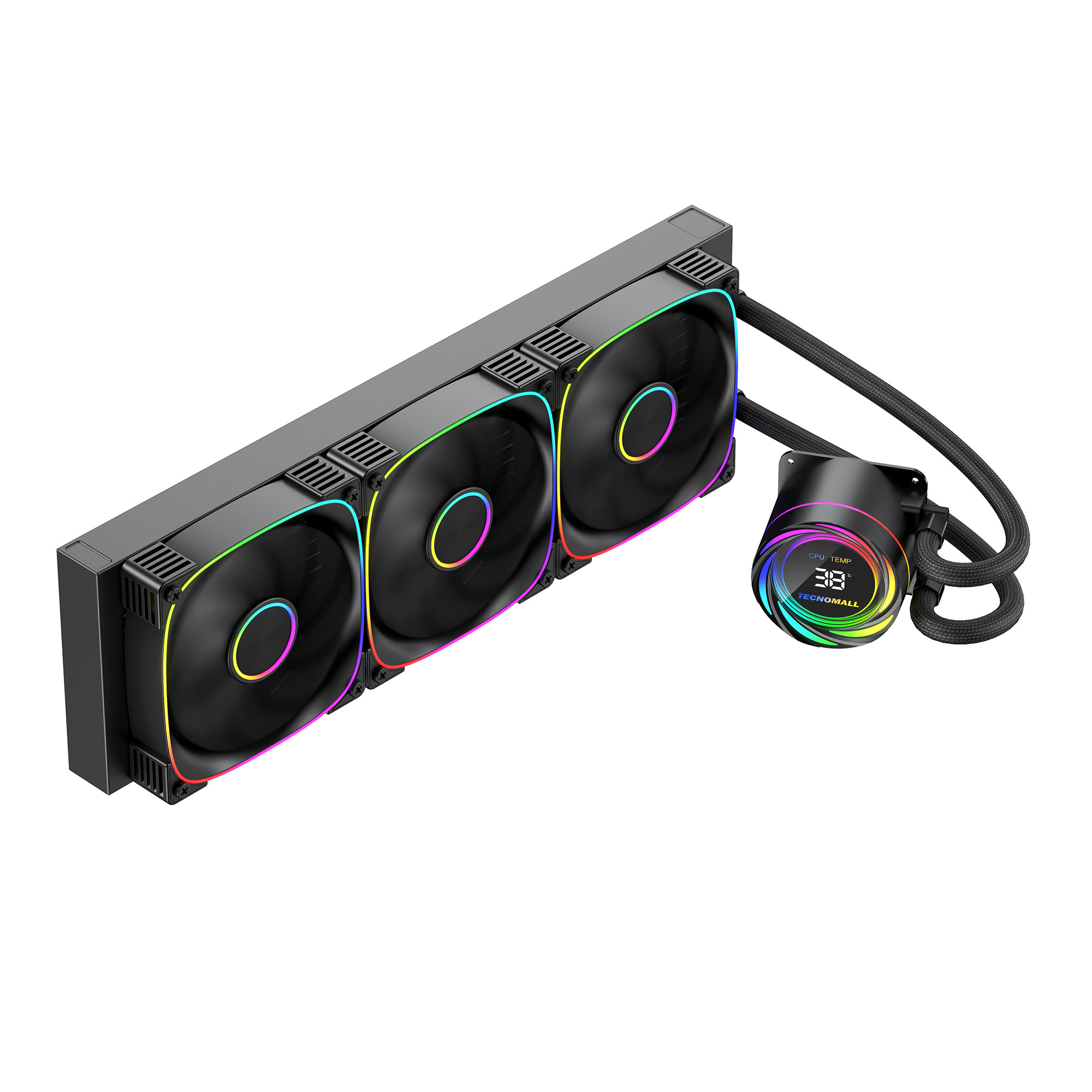

ICE VORTEX 360
-
Pump Dimensions SizeD71*58.5mm
-
Pump Speed2800rpm ±10%
-
Pump ConnectorPWM 4PIN + 5V 3PIN
-
Radiator Size397*120*27mm
-
TDP300W
-
SupportAMD / INTEL
Technical specifications
Model
ICE VORTEX 360
Pump Dimensions Size
D71*58.5mm
Pump Speed
2800rpm ±10%
Pump Connector
PWM 4PIN + 5V 3PIN
Pump Rated Voltage
DC 12V
Pump Rated Current
0.4A
Flow rate
1500ml/min

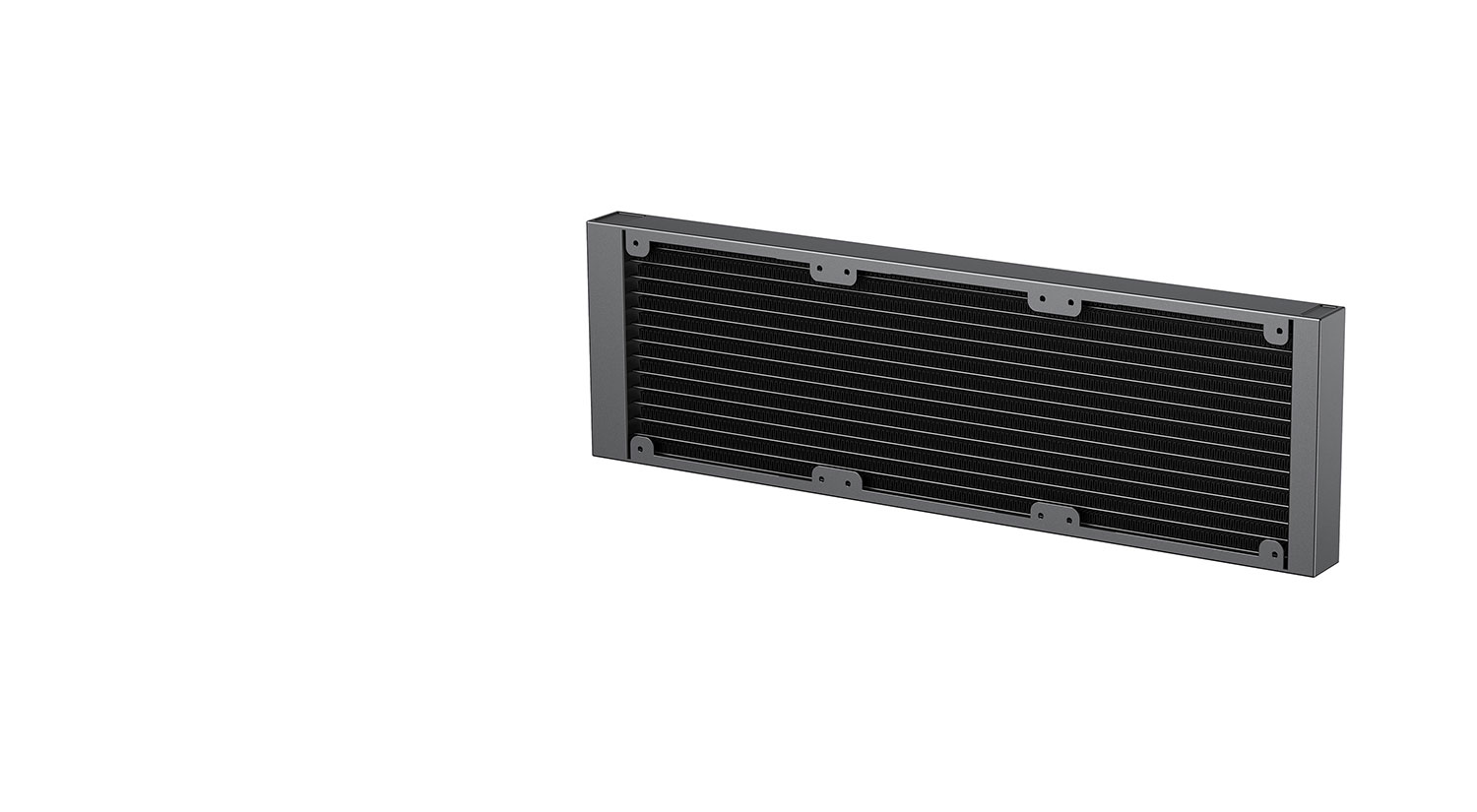

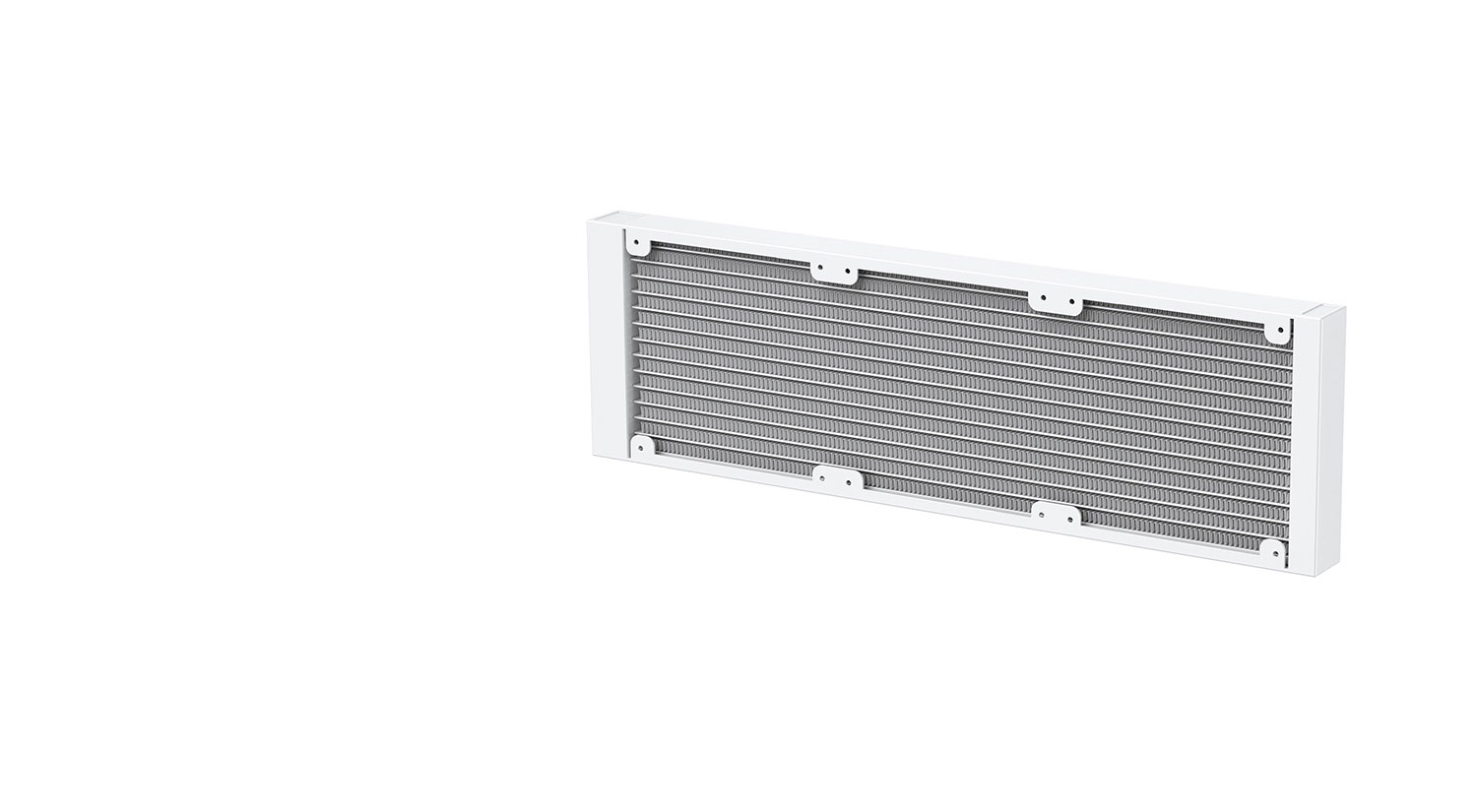

Radiator Size
397*120*27mm
Radiator Material
Aluminum

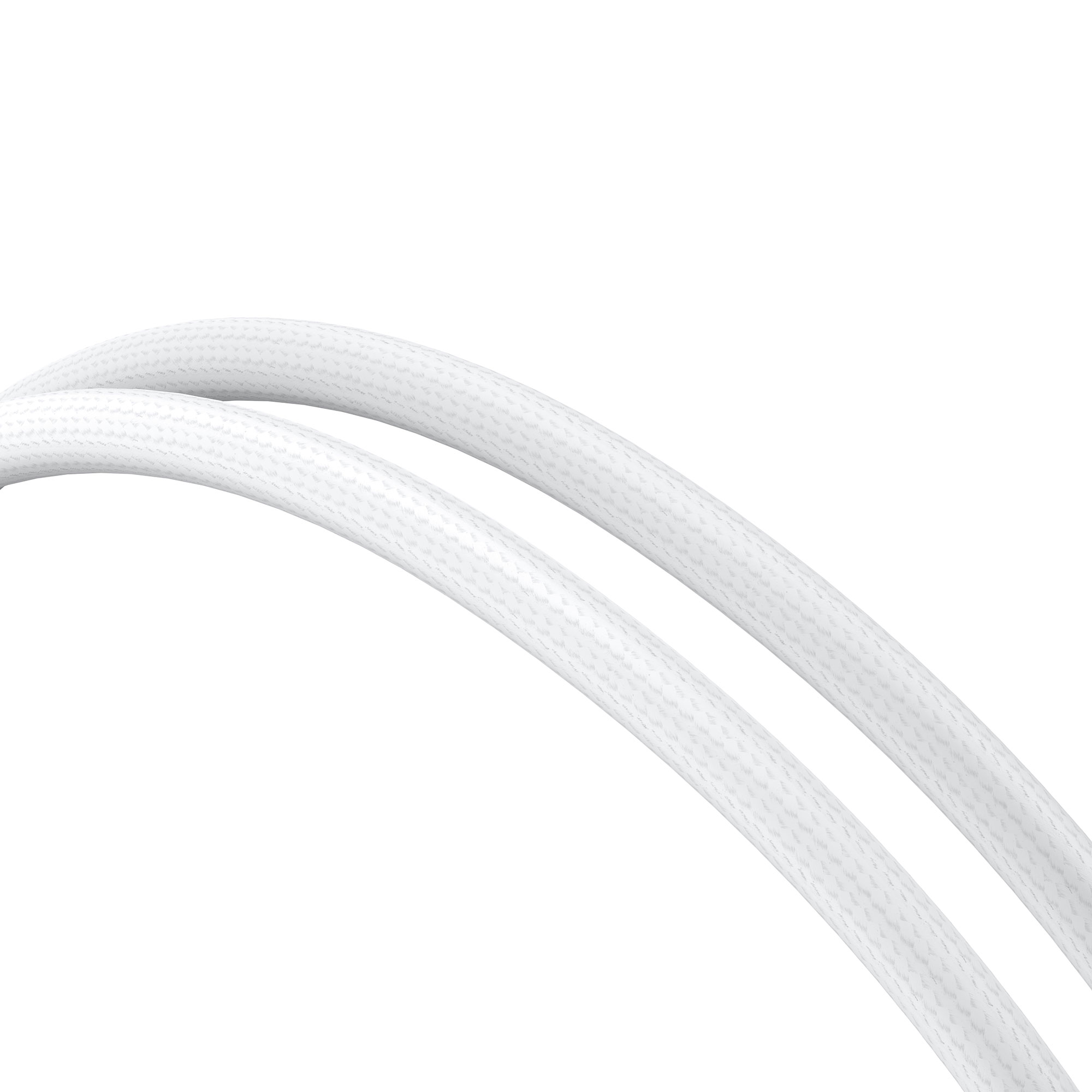

Water Pipe Specification
400mm±10%
TDP
300W
Support
AMD / INTEL
Fan Size
120*120*25mm
Fan Bearing
Hydro Bearing
Fan Rated Voltage
DC 12V
Fan Rated Current
0.25A
Fan Speed
2100rpm ±10%
Fan Airflow
62.63CFM
Fan Static Pressure
2.91mm H2O
Fan Connector
5V 3Pin + PMW 4 Pin
