B06X

Motherboards

EATX / ATX / MICRO ATX / ITX
Chassis Dimension

435*225*465mm

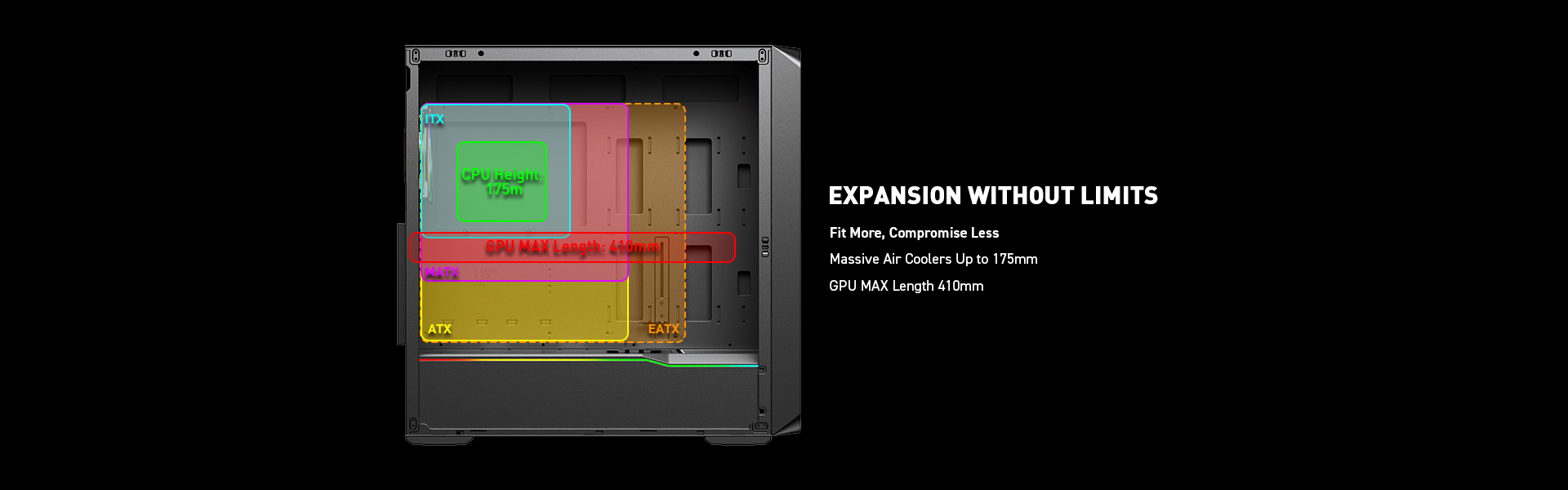

VGA Clearance

410mm
CPU Cooler Clearance

175mm
Power Supply

180mm
I/O Ports

USB3.0*2 + Type C*1 +HD Audio

Technical specifications

Model B06X

Motherboards EATX / ATX / MICRO ATX / ITX

VGA Clearance 410mm

CPU Cooler Clearance 175mm

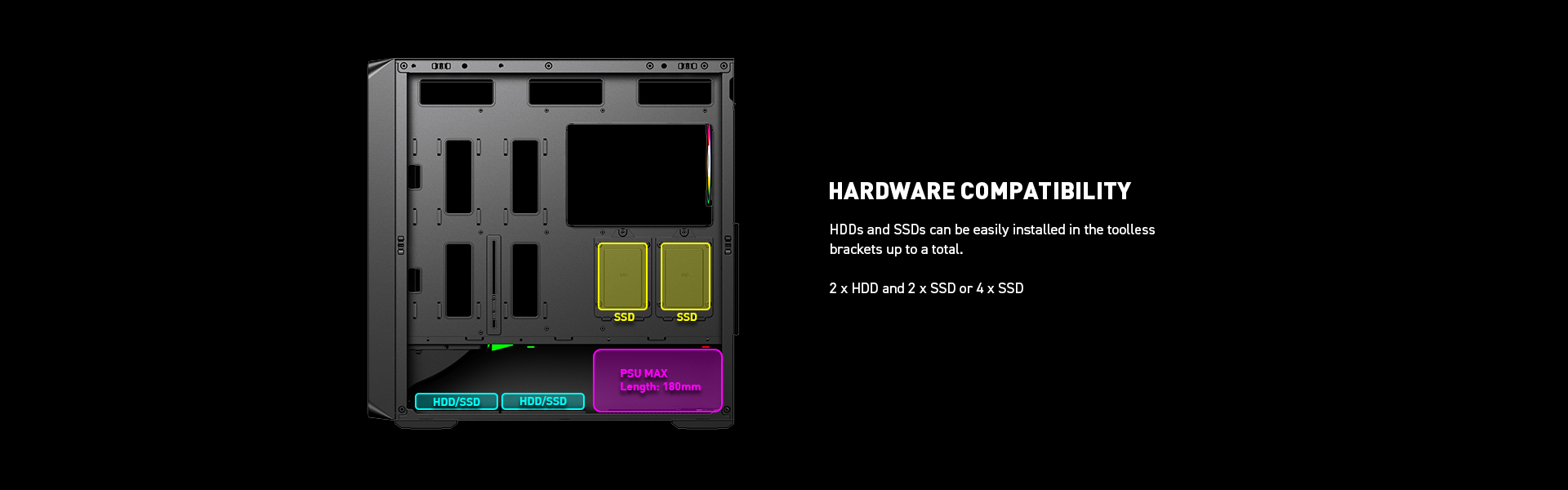

3.5+2.5 Driver Bays 2+2 or 0+4

Power Supply 180mm

Chassis Dimension 435*225*465mm

Product Dimension 470*225*476mm

40HQ Container 792 PCS

I/O Ports USB3.0*2 + Type C*1 +HD Audio

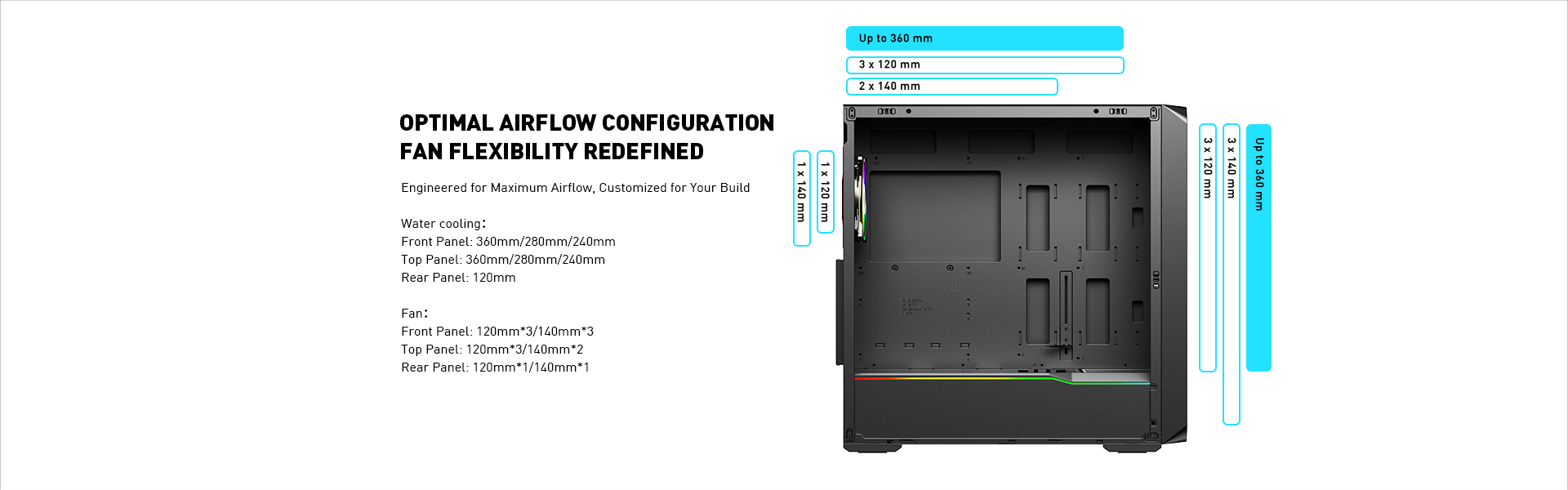

Air Cooling Front: 120mm x 3 or 140mm x 3 Top: 120mm x 3 or 140mm x 2 Rear: 120mm x 1 or 140mm x 1

Liquid Cooling Front :240mm/280mm/360mm Top :240mm/280mm/360mm Rear: 120mm

Body Materiarl SPCC 0.6mm

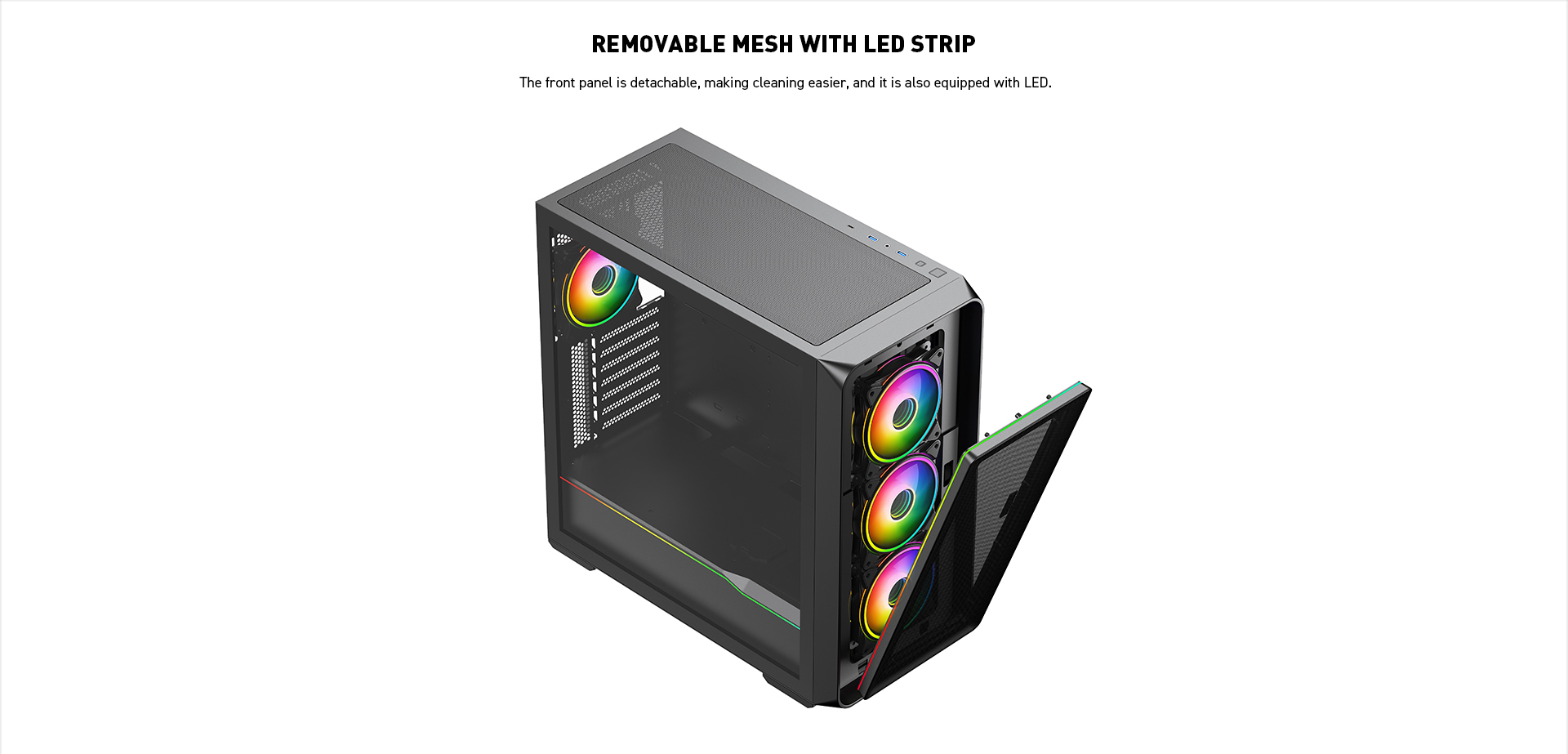

Front Panel ABS+Mesh+LED

Left Panel 3mm glass

Right Panel 0.6mm Metal
