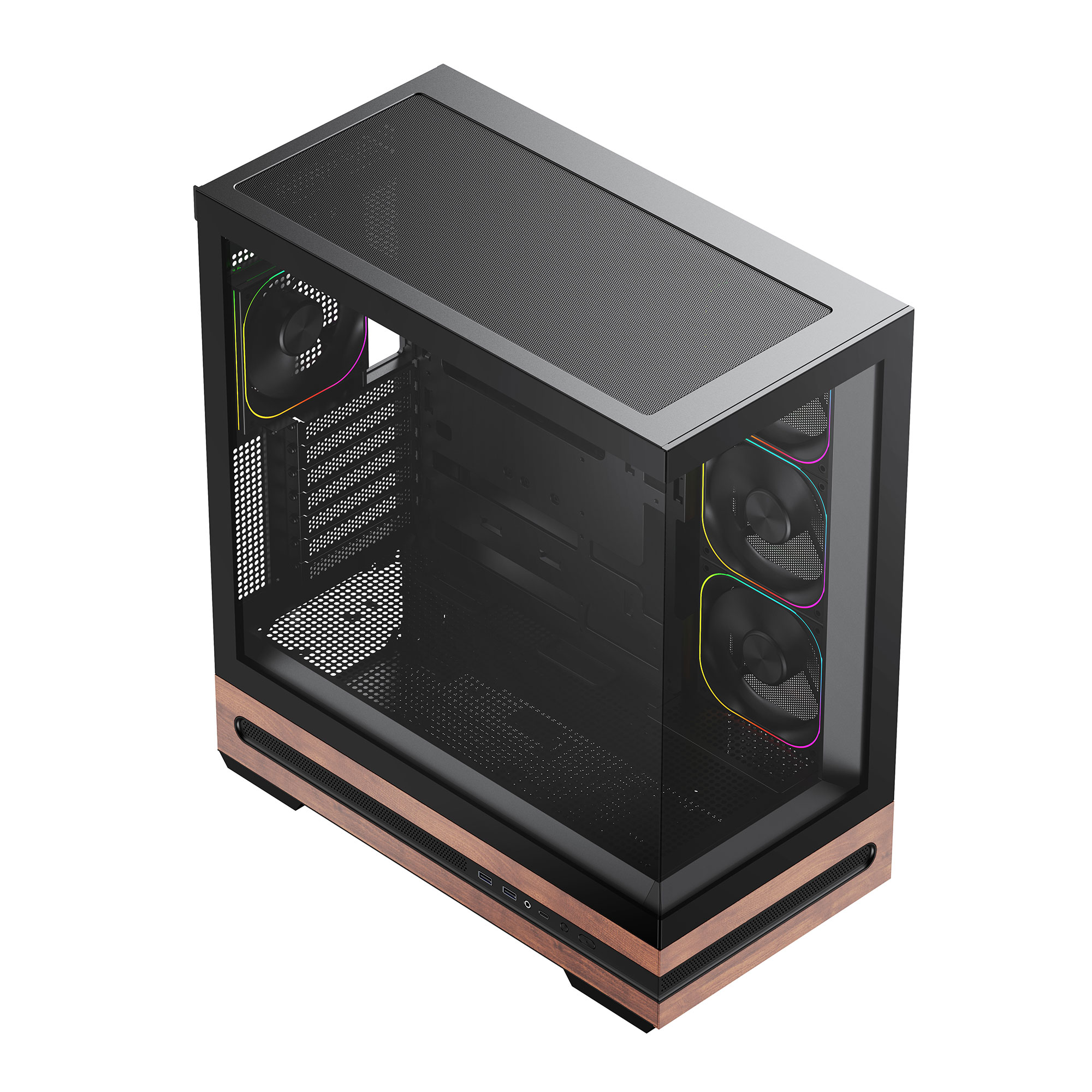

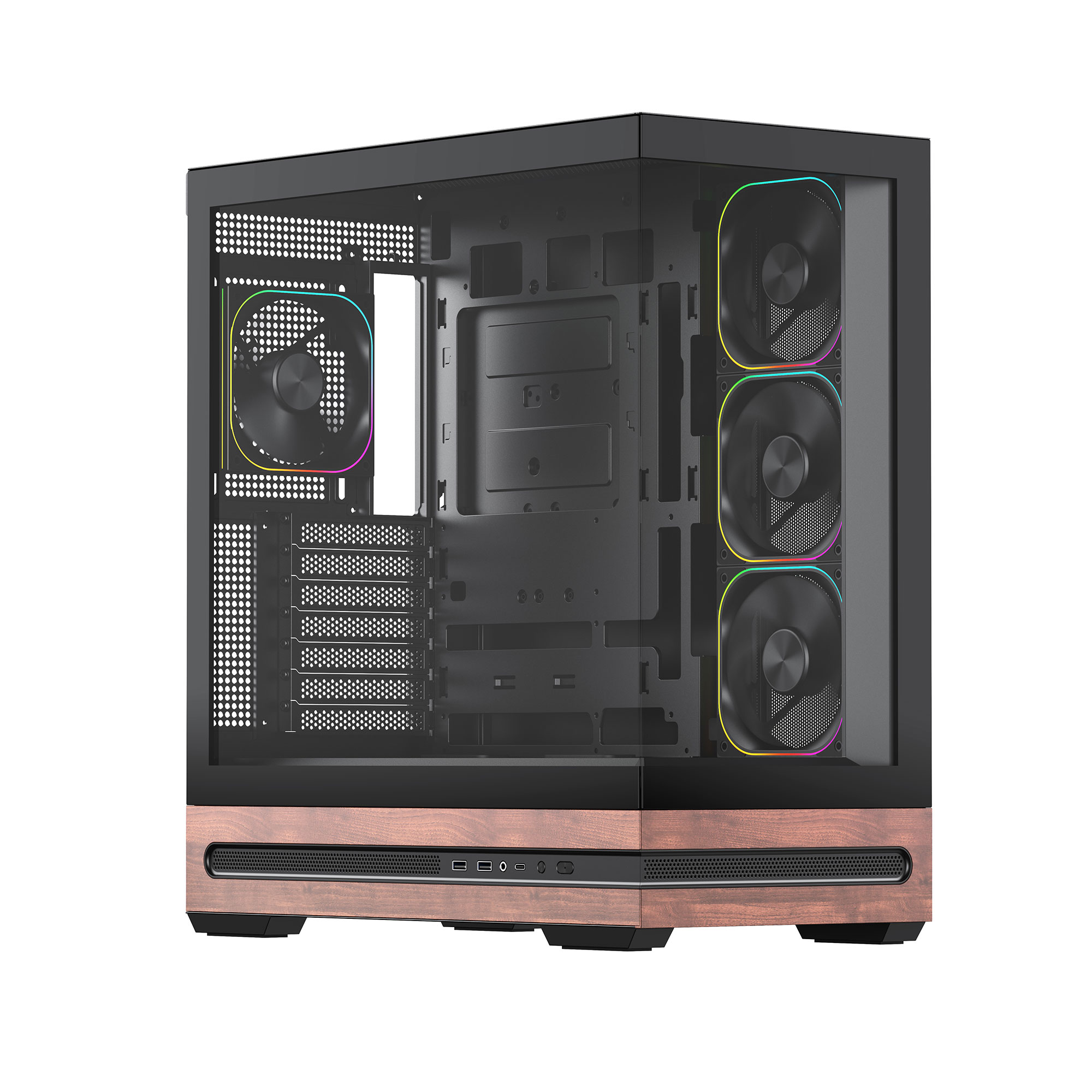

N707 BK
-
MotherboardsITX / MICRO ATX / ATX
-
Chassis Dimension440*235*478mm
-
VGA Clearance435mm
-
CPU Cooler Clearance170mm
-
Power Supply260mm
-
I/O PortsUSB3.0*2 + TYPE C +HD Audio
Technical specifications
Model
N707
Motherboards
ITX / MICRO ATX / ATX

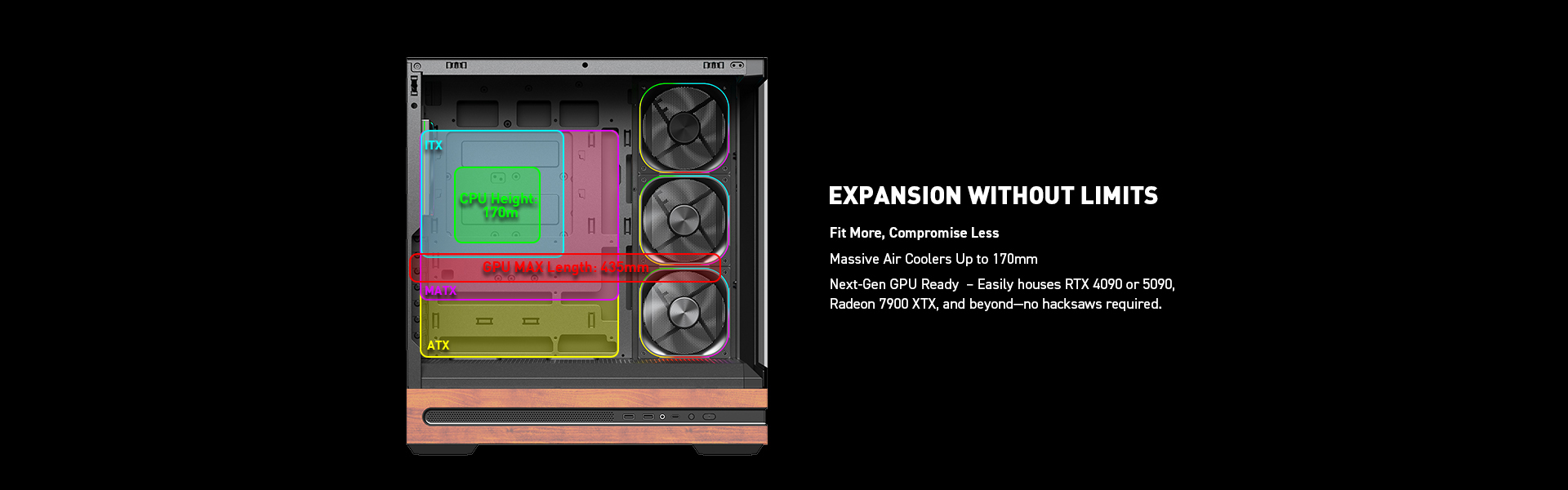

VGA Clearance
435mm
CPU Cooler Clearance
170mm

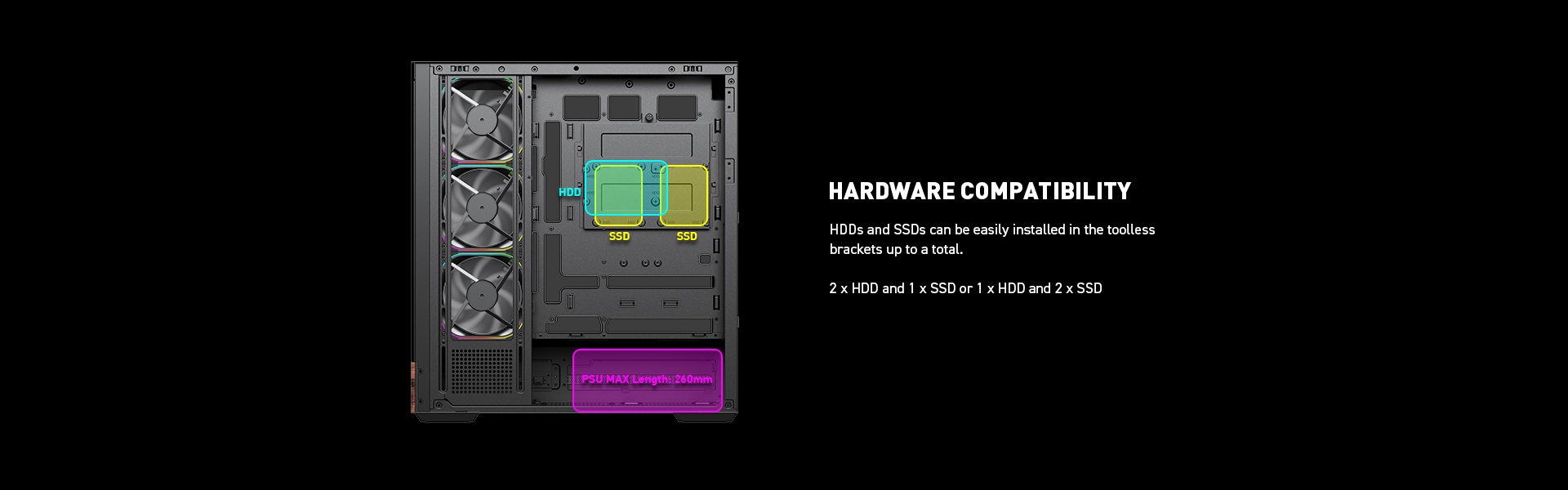

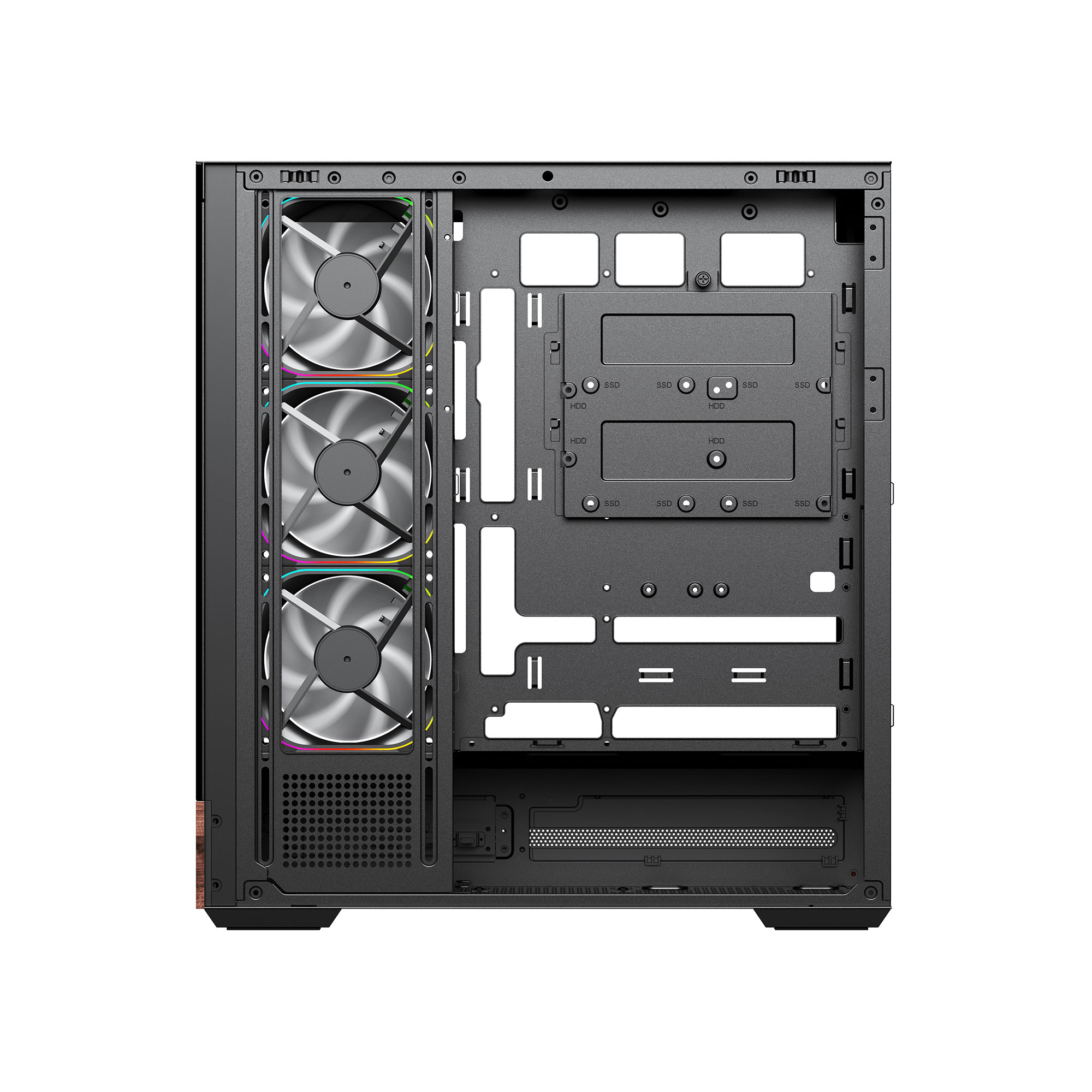

3.5+2.5 Driver Bays
2+1 or 1+2 or 0+3
Power Supply
260mm
Chassis Dimension
440*235*478mm
Product Dimension
445*235*492mm
40HQ Container
655 PCS
I/O Ports
USB3.0*2 +TYPE C + HD Audio
Air Cooling
Top: 120mm x 3 or 140mm x 2 (Max.) Rear: 120mm x 1(Max.) MB cover :120mm x 3(Max.) PSU cover :120mm x 3 (Max.)
Liquid Cooling
Top :240mm/280mm/360mm Rear: 120mm MB cover: 360mm
Body Materiarl
SPCC 0.7mm
Front Panel
4mm glass
Left Panel
4mm glass
Right Panel
0.7mm Metal
