285B2 WH_PC CASE_Products

Technical specifications

Model 285B2

Motherboards ITX / MICRO ATX / ATX

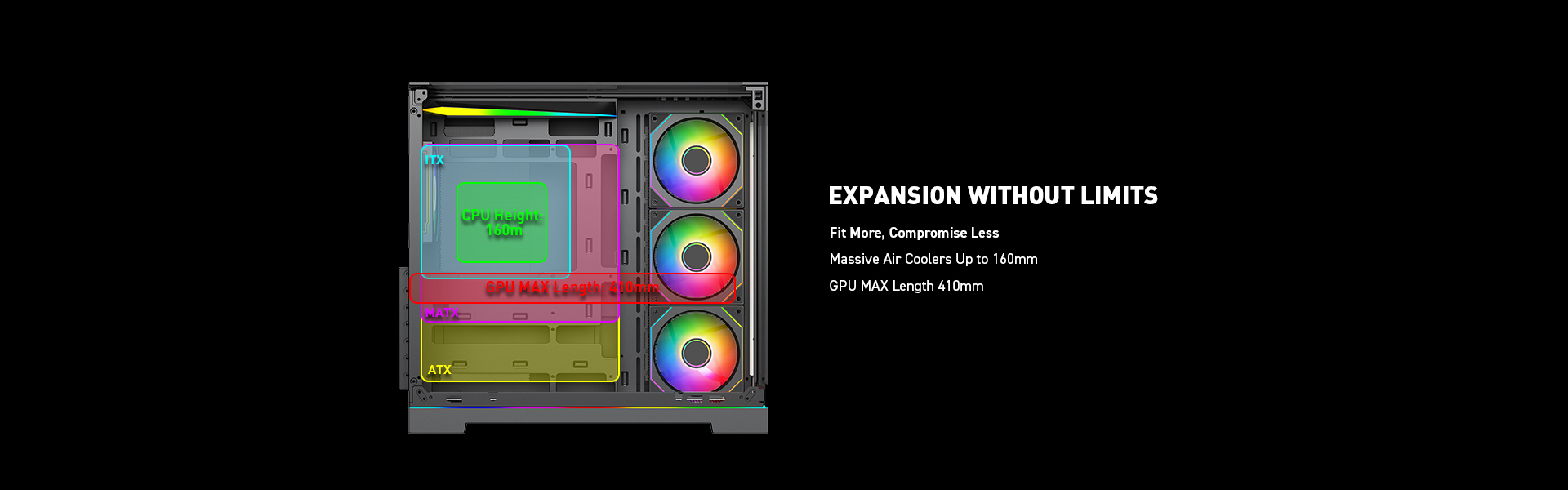

VGA Clearance 410mm

CPU Cooler Clearance 160mm

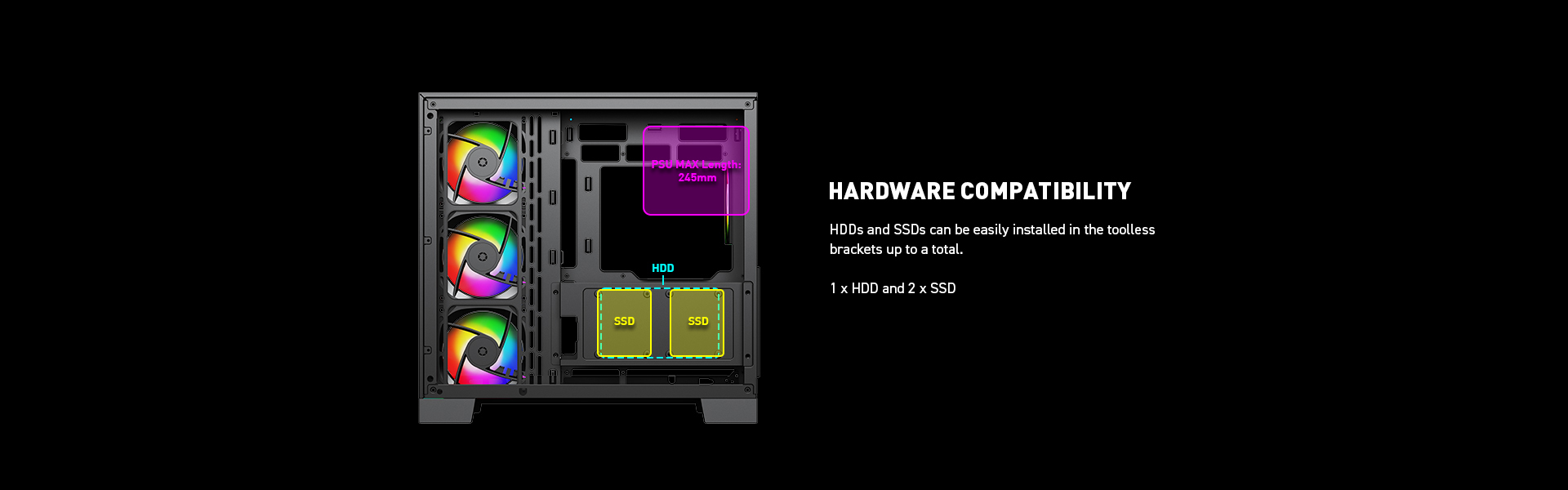

3.5+2.5 Driver Bays 1+2

Power Supply 245mm

Chassis Dimension 426*285*384mm

Product Dimension 426*285*416mm

40HQ Container 700 PCS

I/O Ports USB3.0*1 + USB2.0*2 + HD Audio

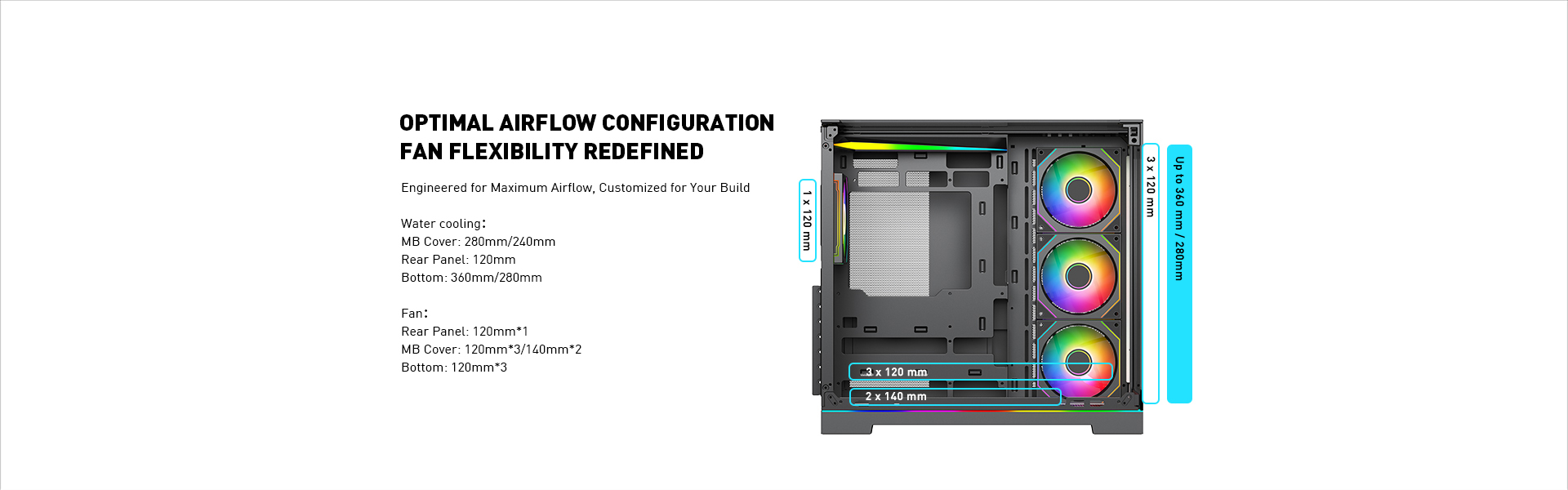

Air Cooling Rear: 120mm x 1 MB cover : 120mm x 3 or 140mm x 2 Bottom :120mm x 3

Liquid Cooling Rear: 120mm MB cover :280mm Bottom :360mm

Body Materiarl SPCC 0.7mm

Front Panel 4mm glass side panel

Left Panel 4mm glass side panel

Right Panel 0.7mm Metal
