SA01_PC CASE_Products

Technical specifications

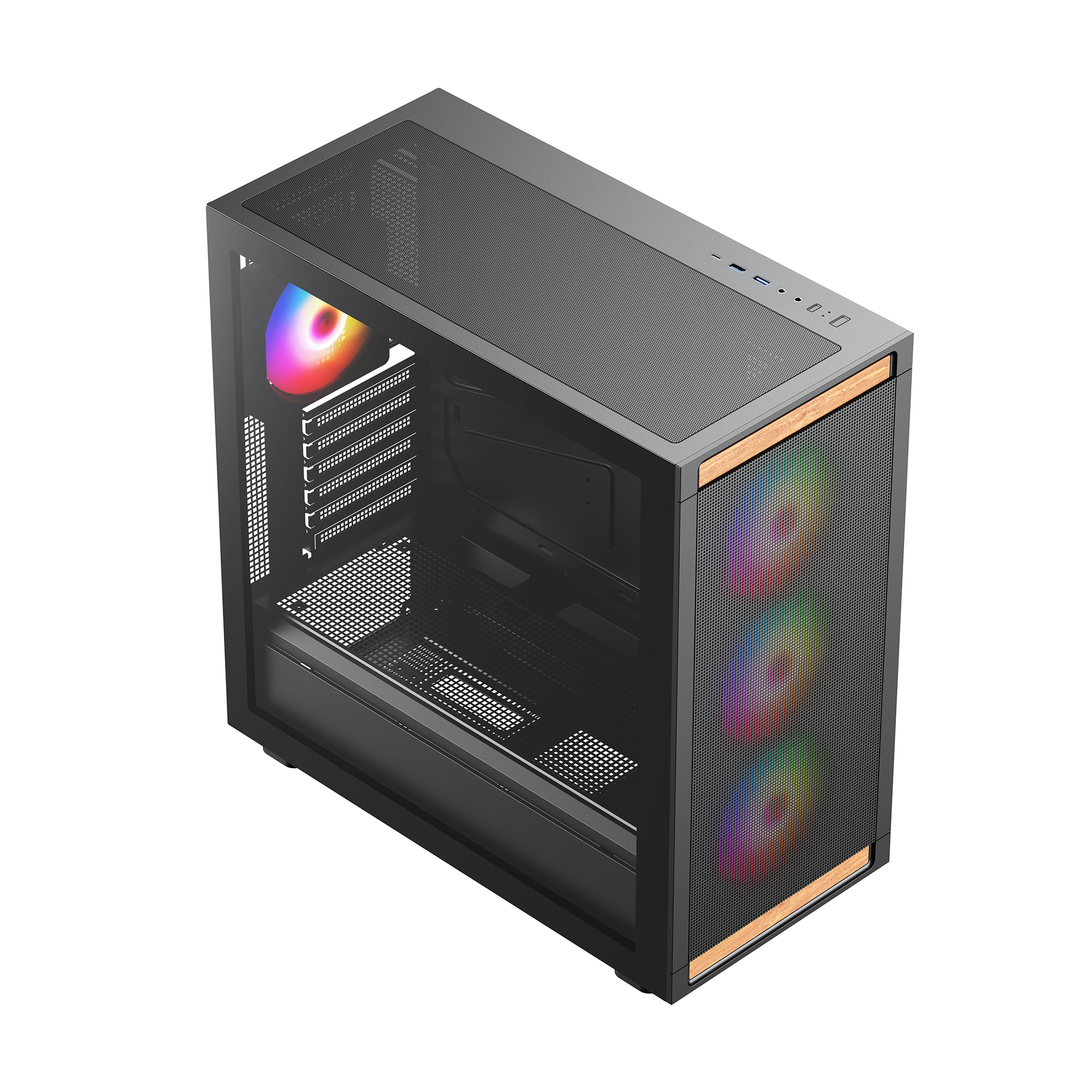

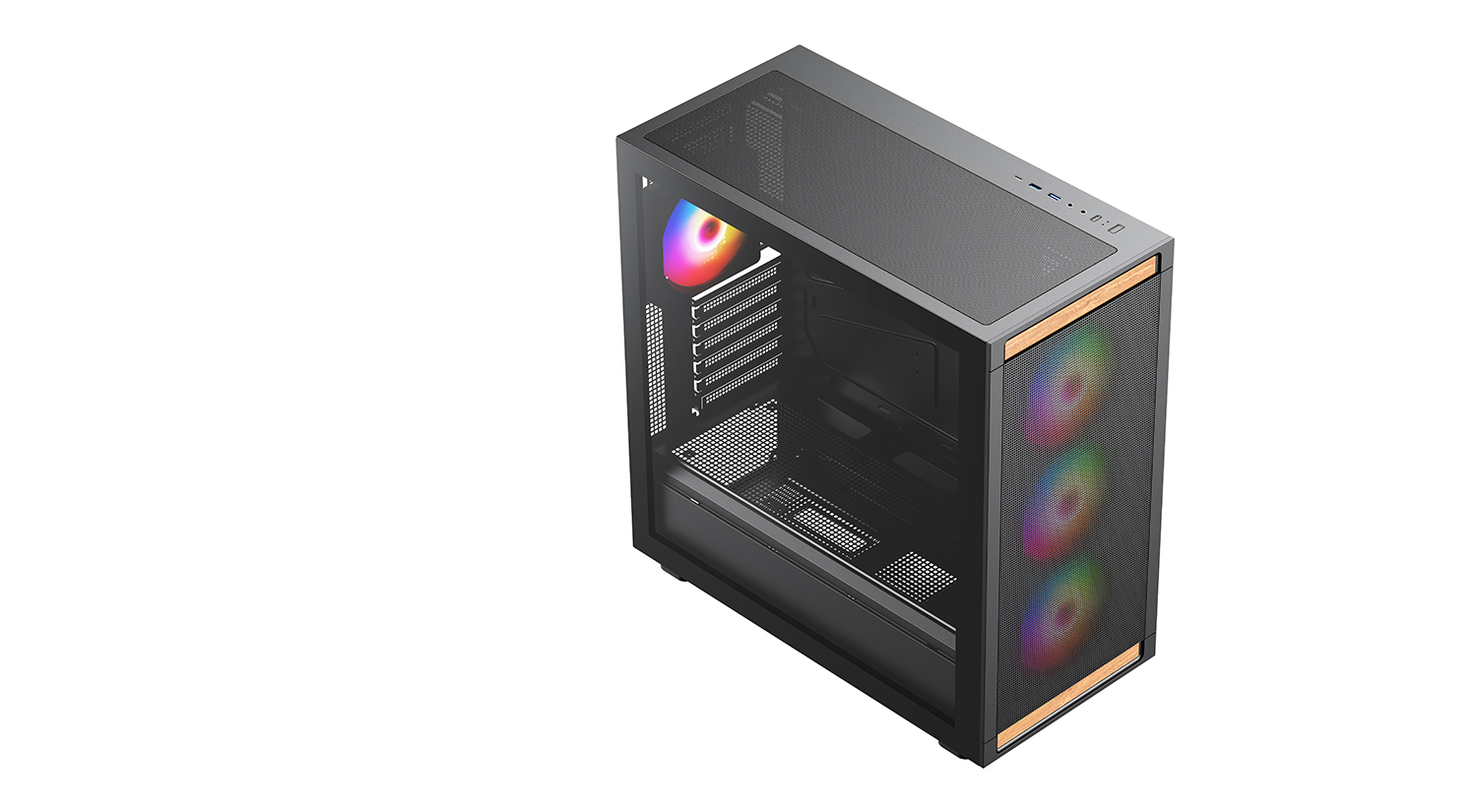

Model SA01

Motherboards ITX / MICRO ATX / ATX

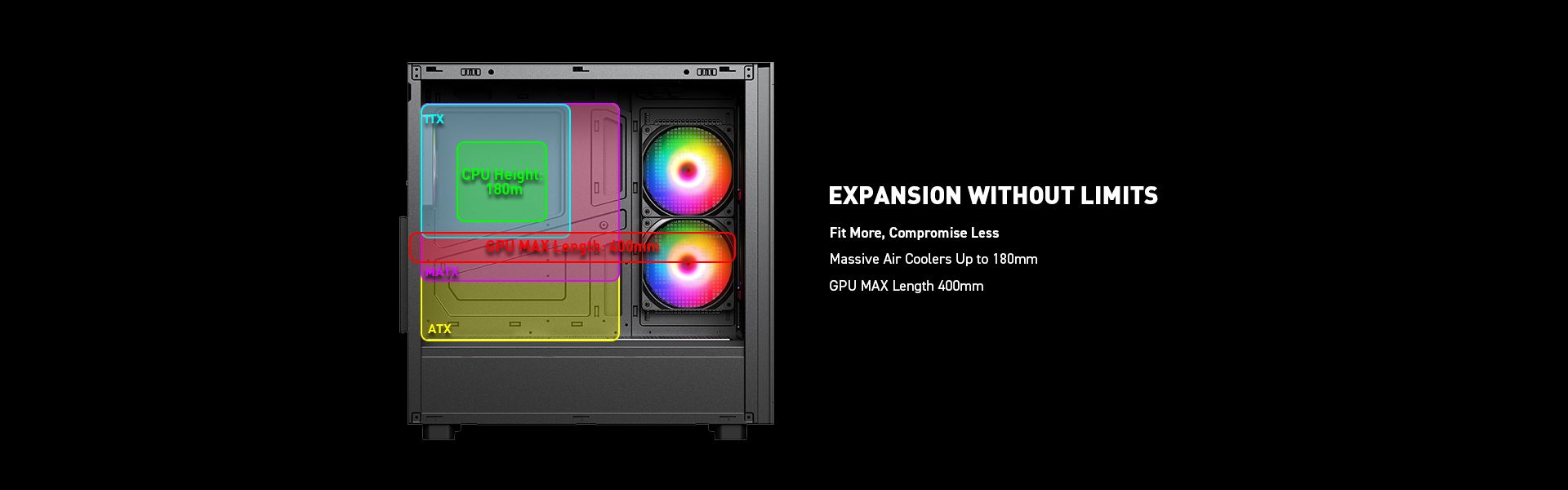

VGA Clearance 400mm

CPU Cooler Clearance 180mm

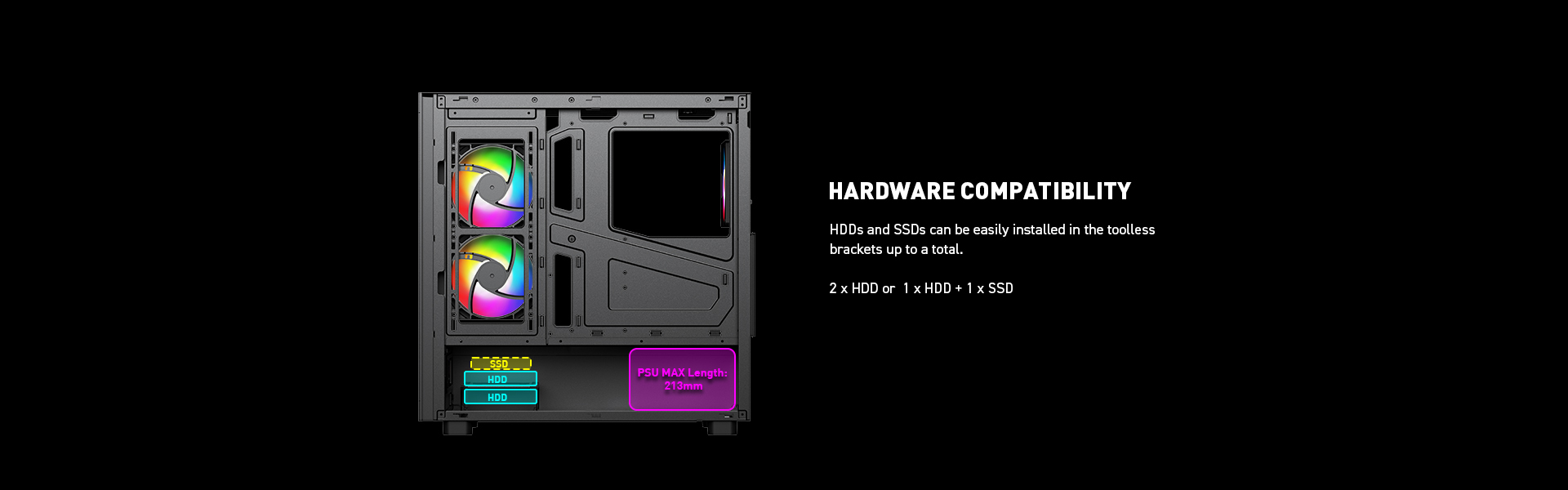

3.5+2.5 Driver Bays 2+0 or 1+1

Power Supply 180mm

Chassis Dimension 445*222*445mm

Product Dimension 450*222*465mm

40HQ Container 800 PCS

I/O Ports USB3.0*1 + USB2.0*1 + HD Audio

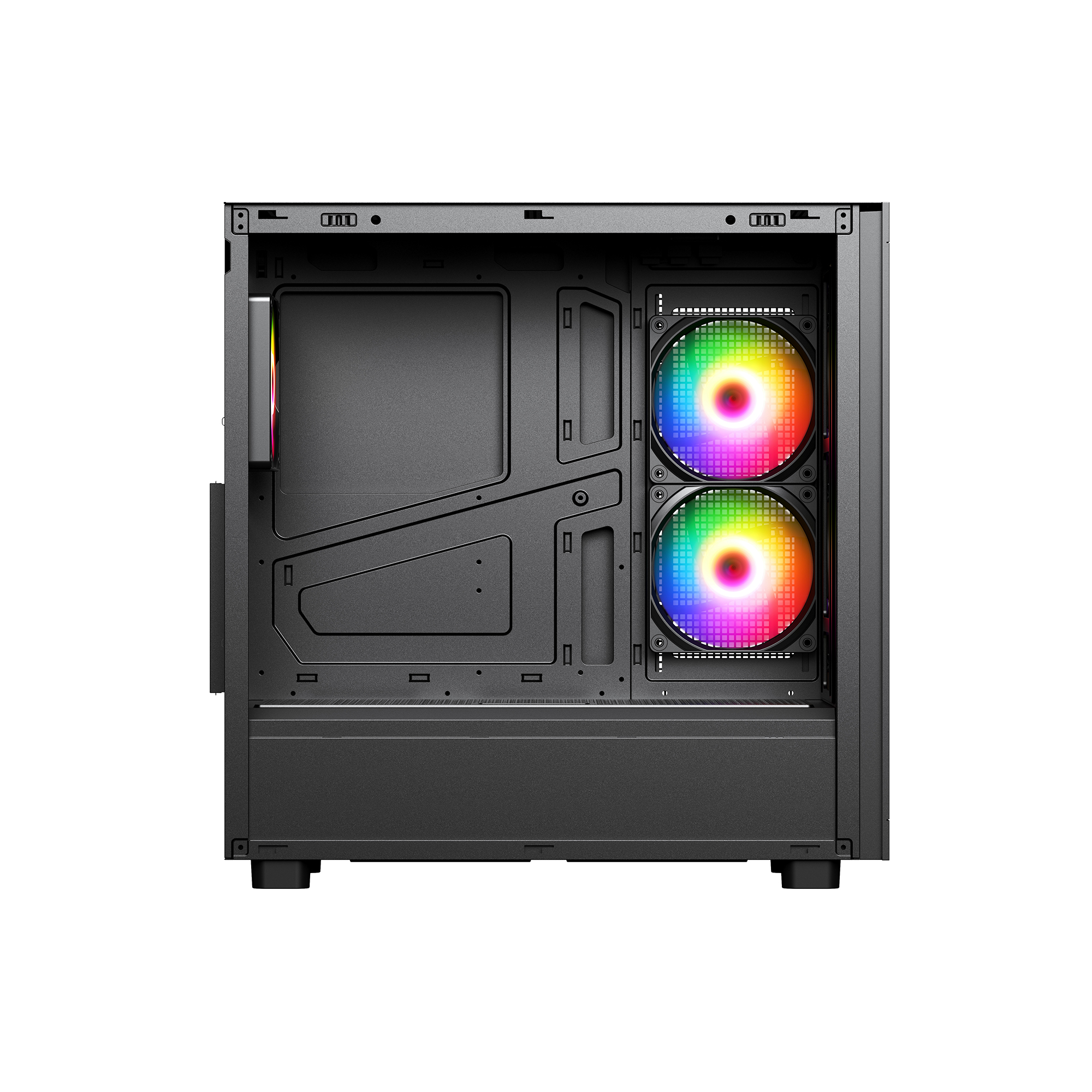

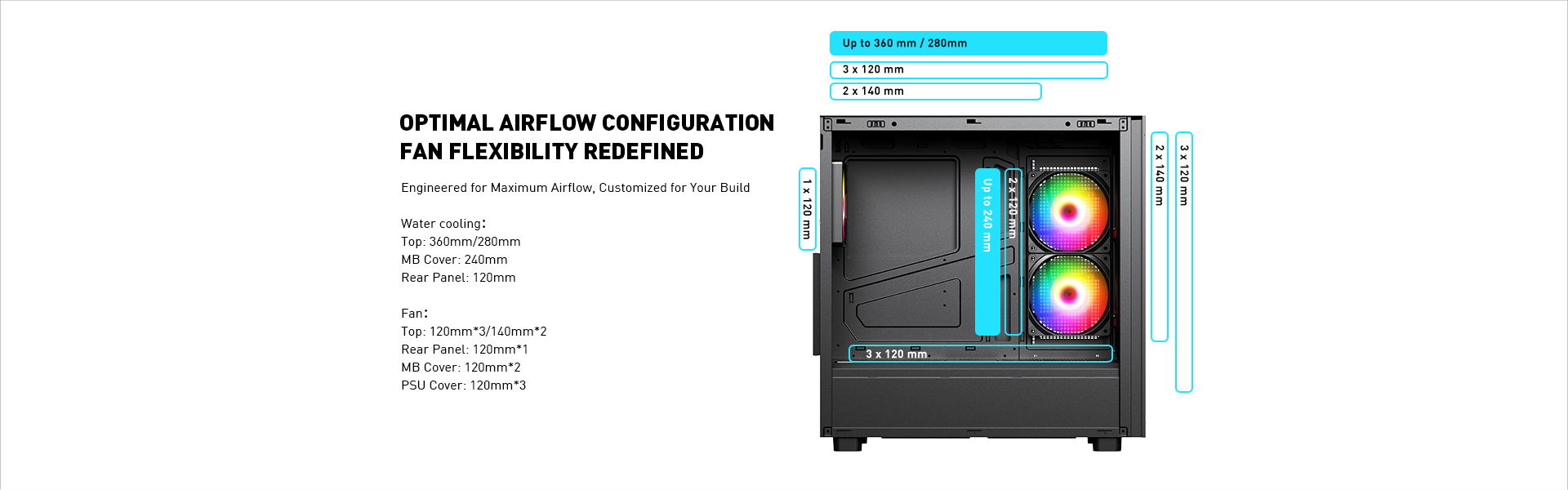

Air Cooling Front: 120mm x 3 or 140mm x 2 Top: 120mm x 3 or 140mm x 2 Rear: 120mm x 1 PSU Cover :120mm x 3 MB Cover :120mm x 2

Liquid Cooling Top: 360mm / 280mm Rear: 120mm MB cover: 240mm

Body Materiarl SPCC 0.45mm

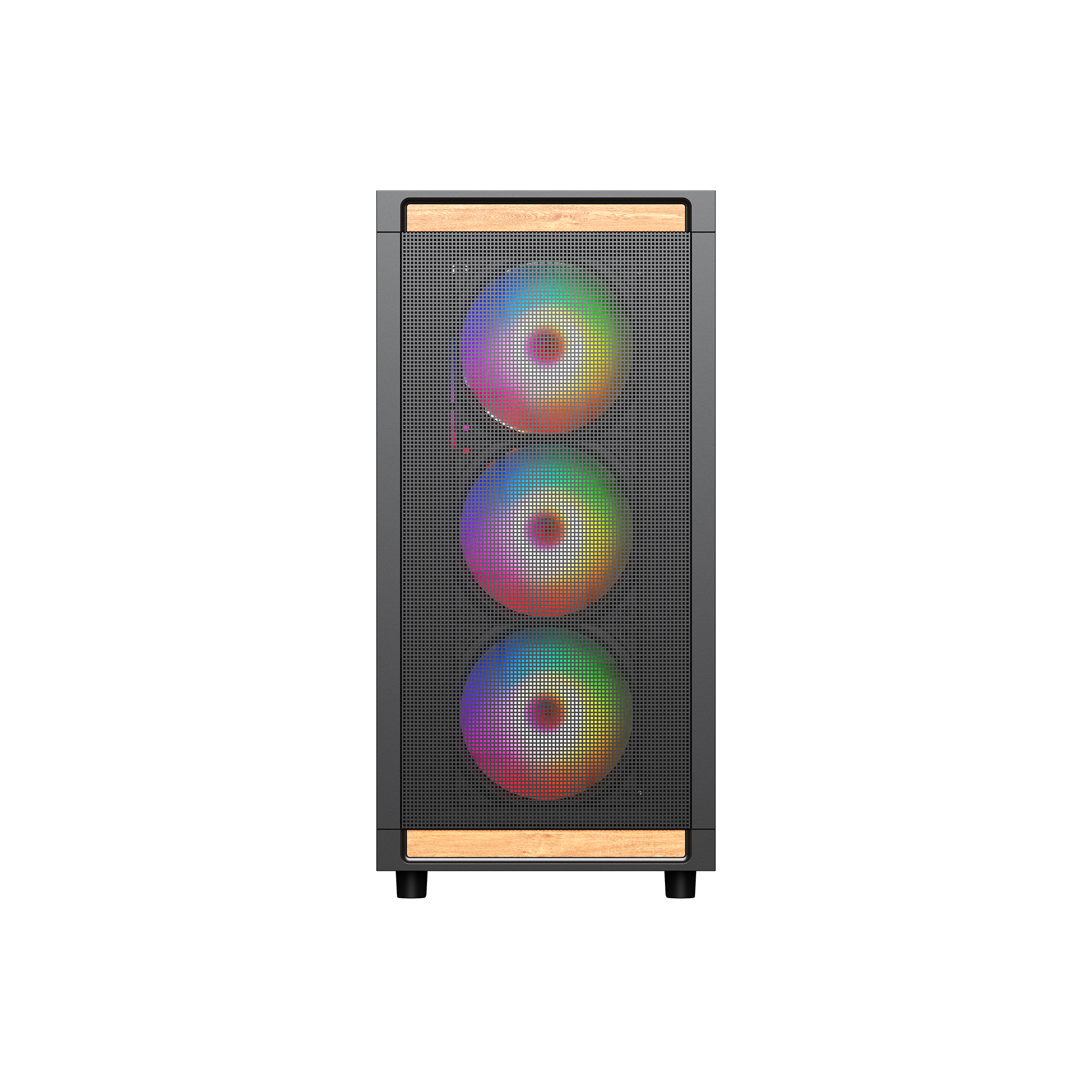

Front Panel Mesh + wood

Left Panel 4mm glass side panel

Right Panel 0.45mm Metal
