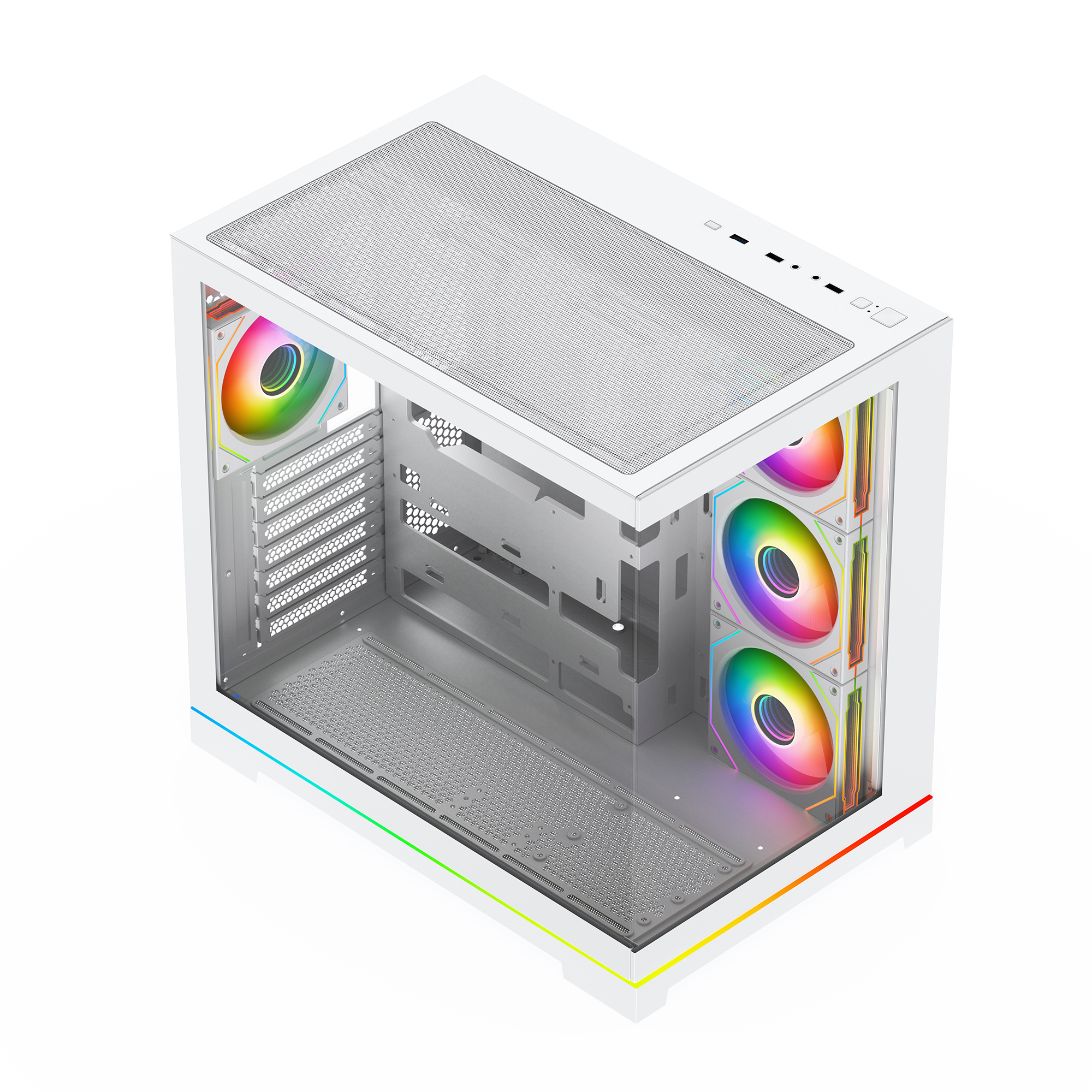

285B WH
-
MotherboardsITX / MICRO ATX / ATX
-
Chassis Dimension426*285*384mm
-
VGA Clearance410mm
-
CPU Cooler Clearance160mm
-
Power Supply245mm
-
I/O PortsUSB3.0*1 + USB2.0*2 + HD Audio
Technical specifications
Model
285B2
Motherboards
ITX / MICRO ATX / ATX

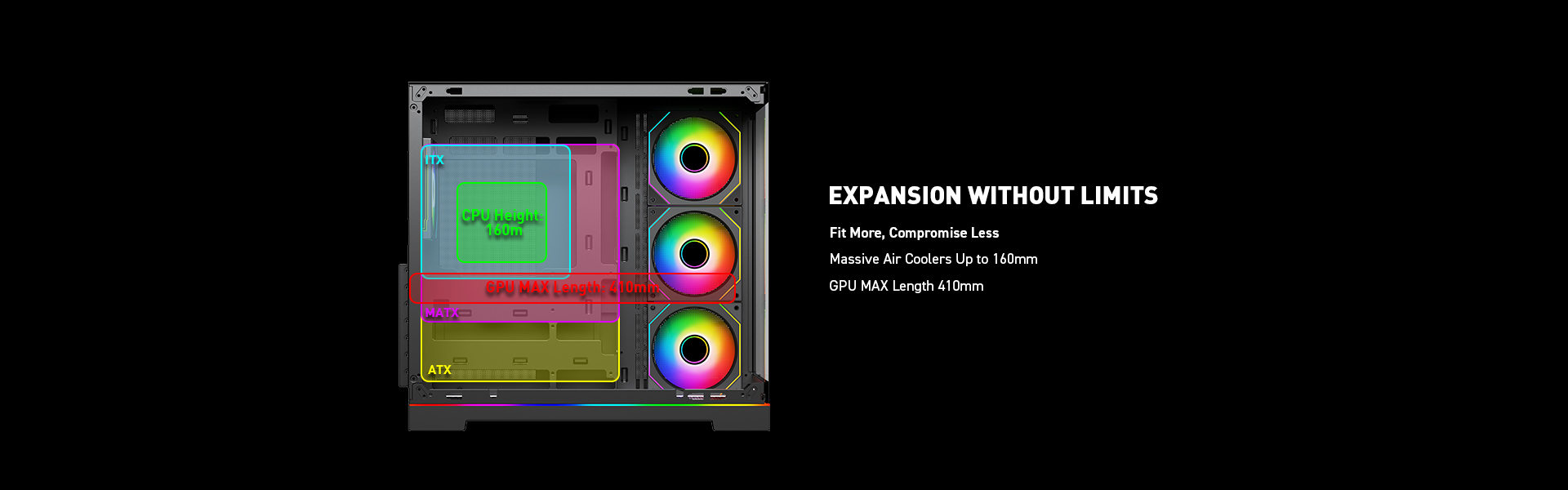

VGA Clearance
410mm
CPU Cooler Clearance
160mm

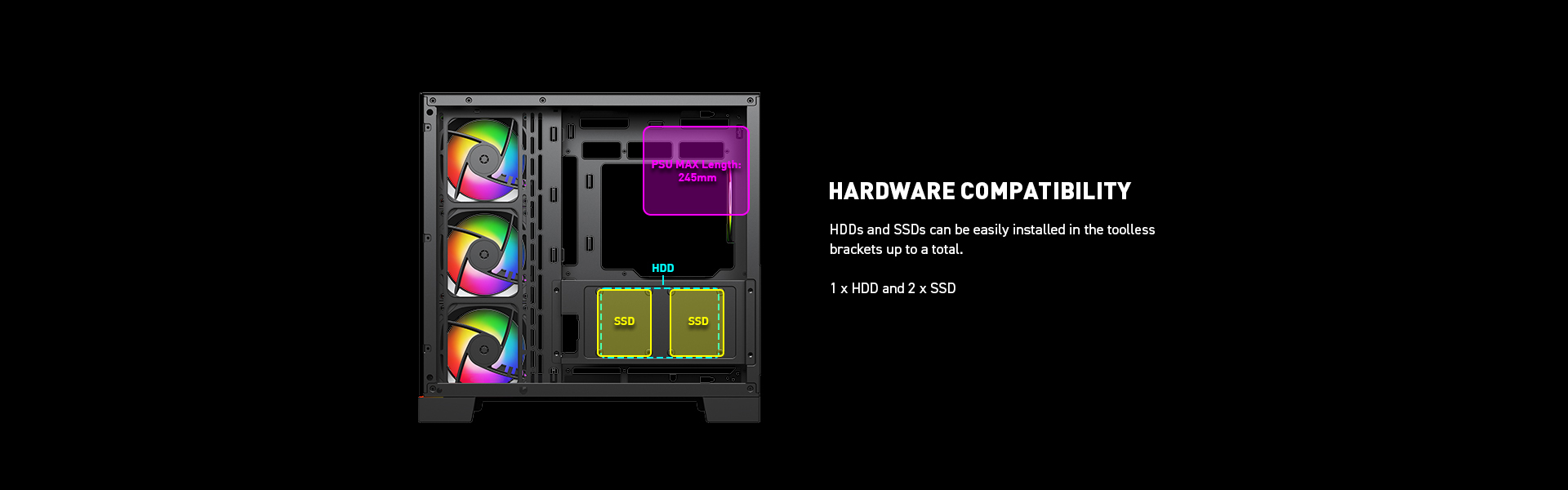

3.5+2.5 Driver Bays
1+2
Power Supply
245mm
Chassis Dimension
426*285*384mm
Product Dimension
426*285*416mm
40HQ Container
700 PCS
I/O Ports
USB3.0*1 + USB2.0*2 + HD Audio

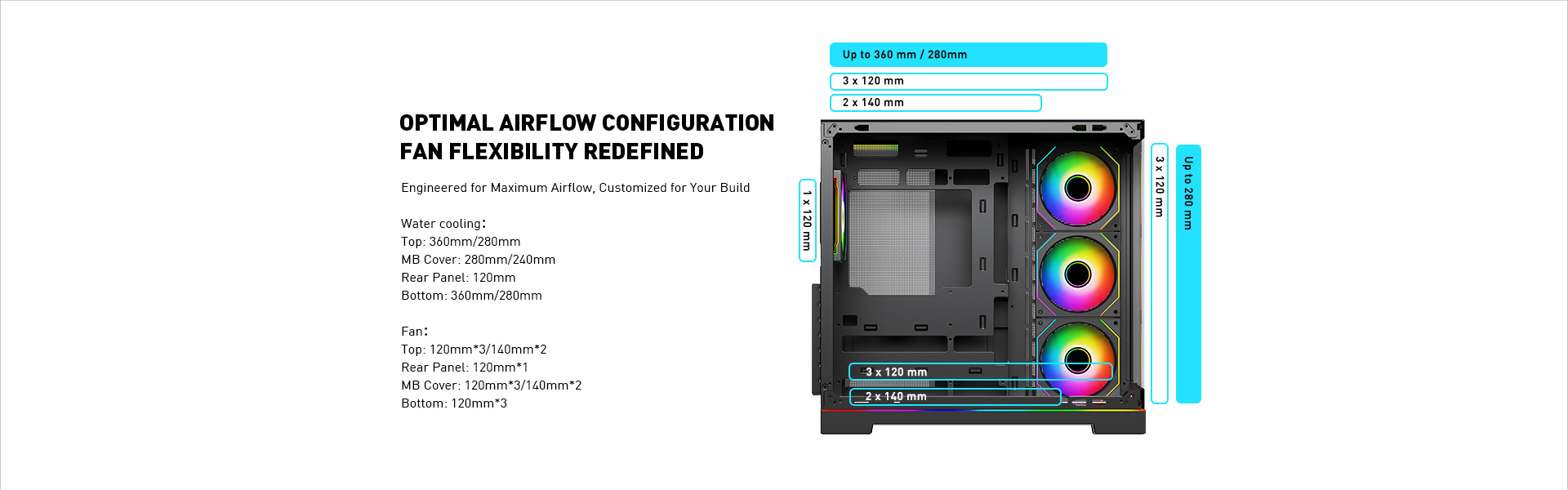

Air Cooling
Top: 120mm x 3 or 140mm x 2 Rear: 120mm x 1 MB cover : 120mm x 3 or 140mm x 2 Bottom :120mm x 3
Liquid Cooling
Top: 360mm/280mm Rear: 120mm MB cover :280mm Bottom :360mm
Body Materiarl
SPCC 0.7mm
Front Panel
4mm glass side panel
Left Panel
4mm glass side panel
Right Panel
0.7mm Metal
