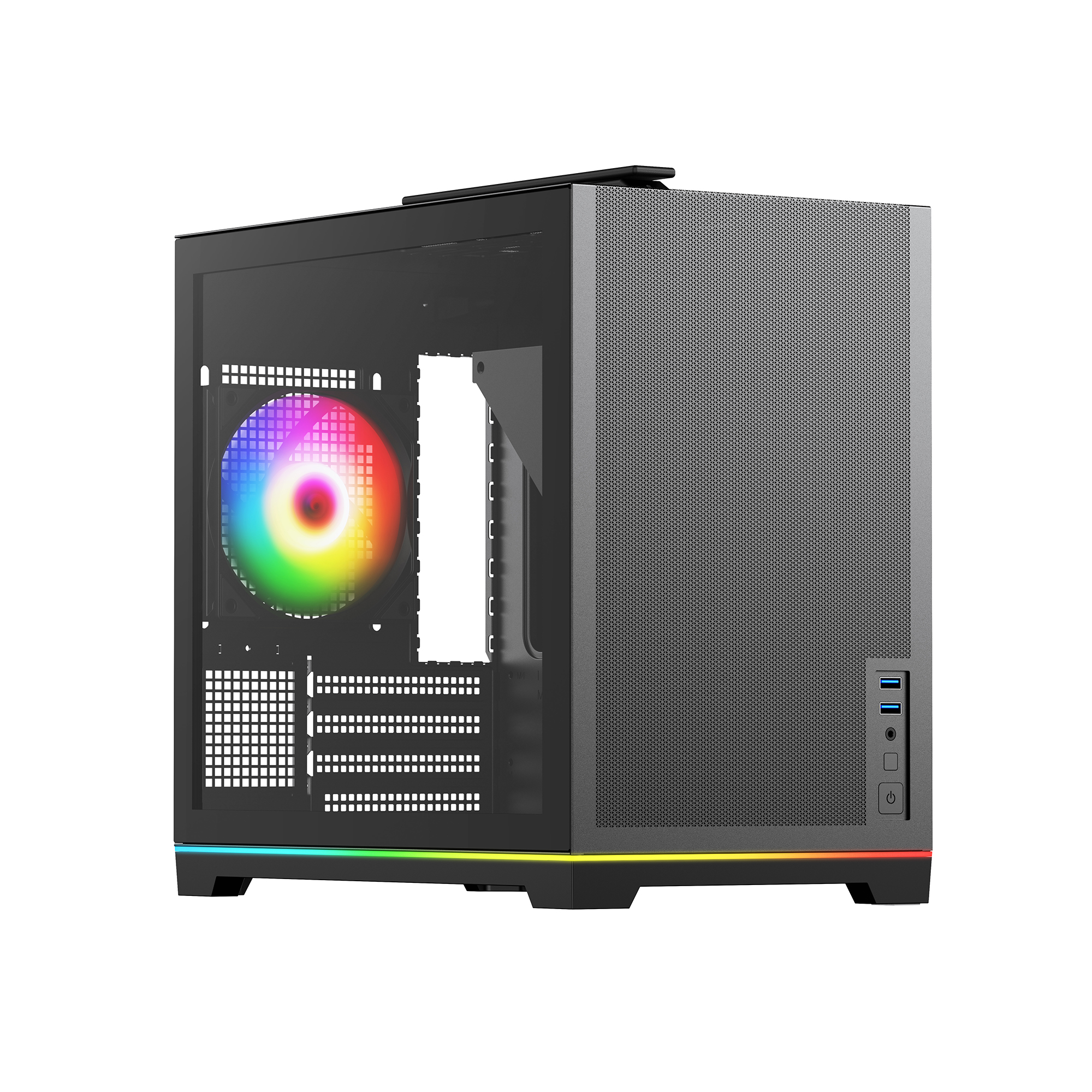

M1 Plus

Motherboards

ITX / MICRO ATX
Chassis Dimension

350*212*310mm
VGA Clearance

340mm
CPU Cooler Clearance

175mm
Power Supply

150mm
I/O Ports

USB3.0*2 + HD Audio

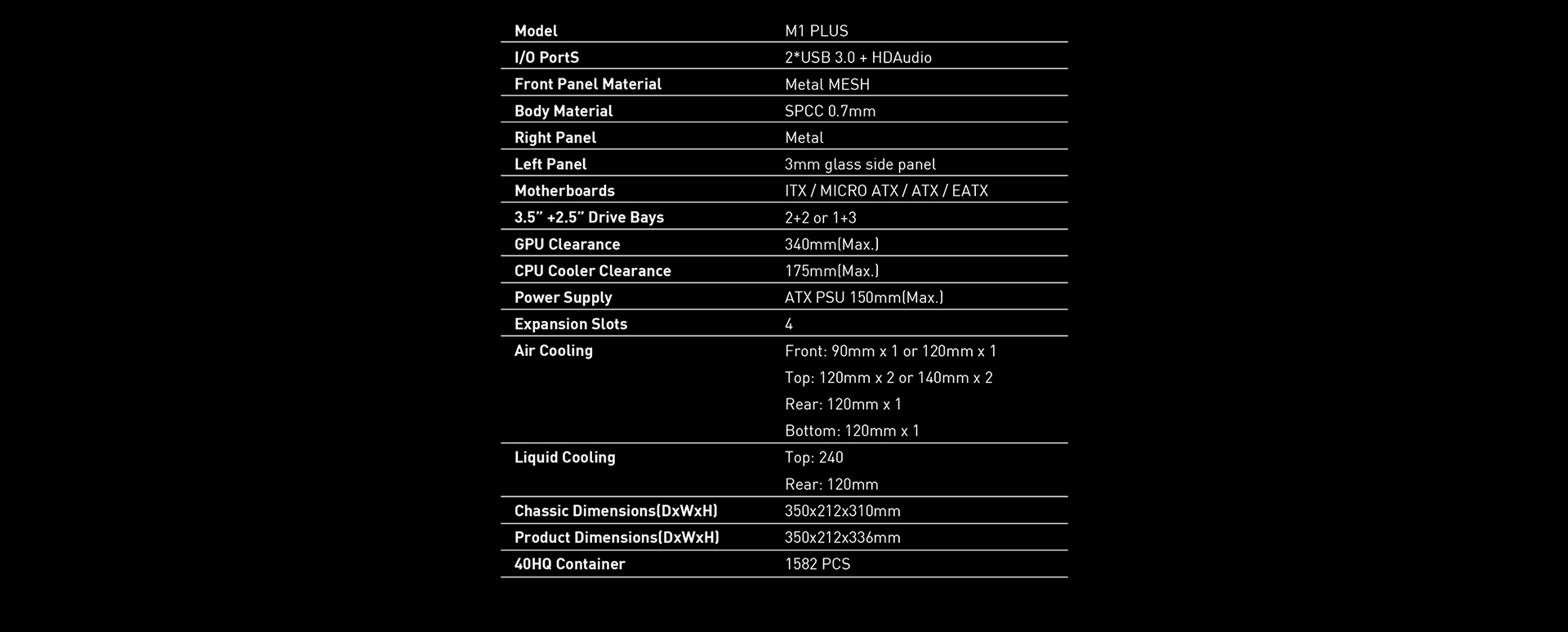

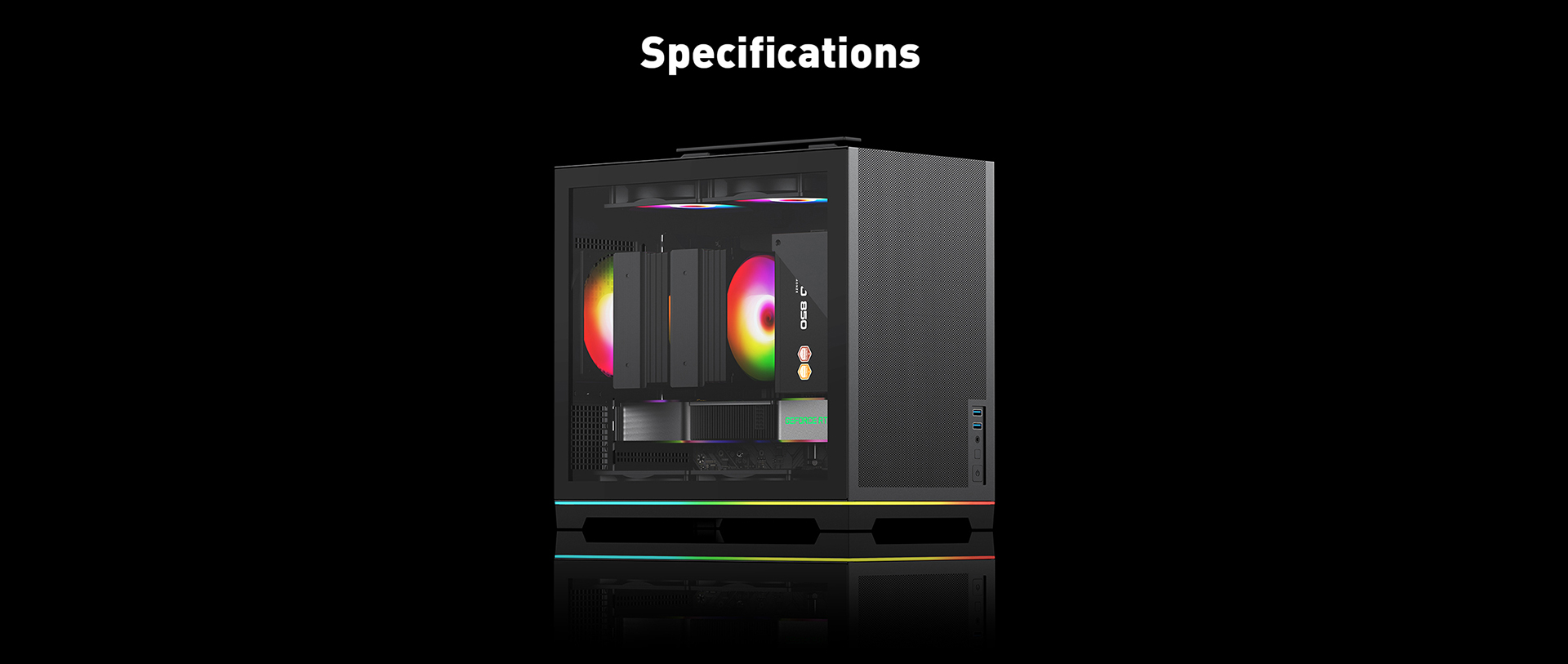

Technical specifications

Model M1 Plus

Motherboards ITX / MICRO ATX

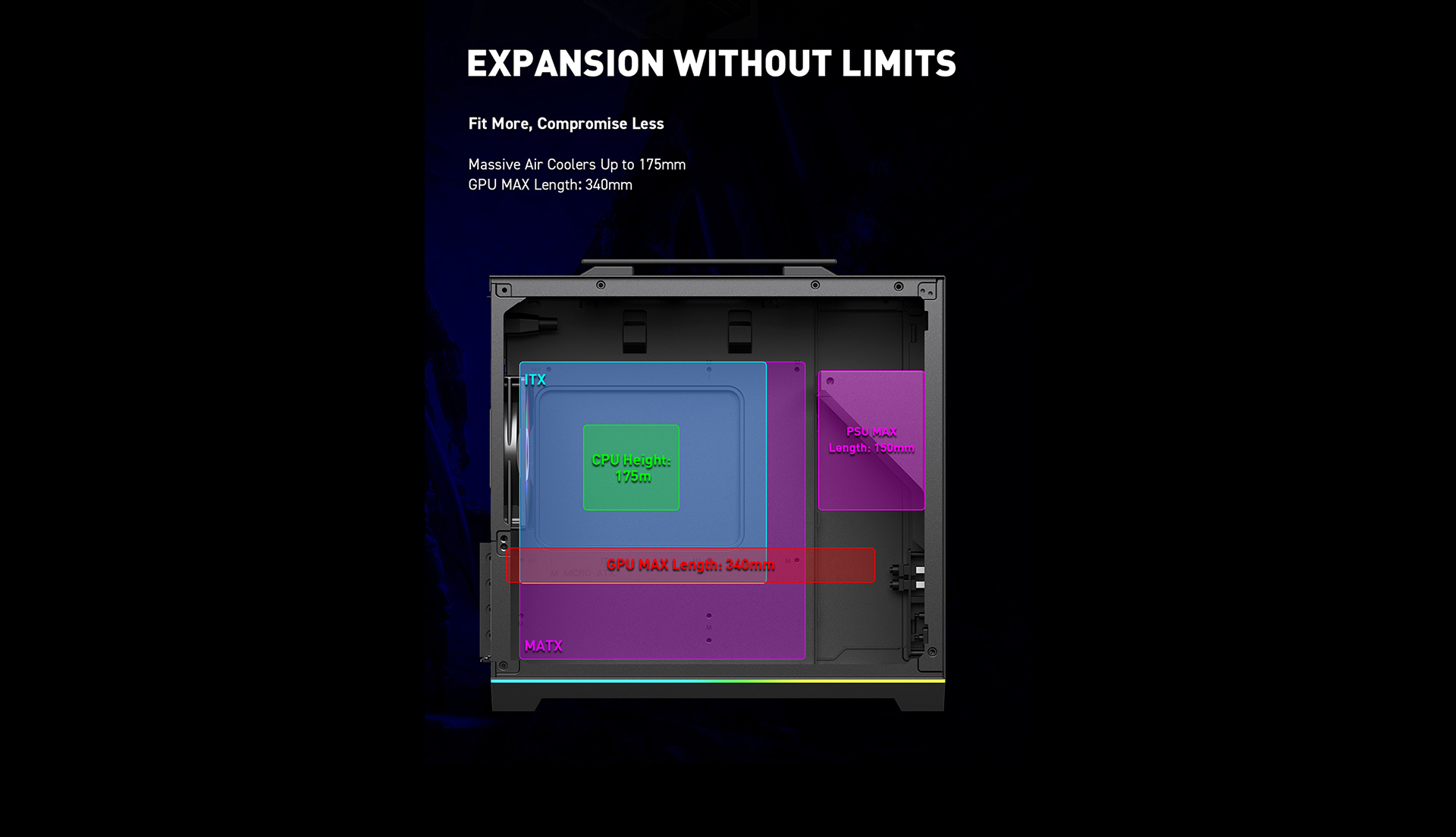

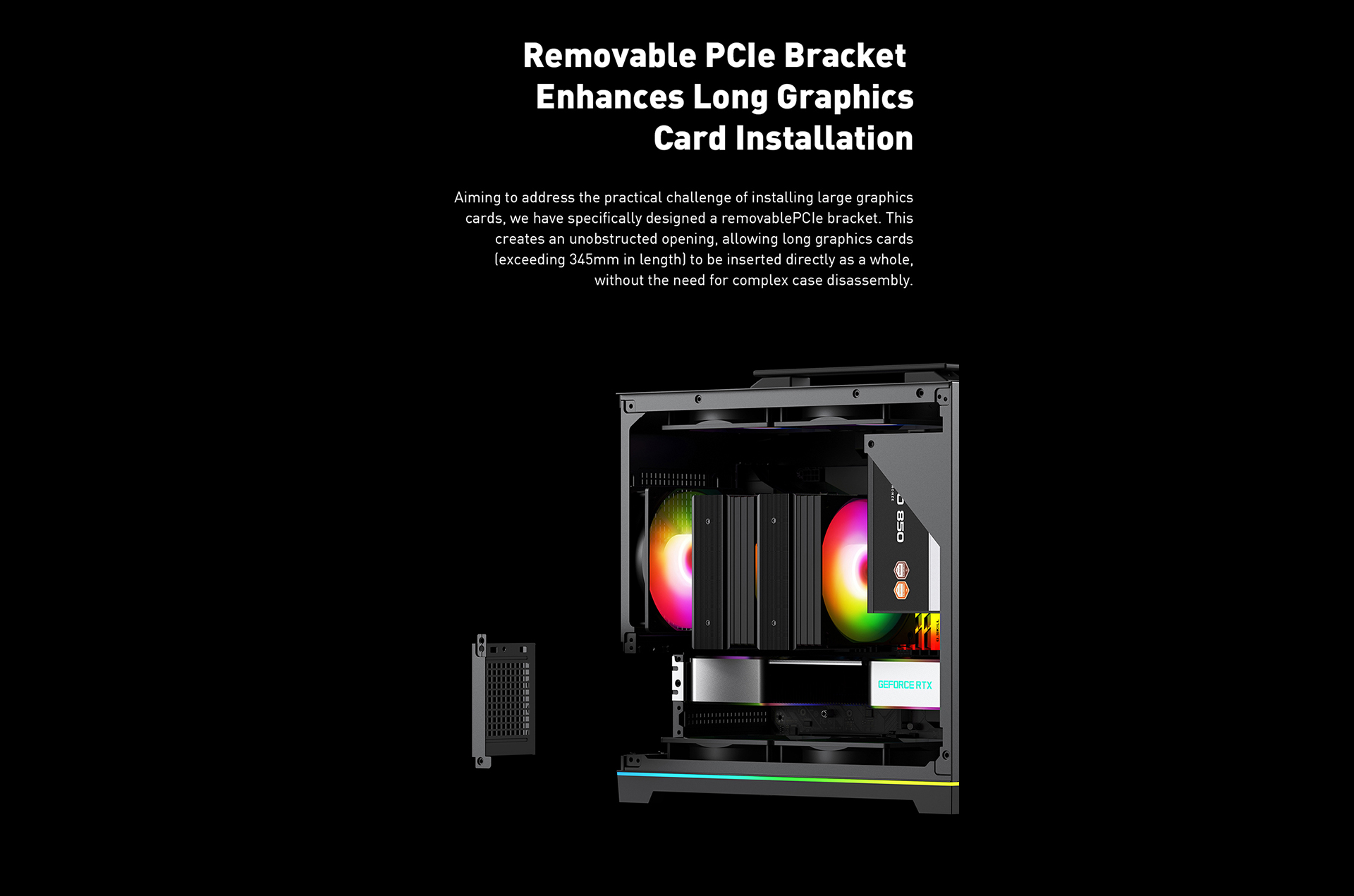

VGA Clearance 340mm

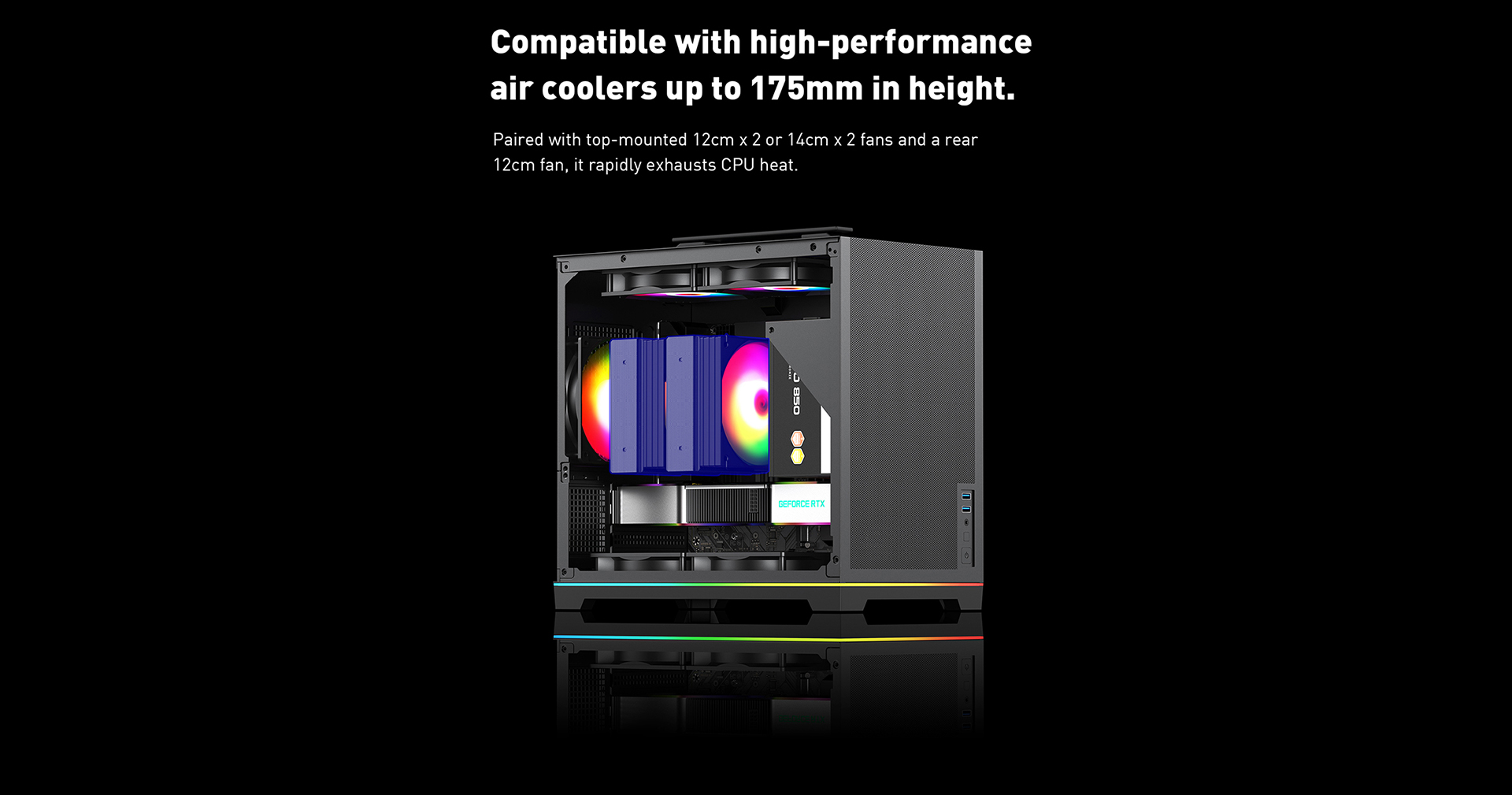

CPU Cooler Clearance 175mm

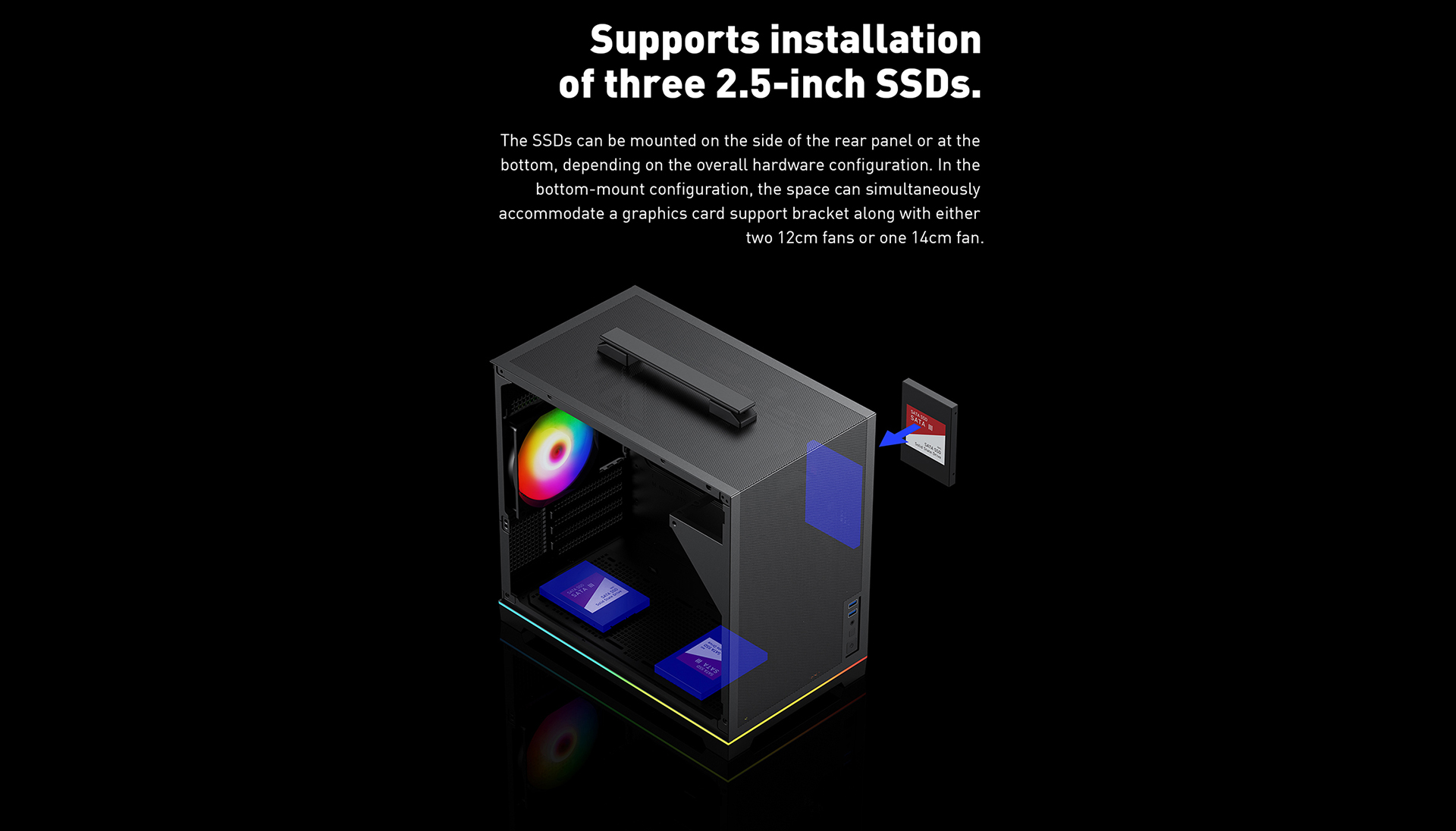

3.5+2.5 Driver Bays 2+2 or 1+3

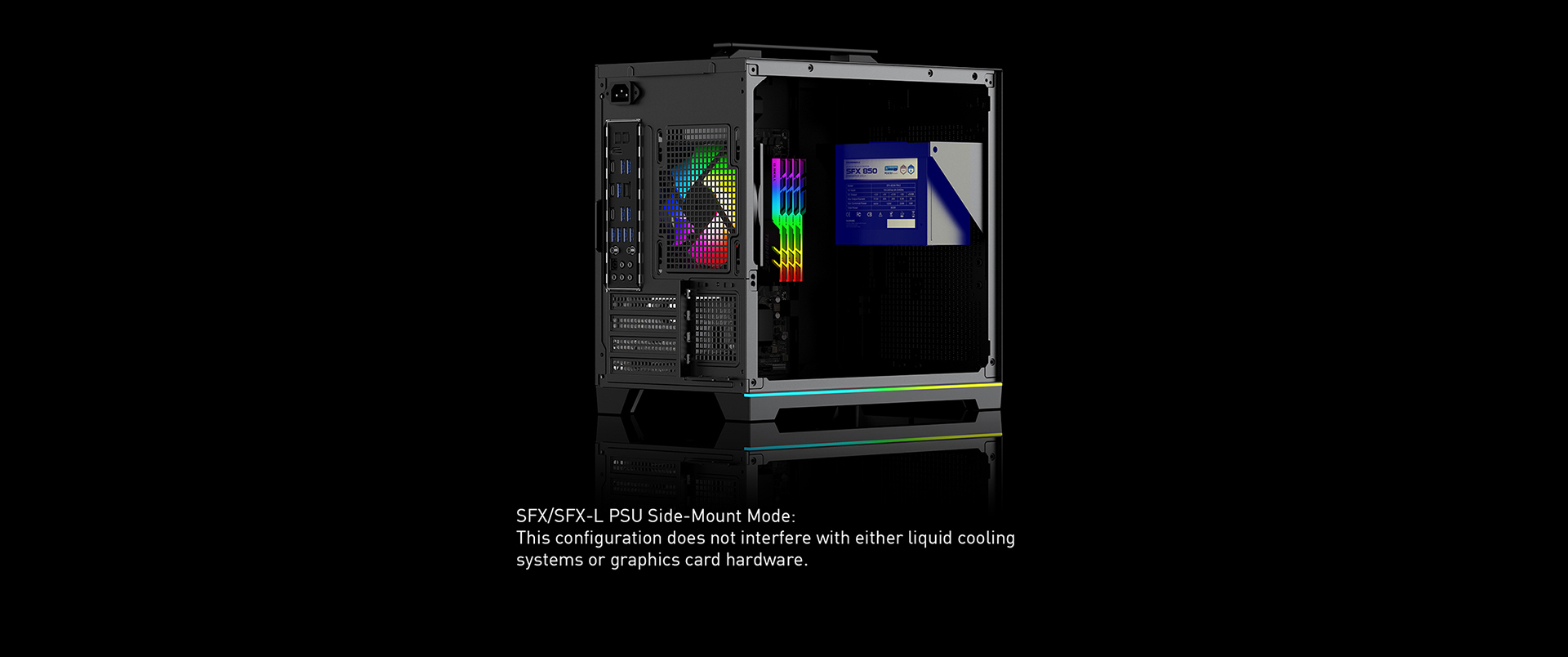

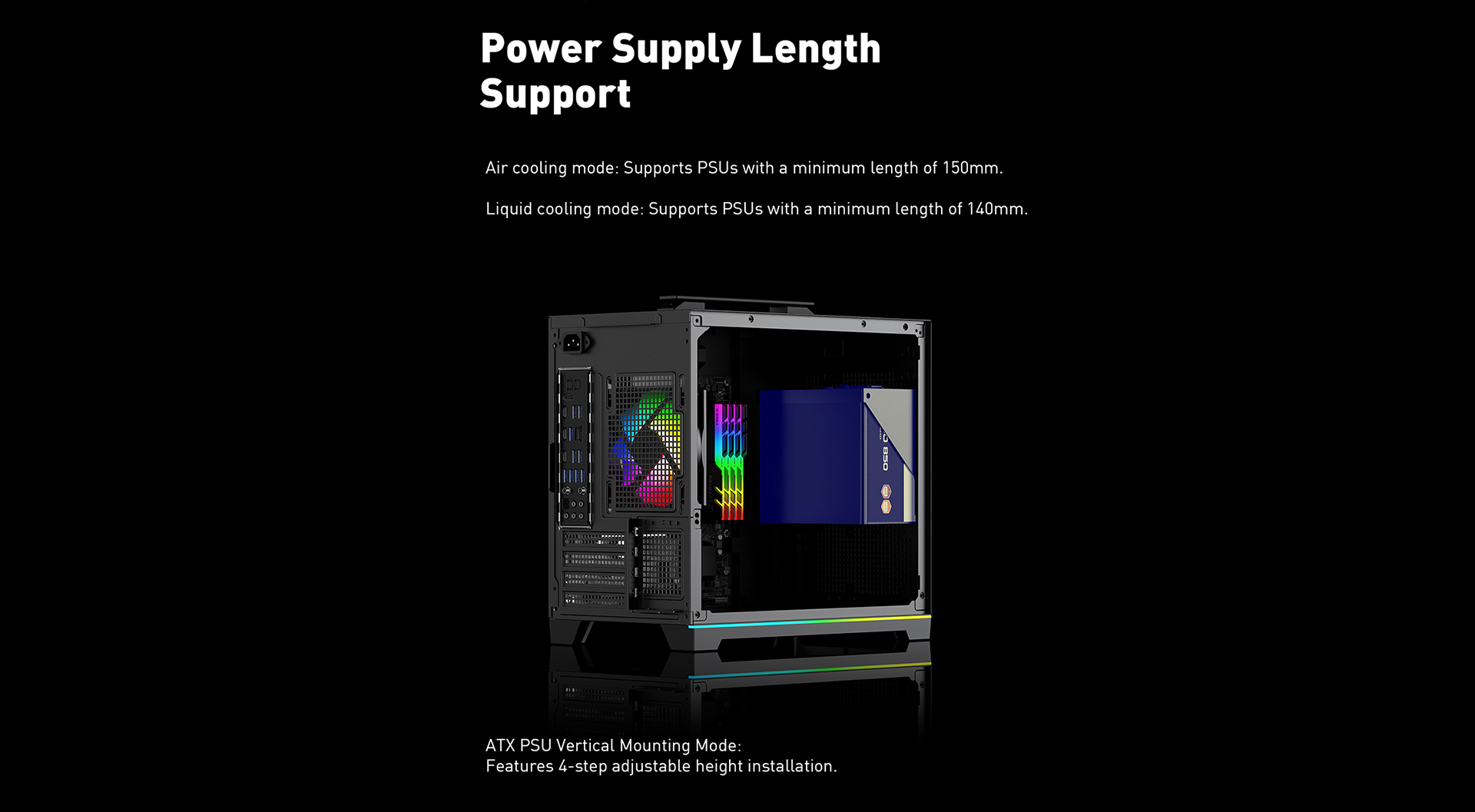

Power Supply 150mm

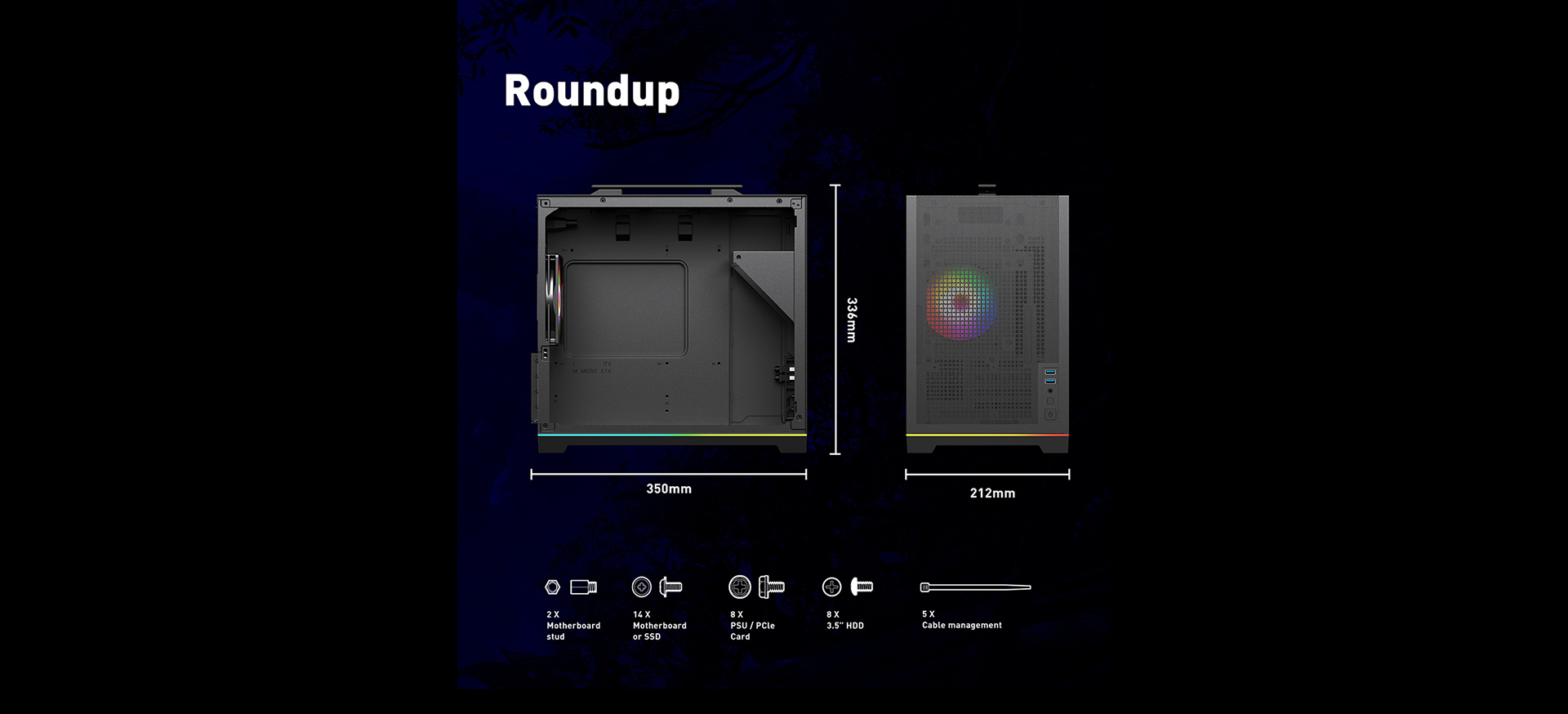

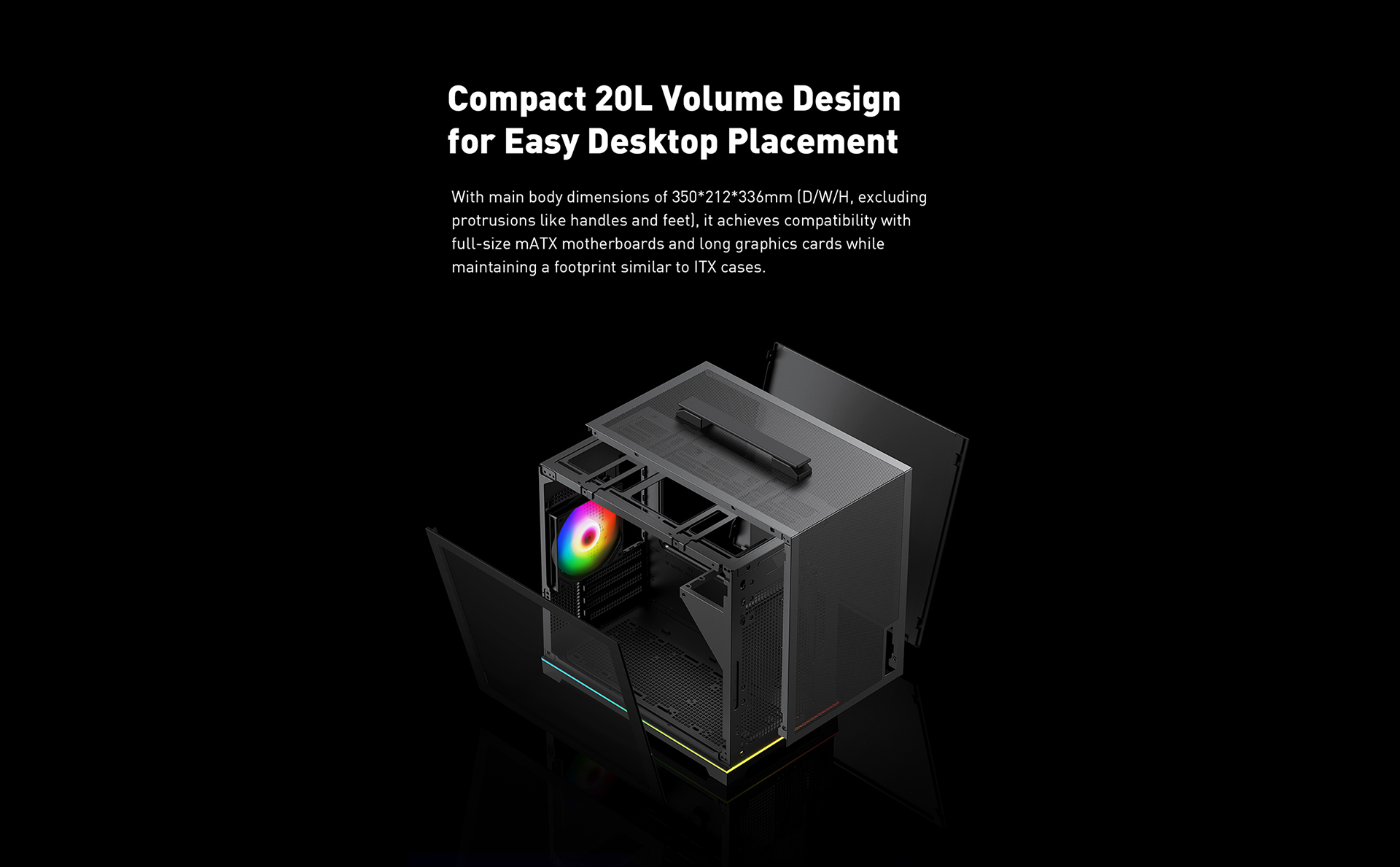

Chassis Dimension 350*212*310mm

Product Dimension 350*212*336mm

40HQ Container 1582 PCS

I/O Ports USB3.0*2 + HD Audio

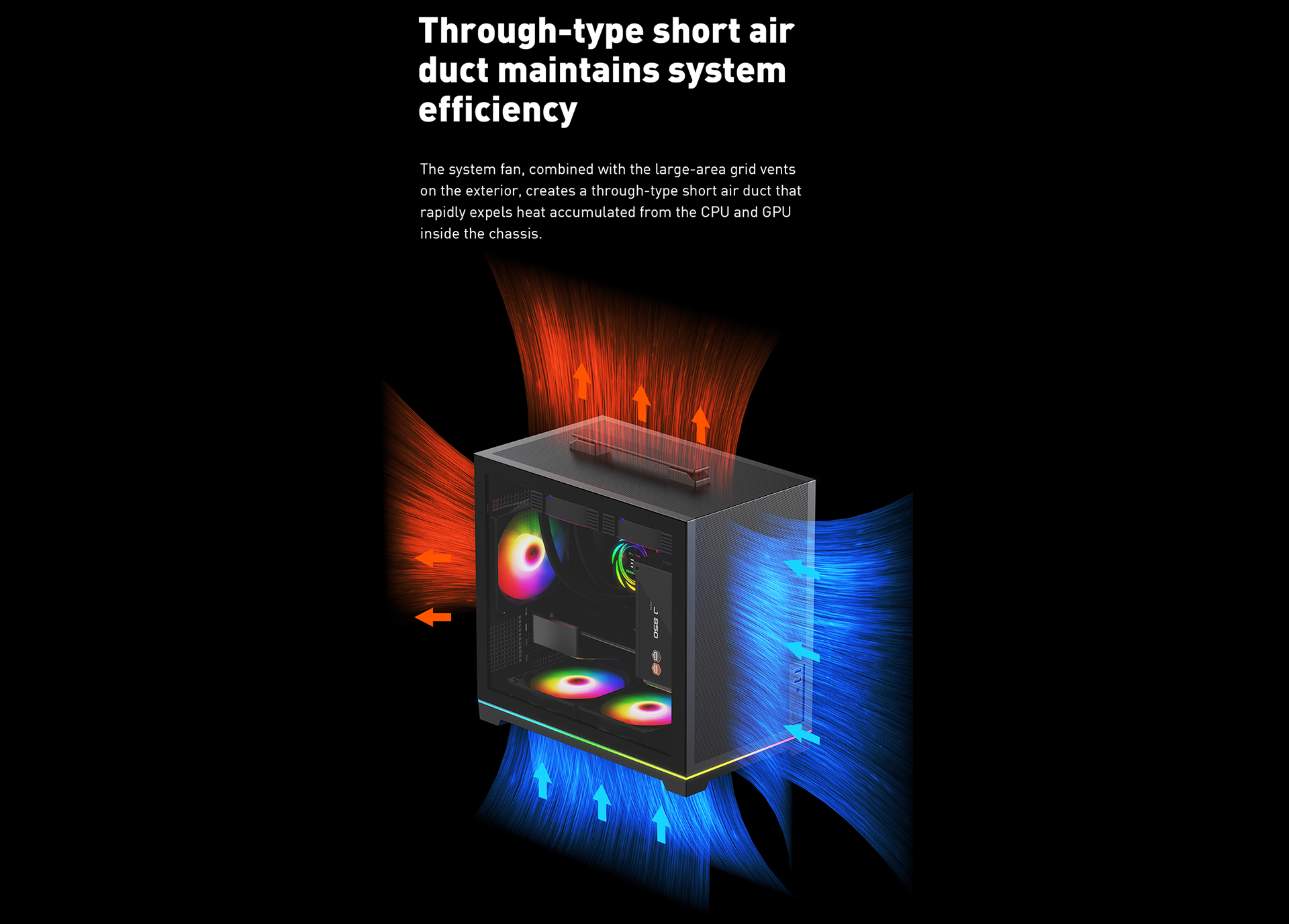

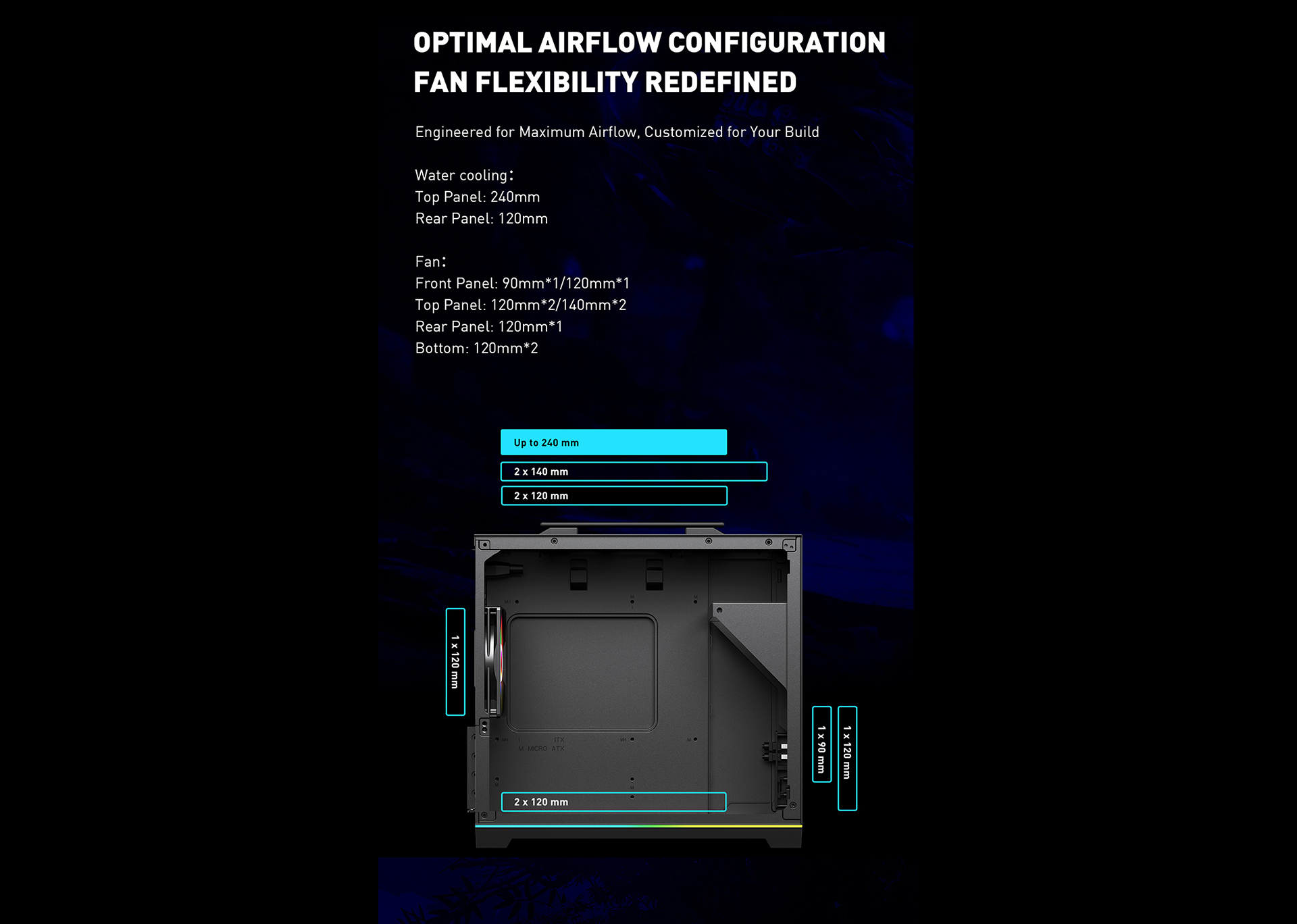

Air Cooling Front: 90mm x 1 or 120mm x 1 Top: 120mm x 2 or 140mm x 2 Rear: 120mm x 1 Bottom: 120mm x 2

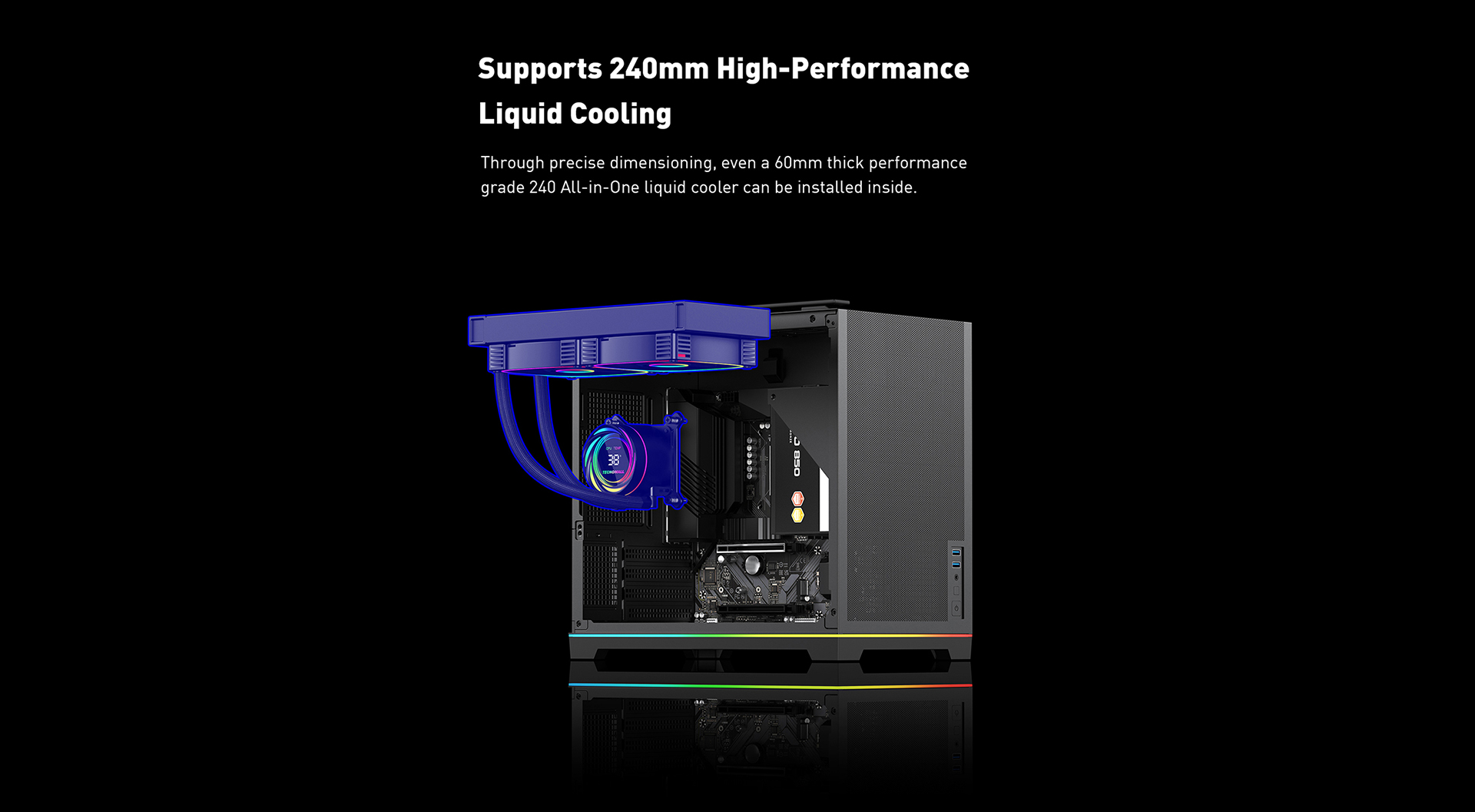

Liquid Cooling Top: 240mm Rear: 120mm

Body Materiarl SPCC 0.7mm

Front Panel Metal Mesh

Left Panel 3mm glass side panel

Right Panel 0.7mm Metal
