OA08
-
MotherboardsITX / MICRO ATX / ATX
-
Chassis Dimension330*218*445mm
-

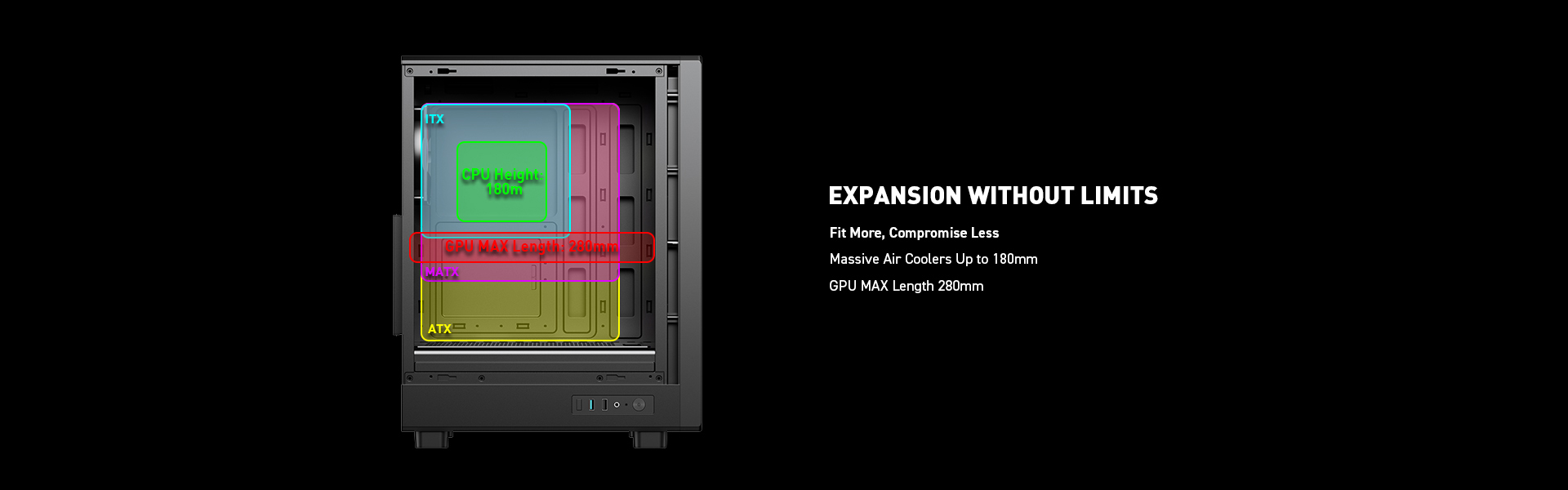

VGA Clearance310mm
-
CPU Cooler Clearance180mm
-
Power Supply280mm
-
I/O PortsUSB3.0*1 + USB1.0*1 + HD Audio
Technical specifications
Model
OA08
Motherboards
ITX / MICRO ATX / ATX
VGA Clearance
280mm
CPU Cooler Clearance
180mm

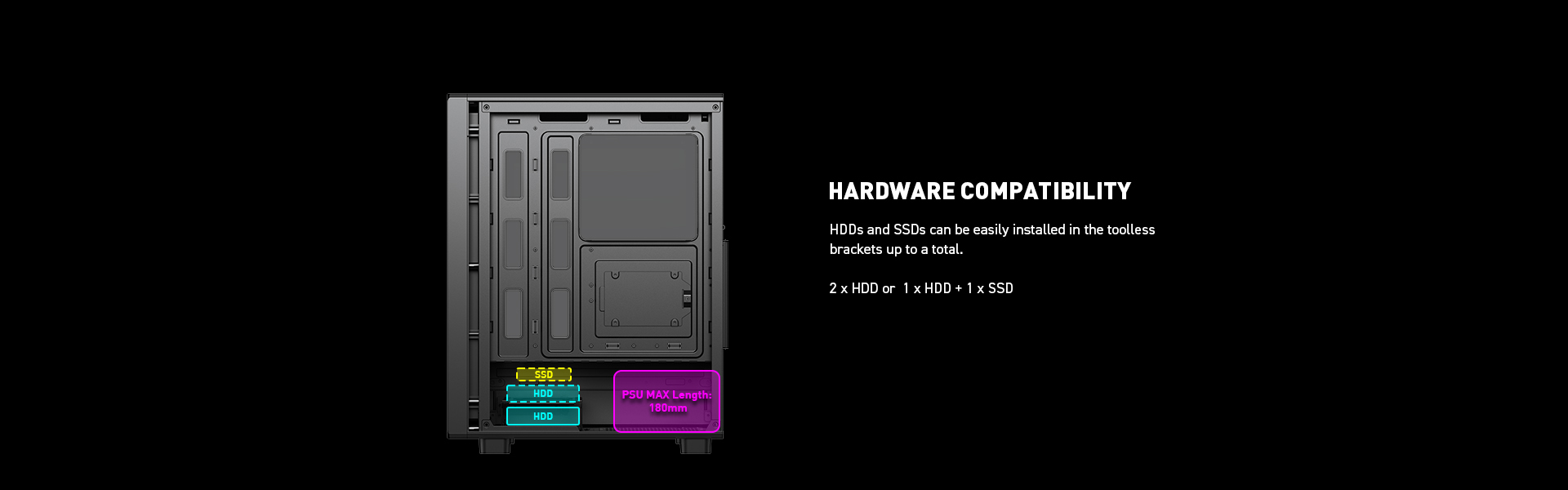

3.5+2.5 Driver Bays
2+0 or 1+1
Power Supply
180mm
Chassis Dimension
330*218*445mm
Product Dimension
356*218*467mm
40HQ Container
1130 PCS
I/O Ports
USB3.0*1 + USB1.0*1 + HD Audio

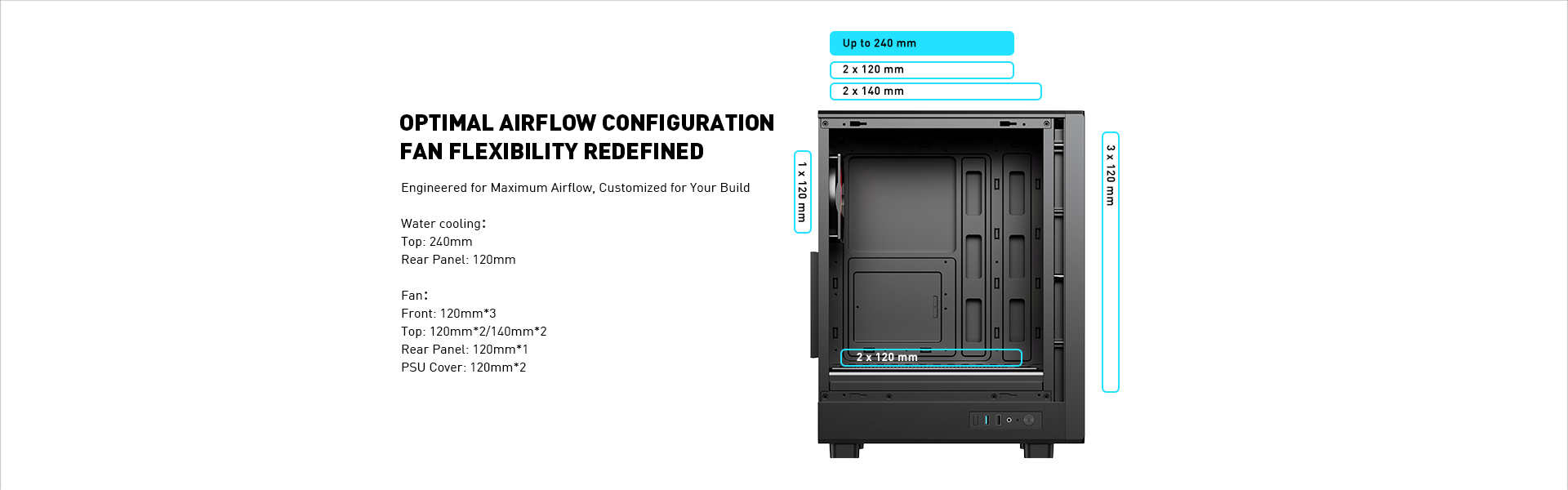

Air Cooling
Front: 120mm x 3 Top: 120mm x 2 or 140mm x 2 Rear: 120mm x 1 PSU Cover: 120mm x 2
Liquid Cooling
Top: 240mm Rear: 120mm
Body Materiarl
SPCC 0.5mm
Front Panel
ABS+mesh
Left Panel
3mm glass side panel

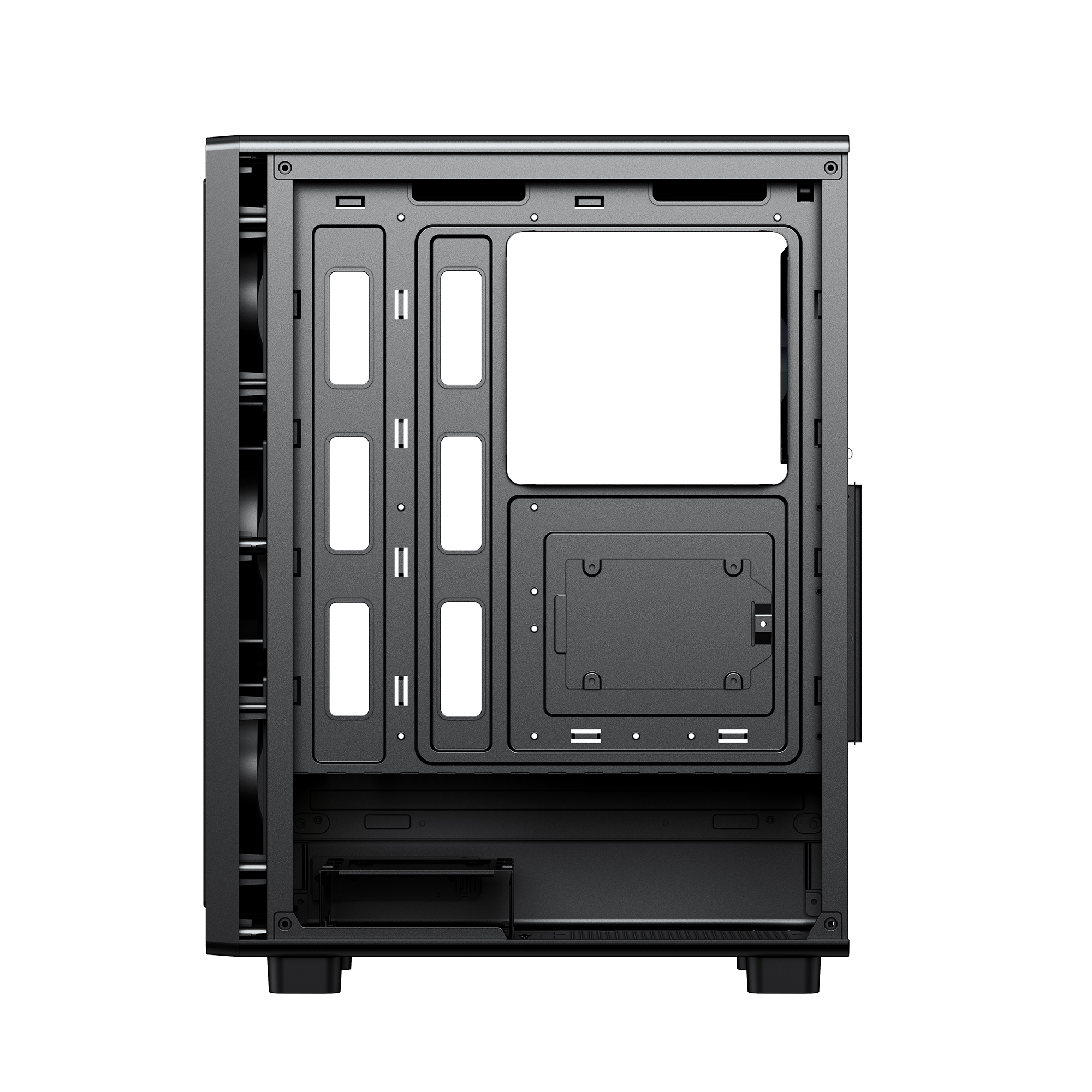

Right Panel
0.5mm Metal
