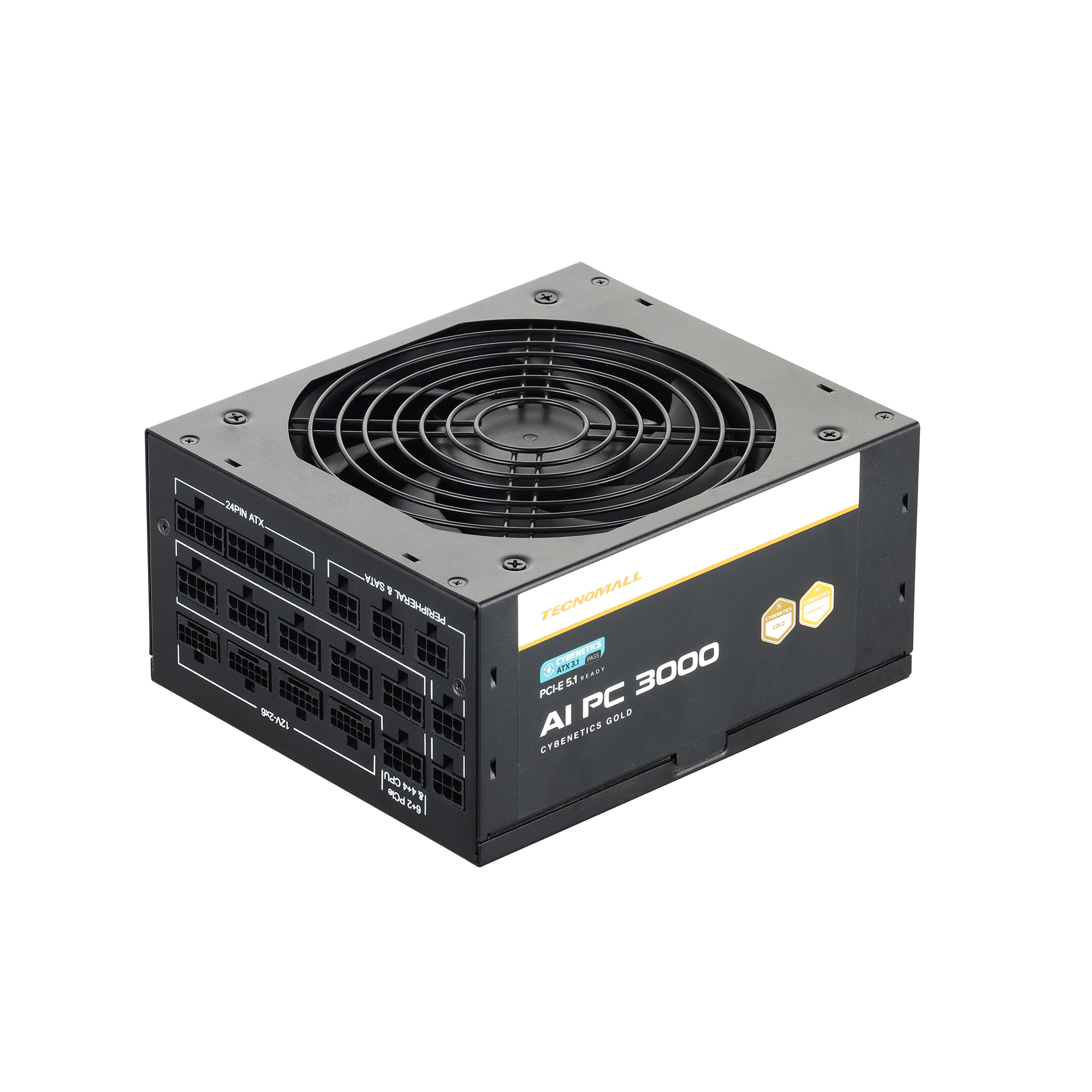

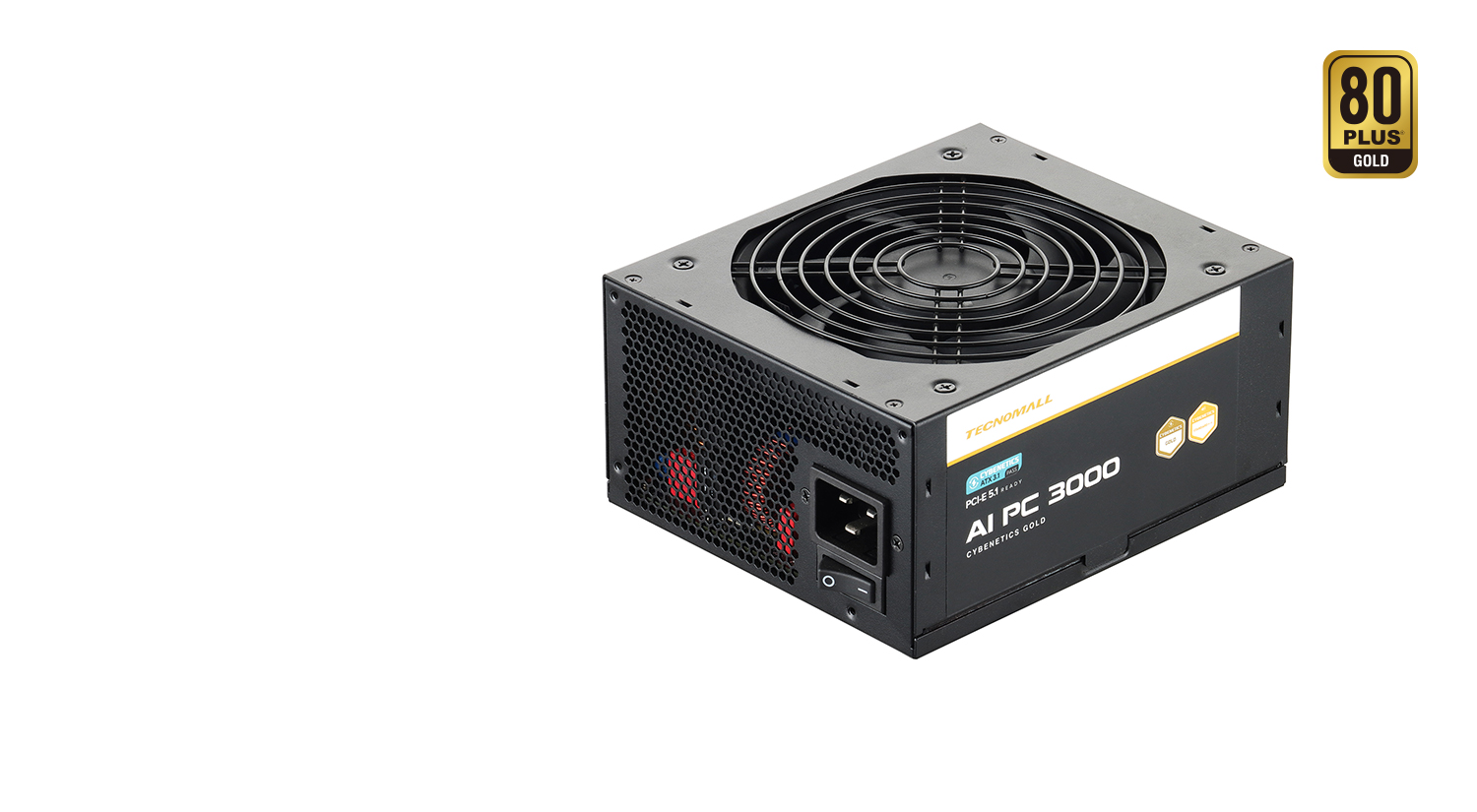

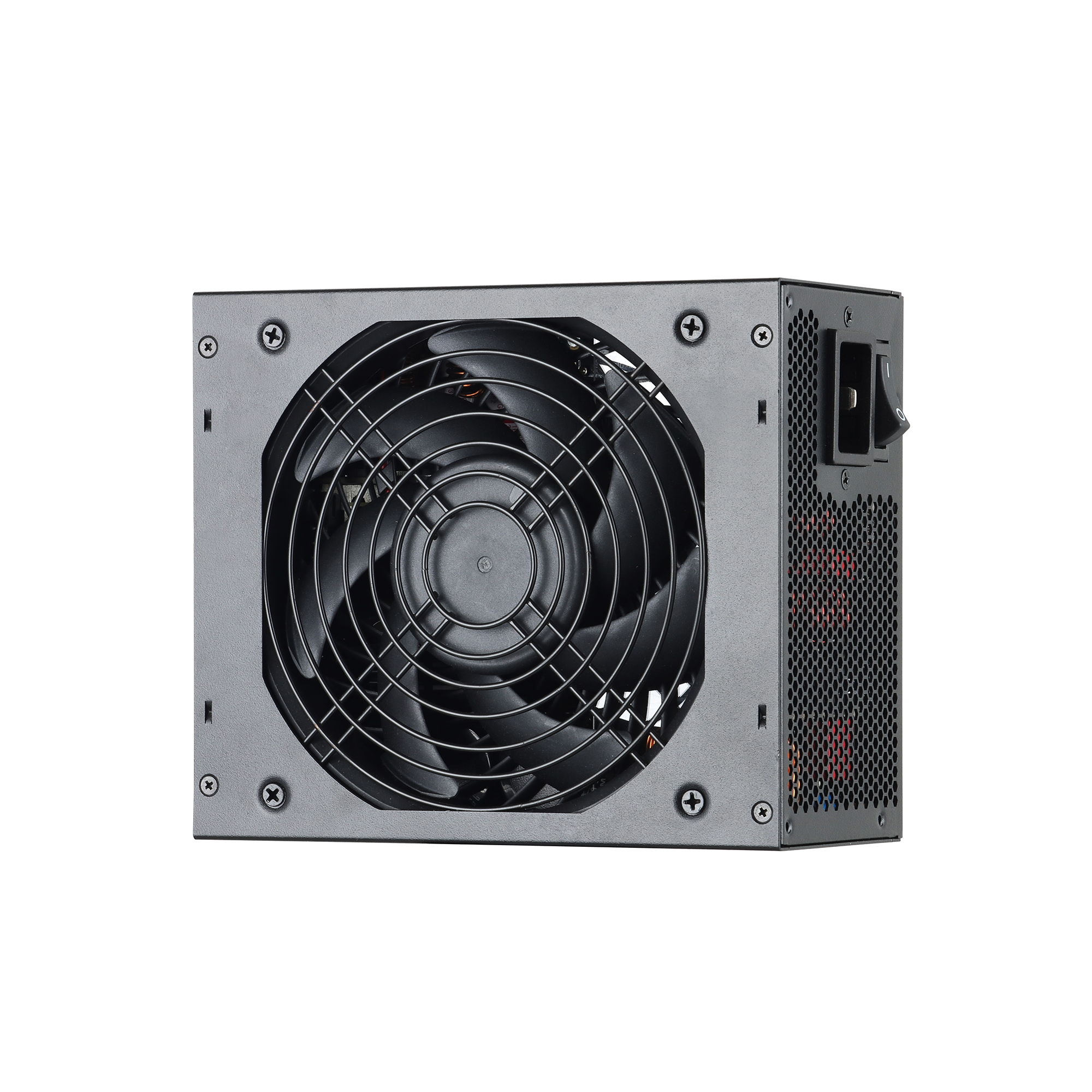

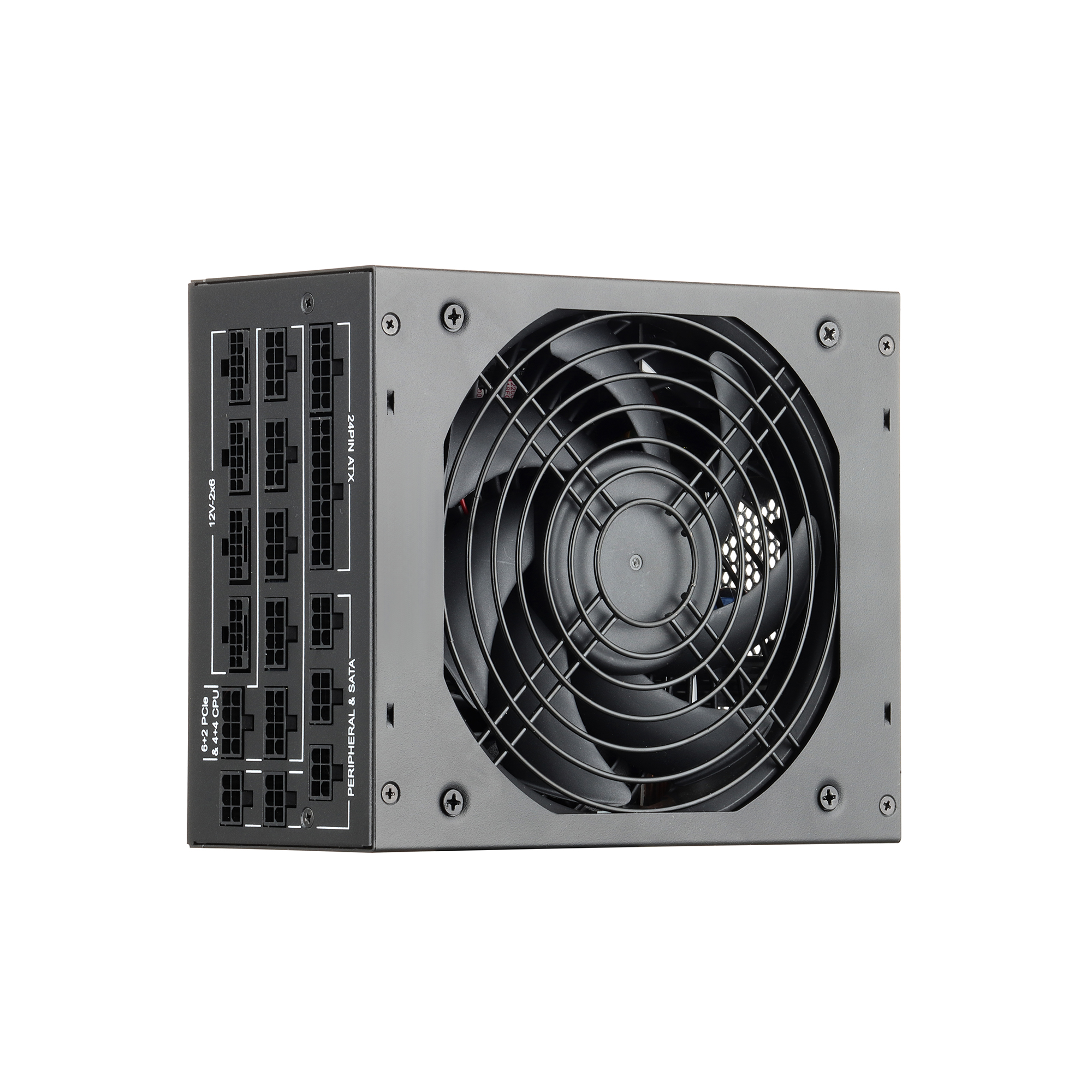

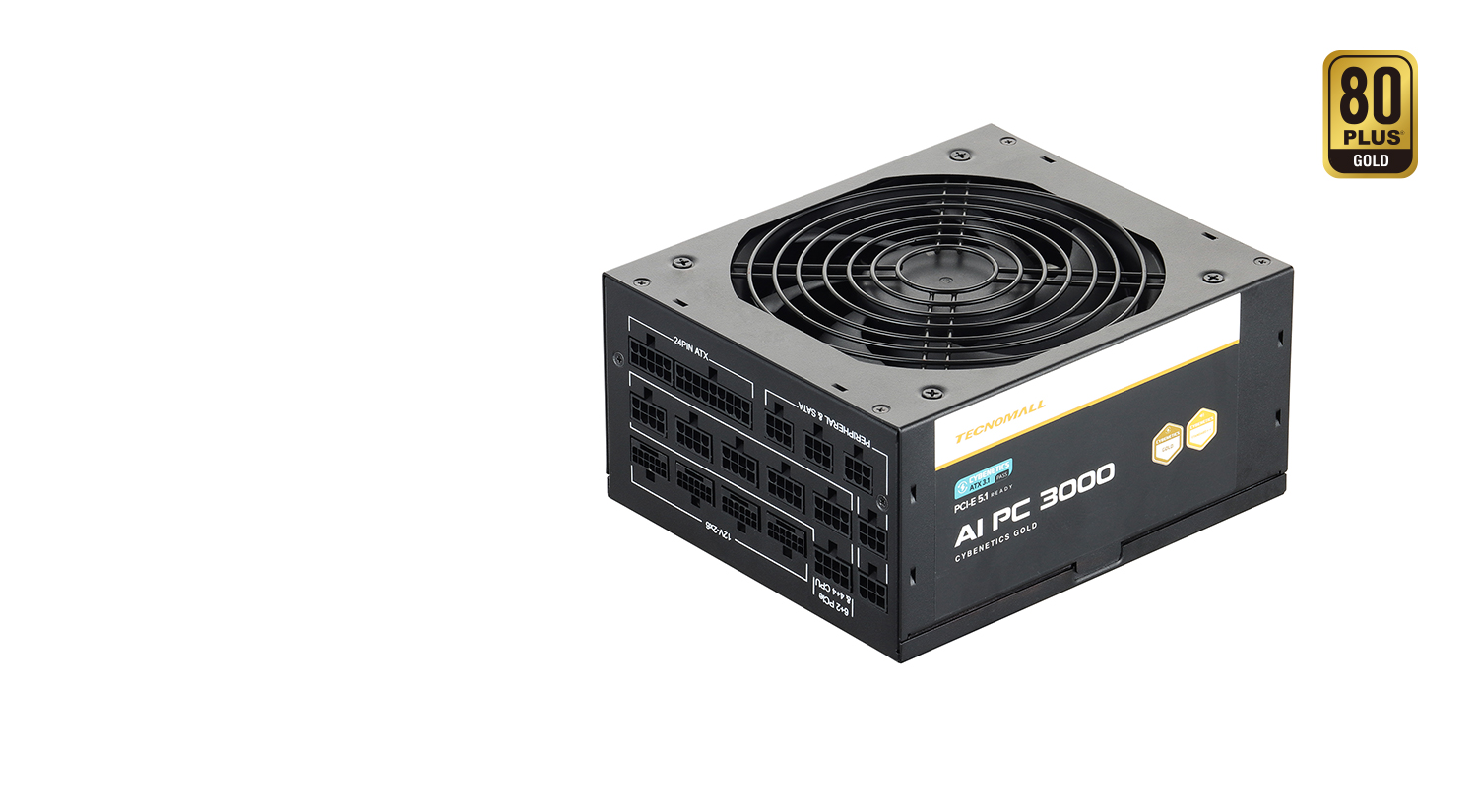

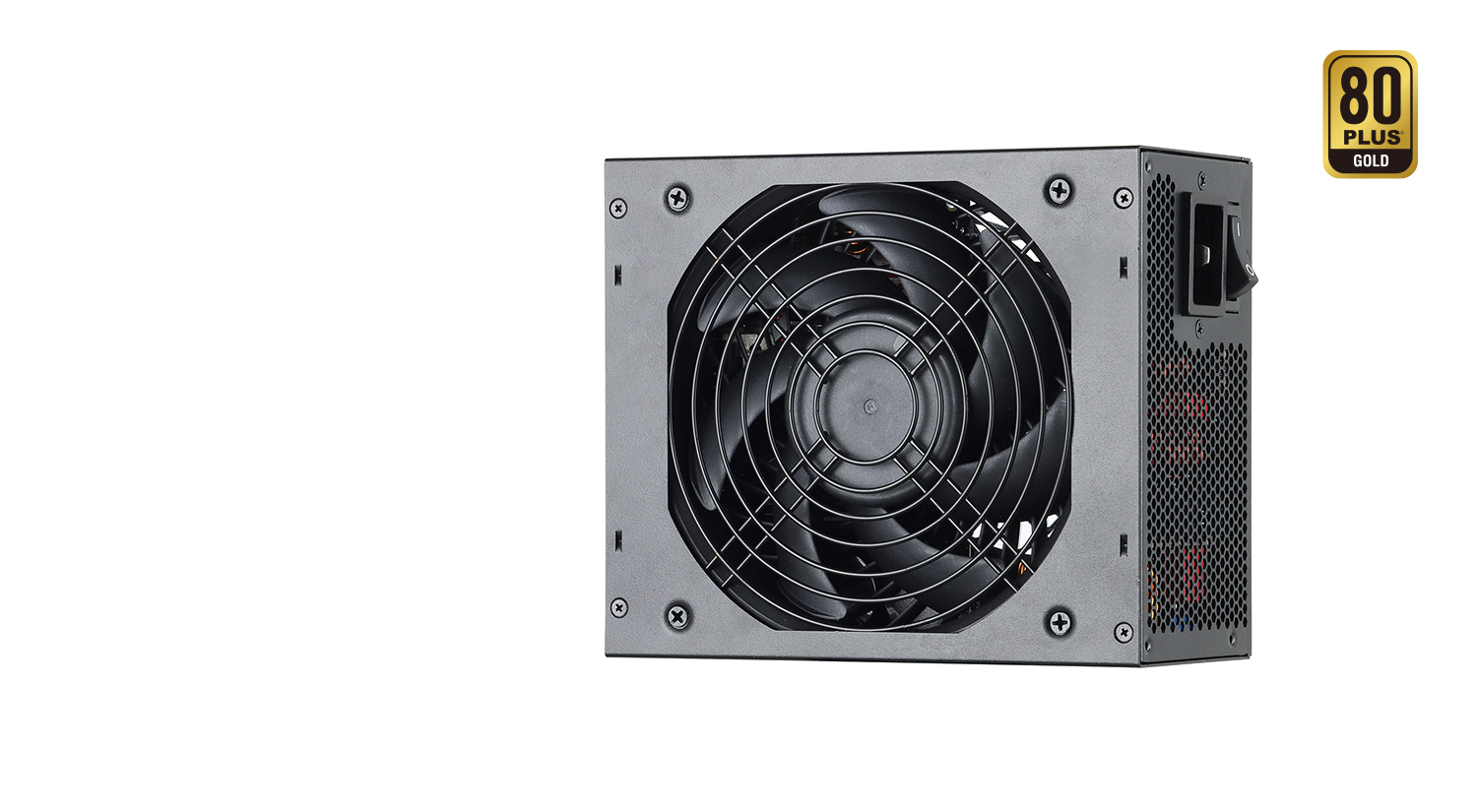

AI PC FM [230Vac 80+GOLD 2200/2600W 3000W]_PSU_Products

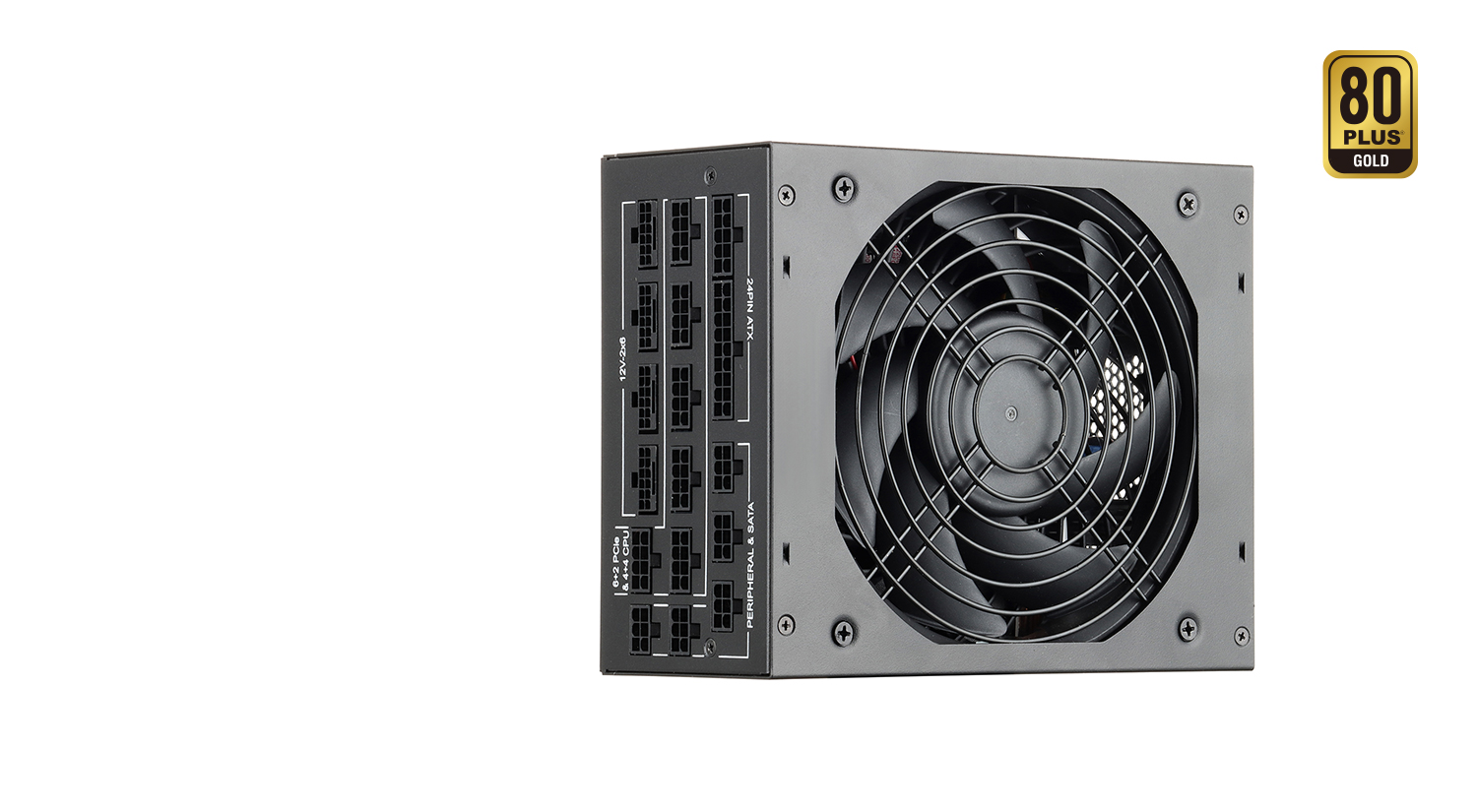

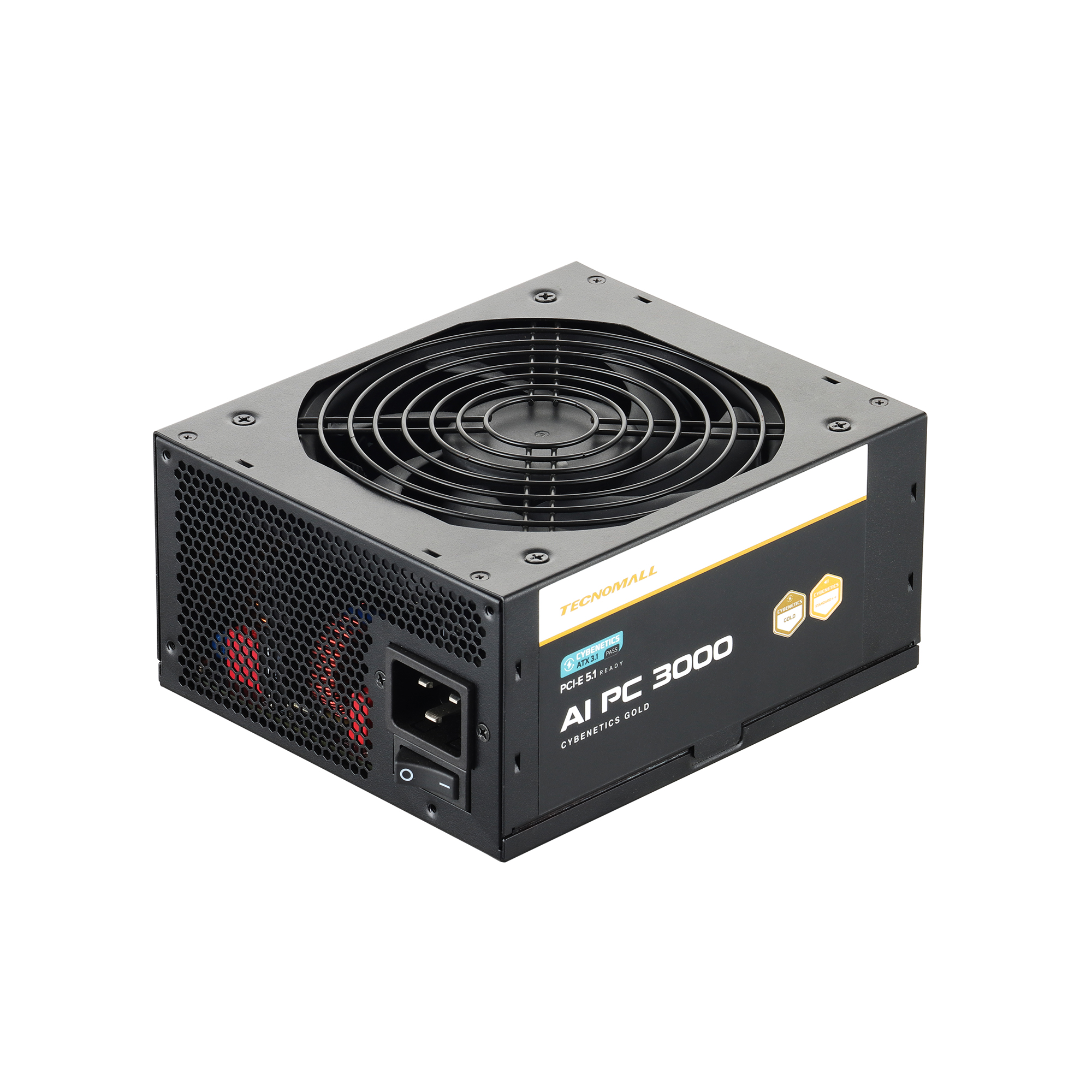

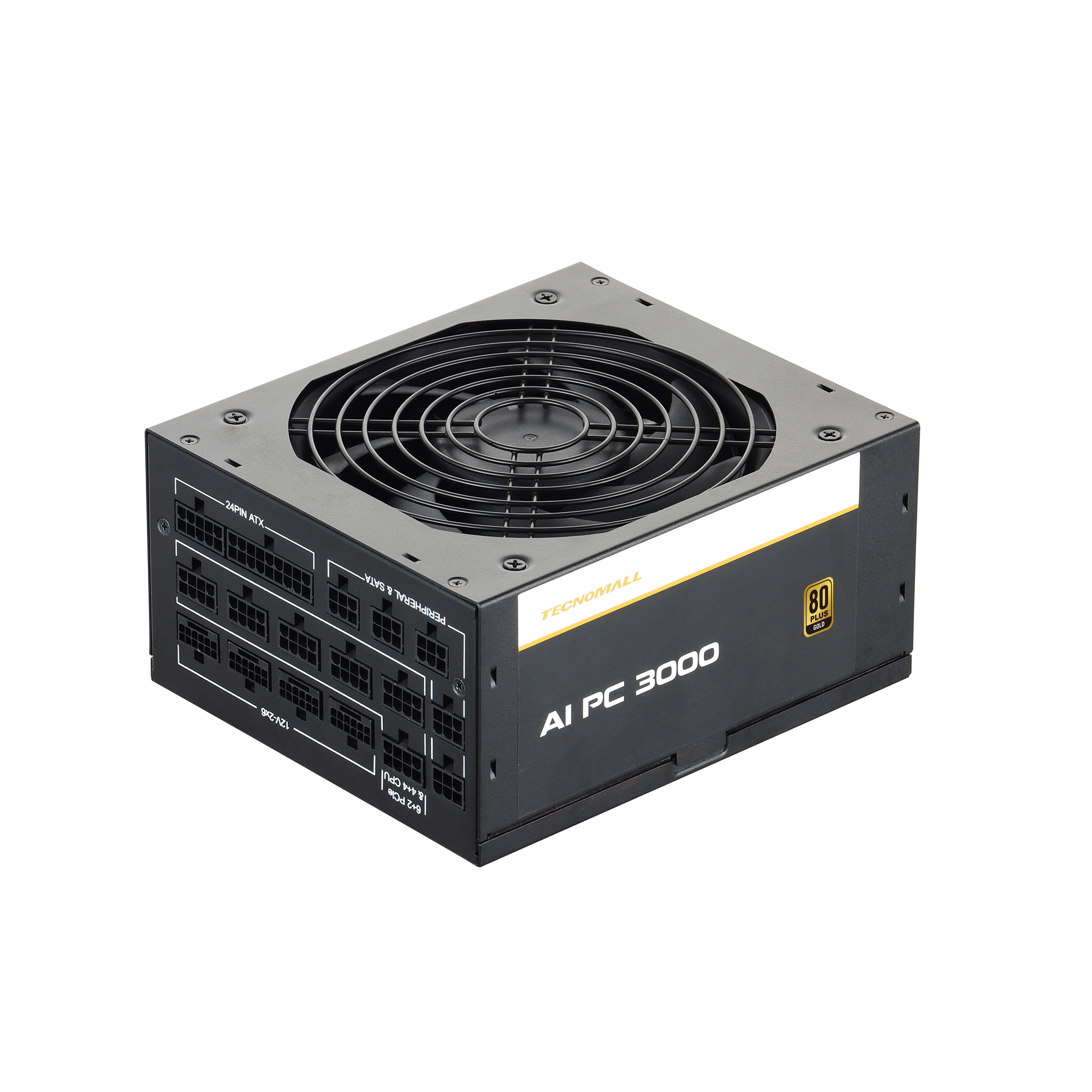

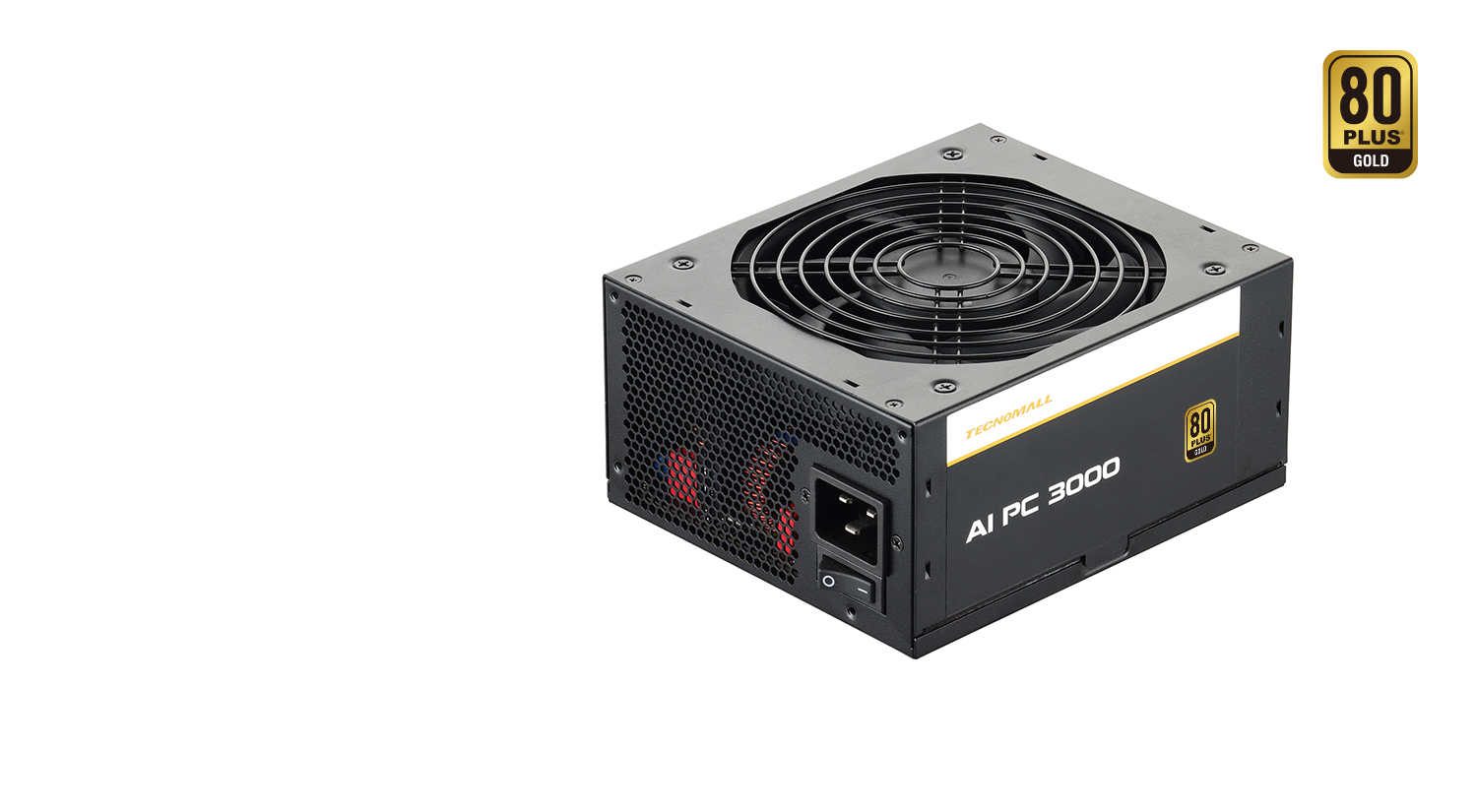

AI PC FM [230Vac 80+GOLD 2200/2600W 3000W]

Version

APFC + DC-DC + LLC
Capacitor

high quality Japanese Brand capacitor
Pass 80PLUS

80PLUS GOLD
Warranty

5 years
Power

2200W / 2600W / 3000W
Input Voltage

230Vac

Technical specifications

Type ATX12V V3.1

Product Dimensions 150×140×86mm (W x L x H)

Efficiency certification GOLD

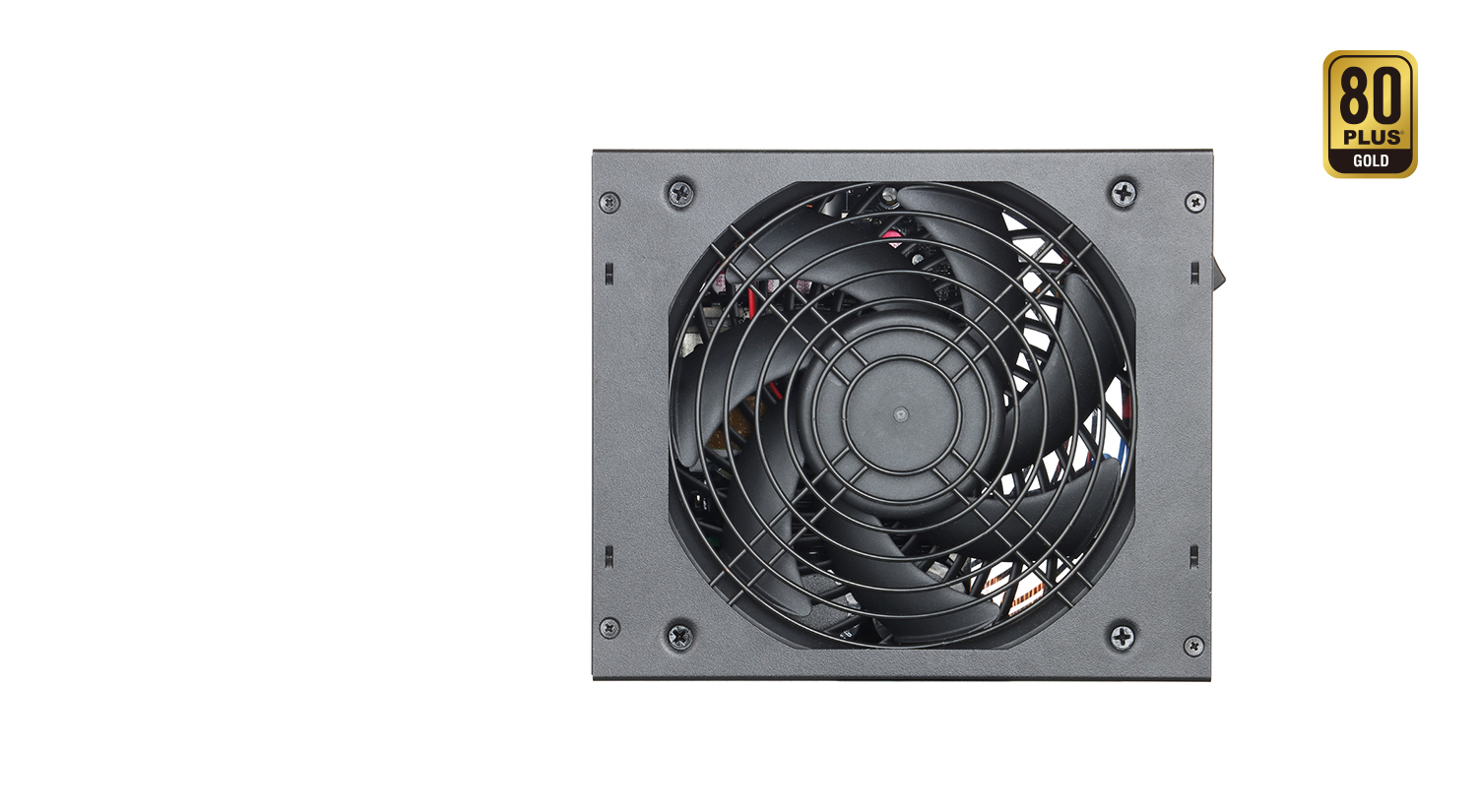

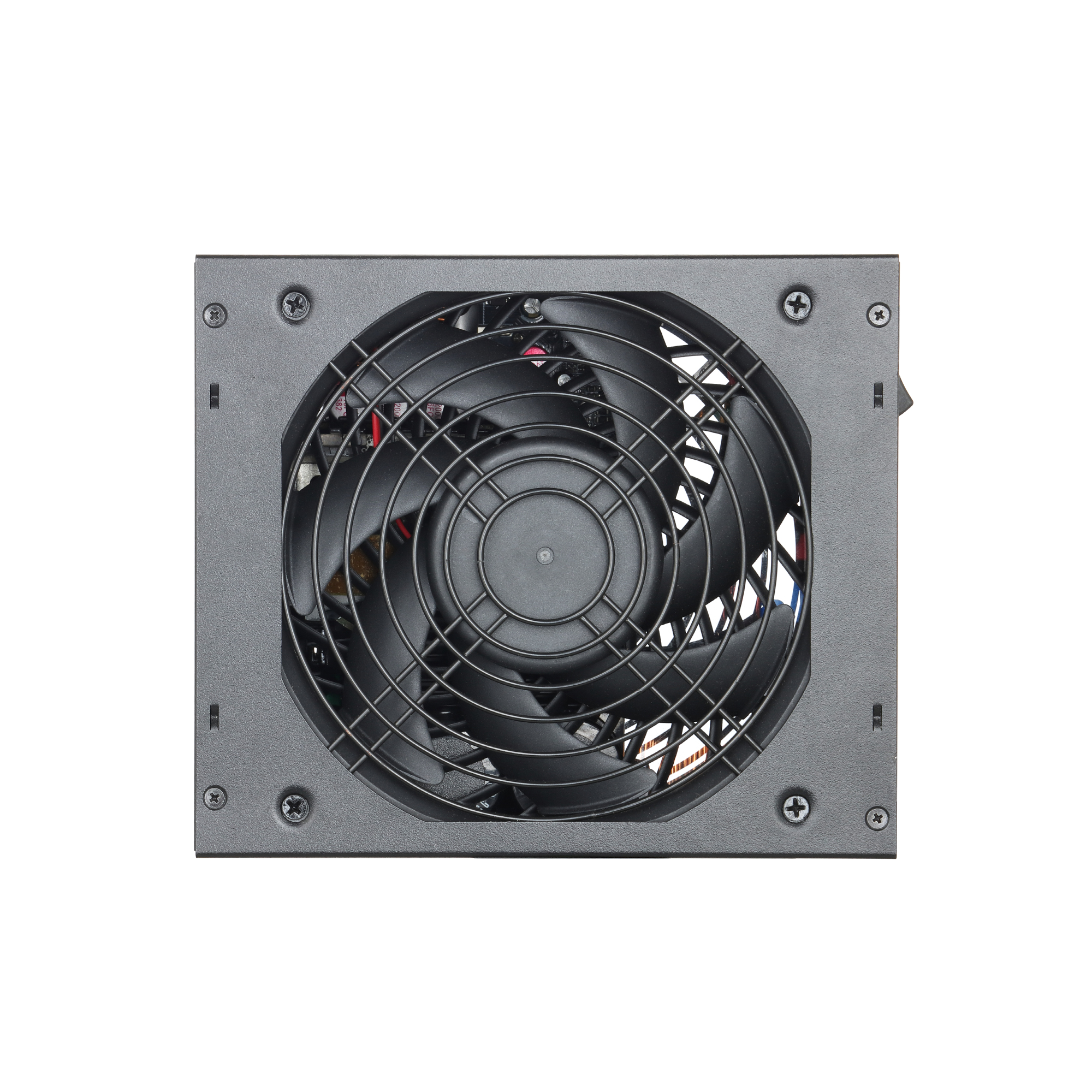

Fan Size 140mm

Fan Bearing Hydraulic

Topology APFC + DC-DC + LLC

Input Voltage 230Vac

Protection OVP / OPP / SCP / UVP / OCP / OTP

Operation Temperature 0 - 40℃

Regulatory CE/FCC/CCC/TUV-RH/RCM/EAC/CAN ICES-003(B)/NMB-003(B)/UKCA/BIS/KC;

Erp Regulation ErP Lot6

Warranty 5 years

2200W Cables 1x 20+4Pin, 2 x 8Pin(4+4), 15 x SATA, 8 x 4Pin, 8 x PCI 6+2Pin, 1 x PCIe 5.1

2600W Cables 1x 20+4Pin, 2 x 8Pin(4+4), 15 x SATA, 8 x 4Pin, 8 x PCI 6+2Pin, 1 x PCIe 5.1

3000W Cables 1 x 20+4Pin, 2 x 8Pin(4+4), 15 x SATA, 8 x 4Pin, 8 x PCI 6+2Pin, 1 x PCIe 5.1
