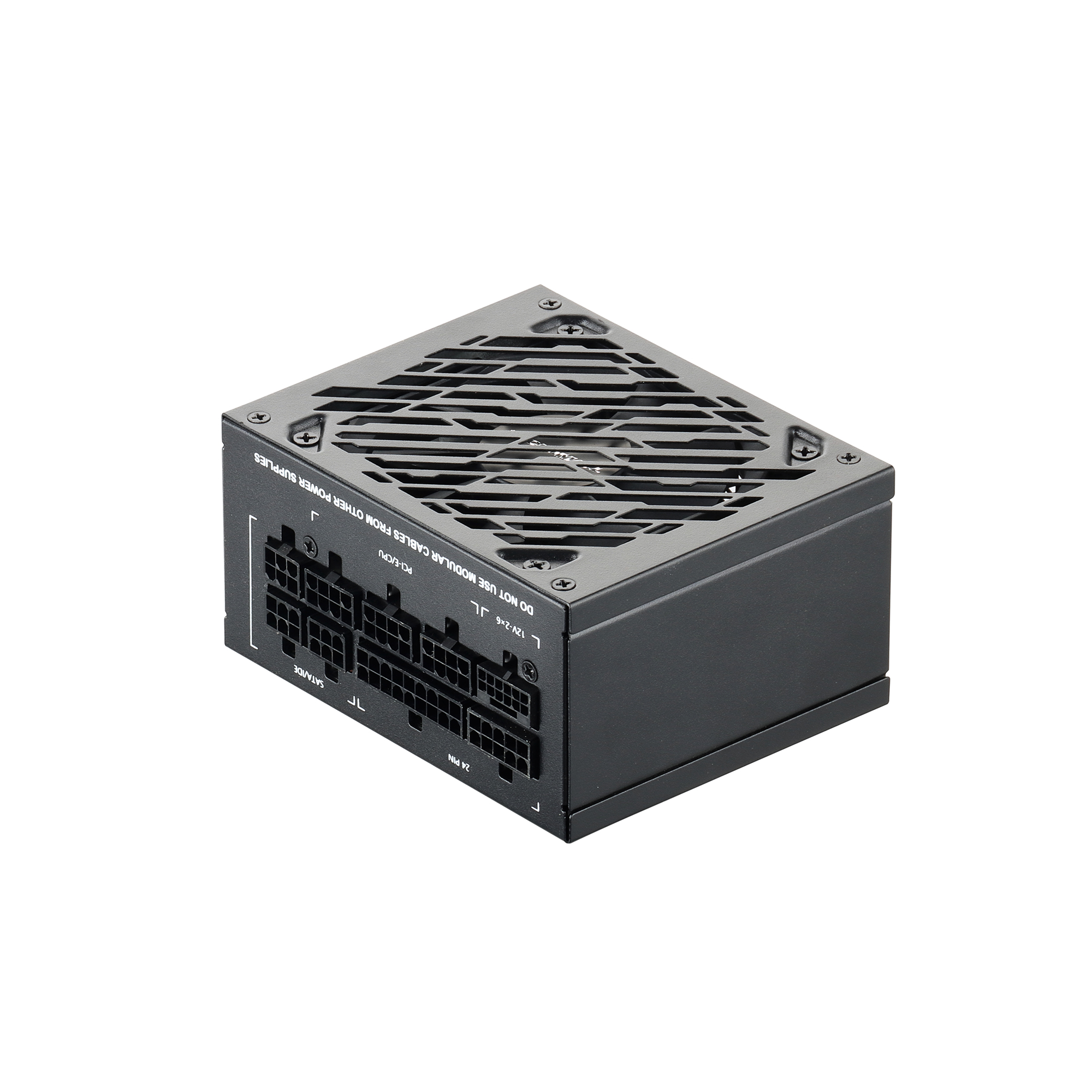

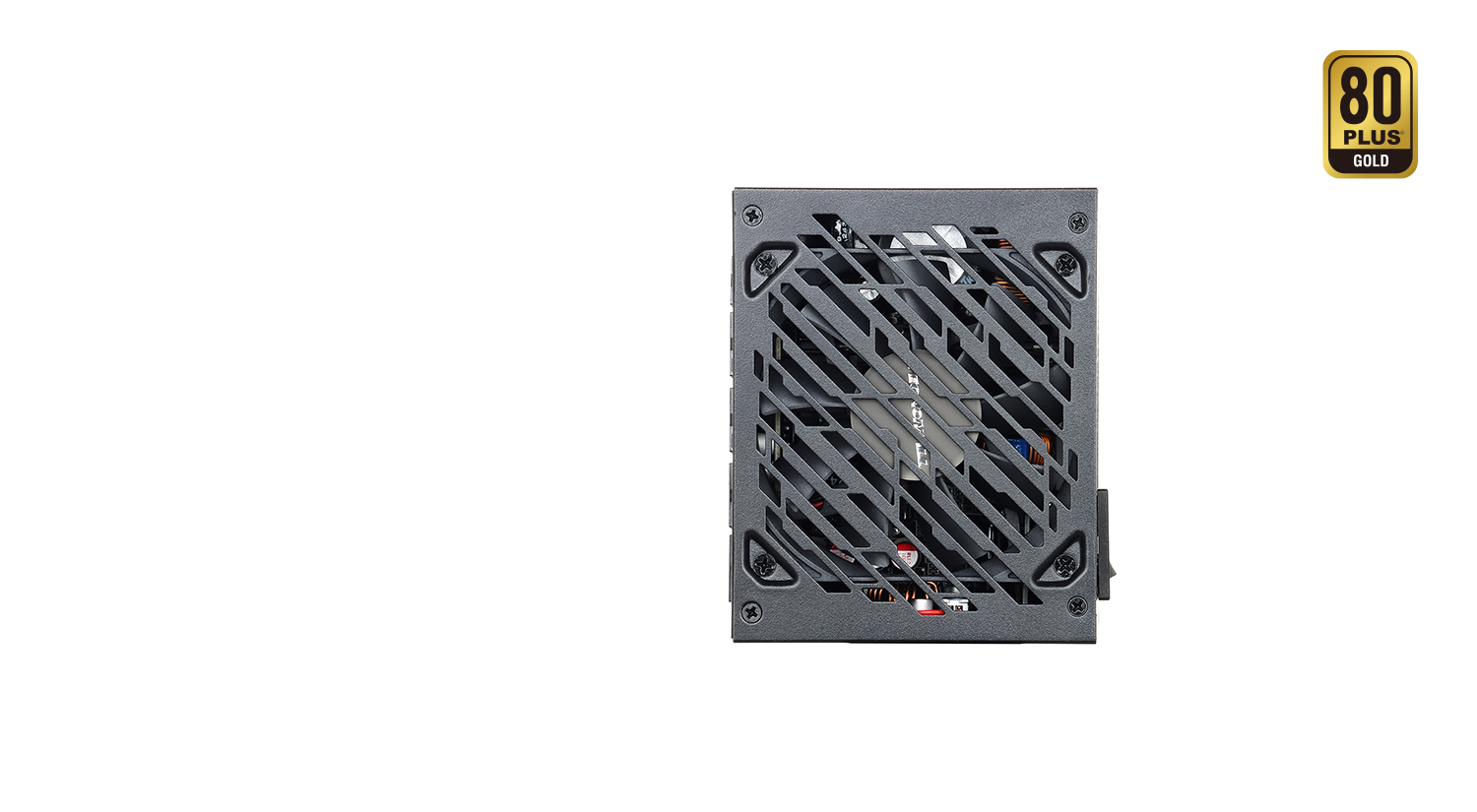

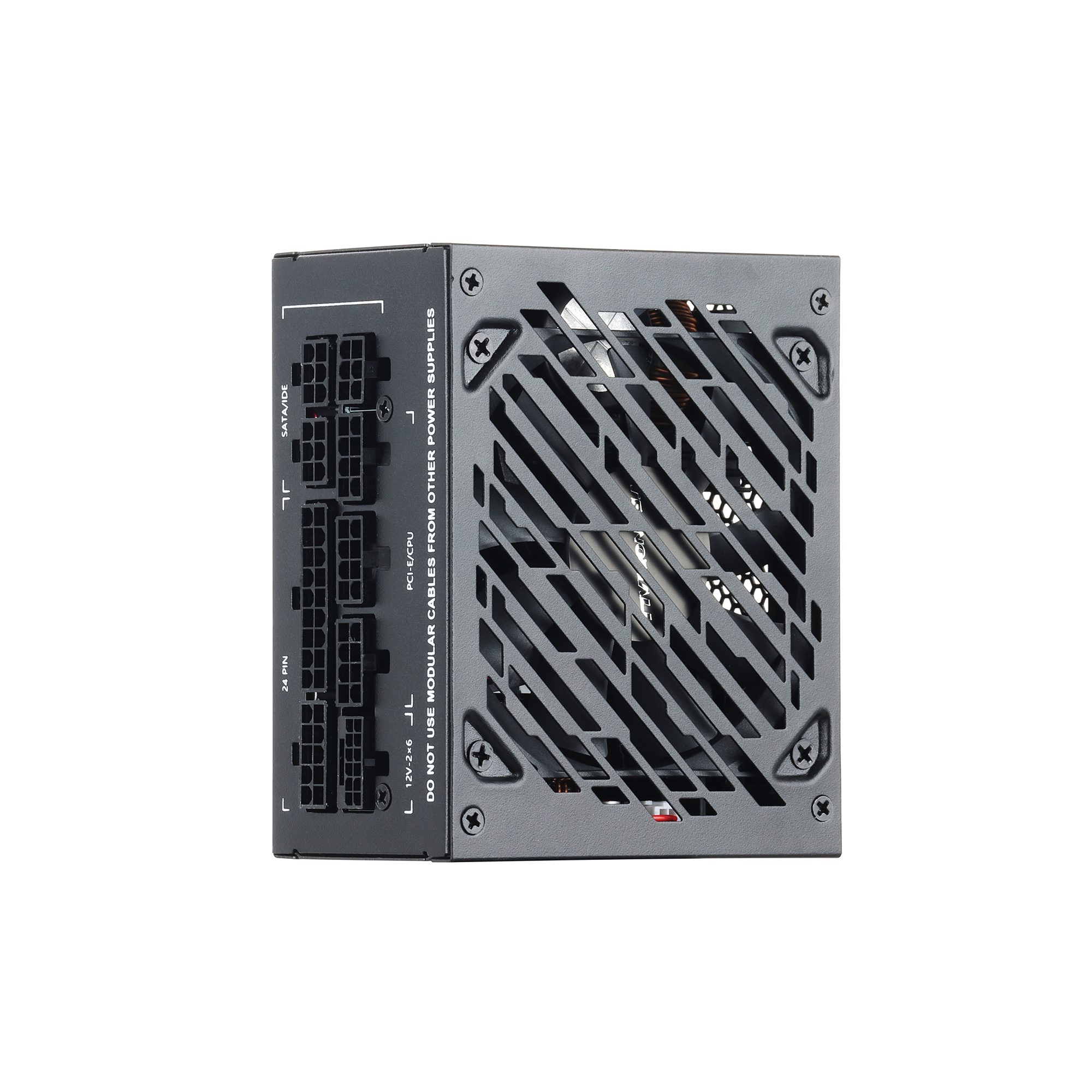

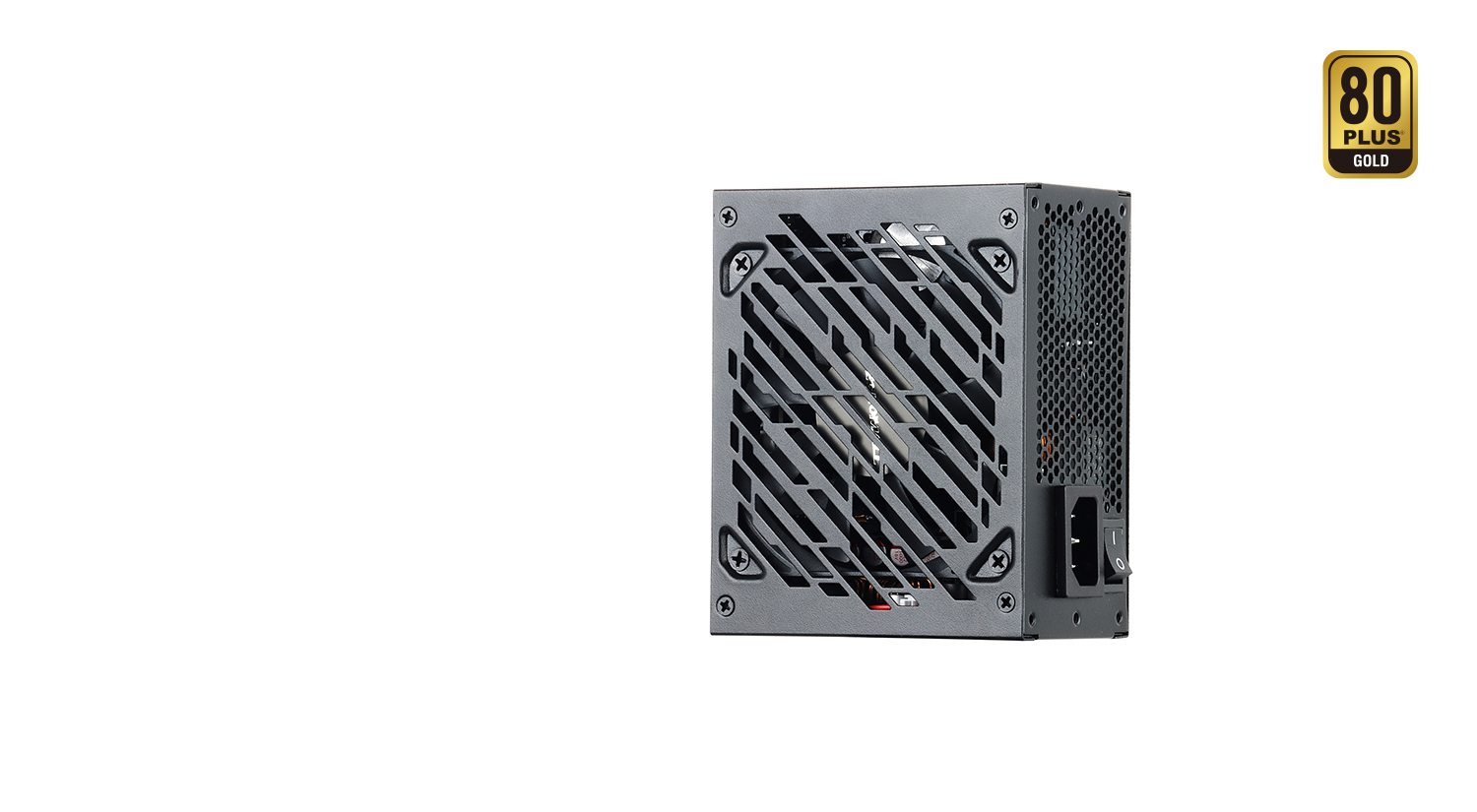

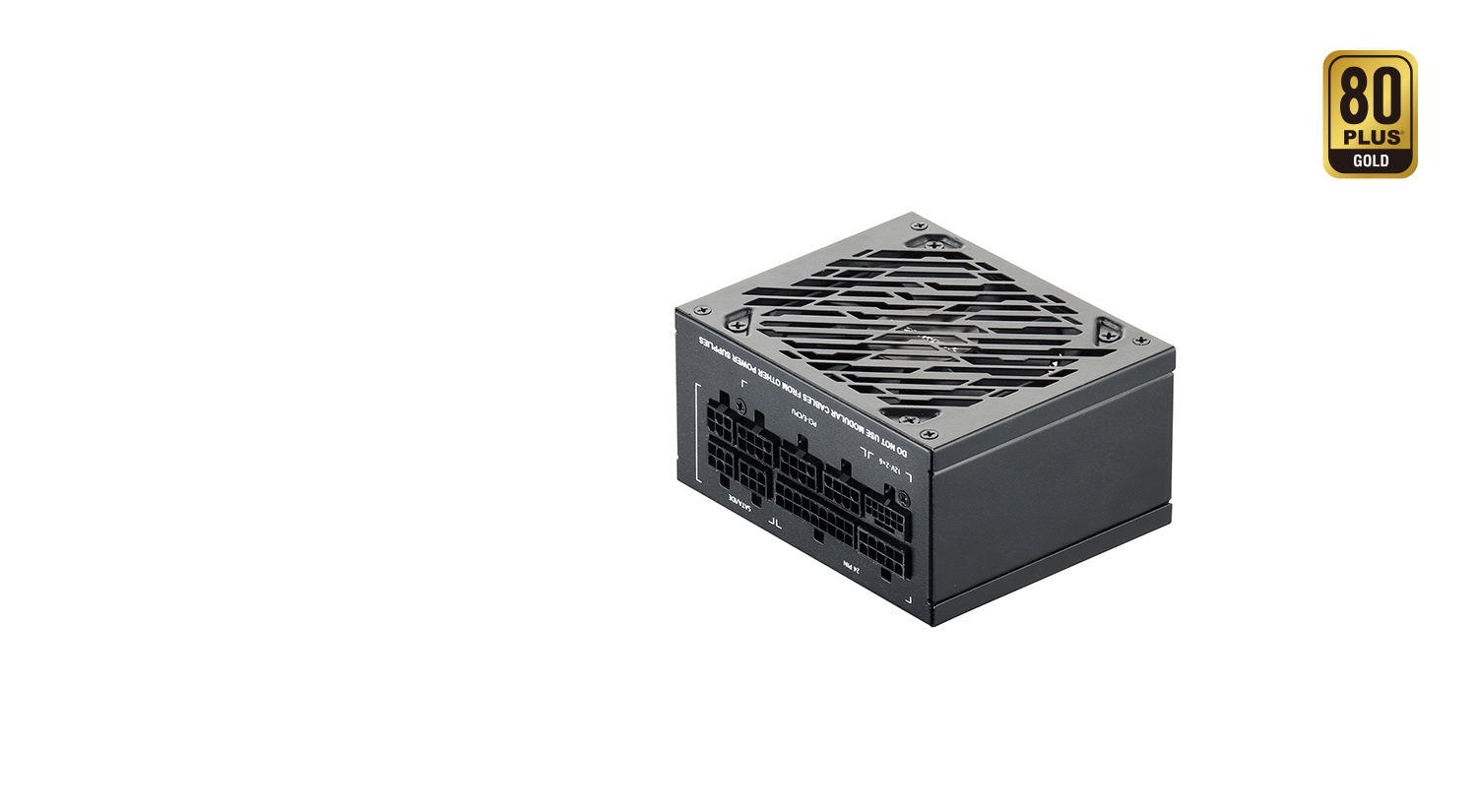

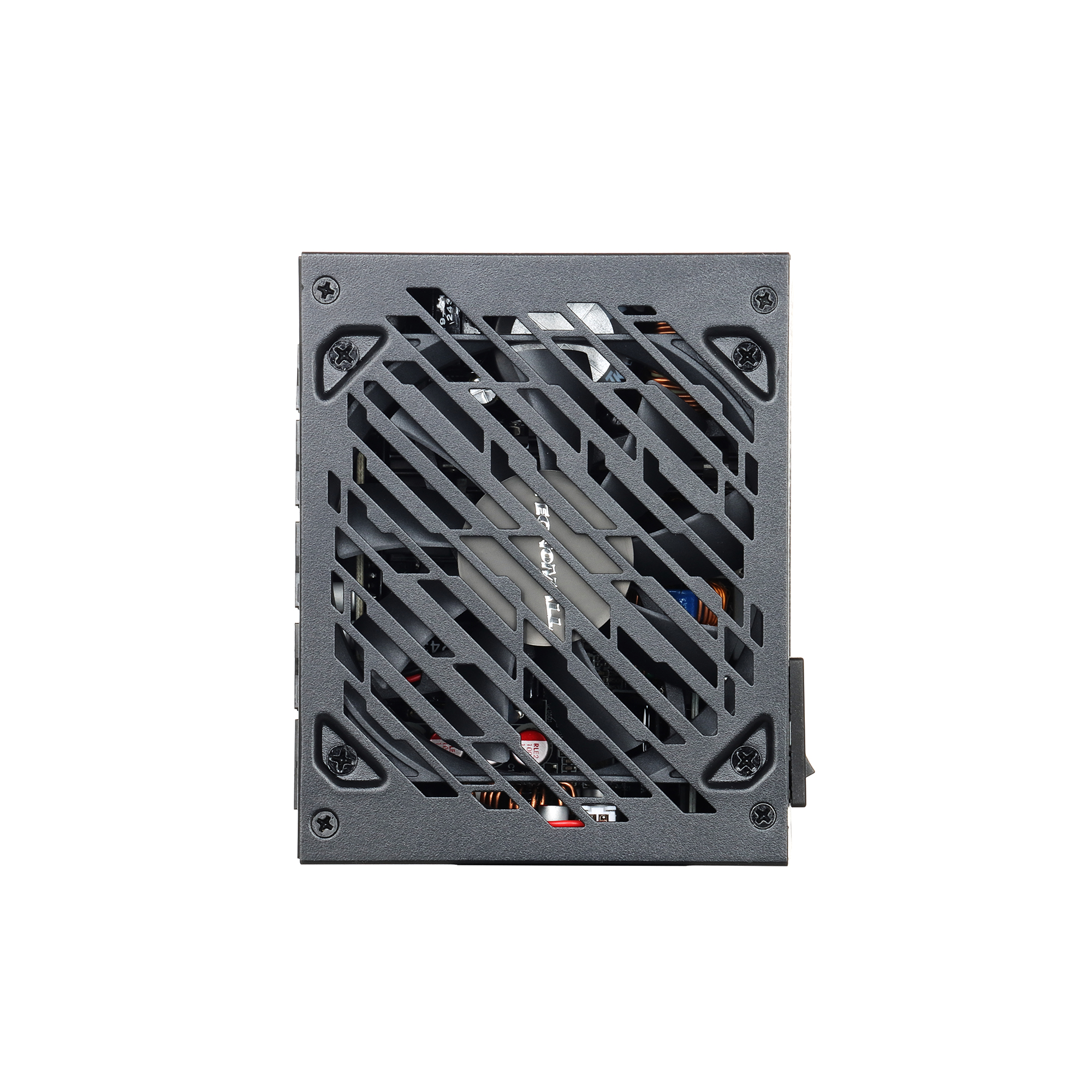

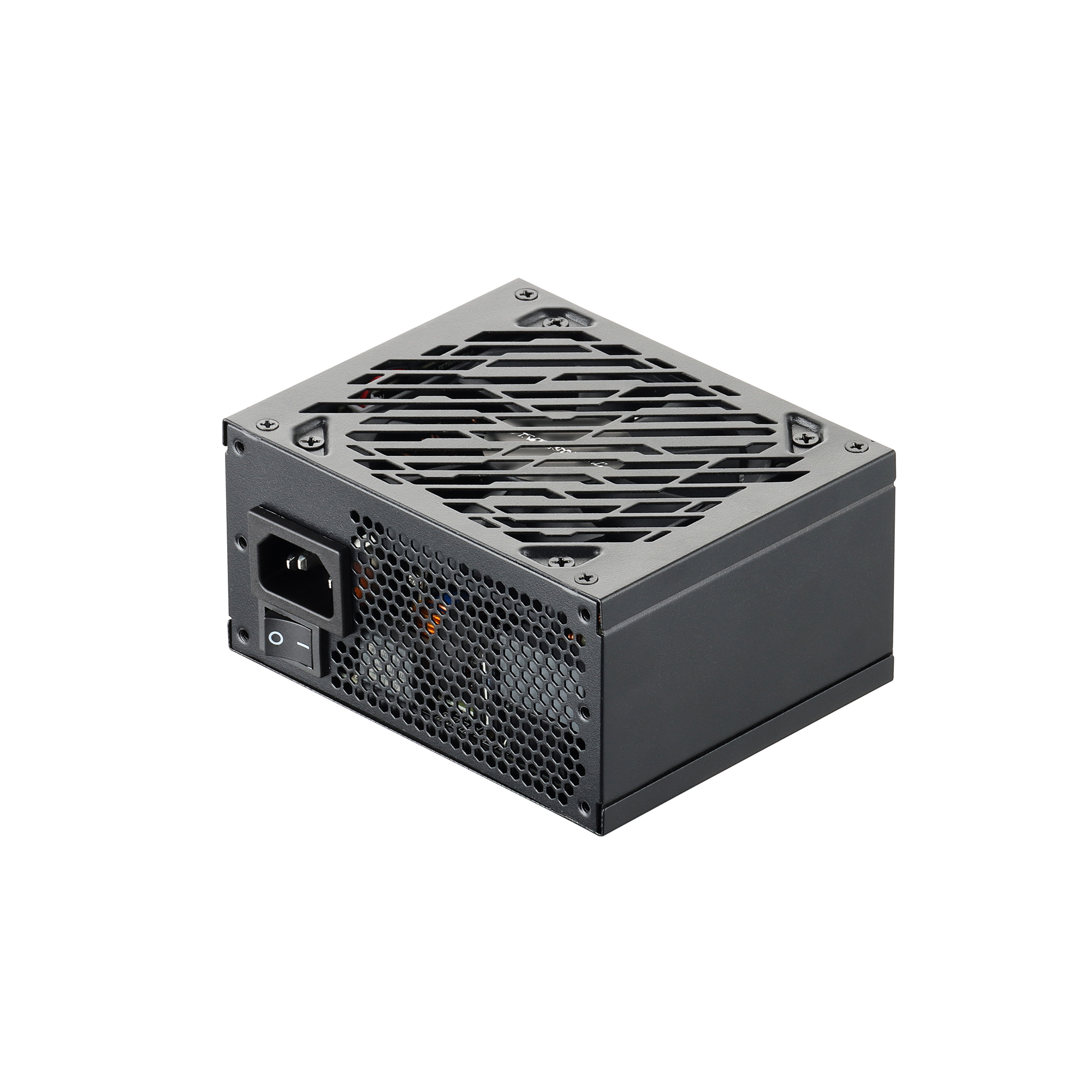

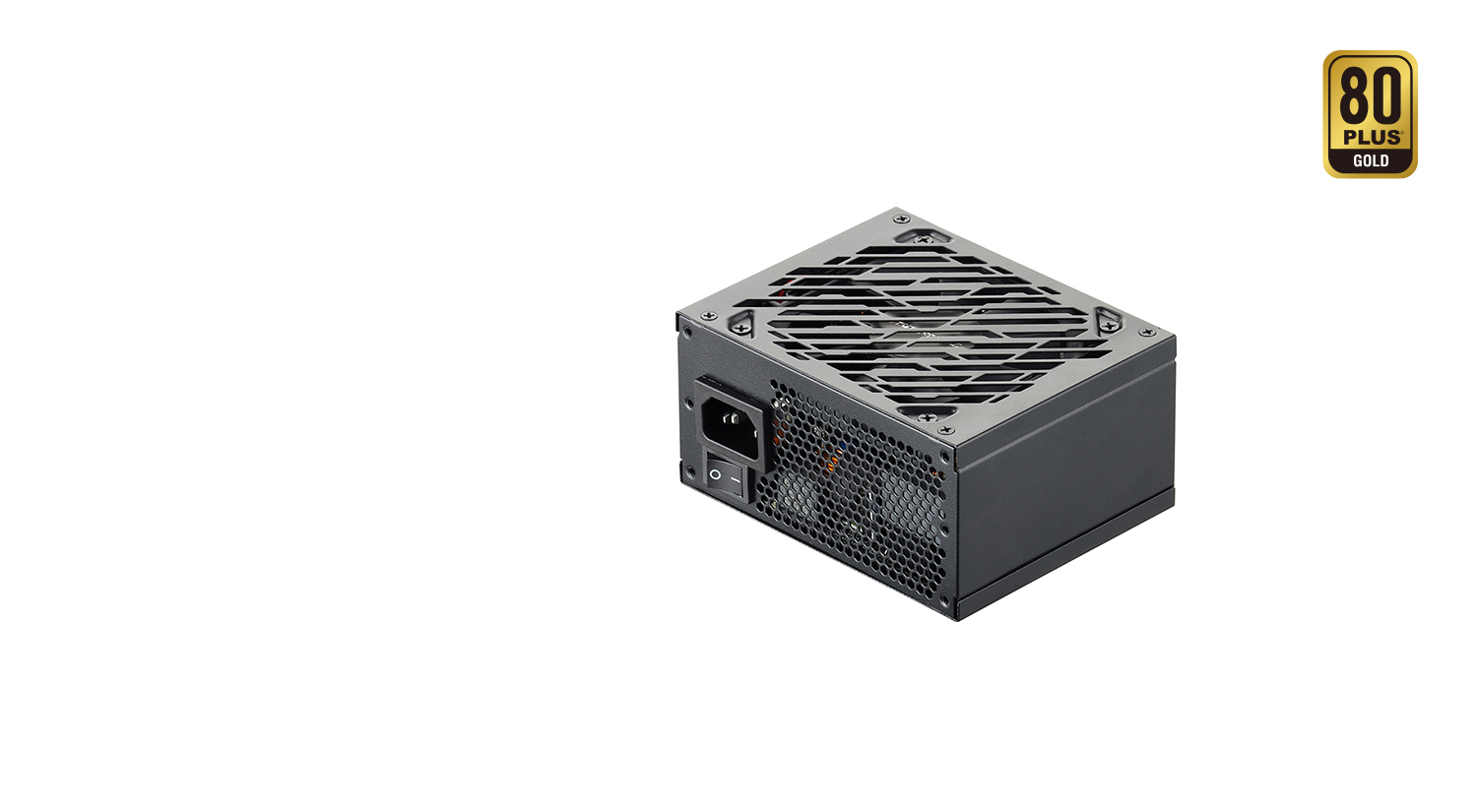

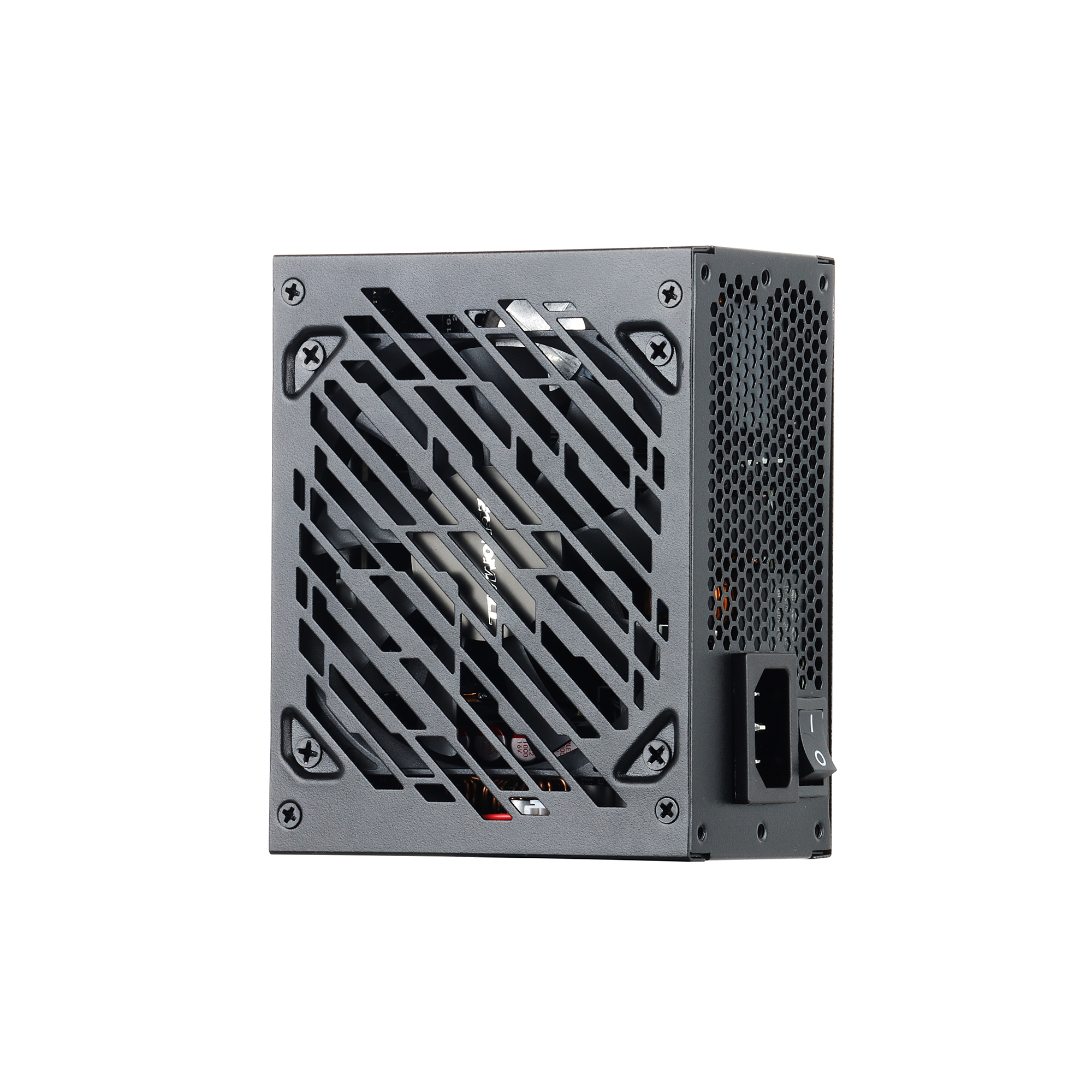

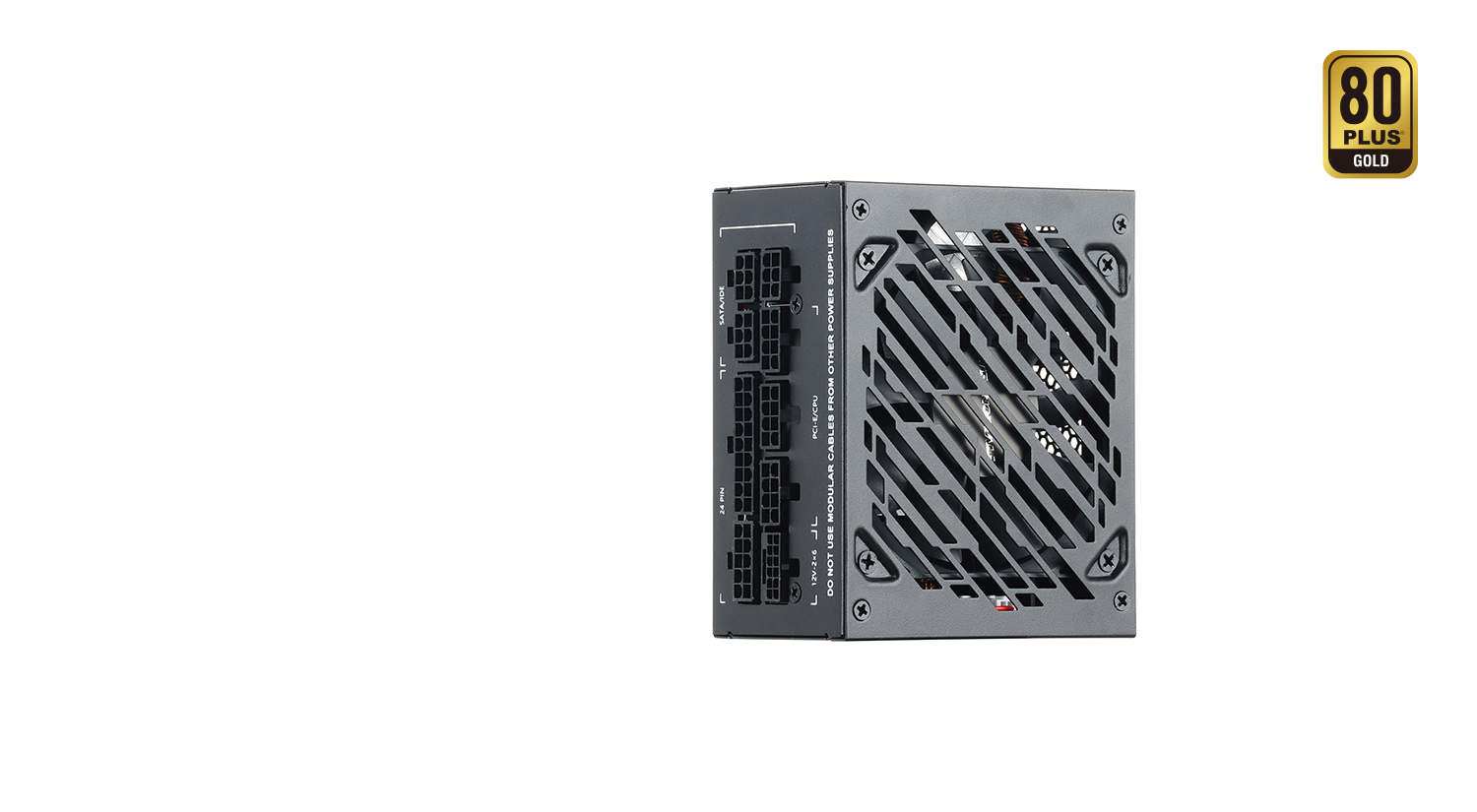

SFX FM2[100-240Vac 80+ GOLD 650/750/850W]_PSU_Products

SFX FM2[100-240Vac 80+ GOLD 650/750/850W]

Version

APFC + DC-DC + LLC
Capacitor

high quality Japanese Brand capacitor
Pass 80PLUS

80PLUS GOLD
Warranty

5 years
Power

650W / 750W / 850W

Technical specifications

Type ATX12V V3.1

Product Dimensions 101×125×63.5mm (W x L x H)

Efficiency certification GOLD

Fan Size 80mm

Fan Bearing Hydraulic

Topology APFC + DC-DC + LLC

Protection OVP / OPP / SCP / UVP / OCP / OTP

Operation Temperature 0 - 40℃

Regulatory CE/FCC/CCC/TUV-RH/RCM/EAC/CAN ICES-003(B)/NMB-003(B)/UKCA/BIS/KC;

Erp Regulation ErP Lot6

Warranty 5 years

650W Cables 1x 20+4Pin, 2 x 8Pin(4+4), 6 x SATA, 2 x 4Pin, 2 x PCI 6+2Pin, 1 x PCIe 5.1

750W Cables 1x 20+4Pin, 2 x 8Pin(4+4), 6 x SATA, 2 x 4Pin, 3 x PCI 6+2Pin, 1 x PCIe 5.1

850W Cables 1x 20+4Pin, 2 x 8Pin(4+4), 6 x SATA, 2 x 4Pin, 3 x PCI 6+2Pin, 1 x PCIe 5.1
