M801
-
MotherboardsMICRO ATX / ITX
-
Chassis Dimension425*275*350mm
-
VGA Clearance415mm
-
CPU Cooler Clearance160mm
-
Power Supply180mm
-
I/O PortsUSB3.0*1 + USB1.0*1 +HD Audio

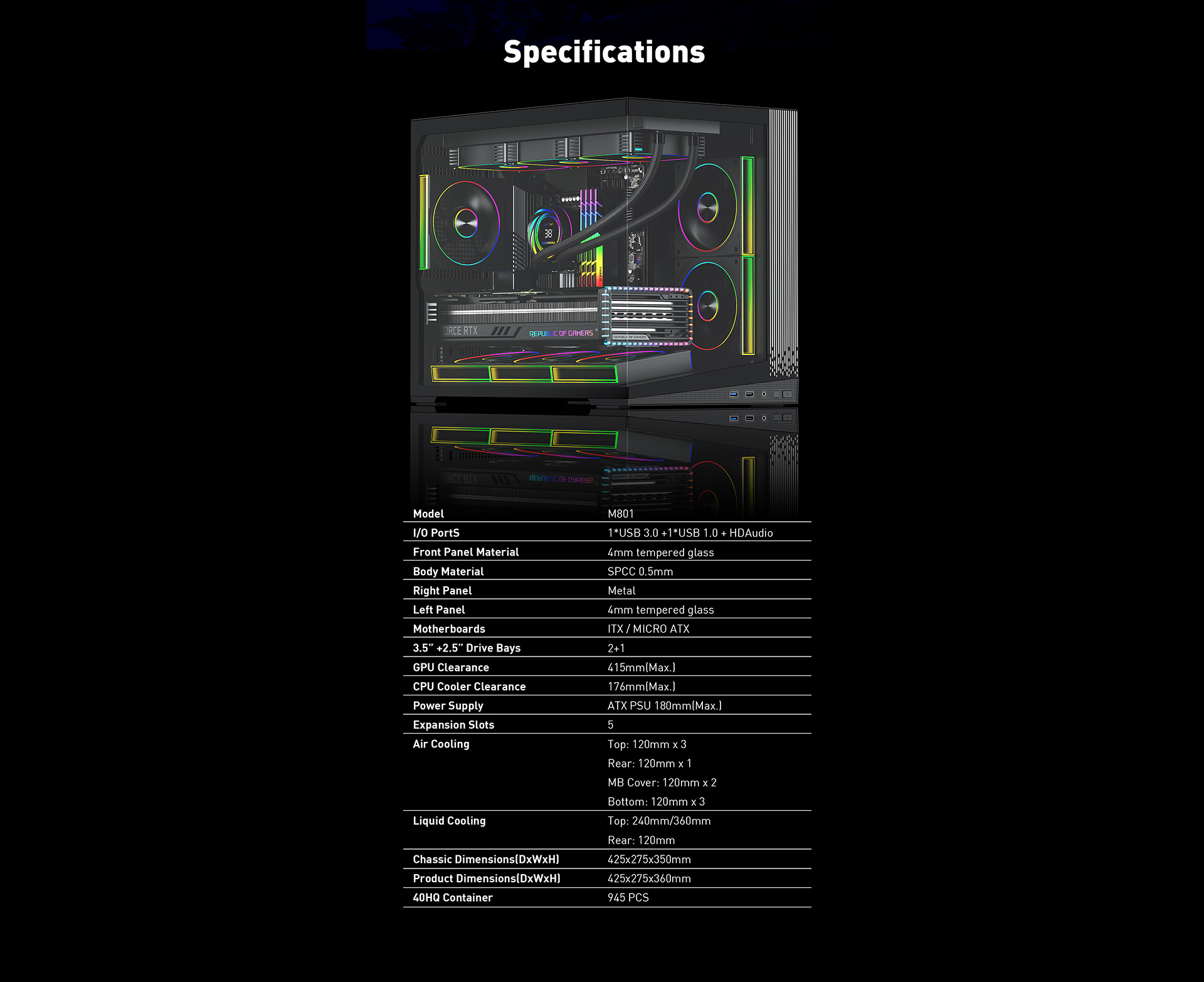

Technical specifications
Model
M801
Motherboards
ITX / MICRO ATX

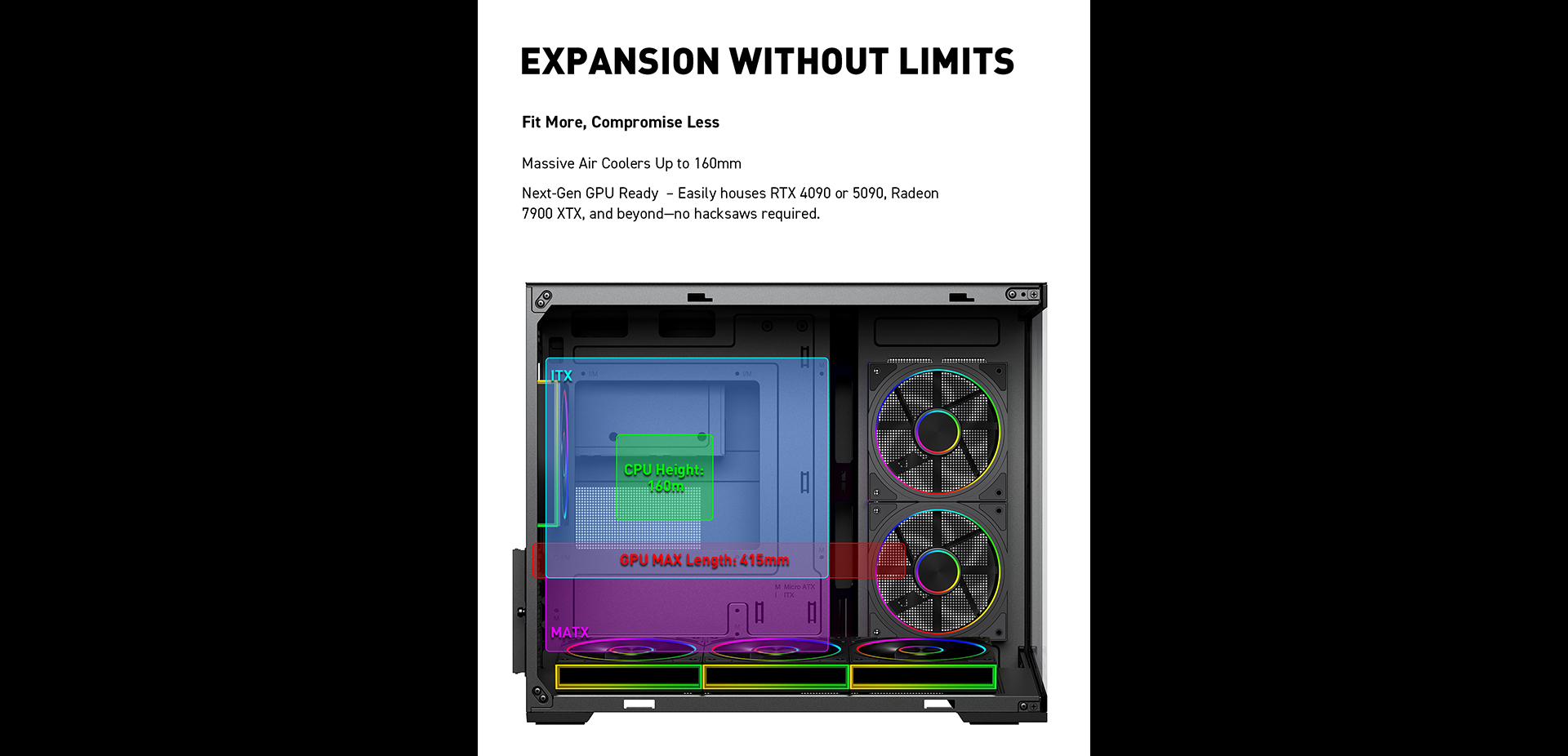

VGA Clearance
415mm
CPU Cooler Clearance
160mm
3.5+2.5 Driver Bays
2+1

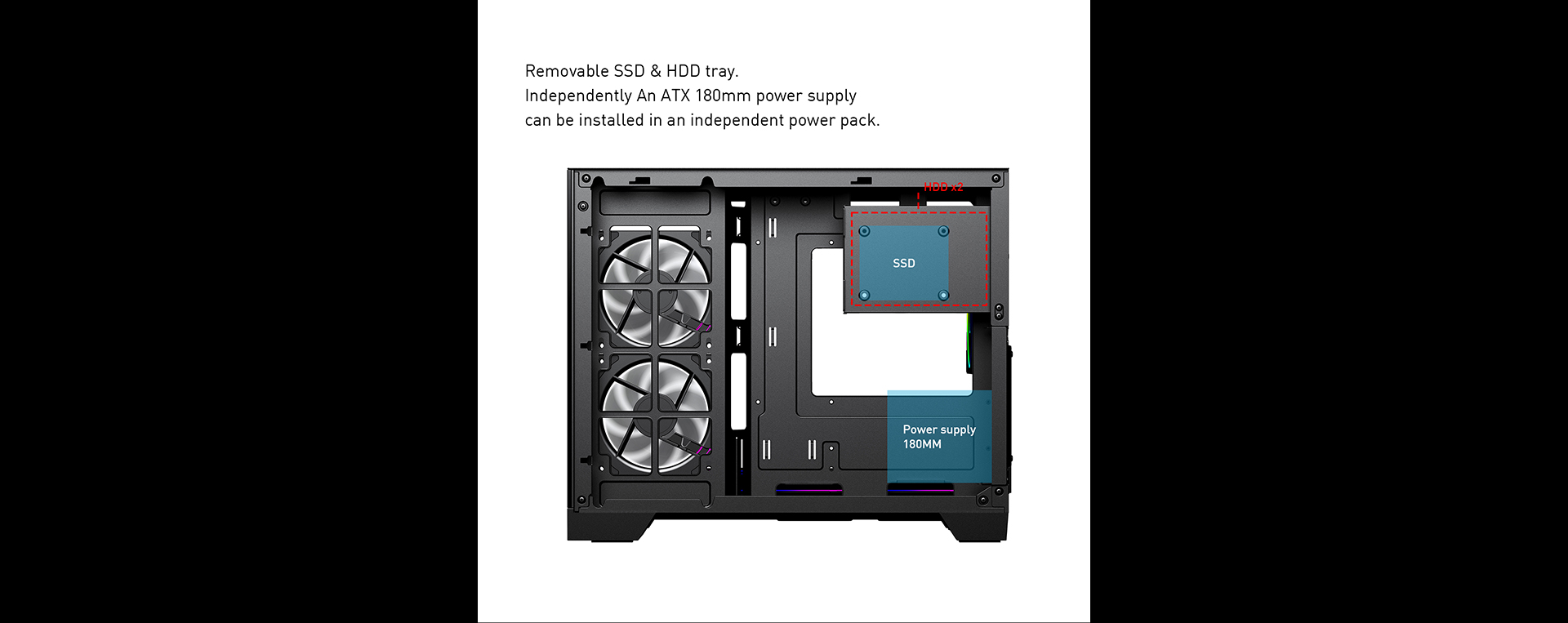

Power Supply
180mm

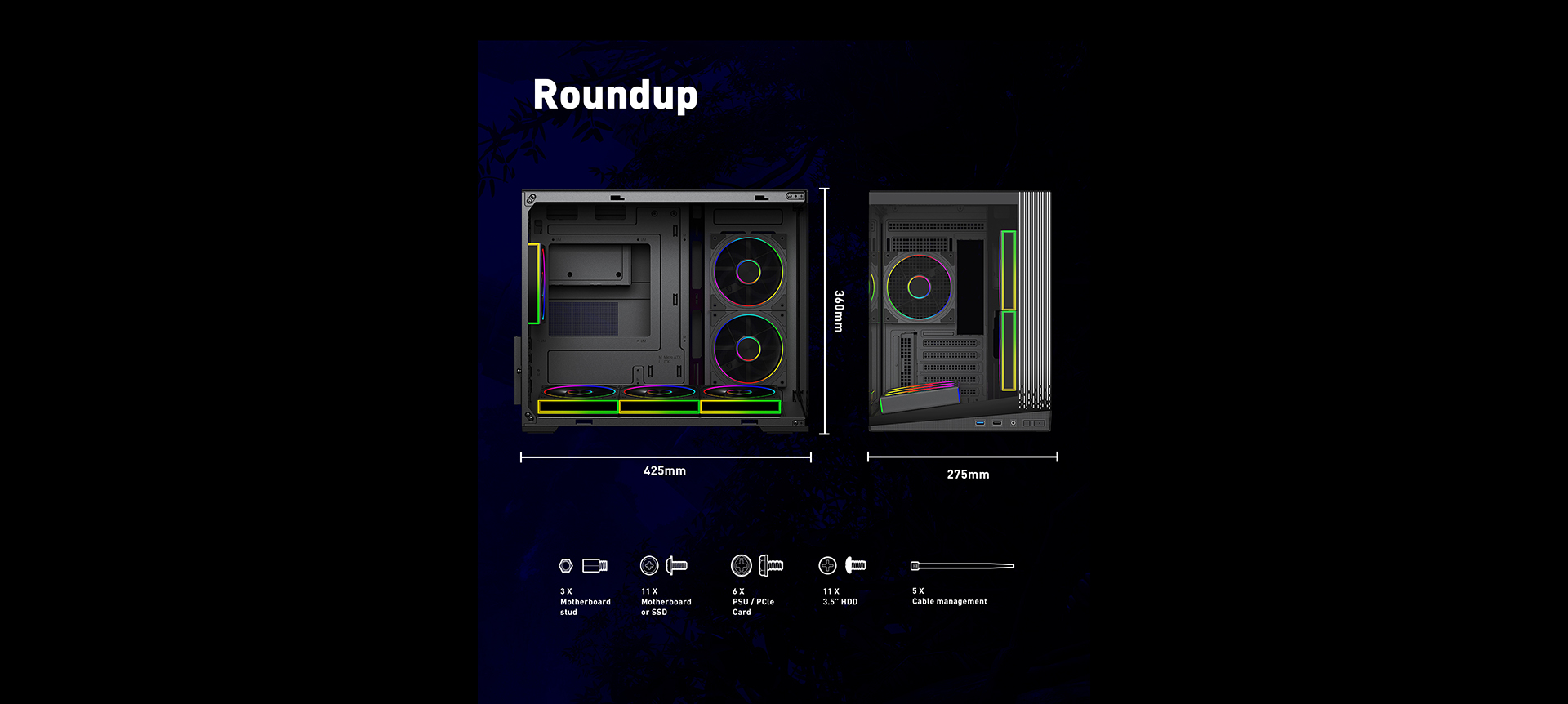

Chassis Dimension
425*275*350mm
Product Dimension
425*275*360mm
40HQ Container
945 PCS
I/O Ports
USB3.0*1 + USB1.0*1 + HD Audio

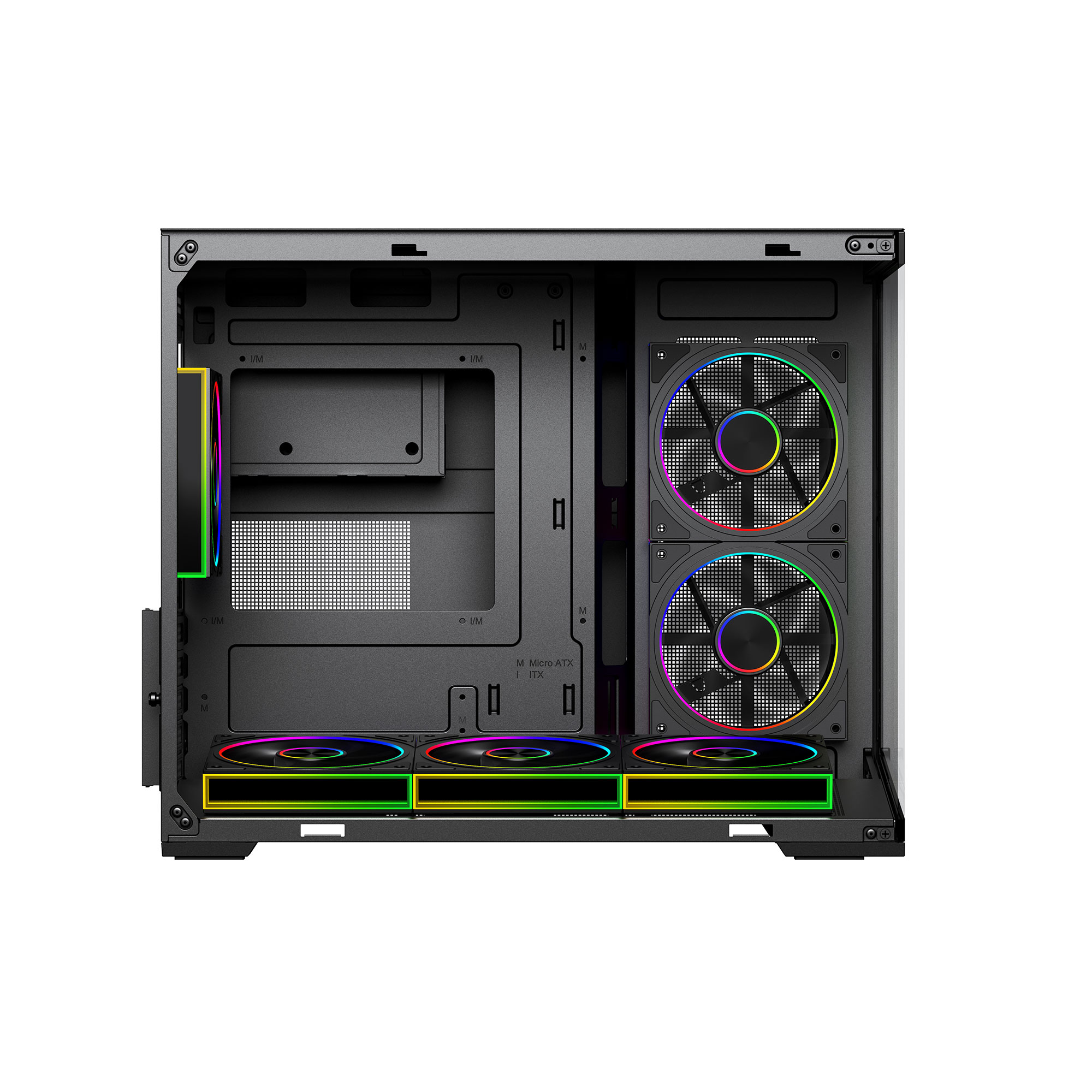

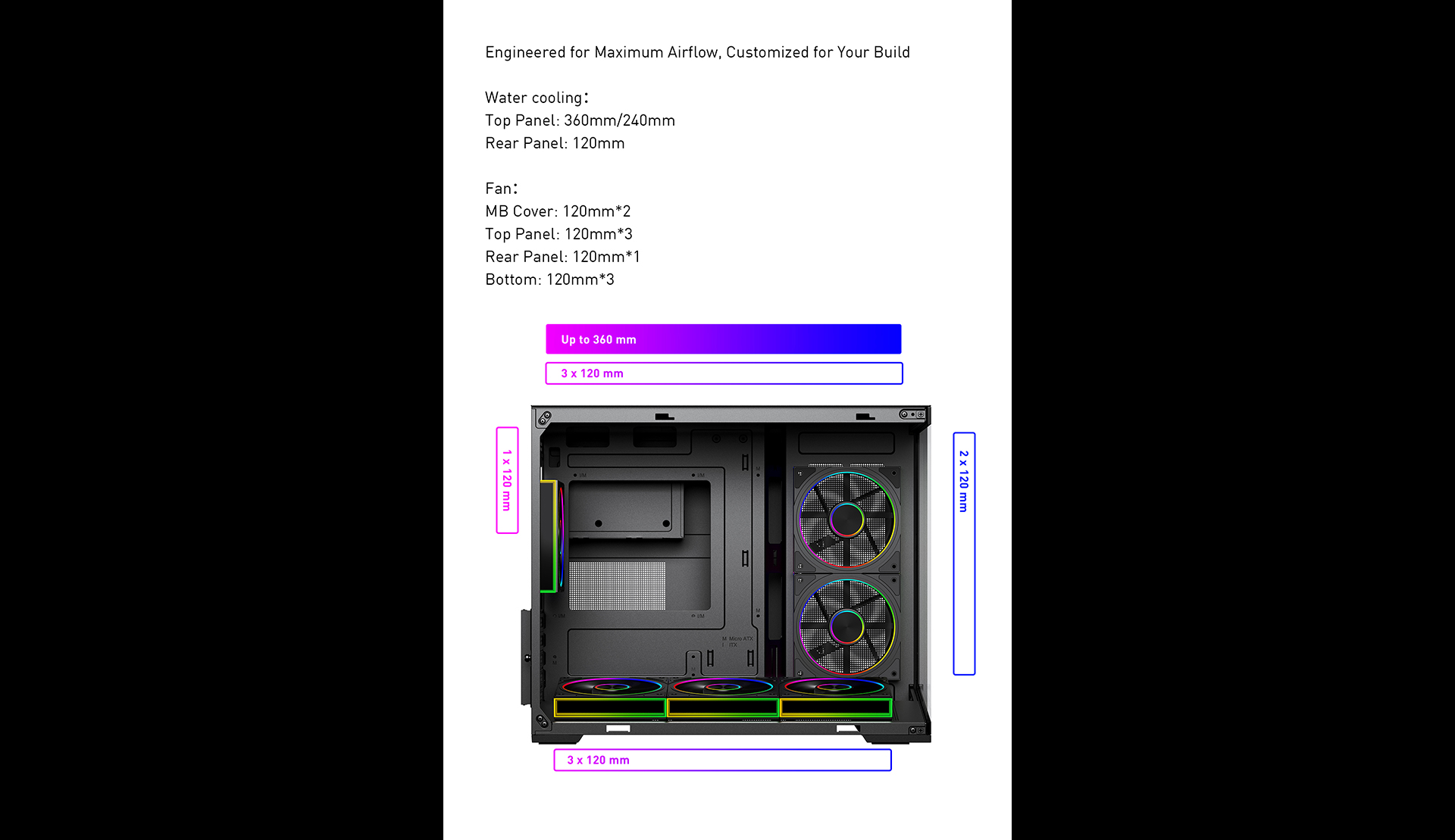

Air Cooling
Top: 120mm x 3 Rear: 120mm x 1 MB cover :120mm x 2 Bottom: 120mm x 3
Liquid Cooling
Top :240mm/360mm Rear: 120mm

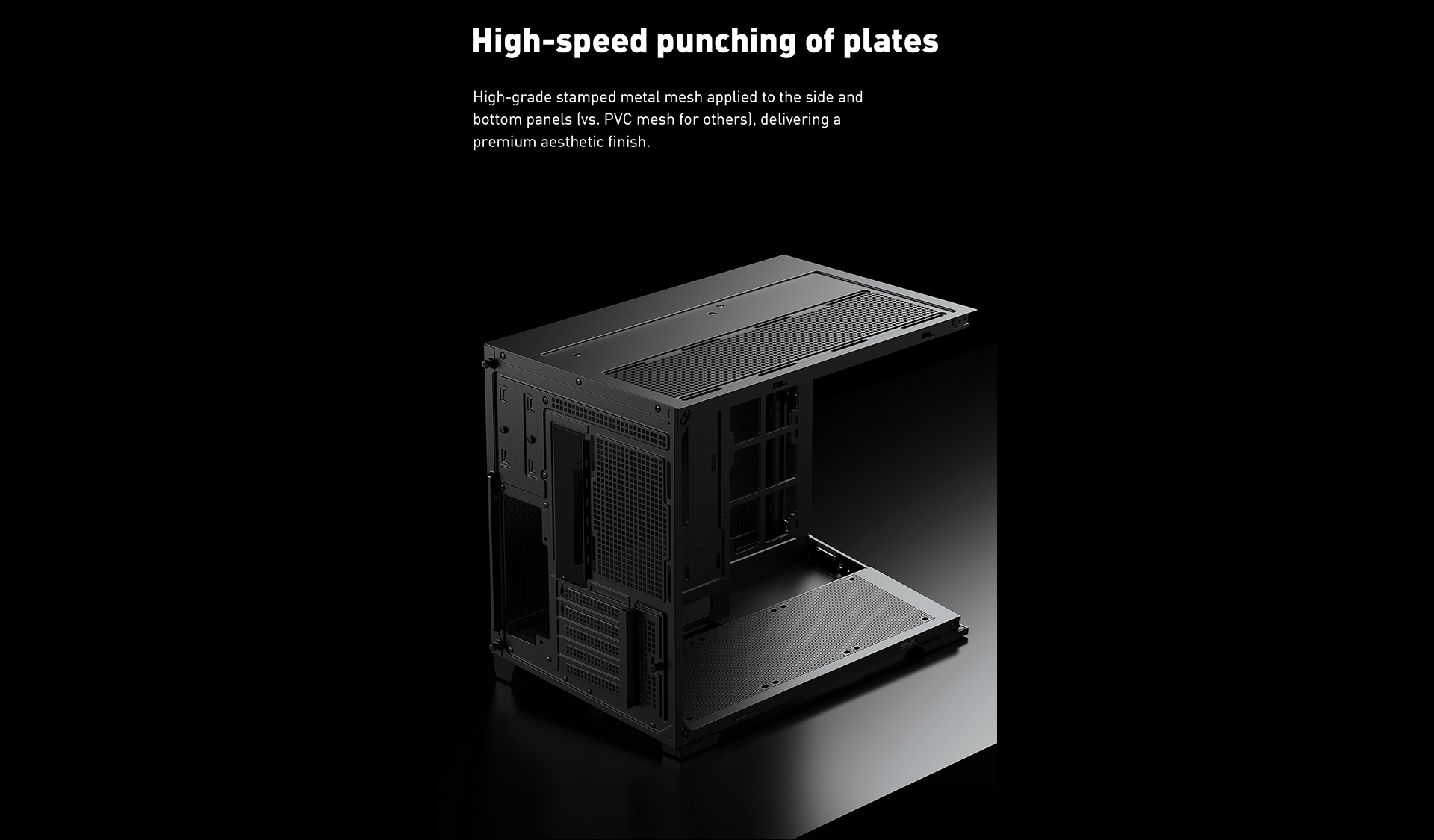

Body Materiarl
SPCC 0.0mm

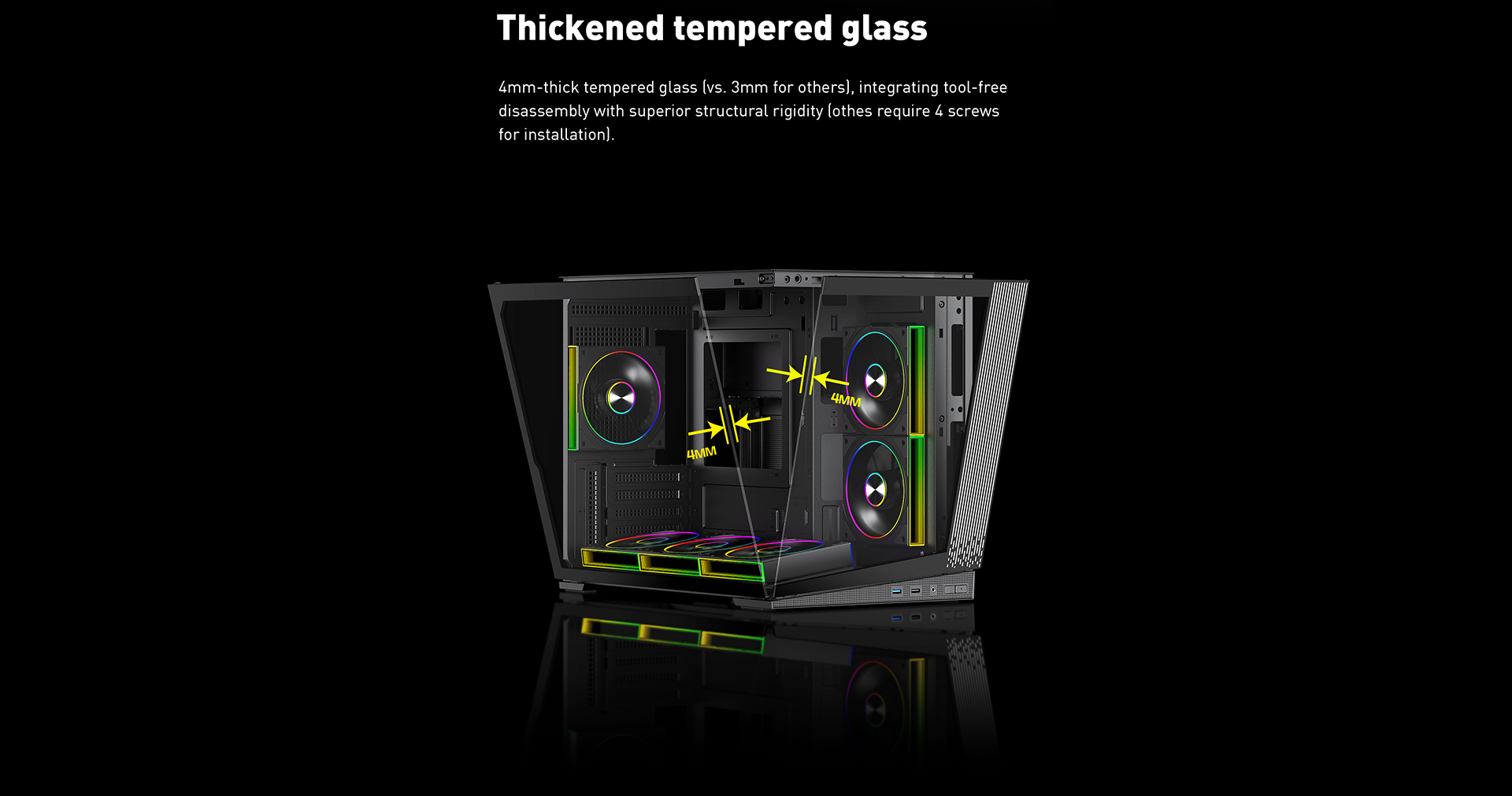

Front Panel
4mm tempered glass
Left Panel
4mm tempered glass
Right Panel
0.5mm Metal
