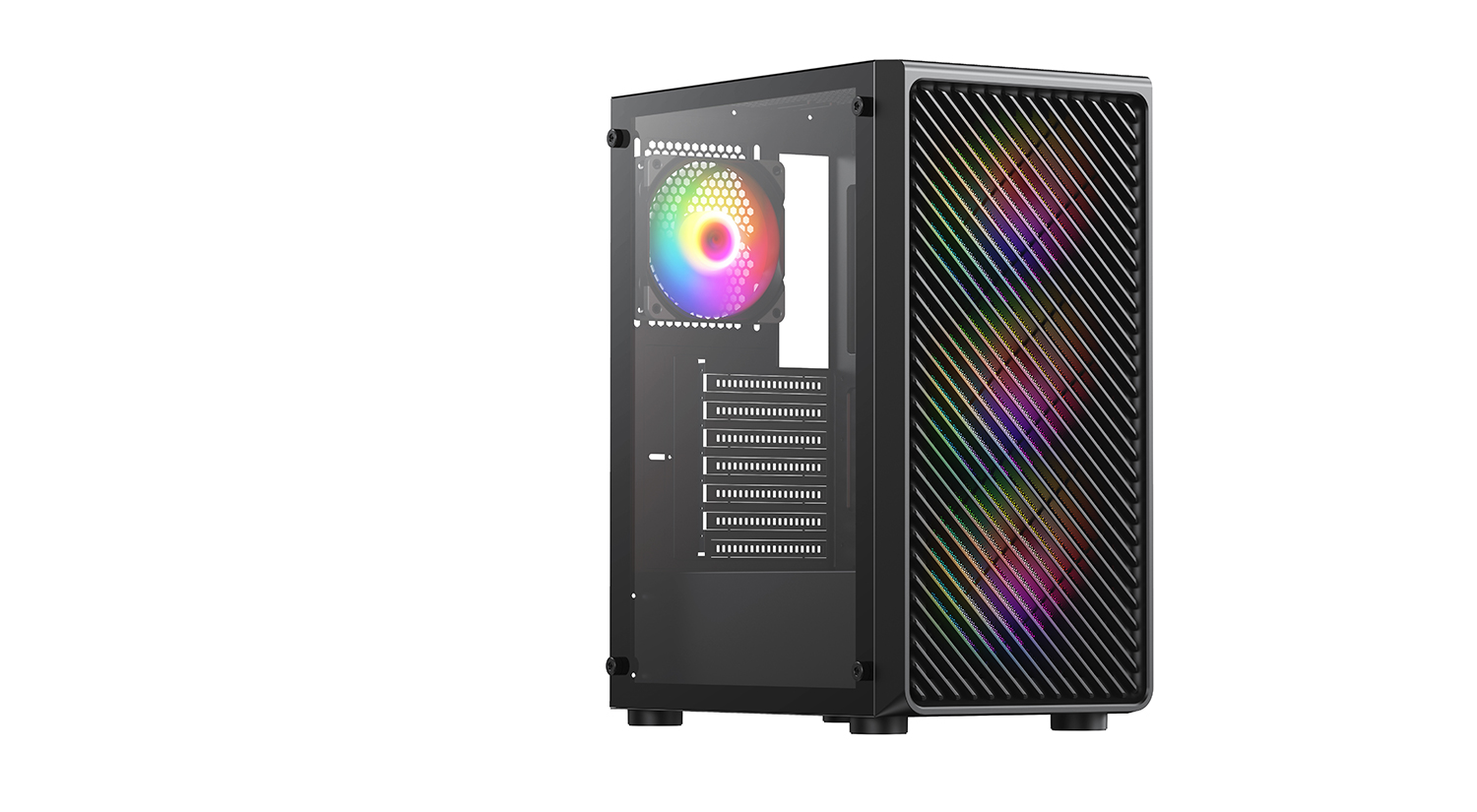

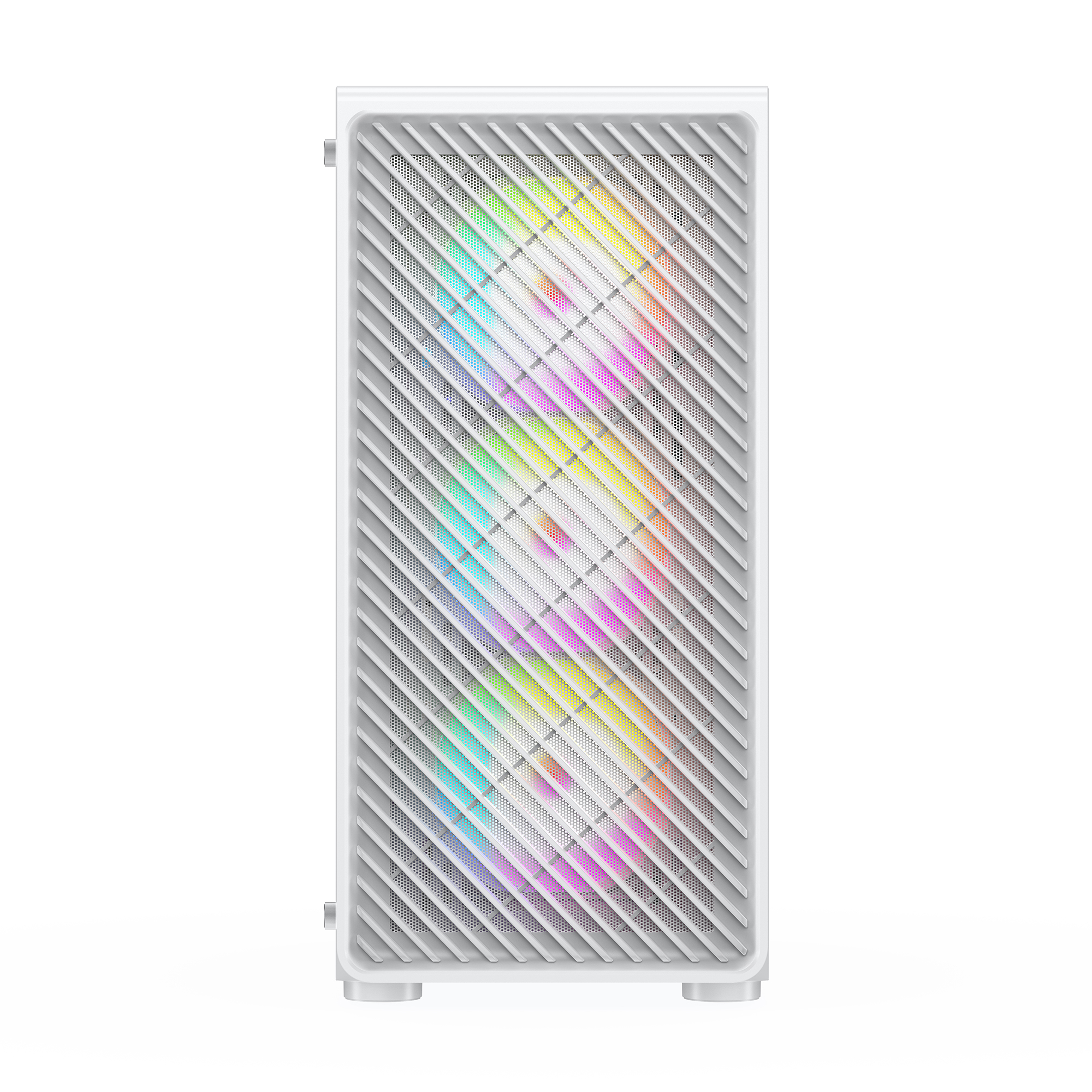

X1
-
MotherboardsITX / MICRO ATX / ATX
-
Chassis Dimension335*216*445mm
-
VGA Clearance310mm
-
CPU Cooler Clearance175mm
-
Power Supply180mm
-
I/O PortsUSB3.0*1 + USB1.0*2 + HD Audio
Technical specifications
Model
X1
Motherboards
ITX / MICRO ATX / ATX

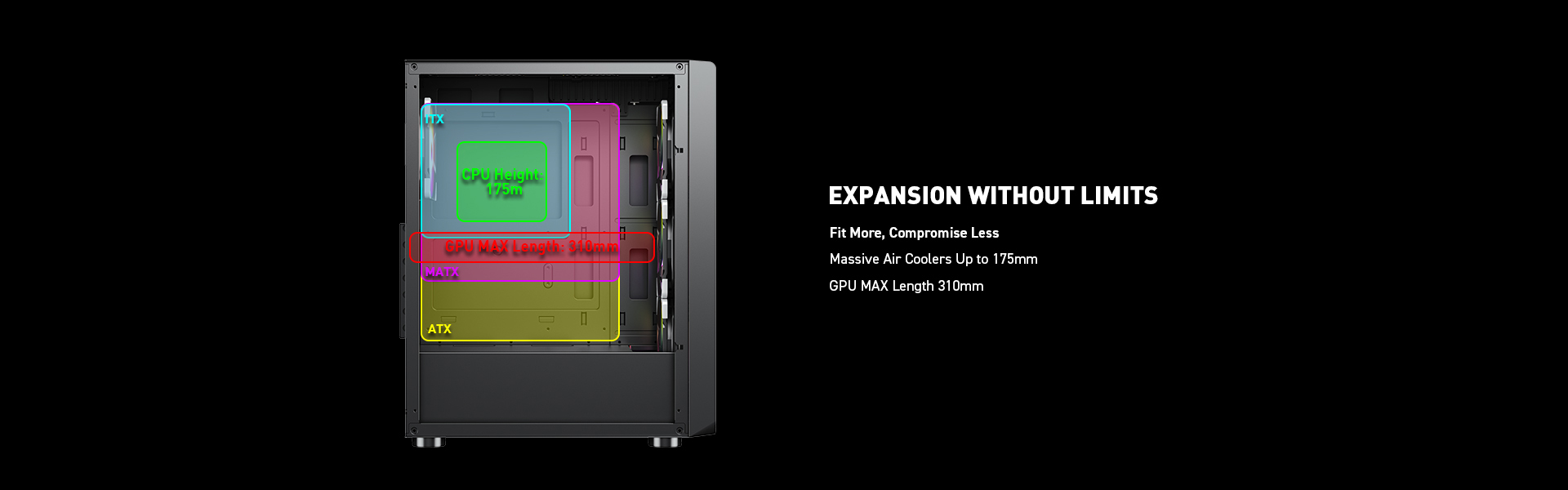

VGA Clearance
310mm
CPU Cooler Clearance
175mm

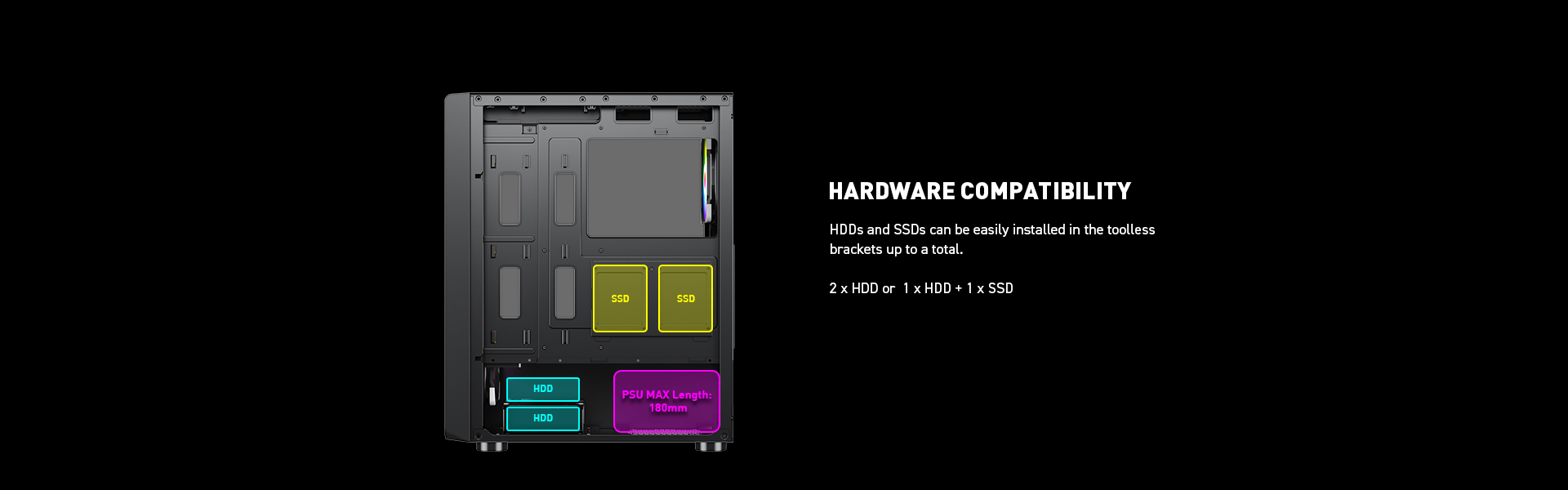

3.5+2.5 Driver Bays
2+2
Power Supply
180mm
Chassis Dimension
335*216*445mm
Product Dimension
368*216*458mm
40HQ Container
1150 PCS
I/O Ports
USB3.0*1 + USB1.0*2 + HD Audio

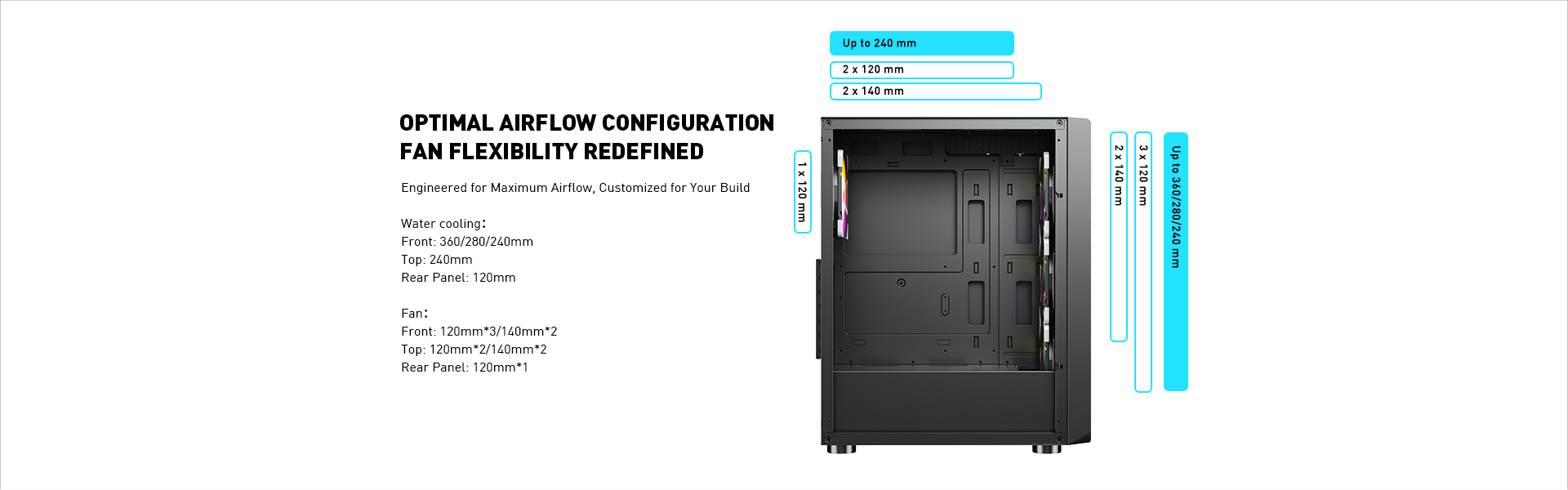

Air Cooling
Front: 120mm x 3 or 140mm x 2 Top: 120mm x 2 or 140mm x 2 Rear: 120mm x 1
Liquid Cooling
Front: 360mm / 280mm / 240mm Top: 240mm Rear: 120mm
Body Materiarl
SPCC 0.45mm
Front Panel
ABS
Left Panel
3mm glass side panel
Right Panel
0.45mm Metal
