GQ01

Motherboards

ATX / MICRO ATX / ITX
Chassis Dimension

435*225*465mm
VGA Clearance

420mm
CPU Cooler Clearance

176mm
Power Supply

160mm
I/O Ports

USB3.0*1 + USB2.0*1 + Type C*1 +HD Audio

Technical specifications

Model GQ01

Motherboards ATX / MICRO ATX / ITX

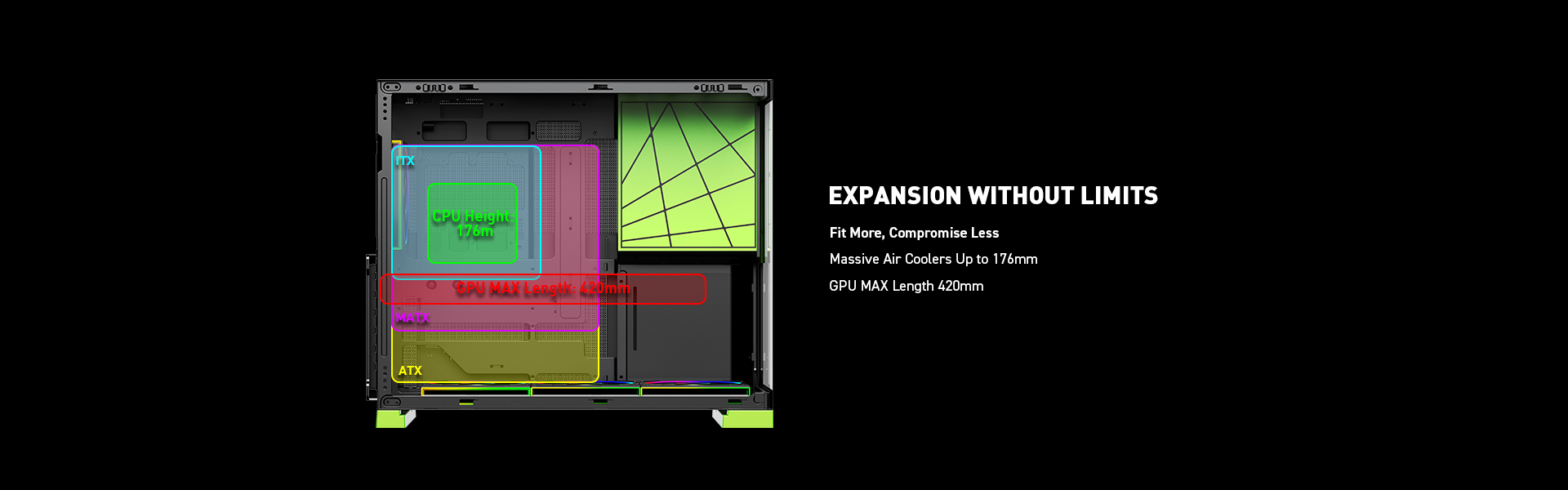

VGA Clearance 420mm

CPU Cooler Clearance 176mm

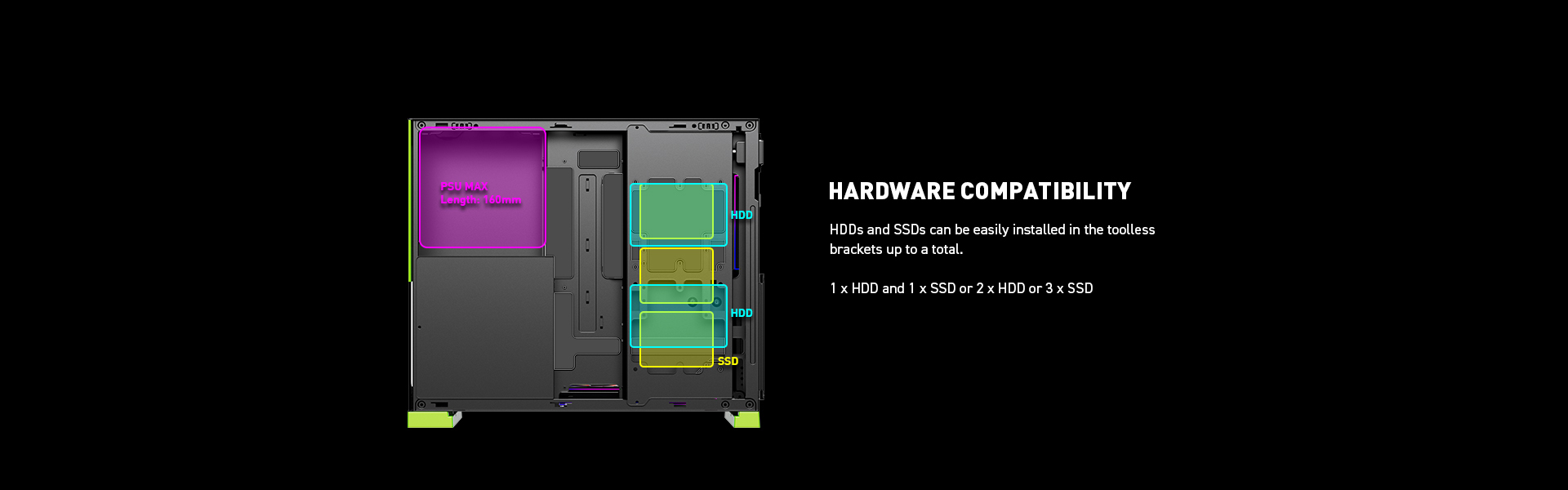

3.5+2.5 Driver Bays 2+0 or 0+3 or 1+1

Power Supply 160mm

Chassis Dimension 432*238*361mm

Product Dimension 432*238*381mm

40HQ Container 980 PCS

I/O Ports USB3.0*1 + USB2.0*1 + Type C*1 +HD Audio

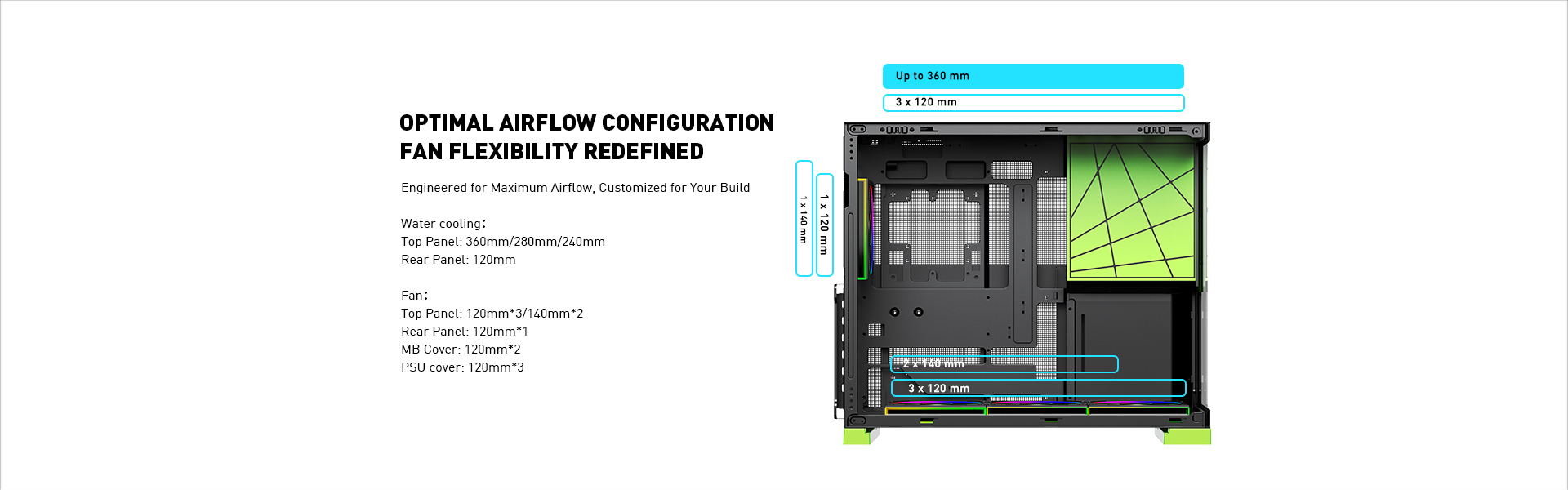

Air Cooling Top: 120mm x 3 Rear: 120mm x 1 or 140mm x 1 Bottom: 120mm x 3 or 140mm x 2

Liquid Cooling Top :240mm/360mm Rear: 120mm

Body Materiarl SPCC 0.7mm

Front Panel 3mm glass

Left Panel 3mm glass

Right Panel 0.7mm Metal
