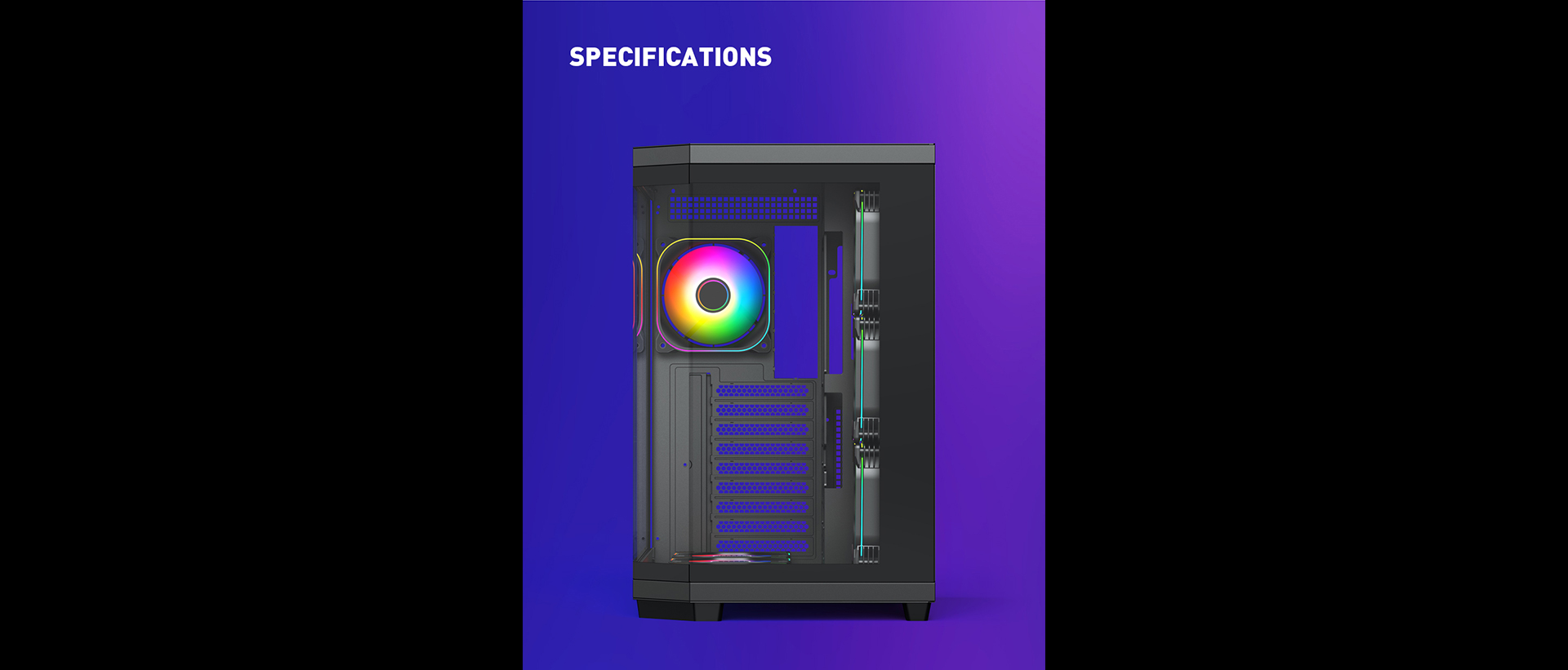

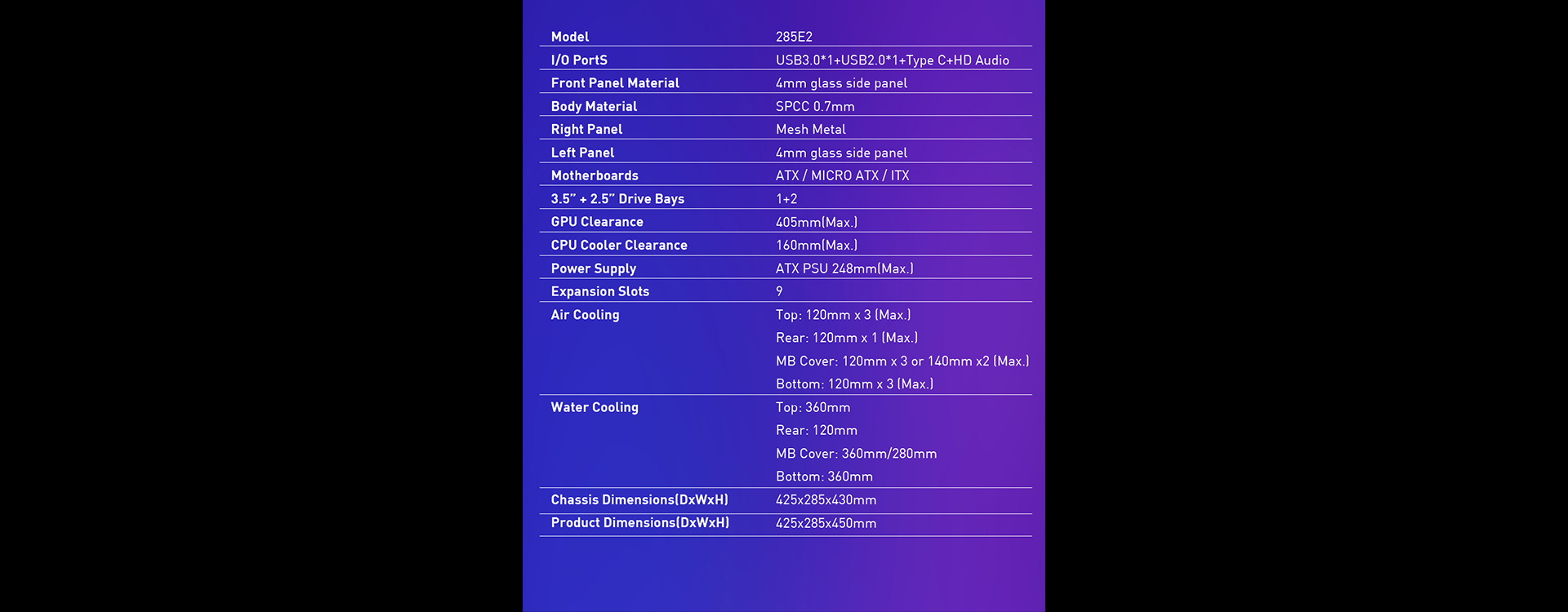

Technical specifications

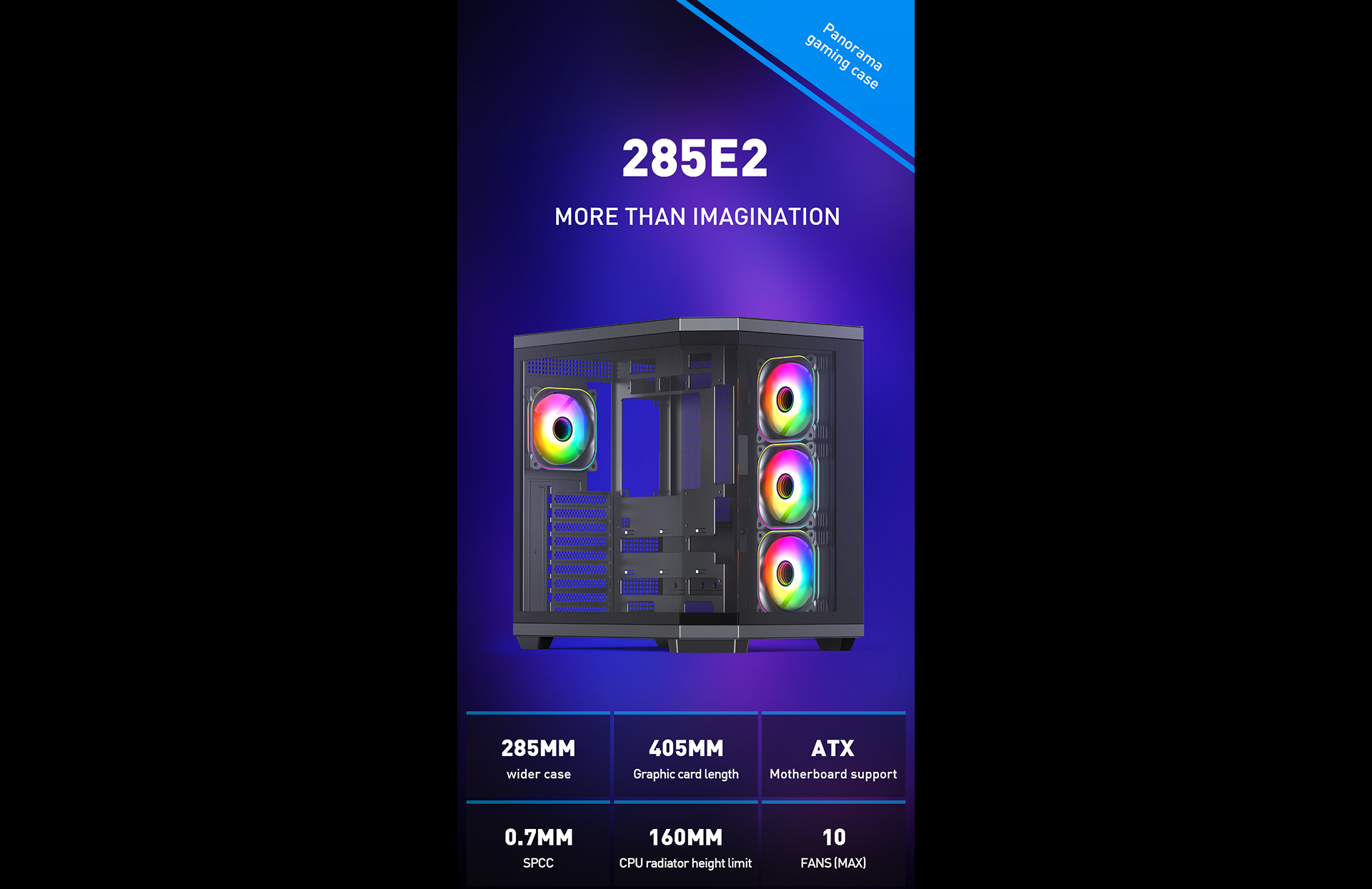

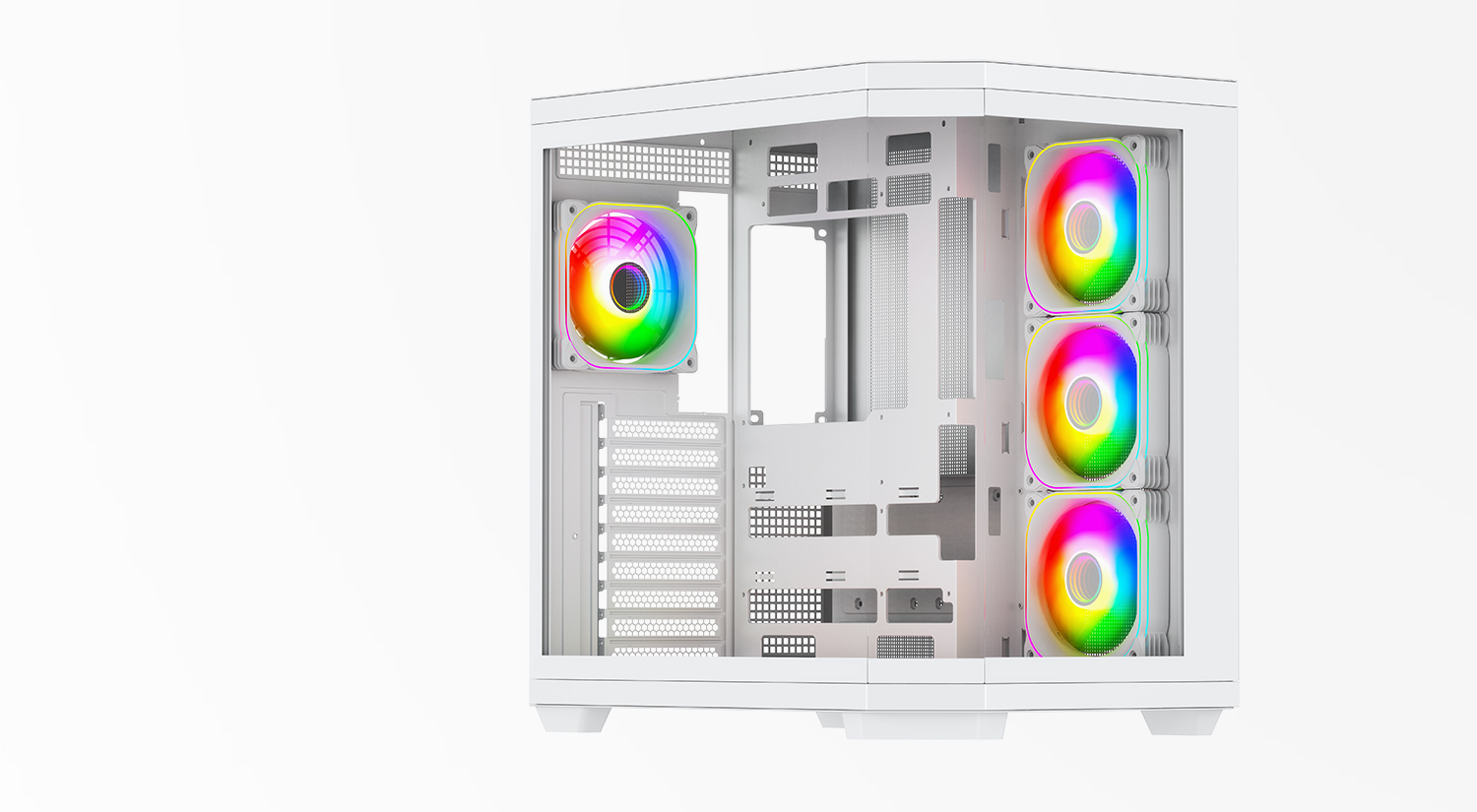

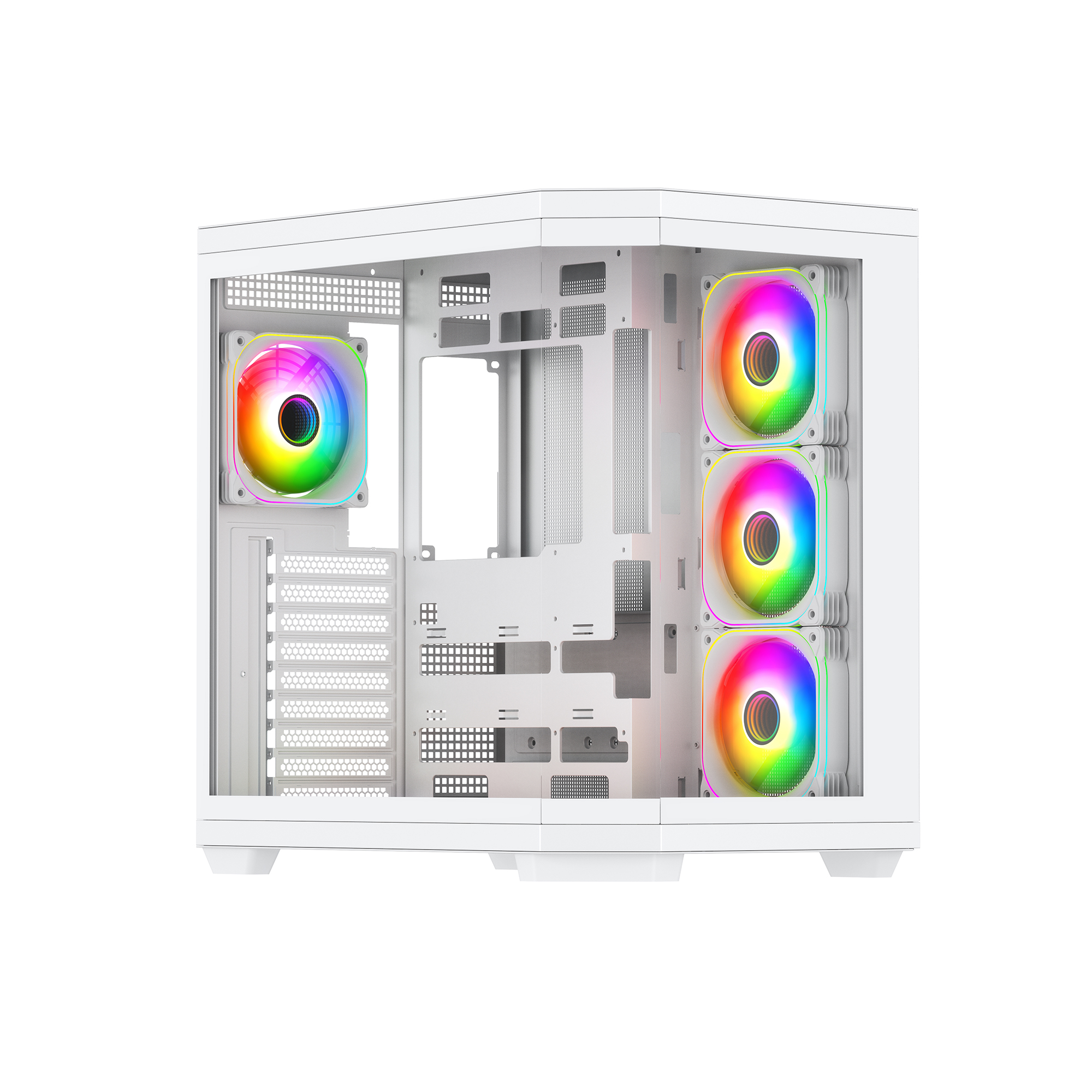

Model 285E2

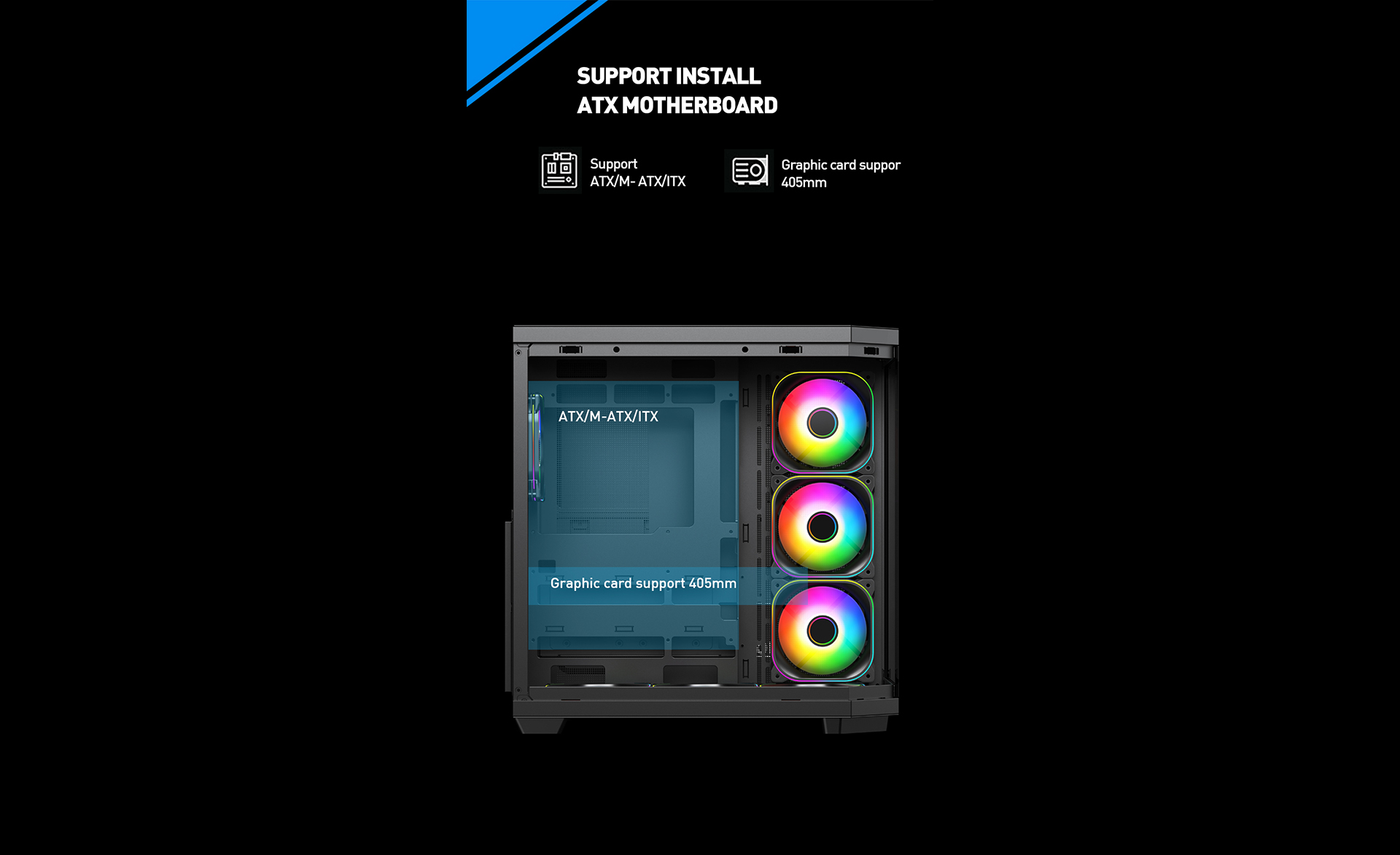

Motherboards ITX / MICRO ATX / ATX

VGA Clearance 405mm

CPU Cooler Clearance 160mm

3.5+2.5 Driver Bays 1+1

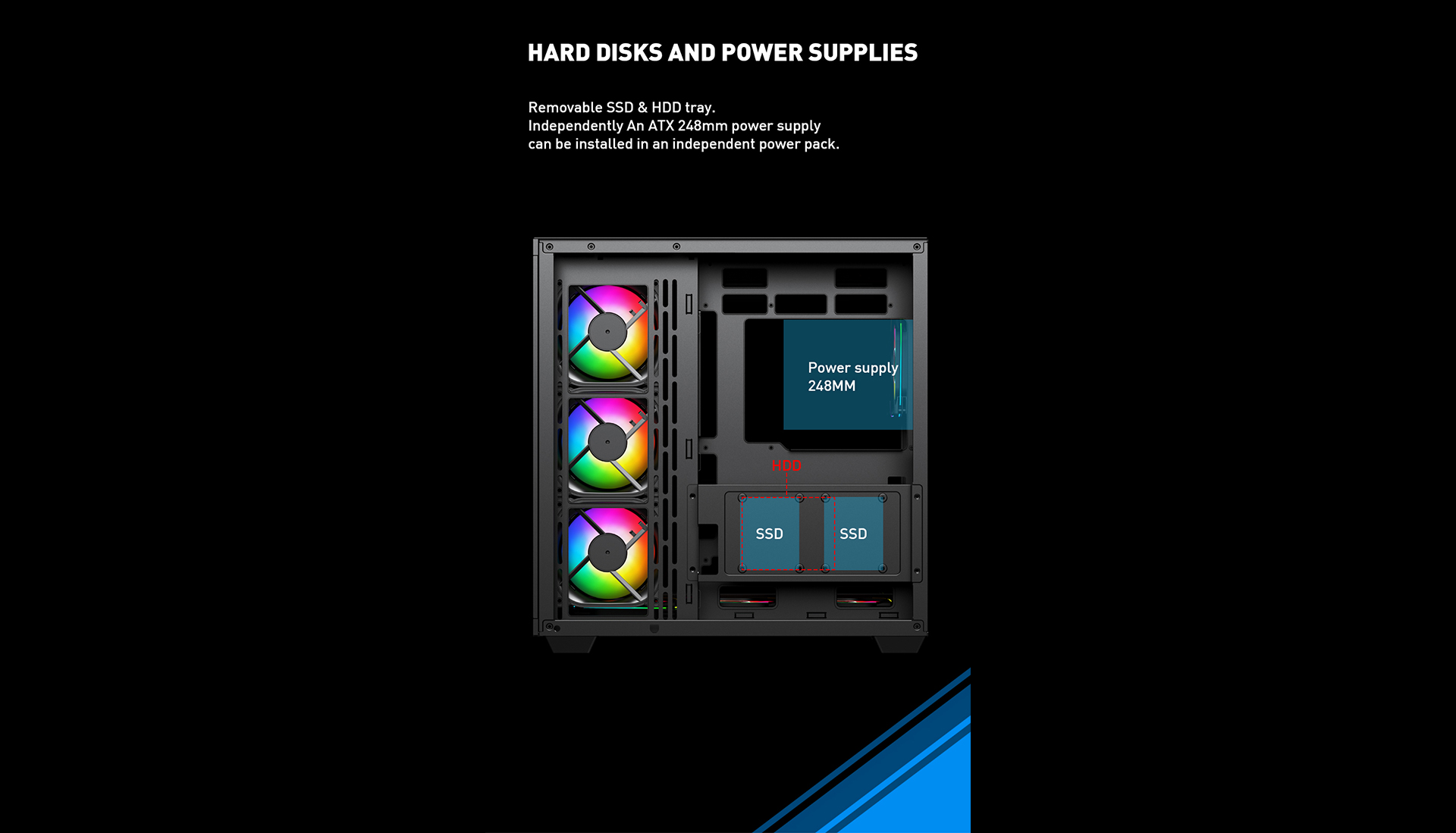

Power Supply 248mm

Chassis Dimension 425*285*430mm

Product Dimension 425*285*450mm

40HQ Container 740 PCS

I/O Ports USB3.0*1 + USB1.0*1 +Type C + HD Audio

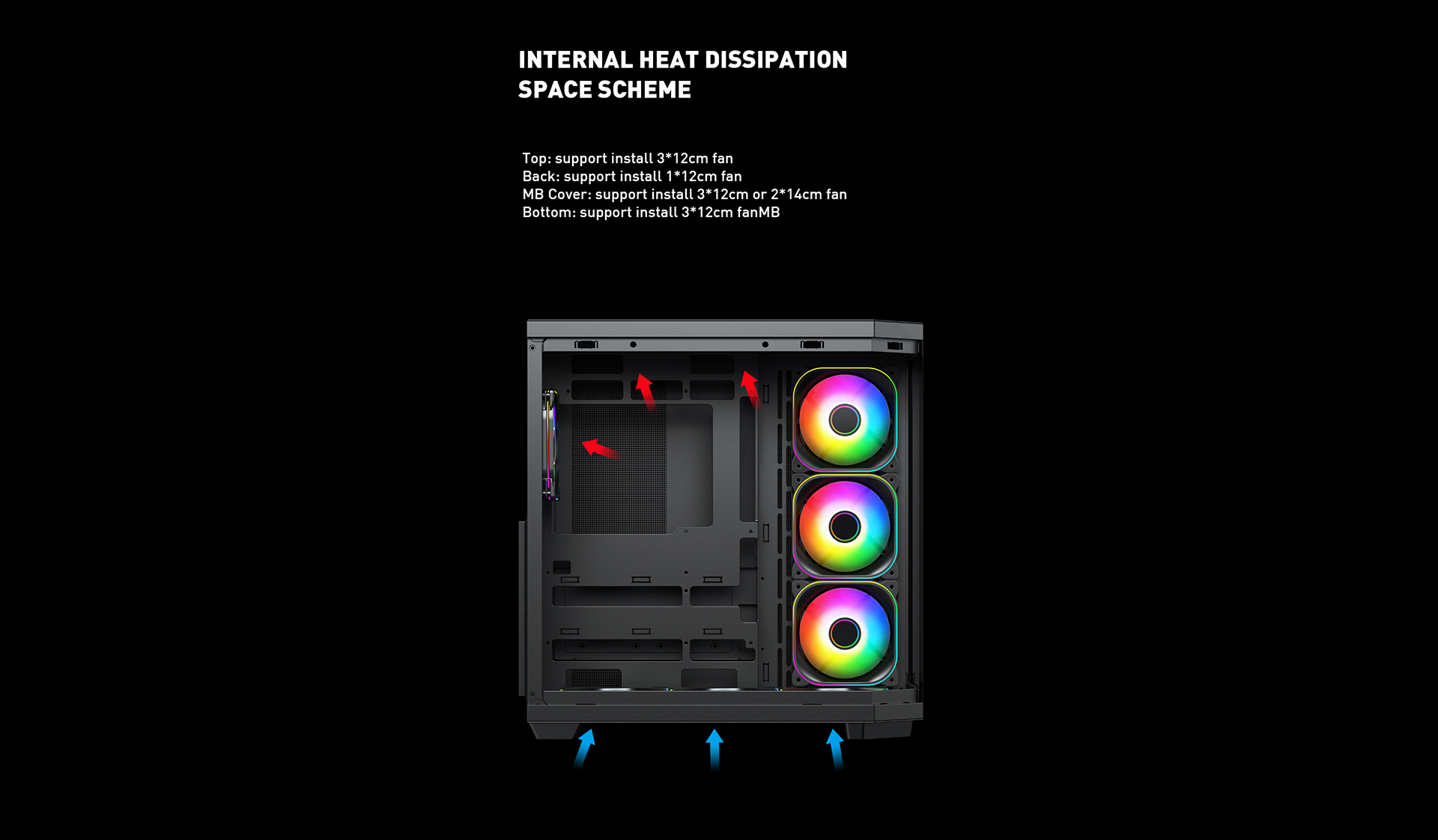

Air Cooling Top: 120mm x 3 Rear: 120mm x 1 MB cover : 120mm x 3 or 140mm x 2 Bottom :120mm x 3

Liquid Cooling Top :360mm Rear: 120mm MB cover :360mm/280mm Bottom :360mm

Body Materiarl SPCC 0.7mm

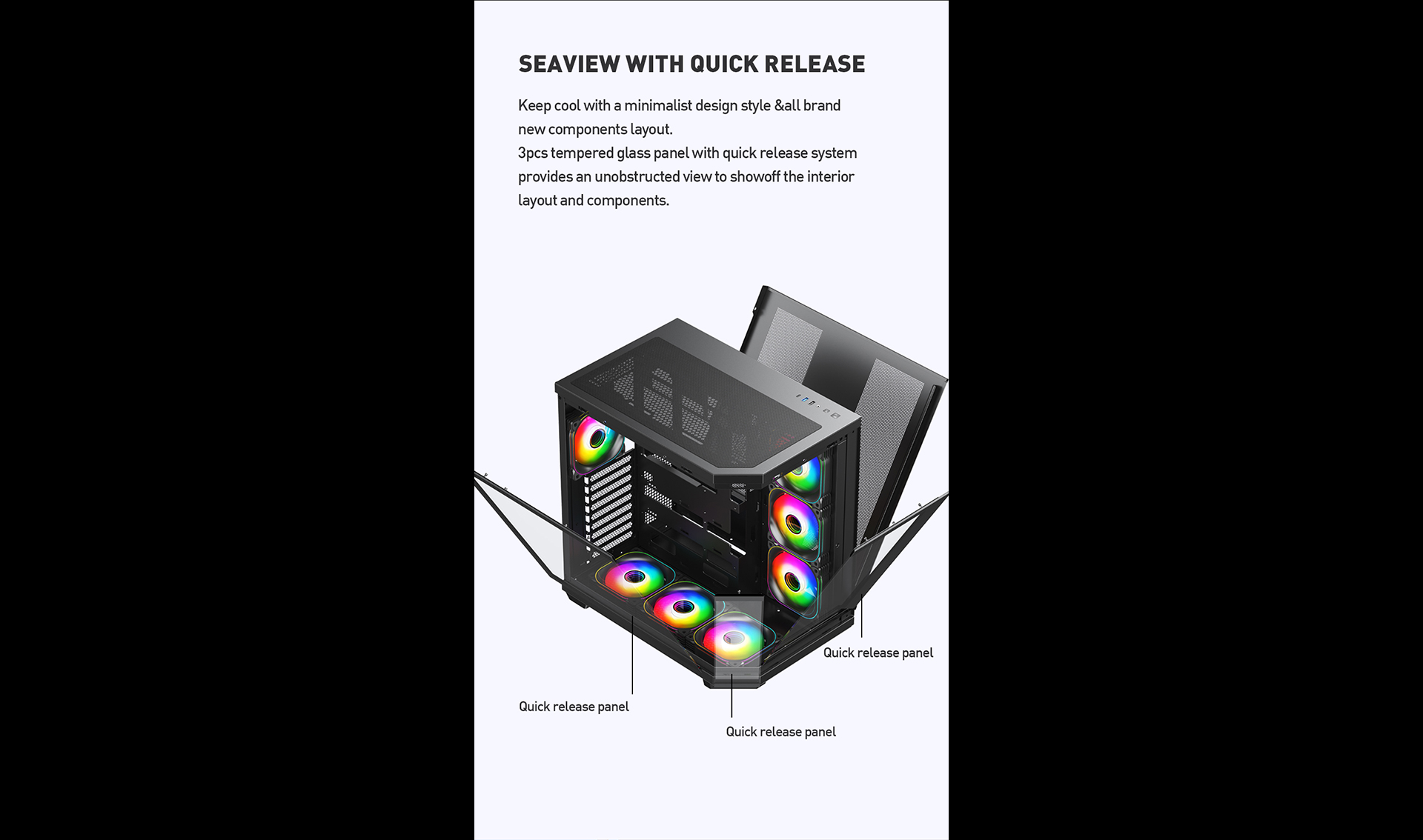

Front Panel 4mm glass side panel

Left Panel 4mm glass side panel

Right Panel 0.7mm Metal
