N712_PC CASE_Products

Technical specifications

Model N712

Motherboards ITX / MICRO ATX / ATX

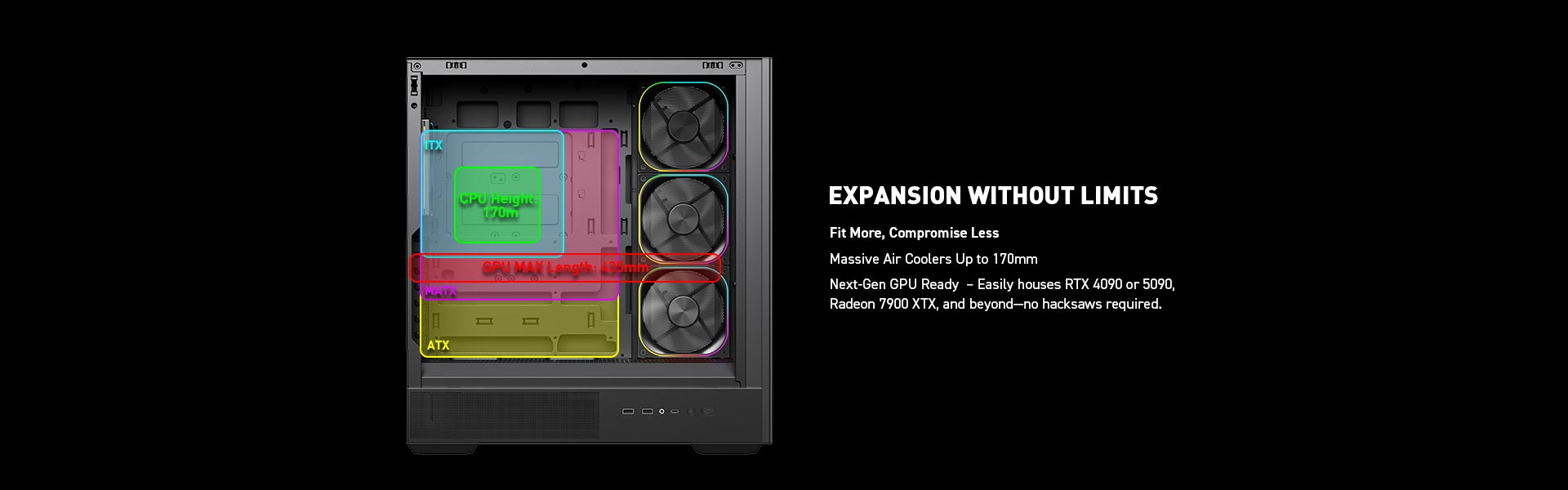

VGA Clearance 400mm

CPU Cooler Clearance 170mm

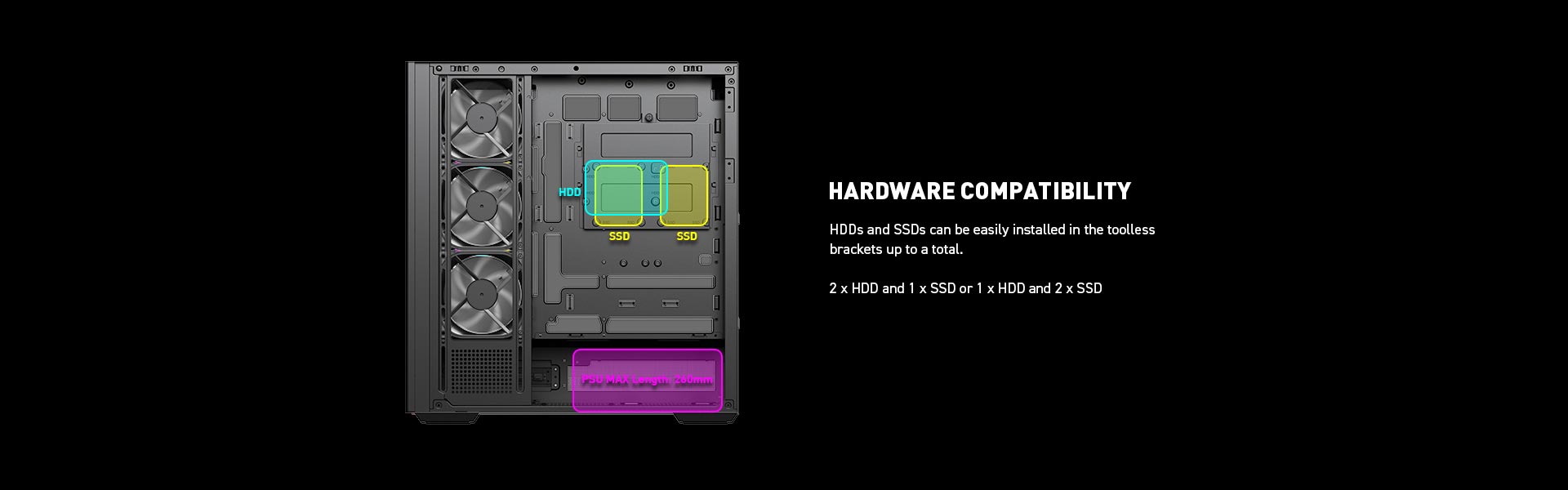

3.5+2.5 Driver Bays 2+1 or 1+2 or 0+3

Power Supply 260mm

Chassis Dimension 440*235*478mm

Product Dimension 453*235*492mm

40HQ Container 655 PCS

I/O Ports USB3.0*2 +TYPE C + HD Audio

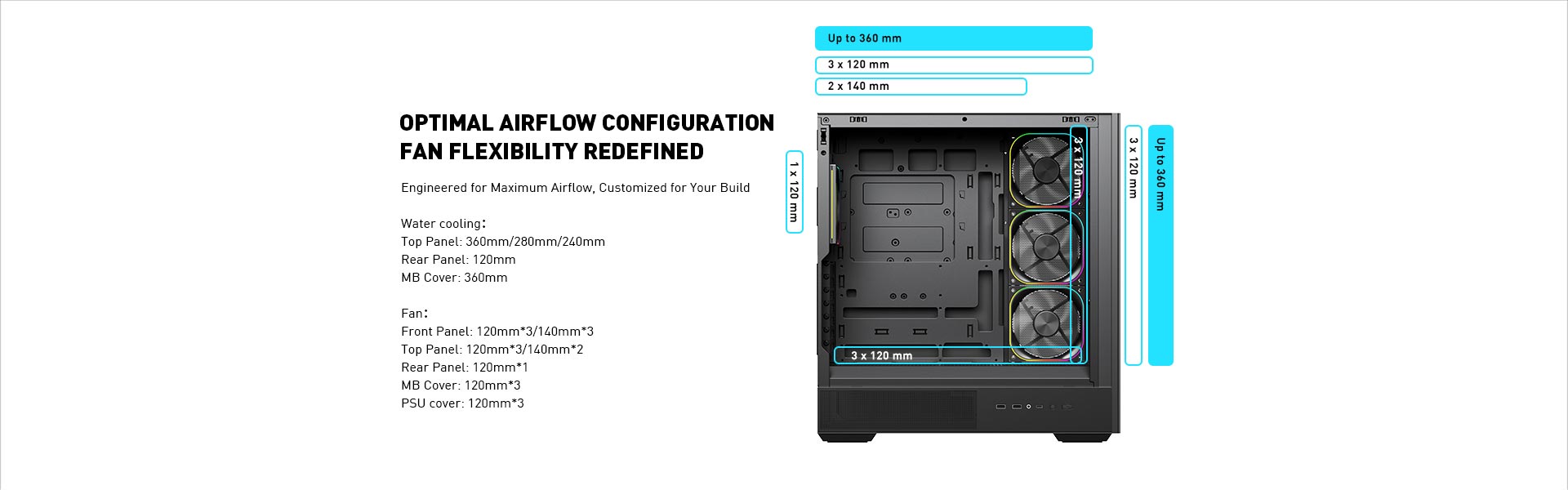

Air Cooling Front:120mm x 3 or 140mm x 3(Max.) Top: 120mm x 3 or 140mm x 2 (Max.) Rear: 120mm x 1 (Max.) MB cover :120mm x 3 (Max.) PSU cover :120mm x 3 (Max.)

Liquid Cooling Top :240mm/280mm/360mm Rear: 120mm MB cover: 360mm

Body Materiarl SPCC 0.7mm

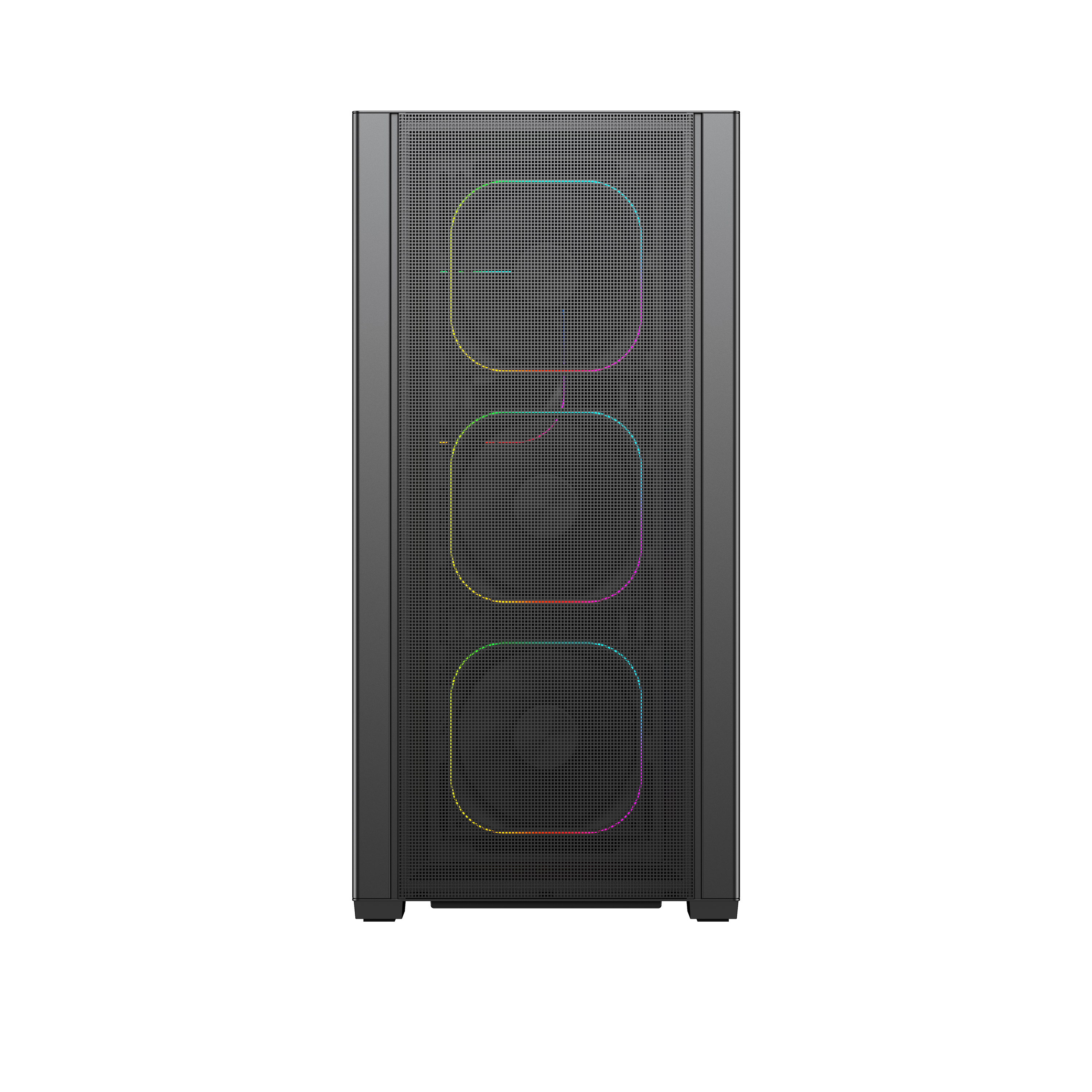

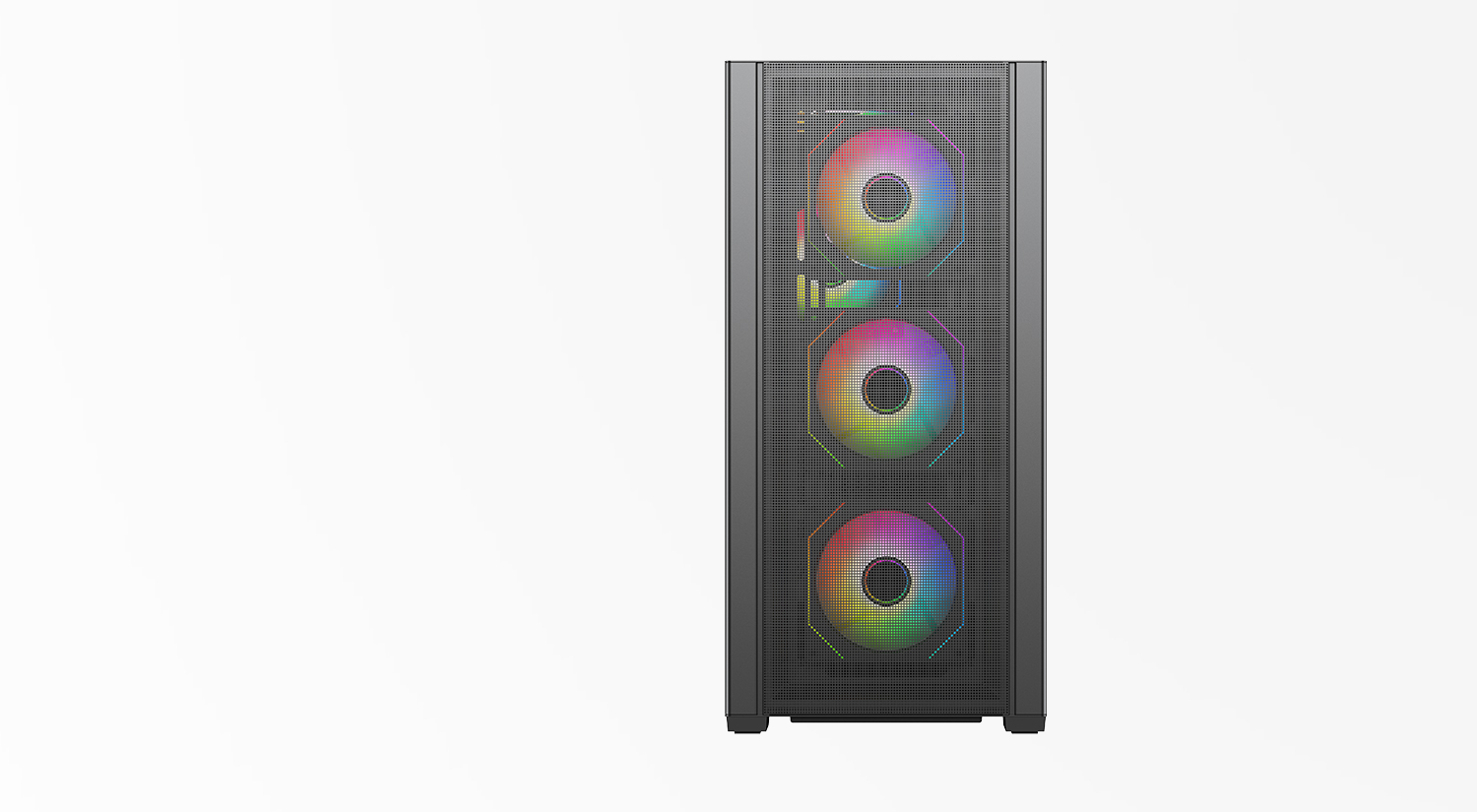

Front Panel mesh

Left Panel 4mm glass side panel

Right Panel 0.7mm Metal
