SM01
-
MotherboardsITX / MICRO ATX
-
Chassis Dimension445*220*395mm
-
VGA Clearance380mm
-
CPU Cooler Clearance180mm
-
Power Supply200mm
-
I/O PortsUSB3.0*1 + USB1.0*1 + HD Audio
Technical specifications
Model
SM01
Motherboards
ITX / MICRO ATX

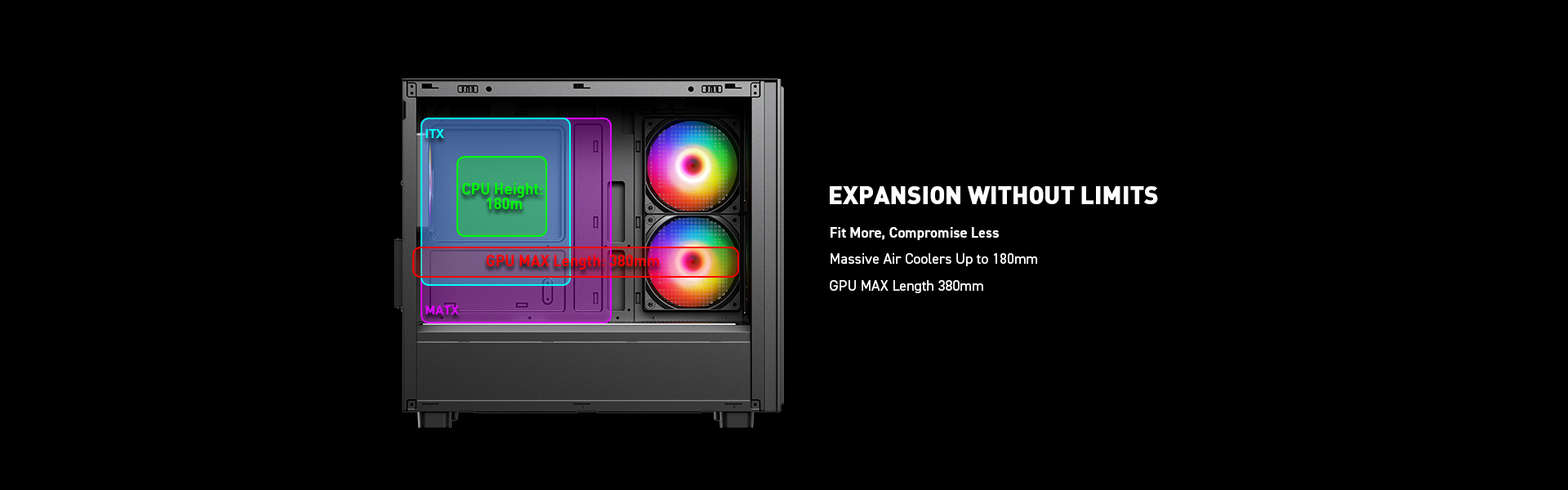

VGA Clearance
380mm
CPU Cooler Clearance
180mm

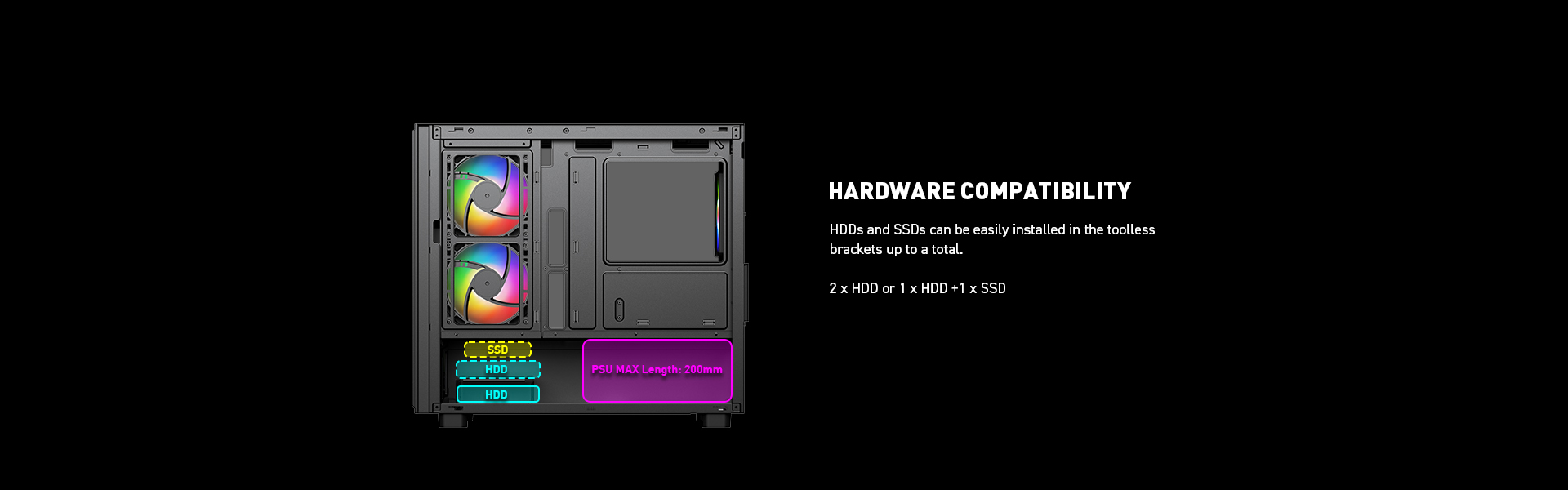

3.5+2.5 Driver Bays
2+0 or 1+1
Power Supply
200mm
Chassis Dimension
445*220*395mm
Product Dimension
450*220*420mm
40HQ Container
840 PCS
I/O Ports
USB3.0*1 + USB1.0*1 + HD Audio

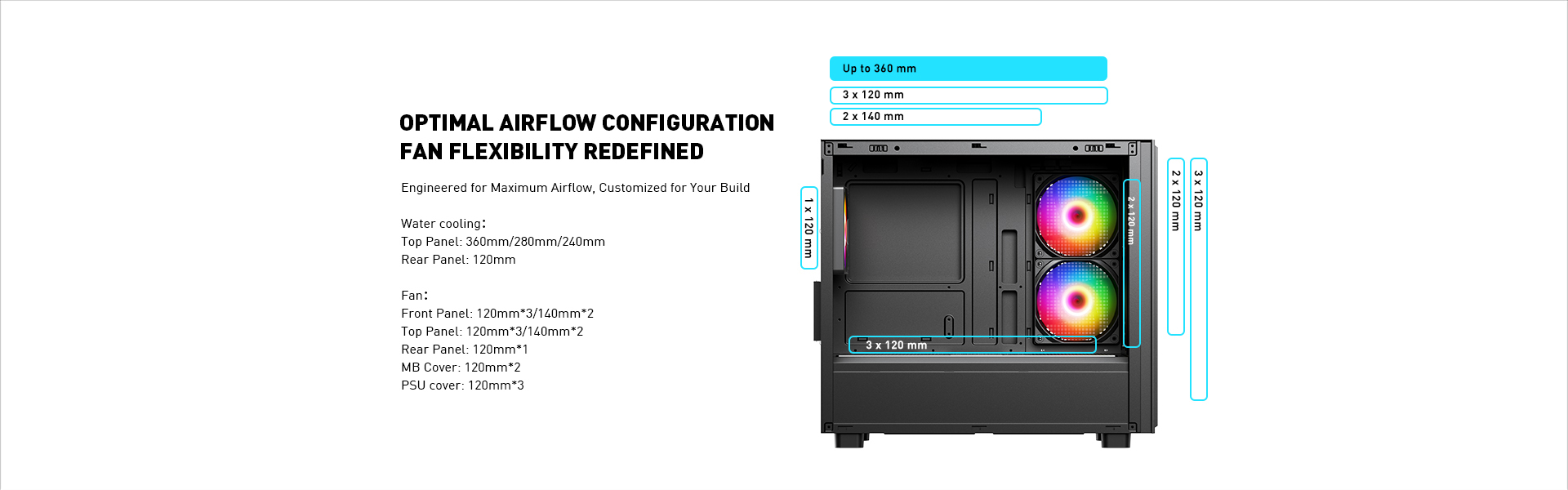

Air Cooling
Front: 120mm x 3 or 140mm x 2 Top: 120mm x 2 or 140mm x 2 Rear: 120mm x 1 PSU Cover: 120mm x 3
Liquid Cooling
Top: 360mm Rear: 120mm
Body Materiarl
SPCC 0.5mm
Front Panel
ABS+mesh
Left Panel
4mm glass side panel
Right Panel
0.5mm Metal
