23502

Motherboards

ITX / MICRO ATX / ATX
Chassis Dimension

445*235*460mm

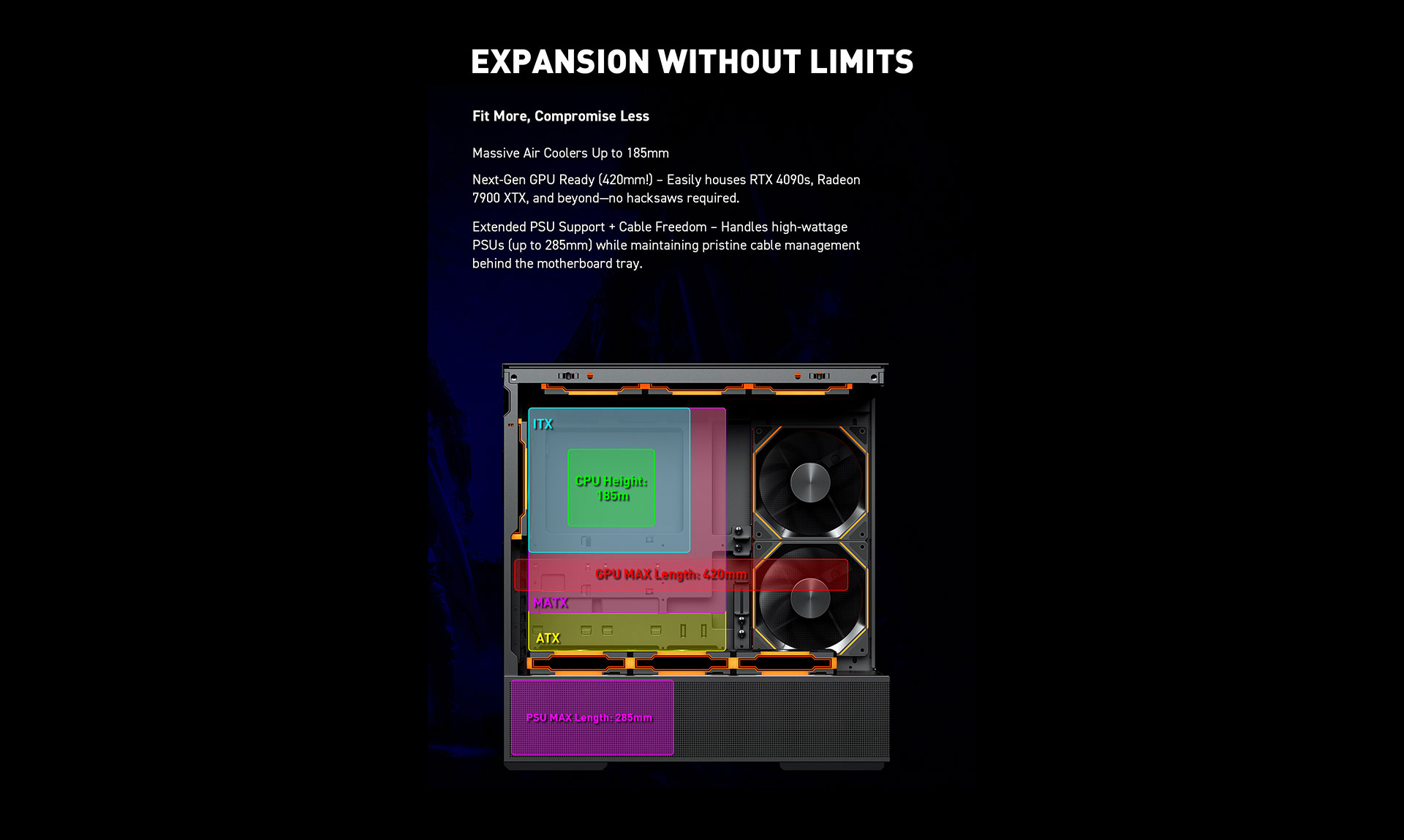

VGA Clearance

420mm
CPU Cooler Clearance

185mm
Power Supply

285mm
I/O Ports

USB3.0*1 + TYPE C +HD Audio

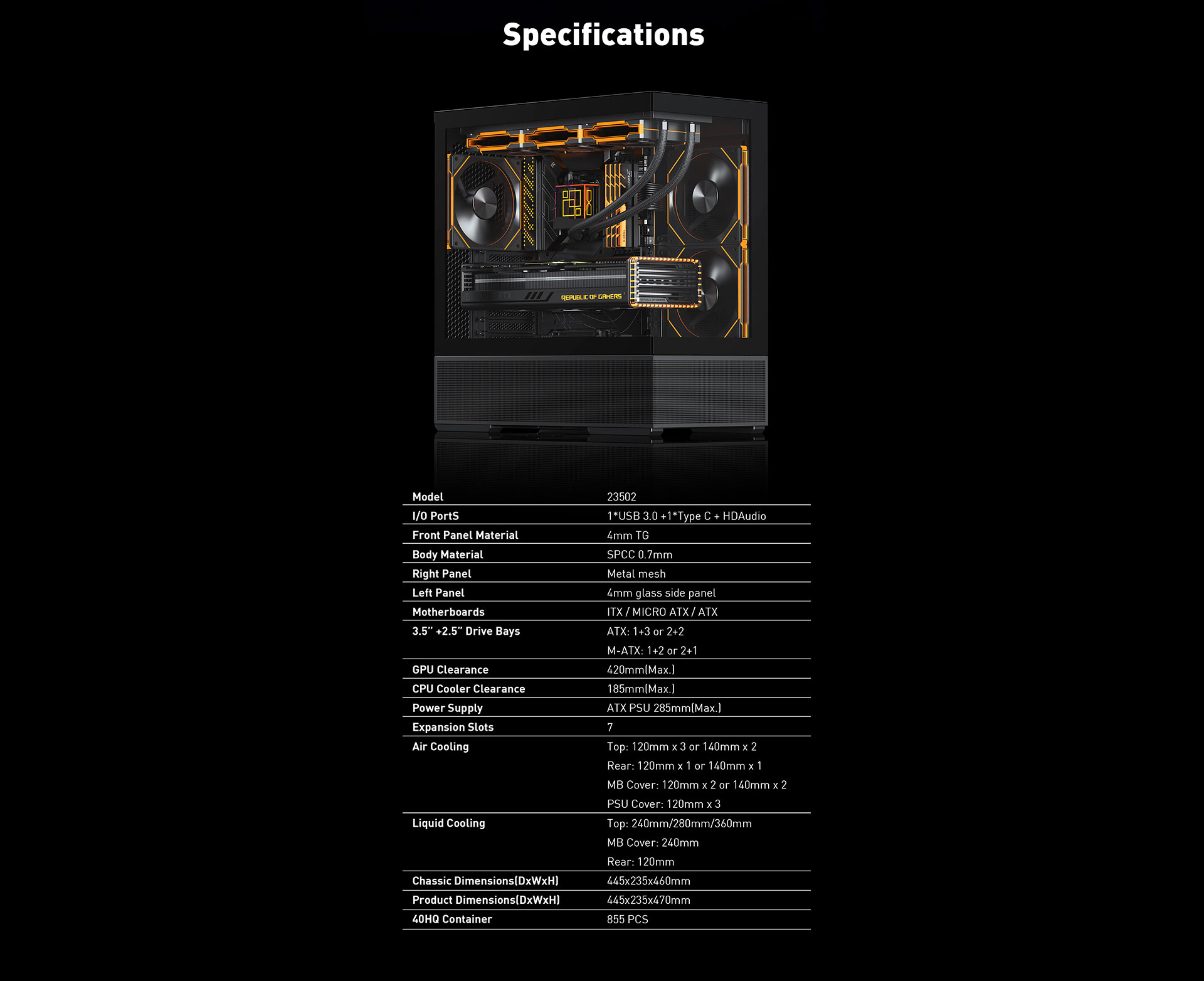

Technical specifications

Model 23502

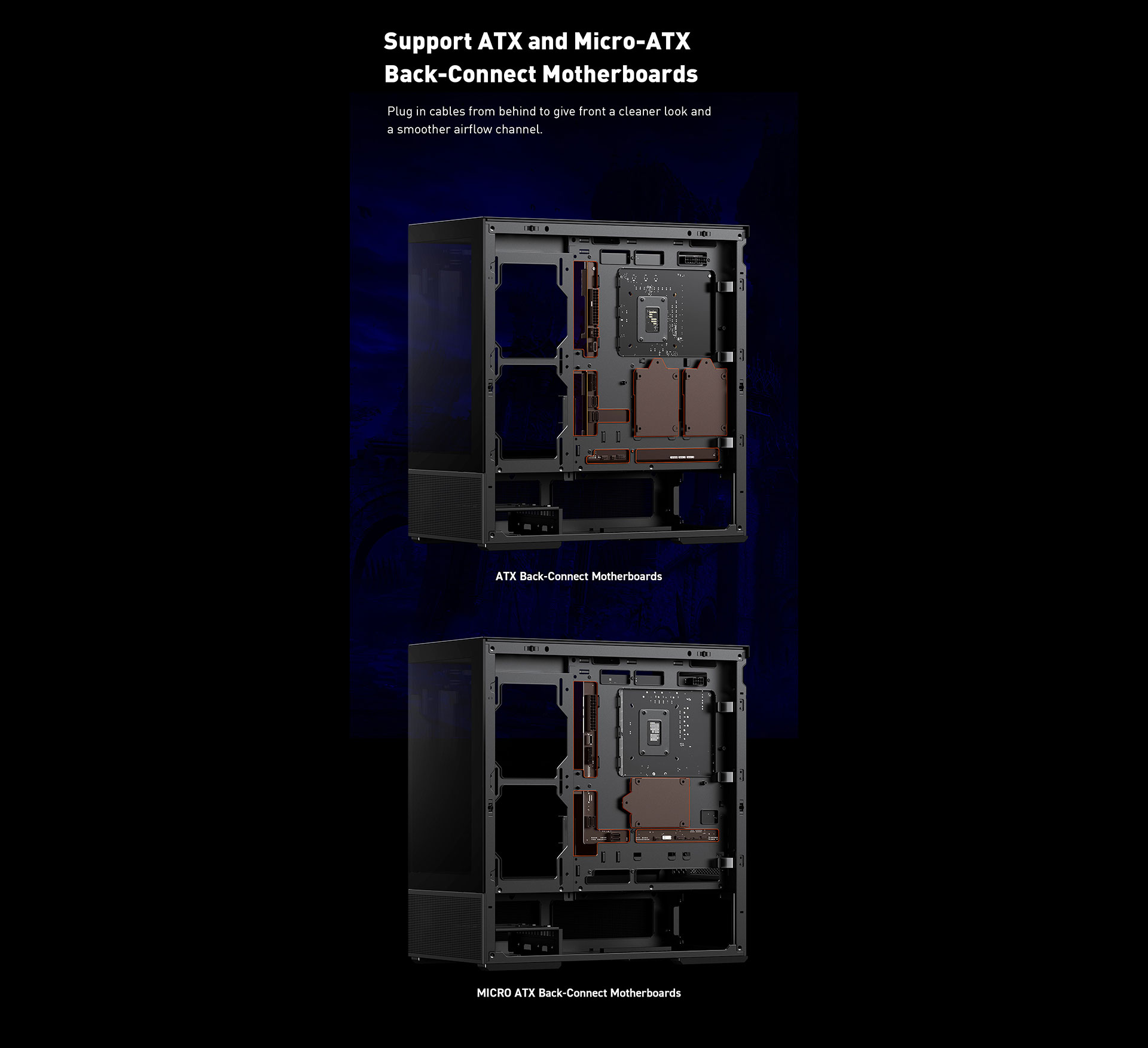

Motherboards ITX / MICRO ATX / ATX

VGA Clearance 420mm

CPU Cooler Clearance 185mm

3.5+2.5 Driver Bays 1+3 or 2+2

Power Supply 285mm

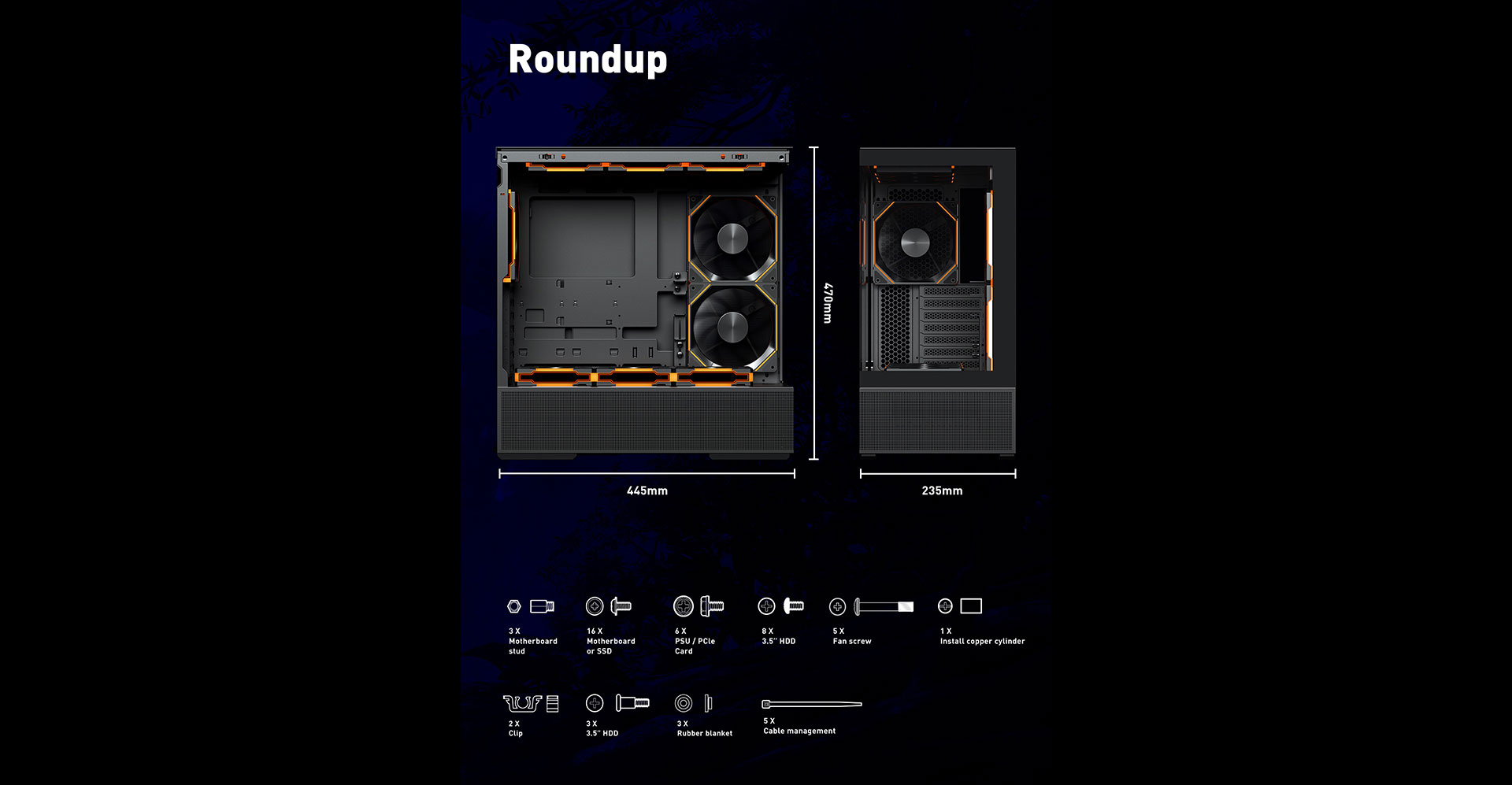

Chassis Dimension 445*235*460mm

Product Dimension 445*235*470mm

40HQ Container 855 PCS

I/O Ports USB3.0*1 +TYPE C + HD Audio

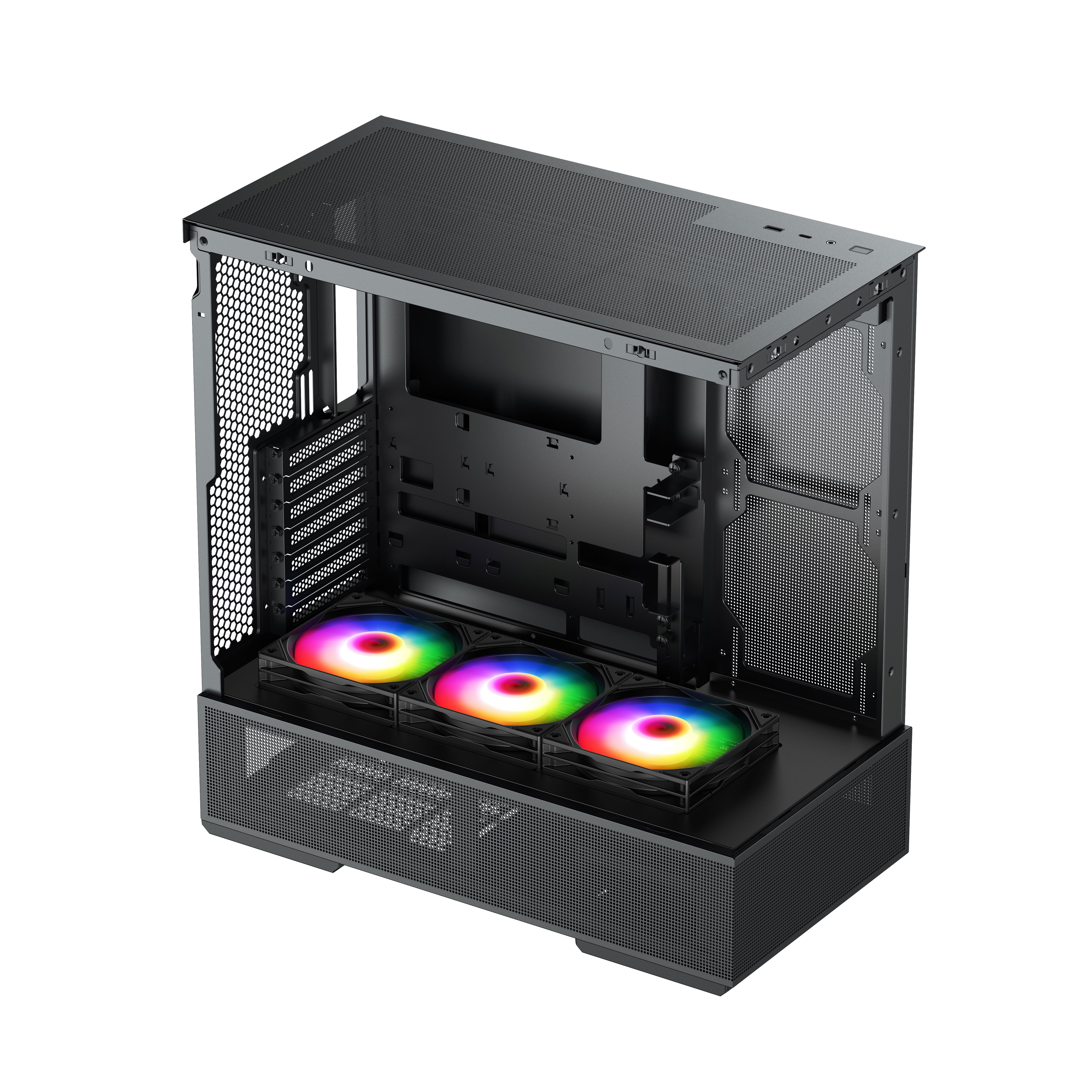

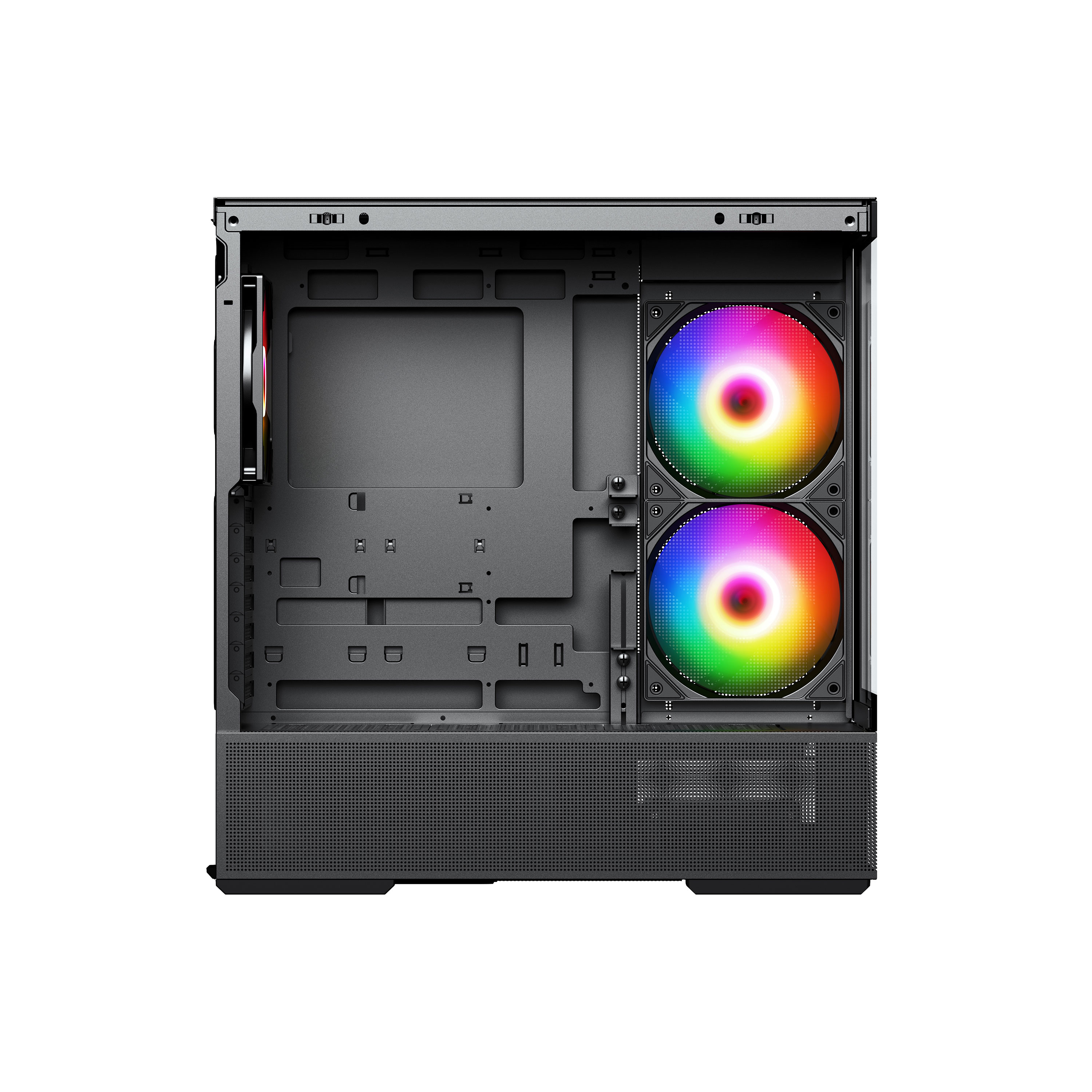

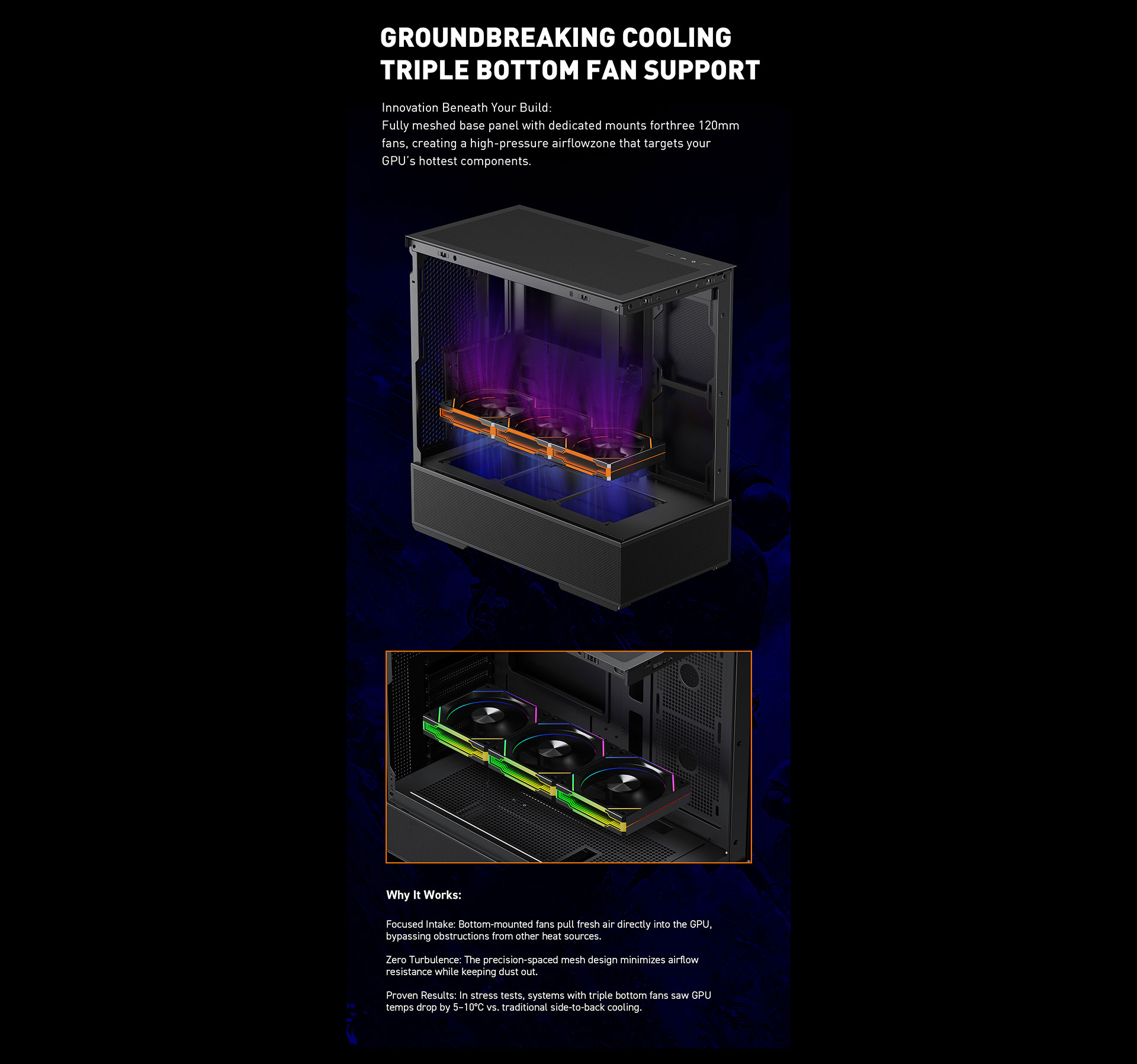

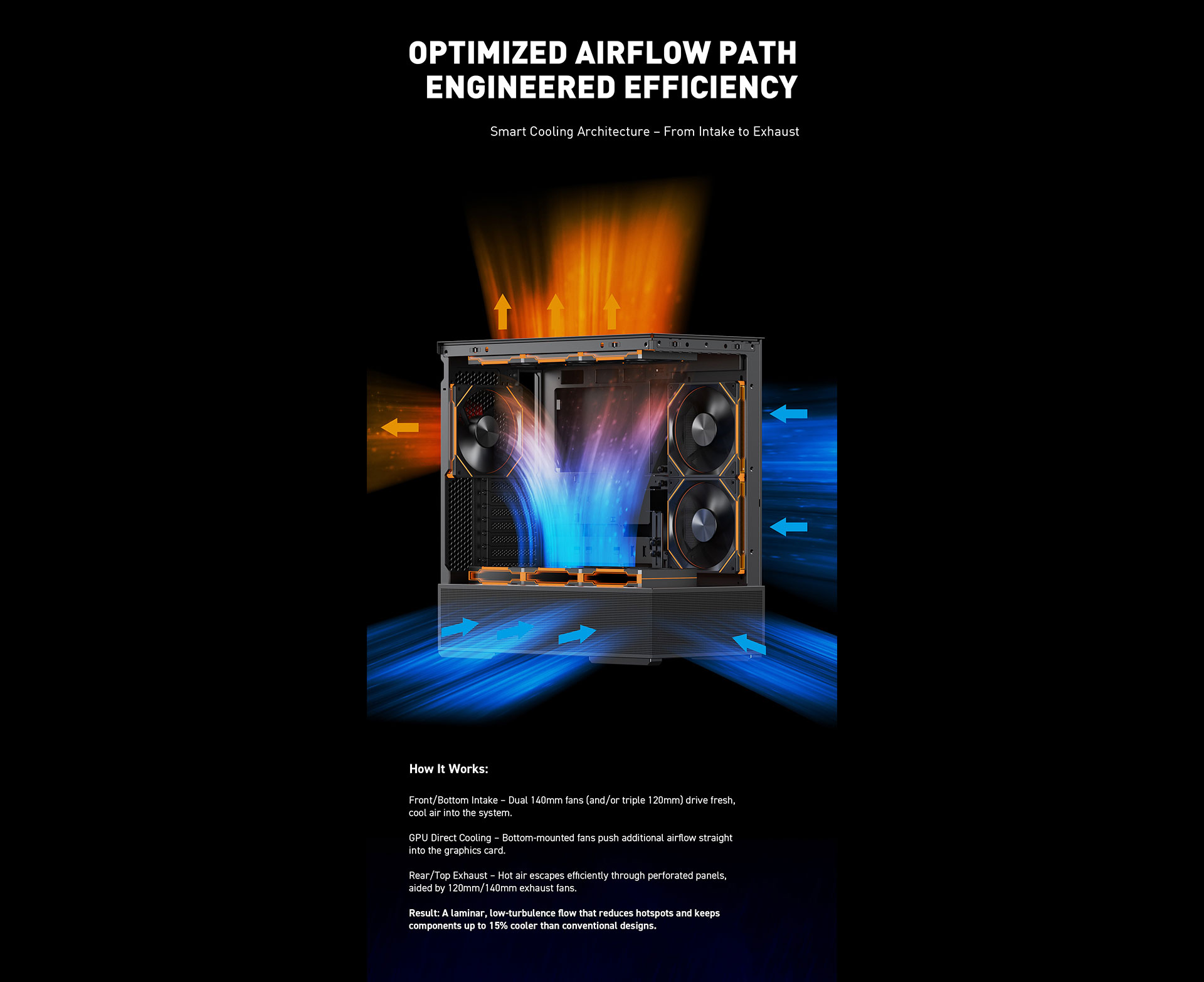

Air Cooling Top: 120mm x 3 or 140mm x 2 (Max.) Rear: 120mm x 1 or 140mm x 1 (Max.) MB cover :120mm x 2 or 140mm x 2(Max.) PSU cover :120mm x 3 (Max.)

Liquid Cooling Top :240mm/280mm/360mm Rear: 120mm MB cover: 240mm

Body Materiarl SPCC 0.7mm

Front Panel 4mm glass

Left Panel 4mm glass

Right Panel 0.7mm Metal
