H6 Screen BK_PC CASE_Products

Technical specifications

Model H6 Screen

Motherboards ITX / MICRO ATX / ATX / EATX

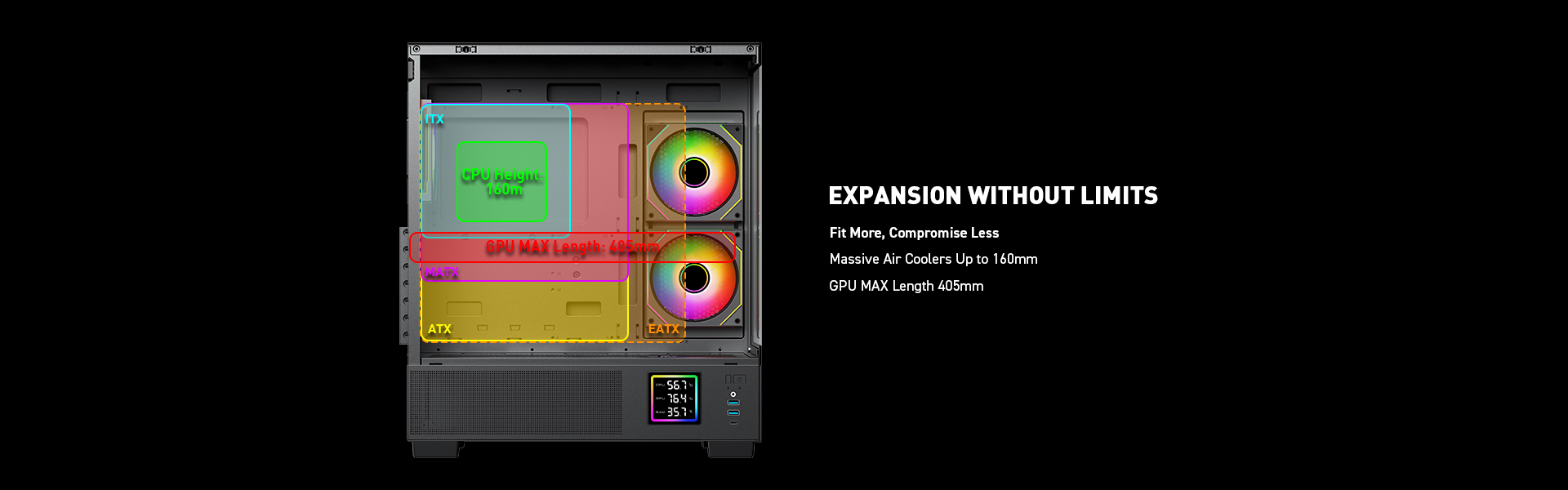

VGA Clearance 405mm

CPU Cooler Clearance 160mm

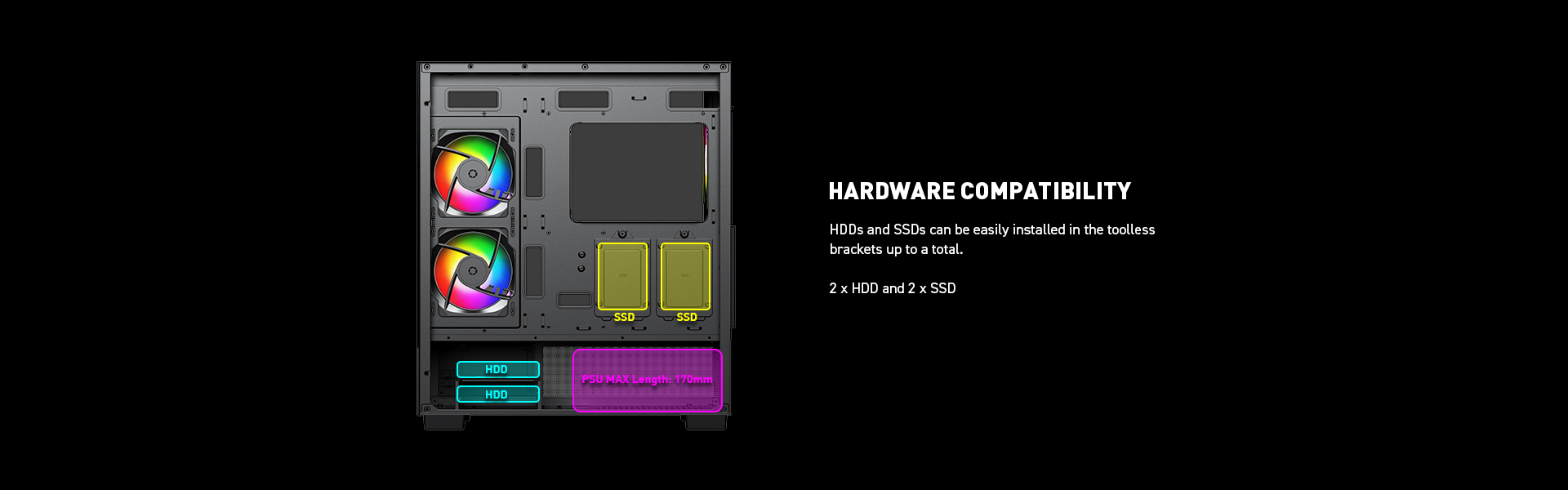

3.5+2.5 Driver Bays 2+2

Power Supply 170mm

Chassis Dimension 410*210*465mm

Product Dimension 413*210*485mm

40HQ Container 980 PCS

I/O Ports USB3.0*2 + HD Audio

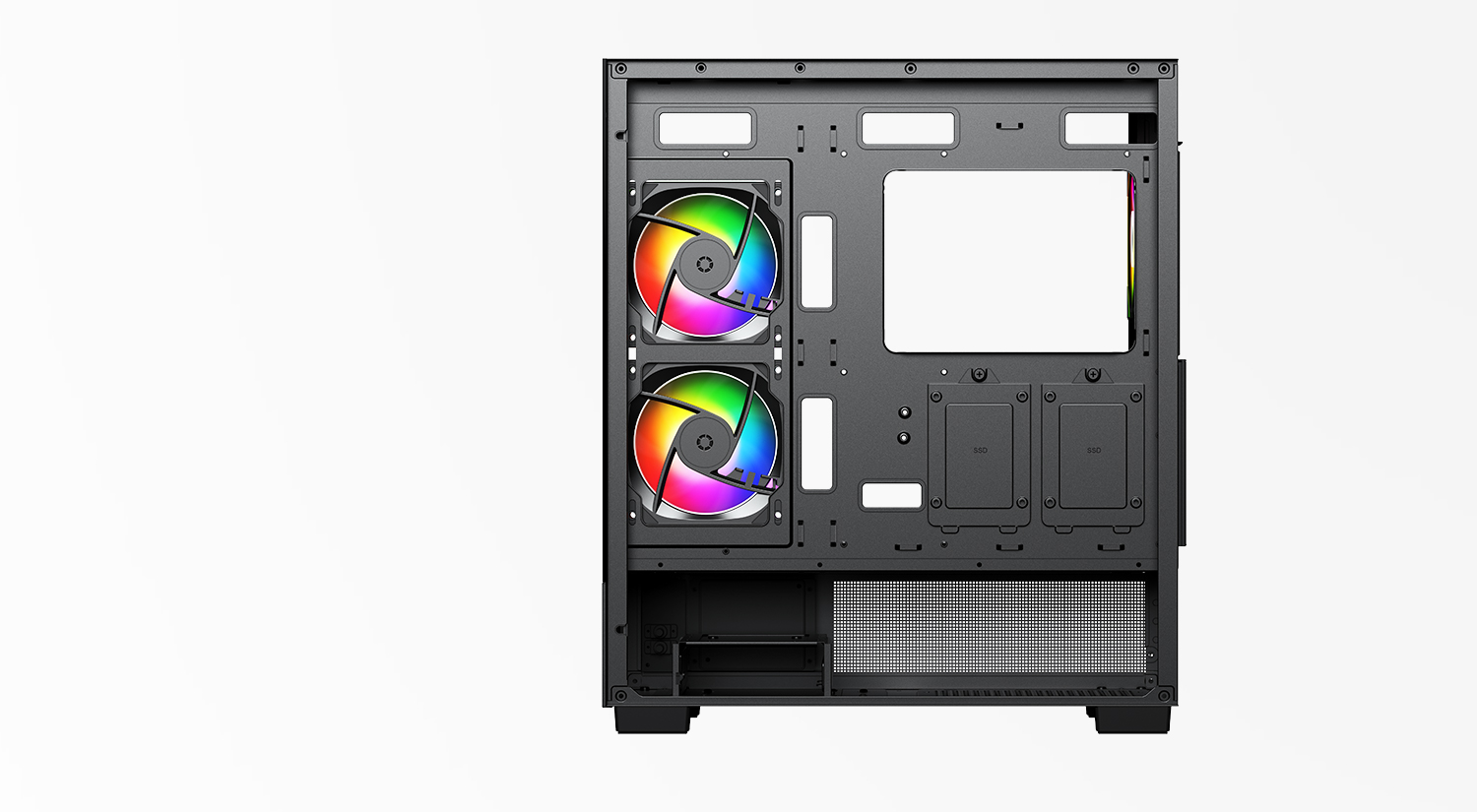

Air Cooling Top: 120mm x 3 or 140mm x 2 Rear: 120mm x 1 MB cover :120mm x 2 PSU cover :120mm x 3

Liquid Cooling Top :240mm/280mm/360mm Rear: 120mm

Body Materiarl SPCC 0.5mm

Front Panel 3mm glass side panel

Left Panel 3mm glass side panel

Right Panel 0.5mm Metal
